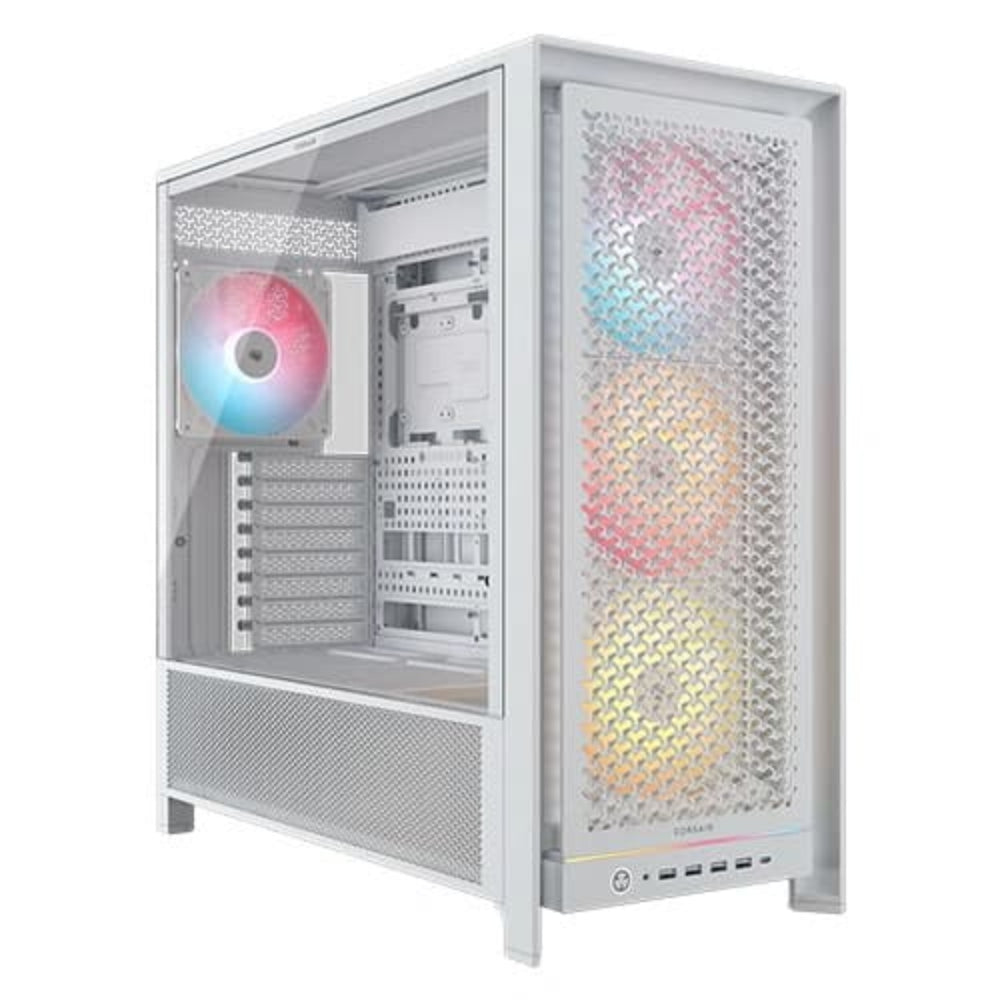

CORSAIR Frame 5000D RS ARGB EATX Mid Tower Cabinet ( White )

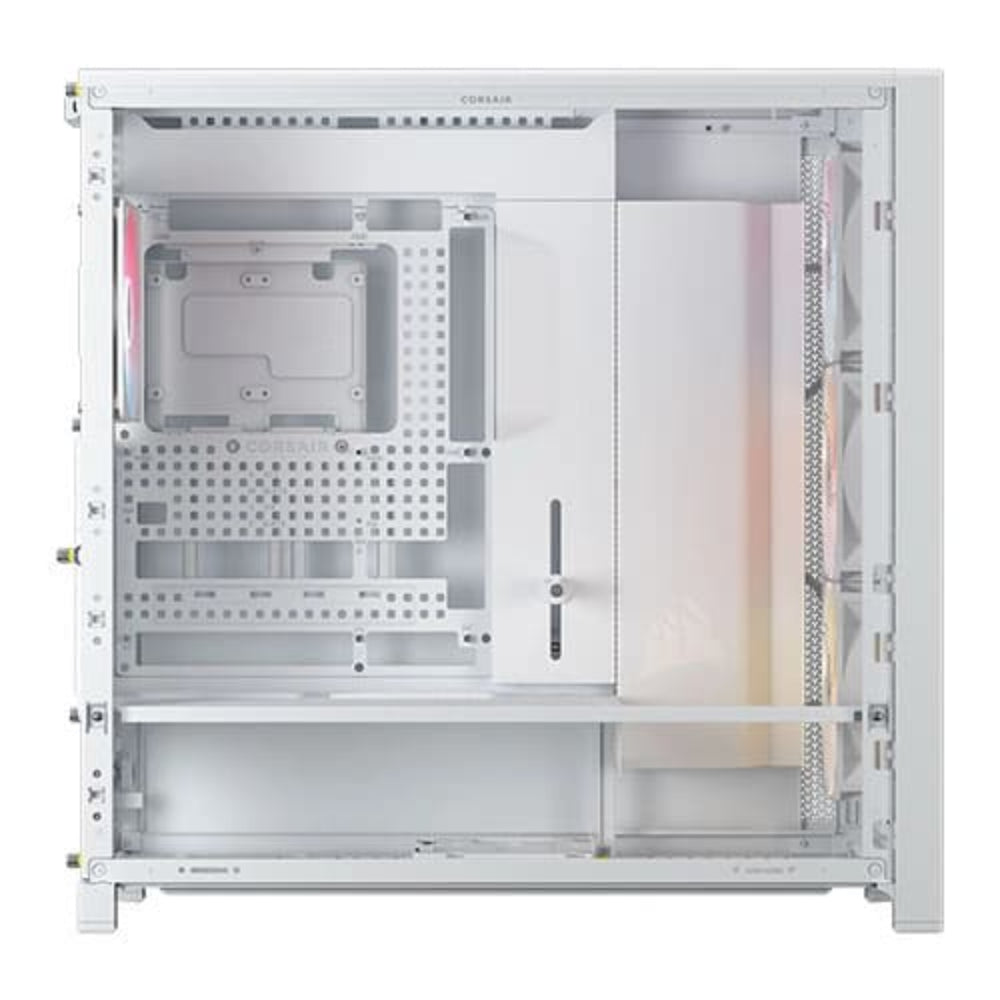

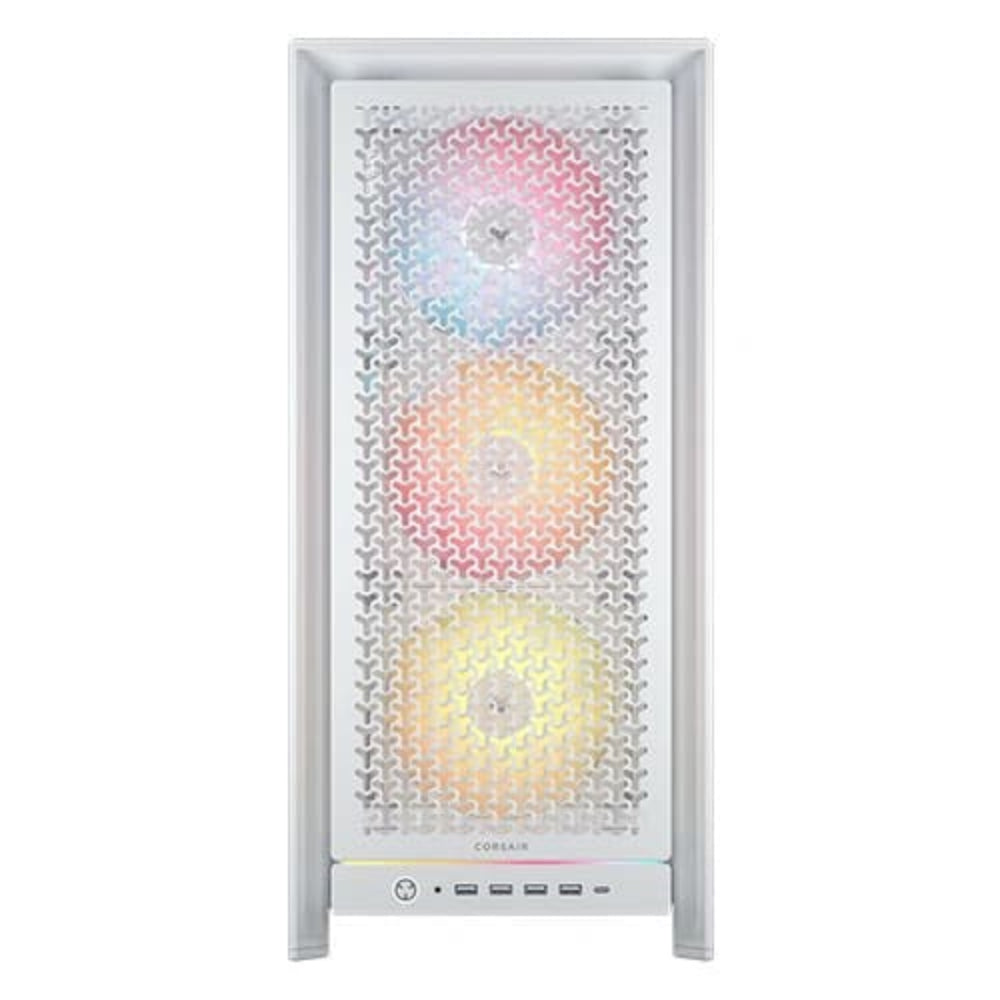

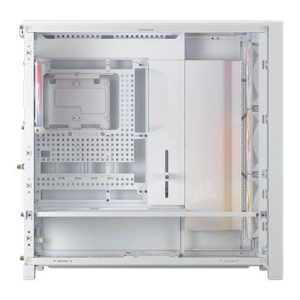

The CORSAIR Frame 5000D RS ARGB Mid Tower Cabinet in White (Model CC-9011310-WW) is a feature-packed E-ATX mid-tower case built around the FRAME Modular Case System — a platform that lets you swap the motherboard tray, front I/O panel, PSU shroud, and other core components to evolve your build over time. At the heart of the airflow story is the 3D Y-Pattern front panel, a steel mesh perforated in three dimensions to channel cool air inward with minimal restriction. Up top, the case accommodates a 420mm radiator, while the front and side positions support 360mm radiators — giving serious liquid cooling configurations plenty of breathing room. The InfiniRail Fan Mounting System supports up to 14 fans simultaneously, accepting 120mm, 140mm, and 200mm form factors with flexible repositioning along the rail. Four RS140 ARGB PWM fans come pre-installed and are daisy-chainable, drawing speed and lighting control from a single 4-pin PWM connector and one +5V ARGB header on a compatible motherboard — no separate fan controller required. The internal side panel near the motherboard tray can be configured either as a cable cover for a clean aesthetic or removed to mount additional side fans. The Frame 5000D is validated for use with reverse-connector motherboards including ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth, with dedicated cutouts and tie-downs to keep hidden connectors tidy. Front I/O sits at the bottom of the case for convenient desk-level access, comprising four USB 3.2 Gen 1 Type-A ports, one USB 3.2 Gen 2 Type-C port, a headphone jack, and a microphone input. Storage options include dual 3.5-inch HDD trays and up to six 2.5-inch SSD mounts, which can be removed to free space for custom liquid cooling loops. Rotatable PCI-e slots allow vertical GPU mounting (riser cable sold separately), while an included GPU anti-sag stabilization arm protects heavy graphics cards. The RapidRoute 2.0 pegboard-style motherboard tray provides custom cable tie-down points, and the case ships with six cinching straps and two wire loom pairs. A dedicated pocket for the iCUE LINK System Hub (sold separately) makes ecosystem integration straightforward. Key Specifications: - Product Code: CC-9011310-WW - Form Factor: Mid-Tower - Supported Motherboard Sizes: E-ATX, ATX, Micro-ATX, Mini-ITX - Material: Steel, Tempered Glass - Color: White - Pre-installed Fans: 4 × RS140 ARGB PWM (140mm) - Maximum Fan Support: 14 - Radiator Support: 420mm (top), 360mm / 280mm / 240mm / 140mm / 120mm (front/side) - Max GPU Length: 450mm - Max CPU Cooler Height: 175mm - Max PSU Length: 250mm - Expansion Slots: 8 - Storage: 2 × 3.5-inch HDD, 6 × 2.5-inch SSD - Dust Filters: Front, Bottom, Left Side, Right Side - Front I/O: 4 × USB 3.2 Gen 1 Type-A, 1 × USB 3.2 Gen 2 Type-C, Headphone, Microphone - Warranty: 2 Years
