CORSAIR MP510 480GB Gen3 PCIE x 4 M.2 NVME Solid State Drive ( SSD )
MPN CORSAIR-MP510-480GB · Brand CORSAIR · M.2 2280
Features of CORSAIR MP510 480GB Gen3 PCIE x 4 M.2 NVME Solid State Drive ( SSD ) The CORSAIR Force MP510 NVMe PCIe Gen3 x4 M.2 SSD provides extreme storage performance with blazing fast read speeds of up to 3,480MB/sec EXTREME STORAGE PERFORMANCE All-new extreme data performance controller delivers up to 3,480MB/sec sequential read, and up to 3,000MB/s sequential write, for blazing fast read, write and response times. HIGH-SPEED NVME PCIE GEN3 x4 M.2 INTERFACE For simple connection and maximum b
Inclusive of GST · GST invoice available
Overview
Features of CORSAIR MP510 480GB Gen3 PCIE x 4 M.2 NVME Solid State Drive ( SSD )
The CORSAIR Force MP510 NVMe PCIe Gen3 x4 M.2 SSD provides extreme storage performance with blazing fast read speeds of up to 3,480MB/sec
- EXTREME STORAGE PERFORMANCE
- All-new extreme data performance controller delivers up to 3,480MB/sec sequential read, and up to 3,000MB/s sequential write, for blazing fast read, write and response times.
- HIGH-SPEED NVME PCIE GEN3 x4 M.2 INTERFACE
- For simple connection and maximum bandwidth.
- HIGH-DENSITY 3D TLC NAND
- Provides the ideal mix of performance, endurance and value to keep your drive performing at its best for years.
- COMPACT M.2 2280 FORM FACTOR
- Ultra-compact M.2 2280 size fits directly into your notebook or motherboard with no additional cables or connectors.
- COMPREHENSIVE FIVE-YEAR CORSAIR WARRANTY
- Long-term reliability and industry leading customer support for peace of mind.
EXTREME STORAGE PERFORMANCE
All-new extreme data performance controller delivers up to 3,480MB/sec sequential read, and up to 3,000MB/s sequential write, for blazing fast read, write and response times.
HIGH-SPEED NVME PCIE GEN3 x4 M.2 INTERFACE
For simple connection and maximum bandwidth of m 2 ssd
HIGH-DENSITY 3D TLC NAND
Provides the ideal mix of performance, endurance and value to keep your drive performing at its best for years.
COMPACT M.2 2280 FORM FACTOR
Ultra-compact M.2 2280 Corsair SSD size fits directly into your notebook or motherboard with no additional cables or connectors.
COMPREHENSIVE FIVE-YEAR CORSAIR WARRANTY
Long-term reliability and industry leading customer support for peace of mind.

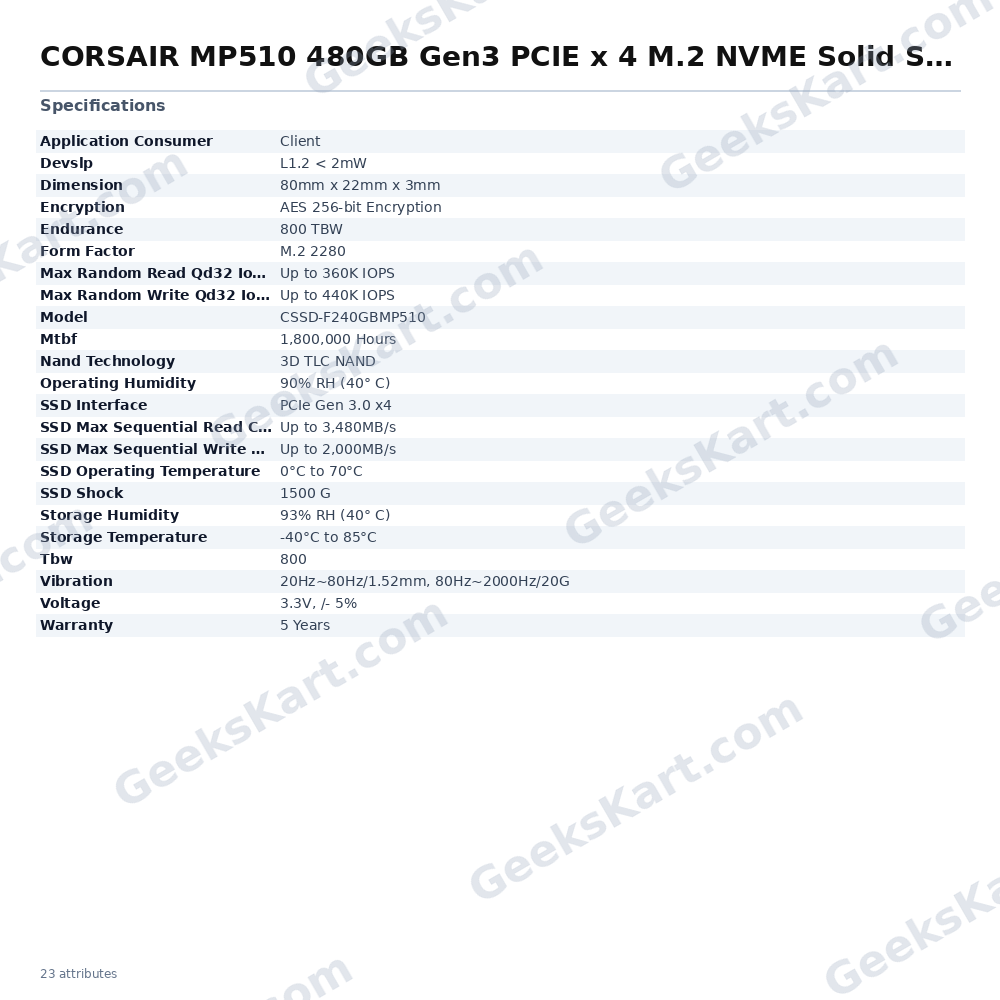

Specifications of CORSAIR MP510 480GB Gen3 PCIE x 4 M.2 NVME Solid State Drive ( SSD )
| Model | CSSD-F240GBMP510 |
| SSD Interface | PCIe Gen 3.0 x4 |
| SSD Max Sequential Read CDM | Up to 3,480MB/s |
| SSD Max Sequential Write CDM | Up to 2,000MB/s |
| Max Random Write QD32 IOMeter | Up to 440K IOPS |
| Max Random Read QD32 IOMeter | Up to 360K IOPS |
| Form Factor | M.2 2280 |
| Dimension | 80mm x 22mm x 3mm |
| Application Consumer | Client |
| NAND Technology | 3D TLC NAND |
| Voltage | 3.3V, /- 5% |
| Endurance | 800 TBW |
| TBW | 800 |
| MTBF | 1,800,000 Hours |
| DEVSLP | L1.2 < 2mW |
| Encryption | AES 256-bit Encryption |
| Storage Temperature | -40°C to 85°C |
| SSD Operating Temperature | 0°C to 70°C |
| SSD Shock | 1500 G |
| Storage Humidity | 93% RH (40° C) |
| Operating Humidity | 90% RH (40° C) |
| Vibration | 20Hz~80Hz/1.52mm, 80Hz~2000Hz/20G |
| Warranty | 5 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
Datasheet
| Warranty | 5 Years |
|---|---|
| Form Factor | M.2 2280 |
| Voltage | 3.3V, /- 5% |
| Tbw | 800 |
| Mtbf | 1,800,000 Hours |
| Model | CSSD-F240GBMP510 |
| Devslp | L1.2 < 2mW |
| Dimension | 80mm x 22mm x 3mm |
| Endurance | 800 TBW |
| SSD Shock | 1500 G |
| Vibration | 20Hz~80Hz/1.52mm, 80Hz~2000Hz/20G |
| Encryption | AES 256-bit Encryption |
| SSD Interface | PCIe Gen 3.0 x4 |
| Nand Technology | 3D TLC NAND |
| Storage Humidity | 93% RH (40° C) |
| Operating Humidity | 90% RH (40° C) |
| Storage Temperature | -40°C to 85°C |
| Application Consumer | Client |
| SSD Operating Temperature | 0°C to 70°C |
| SSD Max Sequential Read Cdm | Up to 3,480MB/s |
| Max Random Read Qd32 Iometer | Up to 360K IOPS |
| SSD Max Sequential Write Cdm | Up to 2,000MB/s |
| Max Random Write Qd32 Iometer | Up to 440K IOPS |
