COUGAR Airface 180 ARGB ATX Mid Tower Cabinet ( Black )
MPN COUGAR-AIRFACE-180-ARGB-ATX-MID-TOWER-BLACK · Brand Cougar · Mid Tower
The Cougar Airface 180 ARGB ATX Mid Tower Cabinet (Black) comes pre-fitted with dual 180mm and one 120mm PWM ARGB fans, supports up to 8 fans or a 360mm radiator, and is compatible with ATX, Micro-ATX, Mini-ITX, CEB, and reverse-connector motherboards
Inclusive of GST · GST invoice available
Overview

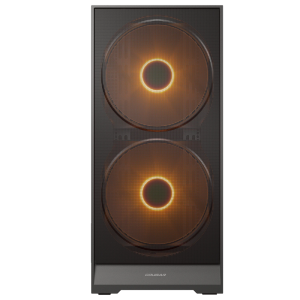

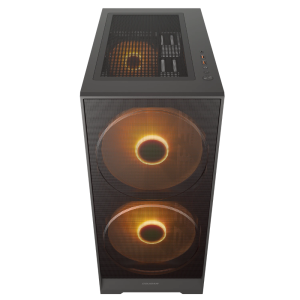

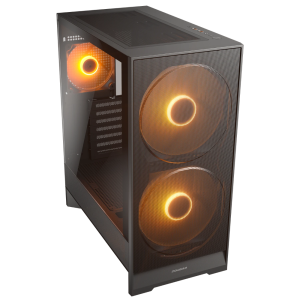

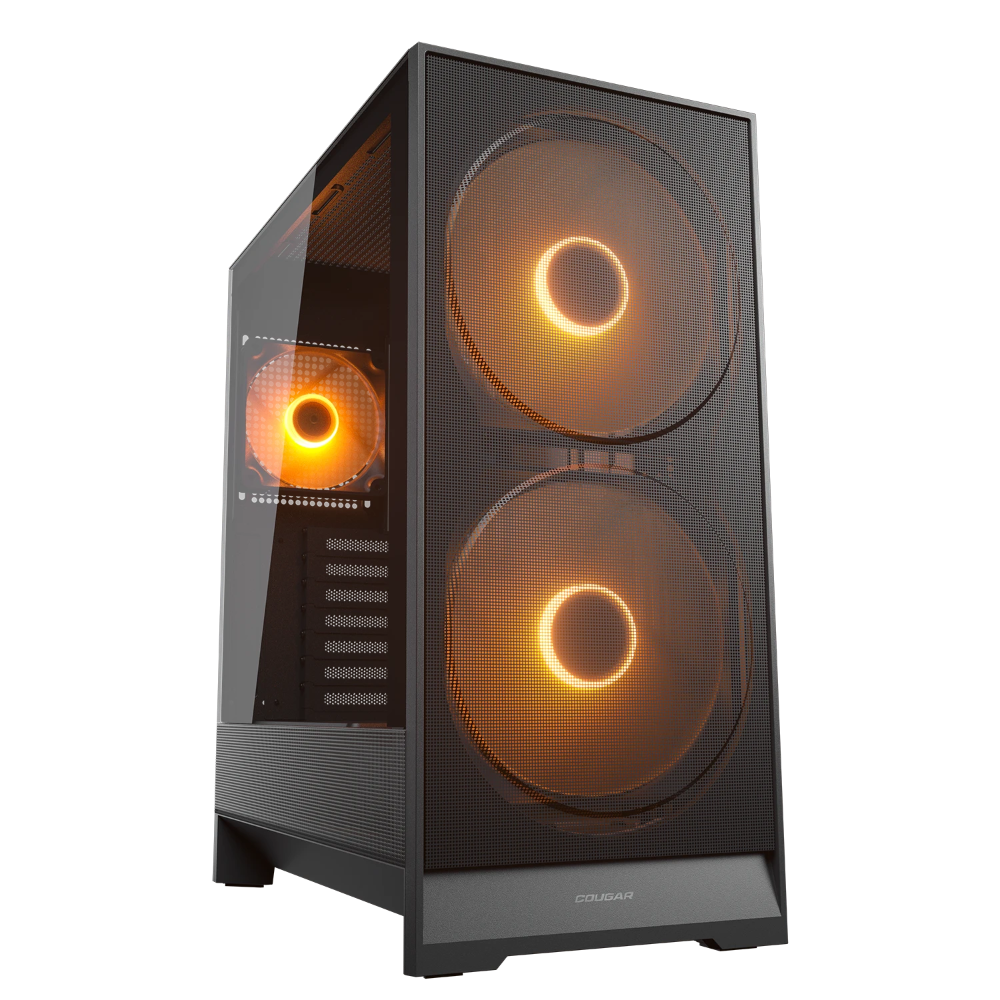

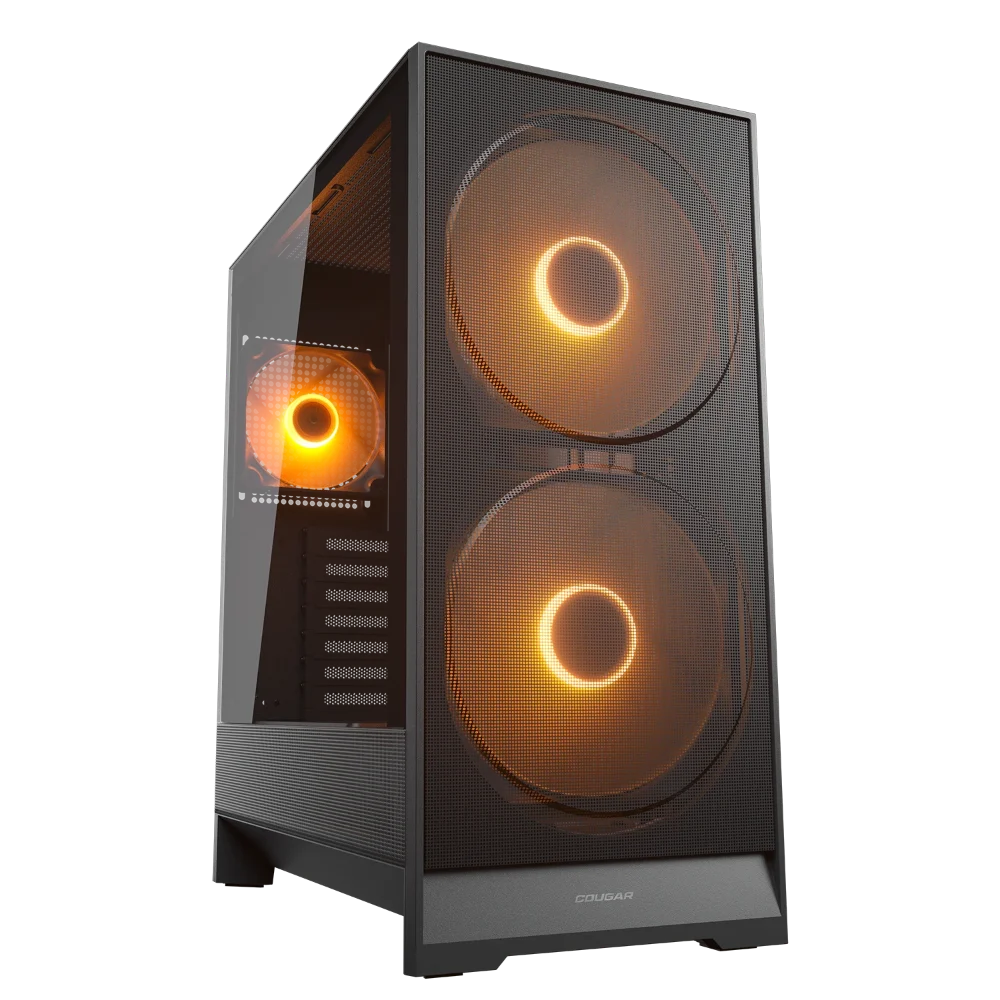

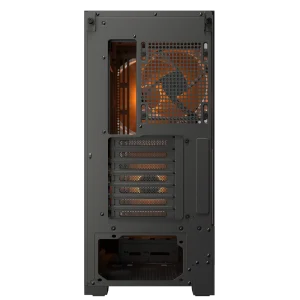

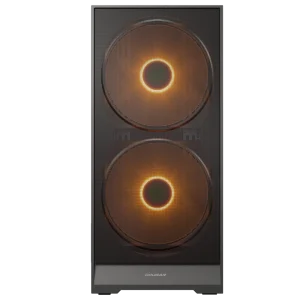

The Cougar Airface 180 ARGB ATX Mid Tower Cabinet in Black is engineered for builders who demand strong out-of-box airflow without compromise. At its core are two pre-installed 180mm PWM ARGB front fans spinning between 300 and 1200 RPM (±10%), paired with one 120mm PWM ARGB rear fan running at 1200 RPM (±10%). Together they move significant volumes of air across your components before you even install a single additional fan. Should you need more cooling headroom, the chassis supports up to eight fans in total — two or three across the front (180mm×2, 140mm×2, or 120mm×3), two on top (140mm×2 or 120mm×2), two in the PSU shroud area (120mm×2), and one at the rear (120mm×1). For liquid-cooling builds, radiator mounts accept up to a 360mm or 280mm or 240mm unit at the front, up to 280mm or 240mm on top, and a 120mm at the rear — giving AIO coolers of virtually every popular size a home. Maintenance is simplified by a magnetically attached metal front filter panel. A concave finger groove at the lower edge allows tool-free removal in seconds. The PSU cabin sits offset to the right rather than at the center, freeing extra airflow from the side ventilation panel — a considered departure from conventional layout. Motherboard compatibility spans Mini-ITX, Micro-ATX, ATX, and CEB form factors, and the case is also validated for reverse-connector designs including ASUS BTF, MSI Project Zero, and GIGABYTE Project Stealth. Seven expansion slots (convertible from horizontal to vertical) accommodate tall multi-slot GPUs up to 340mm long, and vertical GPU mounting is natively supported. Storage options include two 3.5-inch HDD bays plus up to two 2.5-inch SSD positions (one dedicated, one converted from a 3.5-inch bay). The front I/O panel carries one USB 3.2 Gen 2 Type-C port, two USB 3.0 Type-A ports, a 4-pole headset audio jack, and an RGB control button. All ARGB fans connect via 5V 3-pin headers and 4-pin PWM connectors, and the onboard LED controller syncs with your motherboard for system-wide ARGB lighting control. Verified Specifications: Model No. CGR-5VA4B-RGB | Dimensions: 220 × 483 × 410 mm (W×H×D) | Form Factor: Mid Tower | Supported Motherboards: Mini-ITX, Micro-ATX, ATX, CEB | Pre-installed Fans: 2× 180mm ARGB PWM (front), 1× 120mm ARGB PWM (rear) | Max Fans: 8 | Max GPU Length: 340 mm | Max CPU Cooler Height: 170 mm | Max PSU Length: 160 mm | Drive Bays: 2× 3.5-inch HDD, 1+1× 2.5-inch SSD | Expansion Slots: 7 | Radiator Support: Front 360/280/240mm, Top 280/240mm, Rear 120mm | I/O: USB 3.2 Gen 2 Type-C ×1, USB 3.0 Type-A ×2, 4-pole audio ×1, RGB button | EAN: 4710483779985
Datasheet
| Top | 280mm / 240mm |
|---|---|
| Rear | 120mm |
| Front | 360mm / 280mm / 240mm |
| Speed | 180mm ARGB PWM fan : 300-1200 ± 10% RPM 120mm ARGB PWM fan : 1200 ± 10% RPM |
| Connector | 180mm ARGB PWM fan Connector : 5V 3 Pin (ARGB) / 4 Pin PWM (Fan) 120mm ARGB PWM fan Connector : 5V 3 Pin (ARGB) / 4 Pin PWM (Fan) |

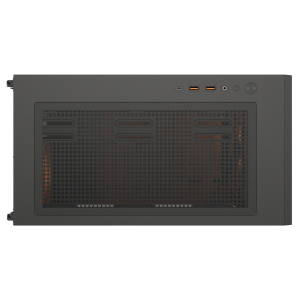

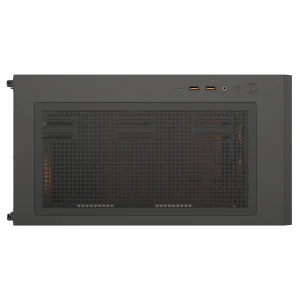

| I/O Panel | USB 3.2 Gen 2 Type-C x 1, USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, RGB Button |
| Model No. | CGR-5VA4B-RGB |
| Psu Shroud | 120mm x 2 |
| Product Name | Airface 180 / Airface 180 (White) |
| 2.5" Drive Bay | 1+1(converted from 3.5" drive bays) |
| 3.5" Drive Bay | 2 |
| Expansion Slots | 7 (horizontal slots can be converted into vertical slots) |
| Max. Psu Length | 160 (mm) / 6.3 (in) |
| Case Form Factor | Mid Tower |
| Motherboard Type | Mini ITX / Micro ATX / ATX / CEB |
| Dimensions (Wxhxd) | 220 x 483 x 410 (mm) |
| Product Number (P/N) | 385VA40.0001 |
| Vertical GPU Support | Yes |
| RGB Sync Hub With M/B | Yes |
| Max. CPU Cooler Height | 170(mm)/ 6.7(in) |
| Maximun Number Of Fans | 8 |
| Max. Graphics Card Length | 340 (mm) / 13.4 (in) |
