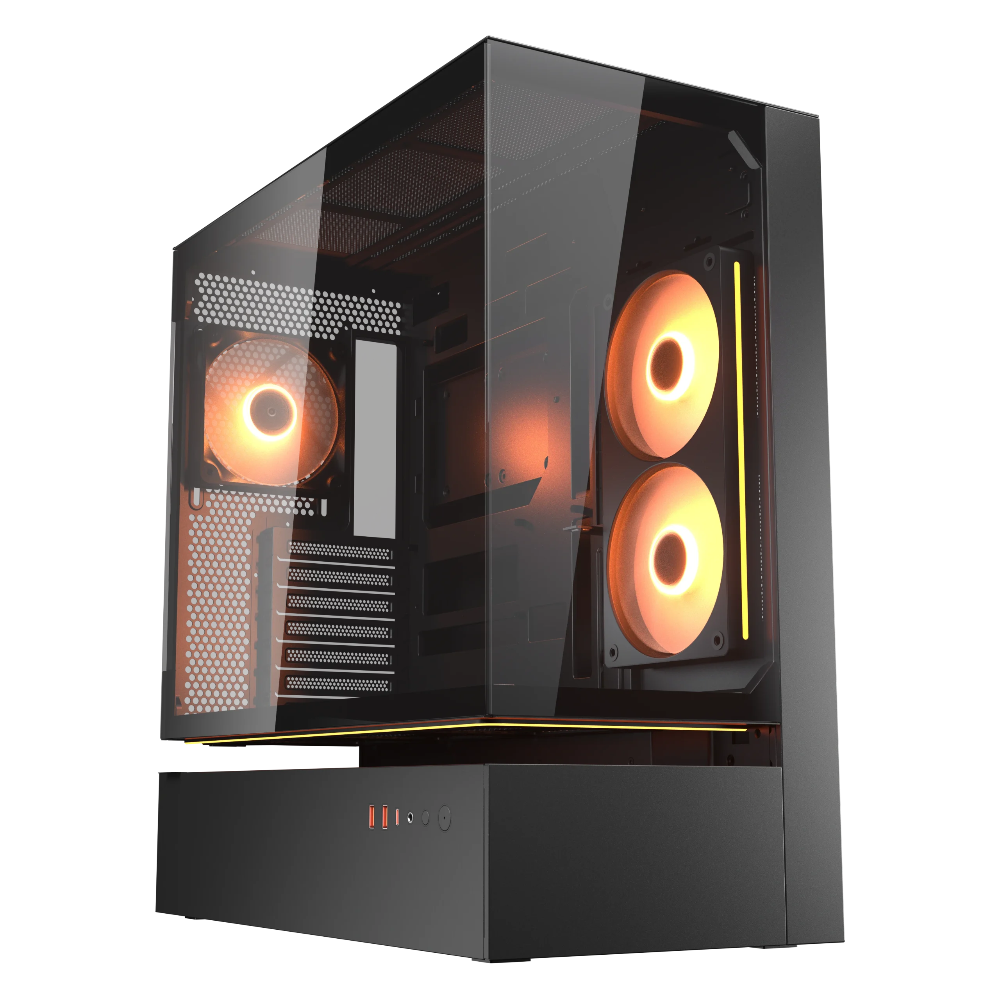

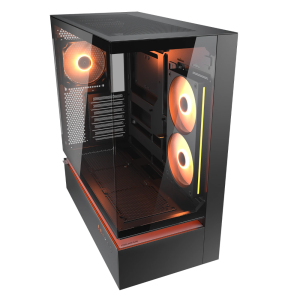

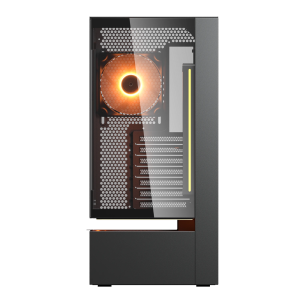

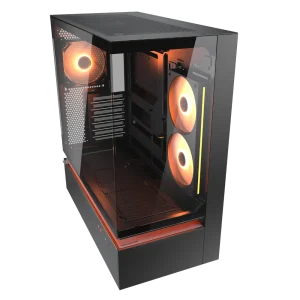

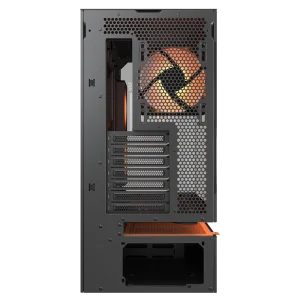

COUGAR CFV235 ARGB ATX Mid Tower Cabinet ( Black )
MPN COUGAR-CFV235-ARGB-BLACK · Brand Cougar · Mid Tower
Features of COUGAR CFV235 ARGB ATX Mid Tower Cabinet ( Black ) True Free-Floating Structural Separation Conventional design squeezes both the PSU - a prime source of heat - and critical components in the same space, restricting airflow access to only the top, front and rear panels. The Central Floating Ventilation divides the PSU cabin and main chamber with a structural hollow that lets air move with greater freedom and purpose. This free-floating architectural separation also gives the CFV235 s
Inclusive of GST · GST invoice available
Overview
Features of COUGAR CFV235 ARGB ATX Mid Tower Cabinet ( Black )
True Free-Floating Structural Separation
Conventional design squeezes both the PSU - a prime source of heat - and critical components in the same space, restricting airflow access to only the top, front and rear panels. The Central Floating Ventilation divides the PSU cabin and main chamber with a structural hollow that lets air move with greater freedom and purpose. This free-floating architectural separation also gives the CFV235 series its unique, progressive visual identity.
270° Airflow Access Within Suspended Space
The CFV235 series’ floating space is a fully 3 dimensional, discrete void suspended within the chassis. 270° of spacious, unobstructed airflow intake delivers greater ventilation than enclosed layouts to where it’s most needed.
Pre Installed Reverse Blade Unity ARGB 240 Fans
Dual Magnetic Filtration
Magnetic dust filters at the roof and base of the Central Floating Ventilation structure proactively prevent dust and debris buildup, keeping airflow clean and uninterrupted without disrupting the suspended design
The Rainbow In Between
The Aurora lighting strip lights up with the integrated space of the Central Floating Ventilation structure from within, highlighting this innovative feature and displaying it as an architectural reinvention. It’s included with the case and attaches magnetically for ease and convenience.
Light. Speed
Vertical Spatial Efficiency
Specifications of COUGAR CFV235 ARGB ATX Mid Tower Cabinet ( Black )
| Product Name | CFV235 |
| Case Form Factor | Mid Tower |
| Motherboard Type | Mini ITX / Micro ATX / ATX / CEB |
| Dimensions (WxHxD) | 235 x 493 x 460 (mm) 9.3 x 19.4 x 18.1 (in) |
| I/O Panel | USB 3.2 Gen 2x2 Type-C x 1, USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, RGB Button |
| 3.5" Drive Bay | 2 |
| 2.5" Drive Bay | 2+2 (converted from 3.5" drive bays) |
| Expansion Slots | 7 |
| Cooling Fan Support | |
| Top | 120mm x 3 / 140mm x 3 |
| M/B Side | 120mm x 2 |
| Bottom | 120mm x 3 |

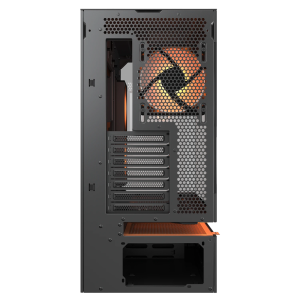

| Rear | 120mm x 1 |
| Pre-installed Fans | |

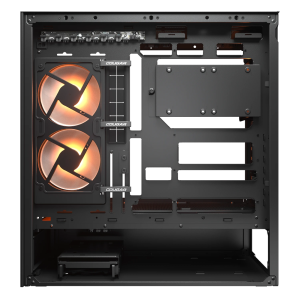

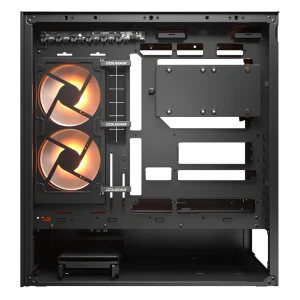

| M/B Side | Unity 240 ARGB PWM Reversed fan x 1 |
| Rear | 120mm ARGB PWM fan x 1 |
| Speed | Unity 240 ARGB PWM Reversed fan: 700-1600 RPM ±10% 120mm ARGB PWM fan: 500-1400 ± 10% RPM |
| Connector | 5V 3 Pin (ARGB) / 4 Pin PWM (Fan) |
| Maximun Number of Fans | 9 |
| Water Cooling Support | |
| Top | 360mm / 280mm / 240mm / 140mm / 120mm |
| Rear | 120mm |
| Aurora LED Strip | Yes |
| PWM and RGB hub Sync with M/B | Yes |
| Max. Graphics Card Length | 430 (mm) / 16.9 (in) |
| Max. CPU Cooler Height | 175 (mm) / 6.9 (in) |
| Max. PSU Length | 200 (mm) / 7.9 (in) |
Datasheet
| Top | 360mm / 280mm / 240mm / 140mm / 120mm |
|---|---|
| Rear | 120mm |
| Speed | Unity 240 ARGB PWM Reversed fan: 700-1600 RPM ±10%120mm ARGB PWM fan: 500-1400 ± 10% RPM |
| Bottom | 120mm x 3 |
| M/B Side | Unity 240 ARGB PWM Reversed fan x 1 |
| Connector | 5V 3 Pin (ARGB) / 4 Pin PWM (Fan) |
| I/O Panel | USB 3.2 Gen 2×2 Type-C x 1, USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, RGB Button |
| Product Name | CFV235 |
| 2.5" Drive Bay | 2+2 (converted from 3.5" drive bays) |
| 3.5" Drive Bay | 2 |
| Expansion Slots | 7 |
| Max. Psu Length | 200 (mm) / 7.9 (in) |
| Aurora Led Strip | Yes |
| Case Form Factor | Mid Tower |
| Motherboard Type | Mini ITX / Micro ATX / ATX / CEB |
| Dimensions (Wxhxd) | 235 x 493 x 460 (mm)9.3 x 19.4 x 18.1 (in) |
| Max. CPU Cooler Height | 175 (mm) / 6.9 (in) |
| Maximun Number Of Fans | 9 |
| Max. Graphics Card Length | 430 (mm) / 16.9 (in) |
| Pwm And RGB Hub Sync With M/B | Yes |
