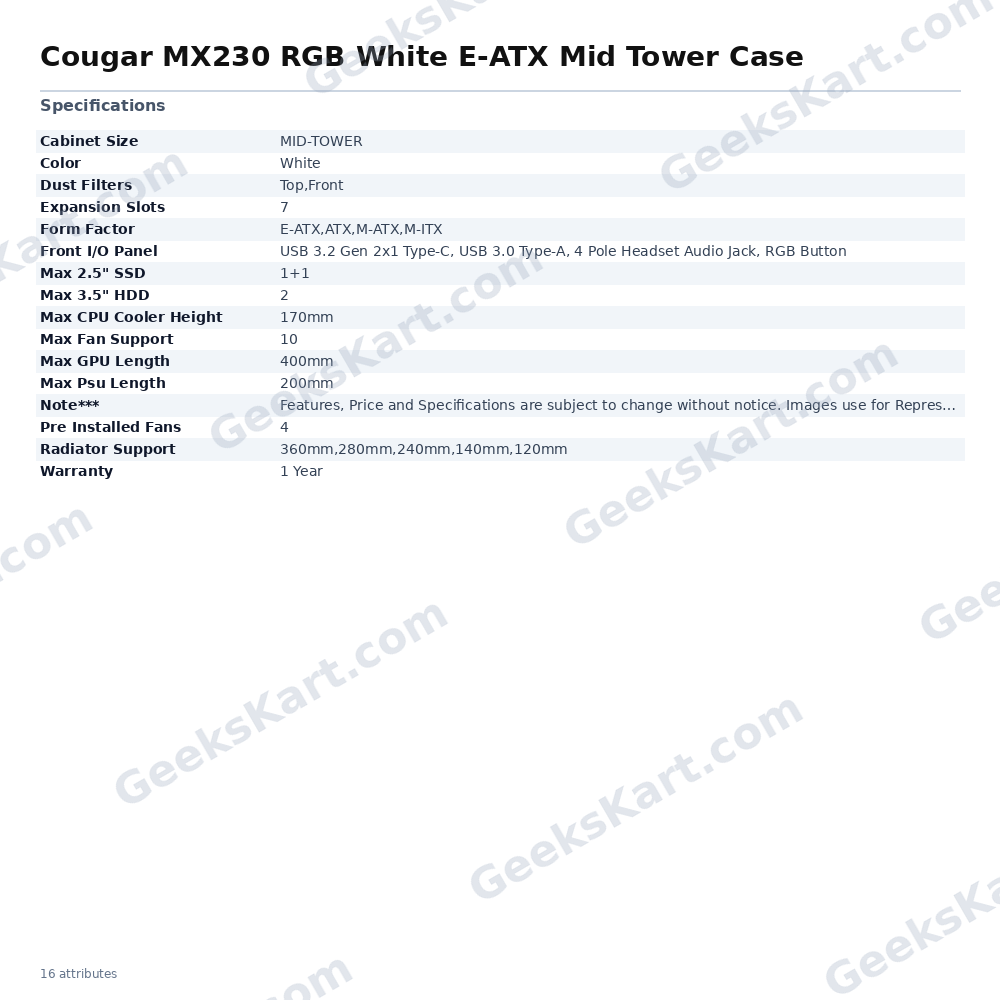

Cougar MX230 RGB White E-ATX Mid Tower Case

The COUGAR MX230 RGB White is a mid tower PC case built for builders who demand strong airflow, versatile cooling support, and synchronized ARGB lighting in a clean white finish. Its all-metal front panel integrates an ultra-fine mesh dust filter using a snap-fit mechanism, enabling tool-less, single-step removal for maintenance without sacrificing filtration performance. Out of the box, the MX230 RGB ships with four preinstalled ARGB fans — three 120mm fans at the front and one 120mm fan at the rear — each running at 1,000 ±10% RPM and using a 5V 3-pin ARGB connector alongside a standard 3-pin fan connector. A built-in RGB hub syncs lighting with your motherboard for system-wide illumination control. Cooling flexibility is a standout feature. The PSU shroud is notably porous and can accommodate an additional three 120mm fans, creating a vertical bottom-up thermal intake column that channels fresh air directly to your components. The PSU cabin is offset to the right rather than centered, freeing up additional lateral airflow space. Perforated diagonal base slopes further maximize intake surface area. Up top, the case supports radiators up to 360mm, with the top mesh filter finished with solid borders for a refined, unified look. Total fan capacity reaches 10. The front I/O panel is equipped with a USB 3.2 Gen 2×1 Type-C port running at 10Gbps, two USB 3.0 Type-A ports, a 4-pole headset audio jack, and an RGB control button. GPU clearance extends to 400mm, and CPU cooler height is supported up to 170mm. The case is compatible with Mini-ITX, Micro-ATX, ATX, and E-ATX motherboards. Storage options include two 3.5-inch HDD bays and 1+1 2.5-inch SSD slots, with the secondary 2.5-inch slot converted from a 3.5-inch drive bay. Seven expansion slots support multi-GPU and high-end add-in card configurations. Key Verified Specifications: • Form Factor: Mid Tower • Motherboard Support: Mini-ITX / Micro-ATX / ATX / E-ATX • Dimensions (W × H × D): 220 × 475 × 445 mm • Pre-installed Fans: 3× 120mm ARGB front, 1× 120mm ARGB rear • Fan Connector: 5V 3-pin ARGB / 3-pin fan • Fan Speed: 1,000 ±10% RPM • Max Fan Count: 10 • Fan Support — Front: 3× 120mm or 2× 140mm; Top: 3× 120mm or 2× 140mm; PSU Shroud: 3× 120mm; Rear: 1× 120mm • Radiator Support — Top: 360/240/120mm; Rear: 120mm • Max GPU Length: 400mm • Max CPU Cooler Height: 170mm • Max PSU Length: 200mm • Storage: 2× 3.5-inch HDD, 1+1× 2.5-inch SSD • Expansion Slots: 7 • Front I/O: USB 3.2 Gen 2×1 Type-C (10Gbps), 2× USB 3.0 Type-A, 4-pole audio jack, RGB button • Dust Filters: Front (integrated mesh), Top • Color: White • Warranty: 1 Year
