DAWG X 520 ARGB ATX Mid Tower Cabinet (Black)
MPN DAWG-X-520-ARGB-BLACK · Brand DAWG · ATX, mATX

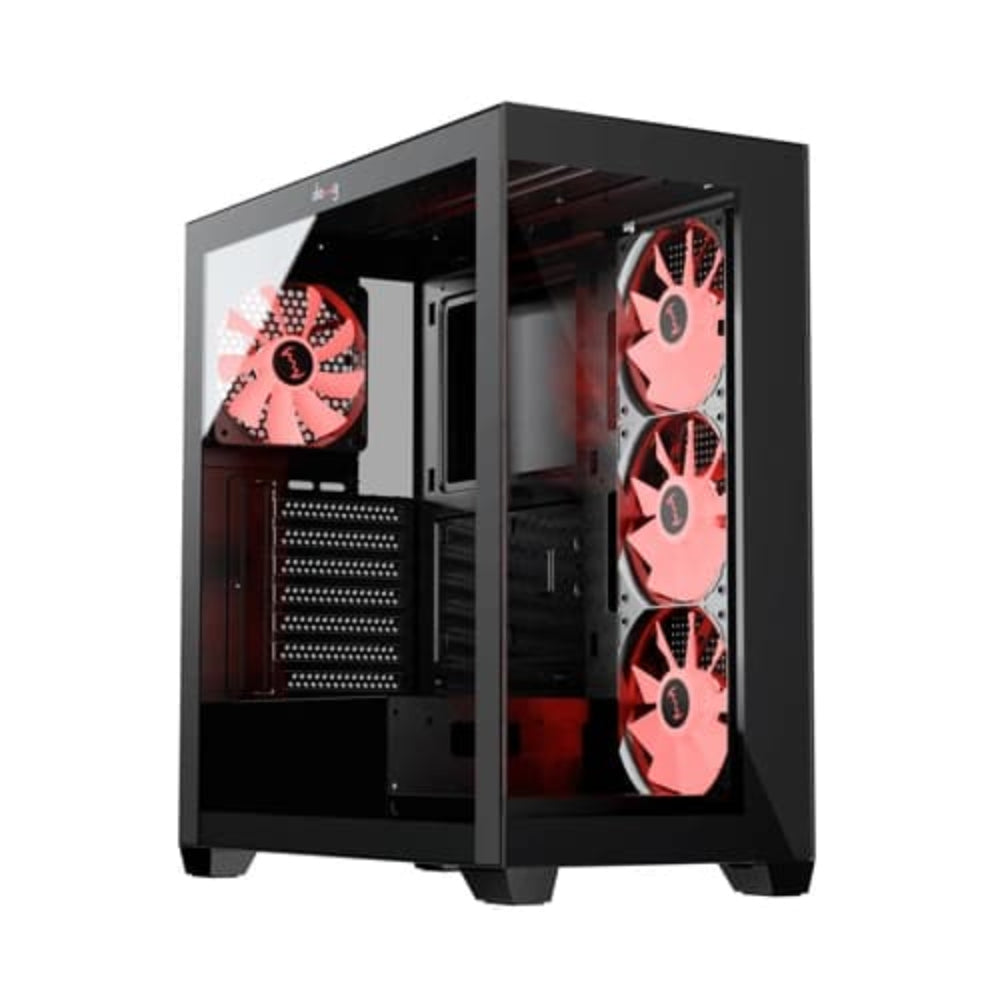

The DAWG X 520 ARGB ATX Mid Tower Cabinet (Black) features wraparound tempered glass, 4 pre-installed 120mm ARGB fans, up to 360mm AIO support, and clearance for GPUs up to 425mm — all in a clean mid-tower form factor
Inclusive of GST · GST invoice available
Overview

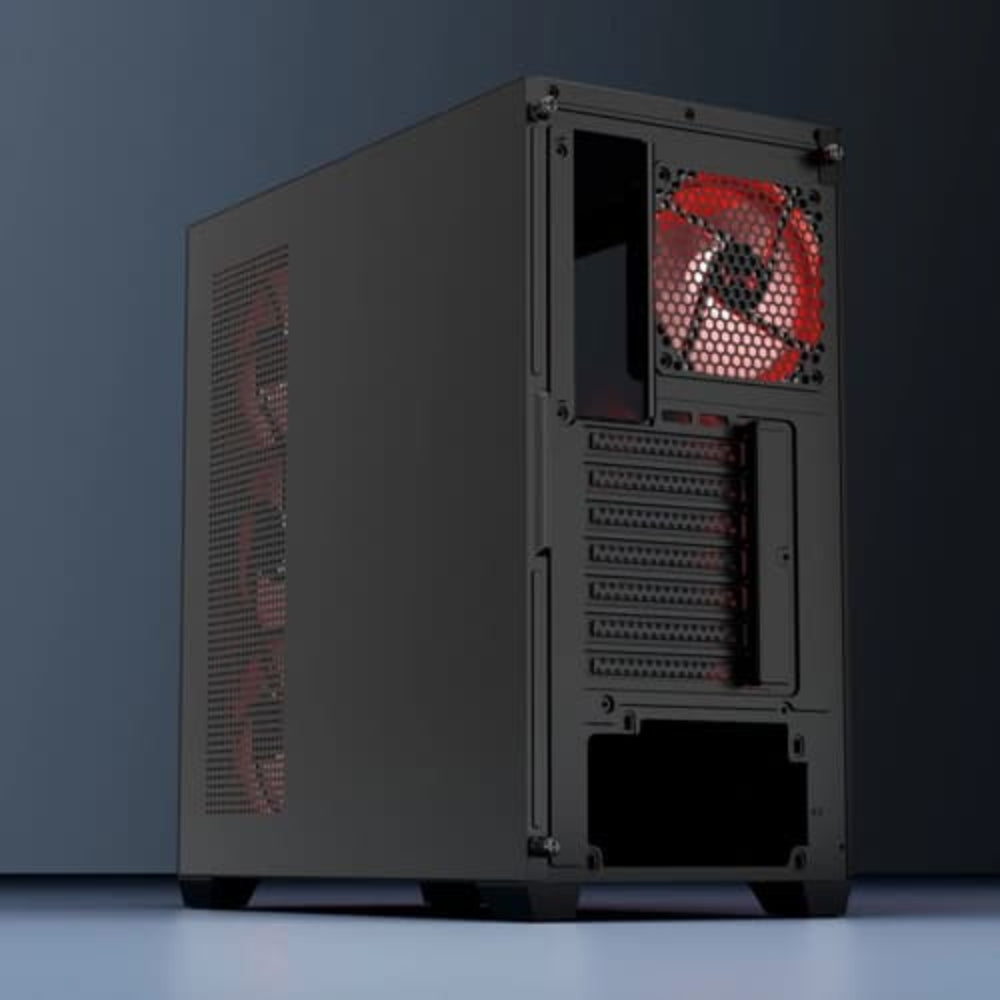

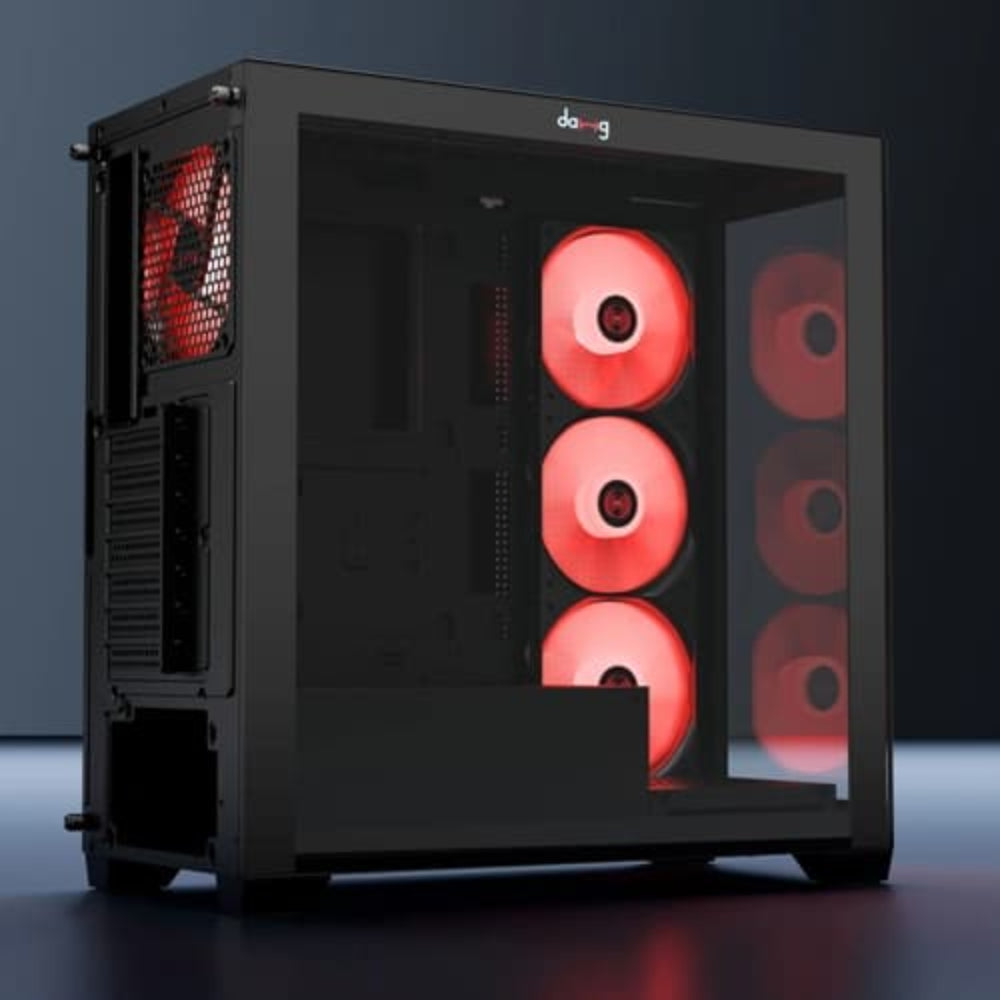

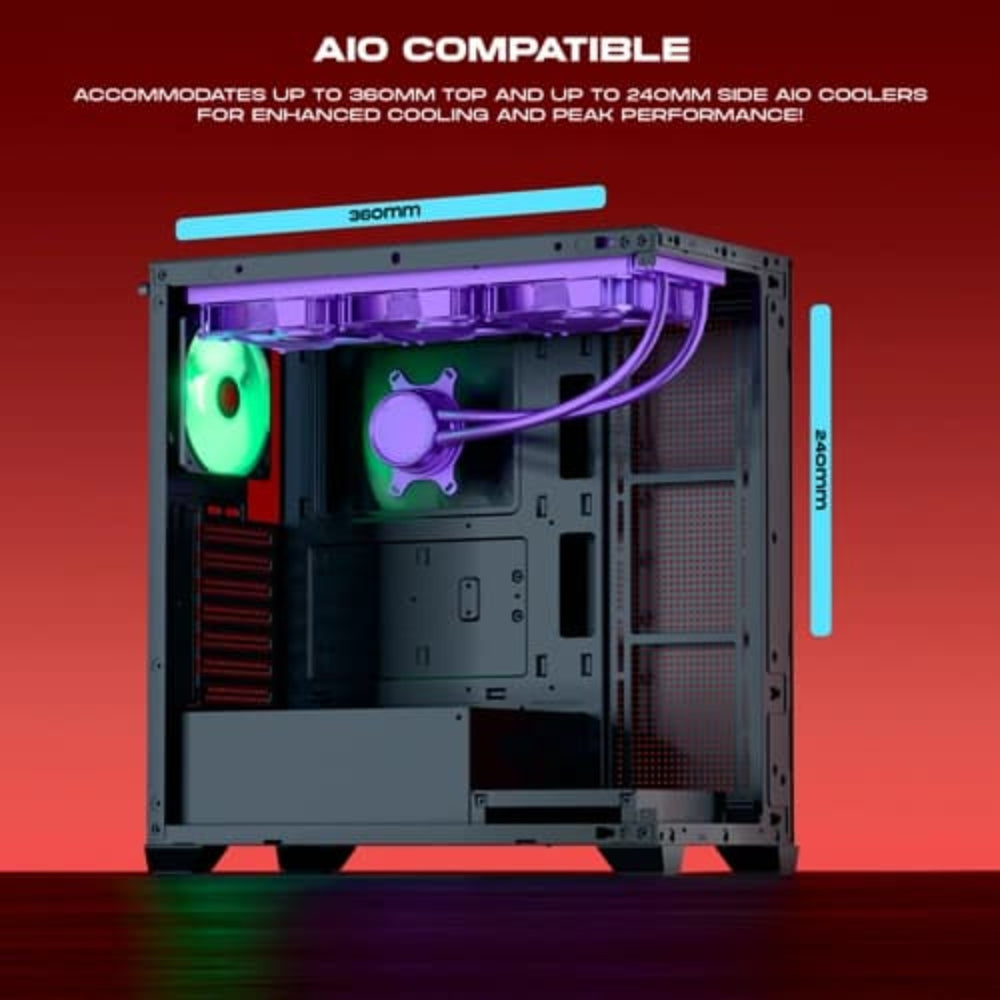

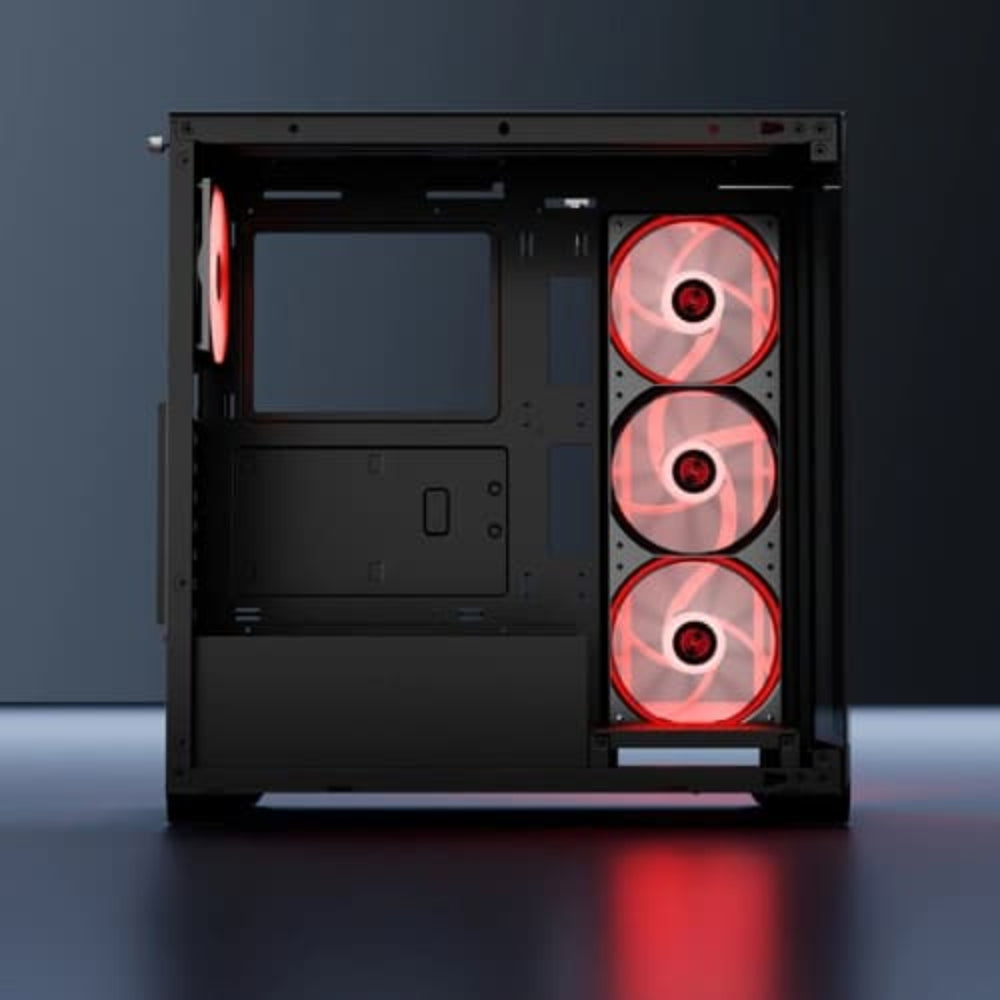

The DAWG X 520 ARGB ATX Mid Tower Cabinet in Black is a purpose-built mid-tower chassis designed for builders who want a balance of airflow, aesthetics, and hardware compatibility. The wraparound tempered glass panel puts your entire build on display, with centre-glow ARGB fans adding dynamic illumination from multiple angles. Four 120mm ARGB fans come pre-installed — one at the rear and three reverse-blade fans on the side — delivering active airflow across your components from the moment you power The chassis supports up to 10 fans in total, giving you room to expand cooling as your build demands. For liquid cooling enthusiasts, the X 520 accommodates AIO radiators up to 360mm at the top and up to 240mm on the side, making it compatible with a wide range of all-in-one coolers. Motherboard compatibility covers ATX and Micro-ATX form factors, with 7 expansion slots to house multi-GPU or high-lane PCIe configurations. GPU clearance extends to 425mm, making modern high-end graphics cards a non-issue. CPU tower coolers up to 170mm in height fit comfortably, and the bottom-mounted PSU bay accepts units up to 250mm in length. Dust management is handled by top and bottom magnetic dust filters, which are easy to remove and clean without tools. Storage options include one 3.5-inch HDD bay and two 2.5-inch SSD mounts, covering most standard build configurations. The front I/O panel includes one USB 3.0 port, one additional USB port, a headphone jack, and a microphone jack for convenient day-to-day connectivity. Verified Specifications: - Form Factor: Mid Tower - Motherboard Support: ATX, Micro-ATX - Expansion Slots: 7 - Pre-Installed Fans: 4 × 120mm ARGB - Max Fan Support: 10 - Radiator Support: Up to 360mm (top), up to 240mm (side) - Max GPU Length: 425mm - Max CPU Cooler Height: 170mm - Max PSU Length: 250mm (bottom-mounted) - Storage: 1 × 3.5-inch HDD, 2 × 2.5-inch SSD - Dust Filters: Top (magnetic), Bottom (magnetic) - Panel Material: Wraparound Tempered Glass - Front I/O: USB 3.0, USB 2.0, Headphone, Microphone - Warranty: 1 Year - Product Code: X520-ARGB-BLACK

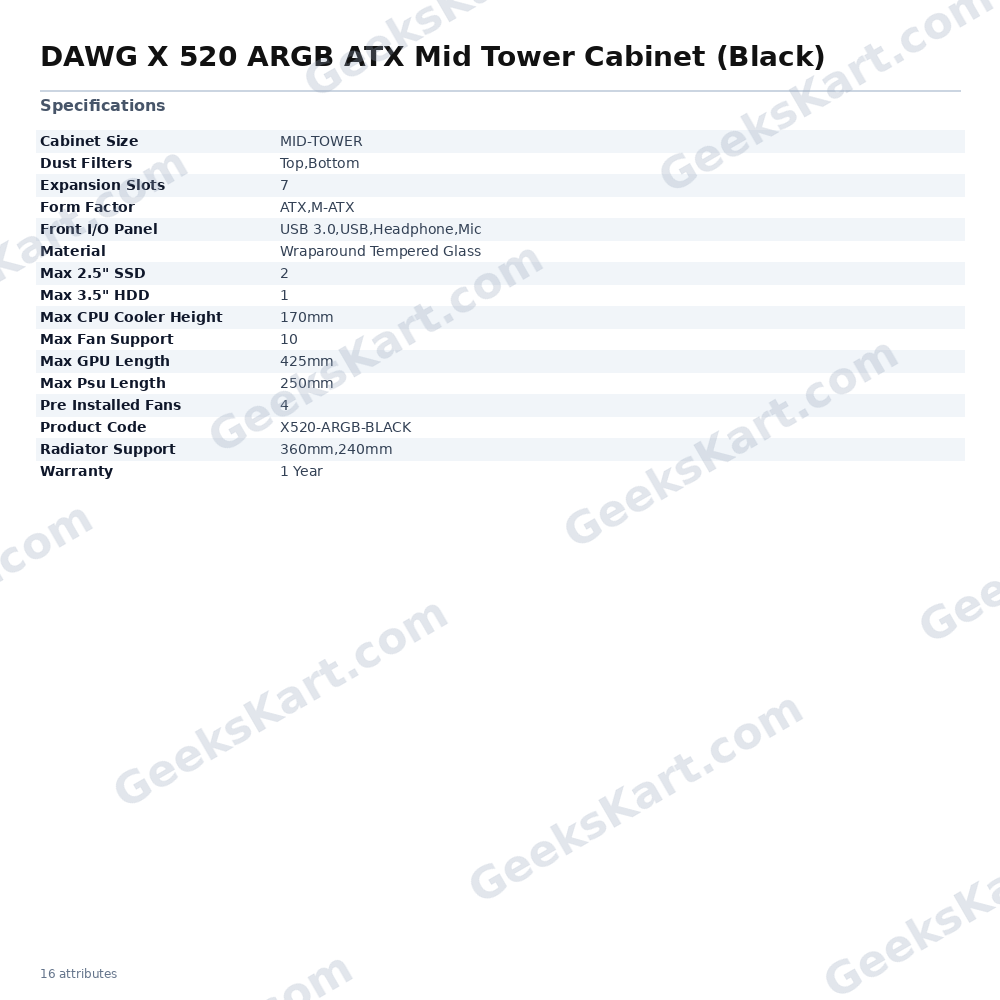

Datasheet
| Warranty | 1 Year |
|---|---|
| Form Factor | ATX, mATX |
| Material | Wraparound Tempered Glass |
| Cabinet Size | MID-TOWER |
| Dust Filters | Top,Bottom |
| Max 2.5" SSD | 2 |
| Max 3.5" HDD | 1 |
| Product Code | X520-ARGB-BLACK |
| Max GPU Length | 425mm |
| Max Psu Length | 250mm |
| Expansion Slots | 7 |
| Front I/O Panel | USB 3.0,USB,Headphone,Mic |
| Max Fan Support | 10 |
| Radiator Support | 360mm,240mm |
| Pre Installed Fans | 4 |
| Max CPU Cooler Height | 170mm |
