DAWG Y 804 ARGB ATX Mid Tower Cabinet ( White )
MPN DAWG-Y-804-ARGB-WHITE · Brand DAWG · ATX, mATX, Mini-ITX
The DAWG Y 804 ARGB Mid Tower Cabinet (White) features a center infinity mirror, 4 pre-installed ARGB fans, a side-hinged tempered glass panel, and USB Type-C I/O — supporting ATX/mATX/mITX boards and AIO coolers up to 360 mm
Inclusive of GST · GST invoice available
Overview
The DAWG Y 804 ARGB ATX Mid Tower Cabinet in White is a feature-rich chassis designed for gaming and enthusiast PC builds. Its standout aesthetic comes from a center infinity mirror integrated into the front panel, paired with four pre-installed ARGB fans that deliver customisable lighting via a dedicated LED control switch. The side-hinged tempered glass panel gives you a clear, unobstructed view of your components while making cable-management and maintenance straightforward — no tool fumbling required to access the interior. Built from steel and tempered glass, the Y 804 supports ATX, Micro-ATX, and Mini-ITX motherboards, making it versatile enough for a wide range of builds. The front I/O includes a USB Type-C port, two USB 3.0 ports, a headphone jack, and a microphone port — keeping essential connectivity within easy reach at the top of the chassis. Cooling flexibility is a clear priority: the front intake can house up to three 120 mm or three 140 mm fans, and supports AIO liquid coolers up to 360 mm. The top and rear positions add further radiator options up to 360 mm and 120 mm respectively, while the bottom and side panels accommodate additional 120 mm fans for total airflow customisation. Magnetic dust filters on both the top and bottom panels help keep the interior clean without impeding airflow. The power supply mounts at the bottom, and seven PCIe expansion slots allow for multi-GPU or expansion card configurations. CPU coolers up to 185 mm tall and graphics cards up to 395 mm long are supported, covering virtually all current-generation components. Storage options accommodate up to two 3.5-inch HDDs or one HDD plus one 2.5-inch SSD, with a maximum PSU length of 200 mm. Specifications: - Model: Y 804 - Form Factor: Mid Tower - Colour: White - Material: Steel, Tempered Glass - Motherboard Support: ATX, Micro-ATX, Mini-ITX - Pre-Installed Fans: 4 (ARGB with center infinity mirror) - Max Fan Support: 12 - Front Fan: 120 mm x 3 | 140 mm x 3 (optional) - Rear Fan: 120 mm x 1 | 140 mm x 1 (optional) - Top Fan: 120 mm x 3 (optional) | 140 mm x 2 (optional) - Bottom Fan: 120 mm x 3 (optional) - Side Fan: 120 mm x 2 (optional) - AIO Radiator Support: Front up to 360 mm, Top up to 360 mm, Rear 120 mm - Max CPU Cooler Height: 185 mm - Max GPU Length: 395 mm - Max PSU Length: 200 mm - PCIe Expansion Slots: 7 - Drive Bays: Up to 2x 3.5-inch HDD or 1x HDD + 1x 2.5-inch SSD - Front I/O: USB Type-C, USB 3.0 x 2, Headphone, Mic - Dust Filters: Top (magnetic), Bottom (magnetic) - PSU Position: Bottom-mounted - Dimensions (W x D x H): 230 x 470 x 456 mm - Weight: 6.2 kg - Warranty: 1 Year

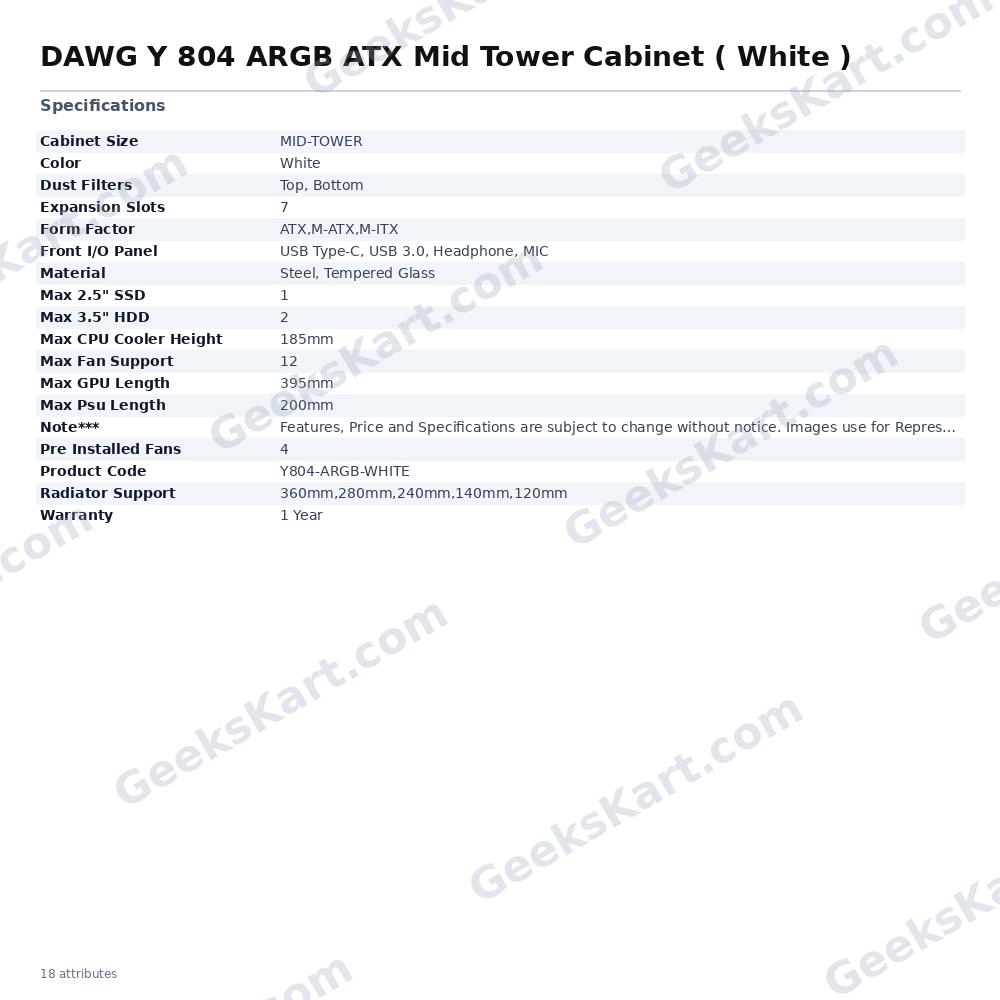

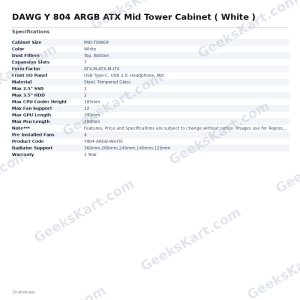

Datasheet
| Warranty | 1 Year |
|---|---|
| Form Factor | ATX, mATX, Mini-ITX |
| color | White |
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only |
| Material | Steel, Tempered Glass |
| Cabinet Size | MID-TOWER |
| Dust Filters | Top, Bottom |
| Max 2.5" SSD | 1 |
| Max 3.5" HDD | 2 |
| Product Code | Y804-ARGB-WHITE |
| Max GPU Length | 395mm |
| Max Psu Length | 200mm |
| Expansion Slots | 7 |
| Front I/O Panel | USB Type-C, USB 3.0, Headphone, MIC |
| Max Fan Support | 12 |
| Radiator Support | 360mm,280mm,240mm,140mm,120mm |
| Pre Installed Fans | 4 |
| Max CPU Cooler Height | 185mm |
