Features of DEEPCOOL CG580 4F V2 ATX ARGB Mid Tower Cabinet ( White )
SCENIC VIEW
The lack of an A pillar between the front and side tempered glass panels removes the main obstruction to a clear and uninterrupted view of your incredible build. Your system will look more streamlined and cleaner thanks to the motherboard tray that can support mainstream motherboards models with back connectors from ASUS and MSI.
INNOVATIVE COOLING PLUS VISUAL EXPERIENCE

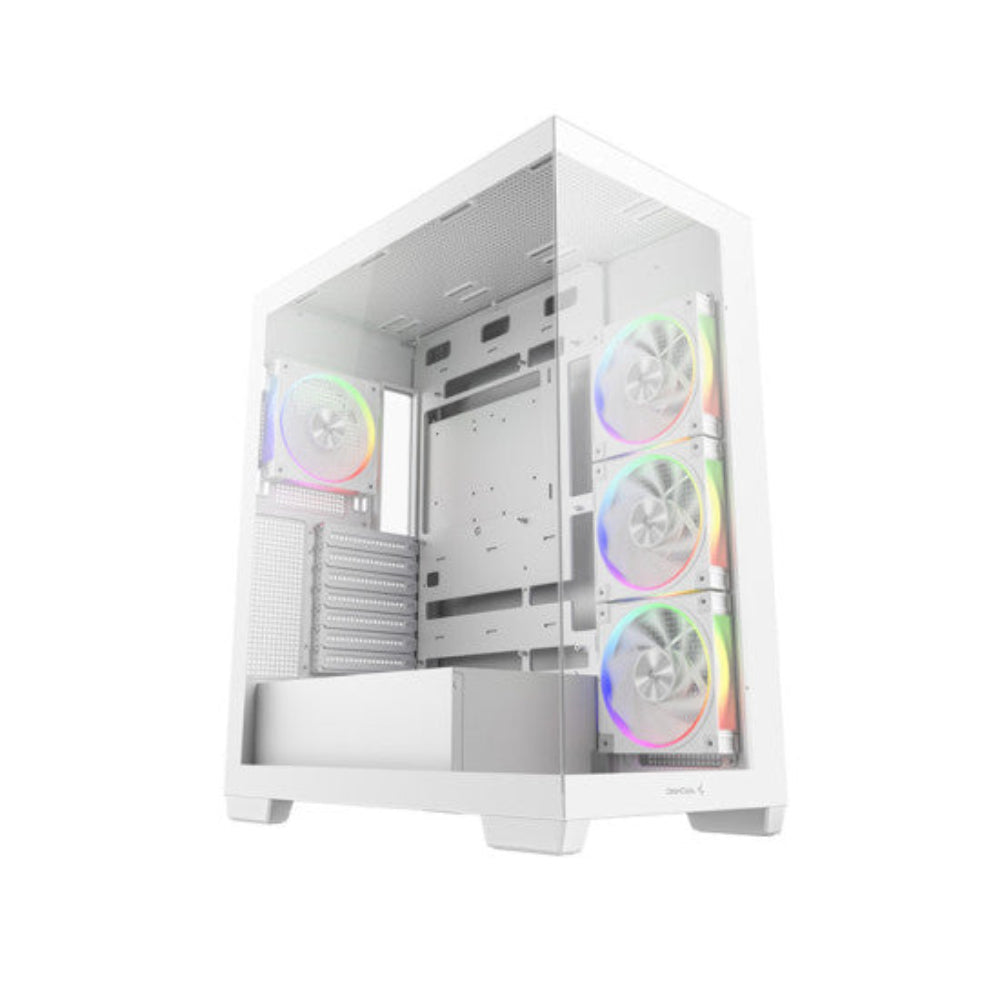

The CG580 4F V2 WH stands out with a pre-installed cooling setup, featuring three PWM ARGB reverse flow fans on the side and one standard PWM ARGB fan at the rear. This configuration creates a streamlined airflow path that enhances thermal efficiency. Coordinated ARGB lighting across the fan frames and rings supports motherboard sync for a unified and dynamic visual effect.
Switching Lighting Effect
Short press the LED button to cycle through 16 pre-set lighting effects.
When Connected to Motherboard Sync Cable
Long press the LED button (about 2-3 seconds) until a white flash: Enter motherboard synchronization mode. The lighting effects will now be controlled by the motherboard.
During Motherboard Sync Mode
Long press the LED button for 2 seconds: Exit the motherboard sync mode and return to lighting control by the case lighting control board.
THE SUPPORT YOU NEED
The CG580 4F V2 WH is designed to support a wide range of components, ensuring flexibility for any build. It supports a 210mm PSU and a 410mm GPU, with the option to fit a 262mm GPU when a radiator is vertically installed on the side of the motherboard. The case is compatible with ATX motherboards and features 7 expansion slots, along with 2 x 3.5” drive bays and 2 x 2.5” drive bays, providing ample space for storage and expansion.
EXCEPTIONAL COOLING CAPACITY
The CG580 4F V2 WH is designed for maximum cooling efficiency, supporting a variety of radiator configurations, including up to 360mm on the top, 360mm on the side, and 140mm at the rear. It accommodates multiple fan setups, with options for 3×120mm or 2×140mm on the top, 3×120mm on the side, and 1×120mm or 1×140mm at the rear. The bottom offers a choice between a 3.5” HDD or a 120mm fan, while the PSU shroud can house 2×120mm fans. Additionally, the case supports CPU coolers up to 176mm, ensuring your system stays cool under the most demanding conditions.

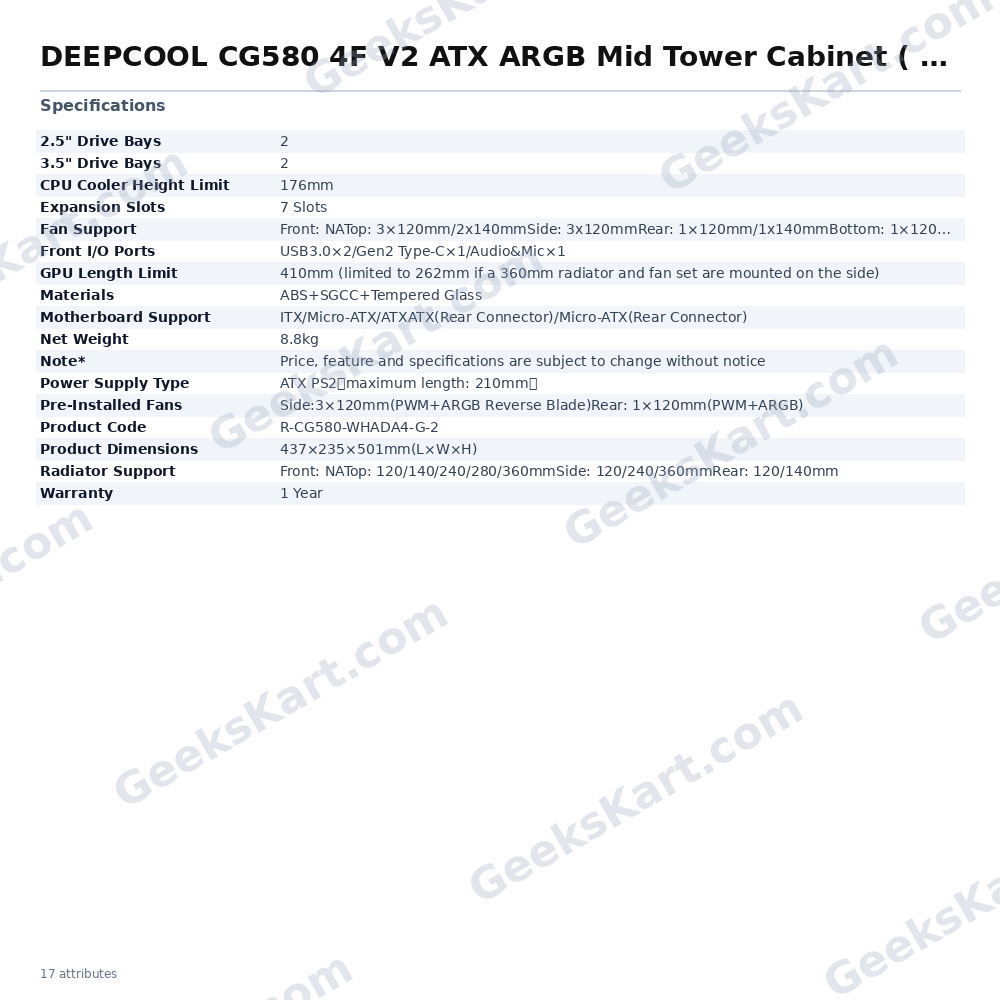

Specifications of DEEPCOOL CG580 4F V2 ATX ARGB Mid Tower Cabinet ( White )
| Product Code | R-CG580-WHADA4-G-2 |
| Product Dimensions | 437×235×501mm(L×W×H) |
| Net Weight | 8.8kg |
| Materials | ABS+SGCC+Tempered Glass |
| Motherboard Support | ITX/Micro-ATX/ATX ATX(Rear Connector)/Micro-ATX(Rear Connector) |
| Front I/O Ports | USB3.0×2/Gen2 Type-C×1/Audio&Mic×1 |
| 3.5″ Drive Bays | 2 |
| 2.5″ Drive Bays | 2 |
| Expansion Slots | 7 Slots |
| Pre-Installed Fans | Side:3×120mm(PWM+ARGB Reverse Blade) Rear: 1×120mm(PWM+ARGB) |
| Fan Support | Front: NA Top: 3×120mm/2x140mm Side: 3x120mm Rear: 1×120mm/1x140mm Bottom: 1×120mm(3.5 HDD/120FAN:Choose one of two) PSU Shrouded: 2×120mm |
| Radiator Support | Front: NA Top: 120/140/240/280/360mm Side: 120/240/360mm Rear: 120/140mm |
| CPU Cooler Height Limit | 176mm |
| GPU Length Limit | 410mm (limited to 262mm if a 360mm radiator and fan set are mounted on the side) |
| Power Supply Type | ATX PS2（maximum length: 210mm） |
| Warranty | 1 Year |
| Note* | Price, feature and specifications are subject to change without notice. |
