DEEPCOOL CH260 MATX Mini Tower Cabinet ( Black )

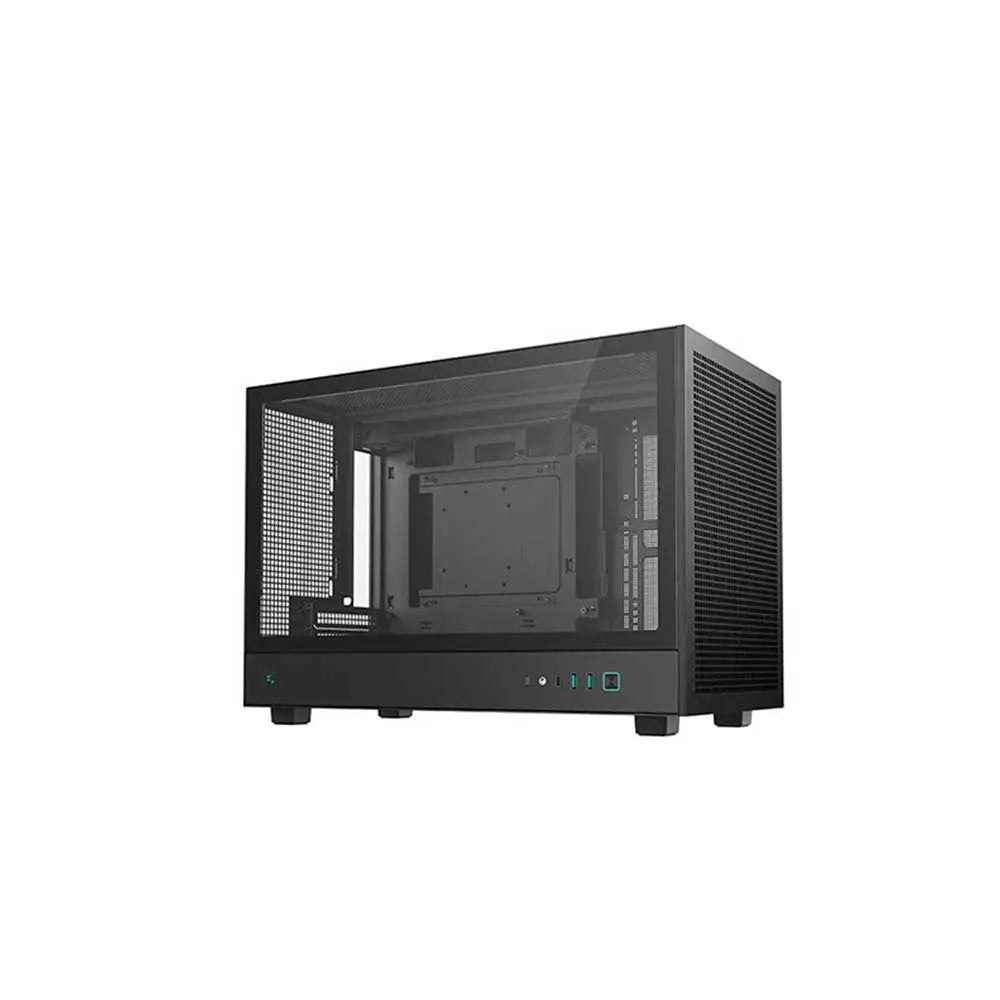

The Deepcool CH260 is a Micro Form Factor mini tower PC cabinet built for builders who want a compact footprint without compromising on component compatibility. Finished in black with an ABS, SPCC steel, and tempered glass construction, the CH260 balances durability with visual appeal through its tempered glass side panel that puts your internal build on display. Despite its compact dimensions of 438 × 225 × 312.5 mm, the CH260 accommodates a surprisingly versatile hardware range. It supports both Mini-ITX and Micro-ATX motherboards, including Micro-ATX boards with rear-facing connectors, thanks to a 29.6 mm backplane clearance designed for next-generation connectivity standards. GPU builders are well catered for: graphics cards up to 388 mm fit with front fans installed, while removing the front fan bracket extends that limit to 413 mm — room for virtually any current full-length GPU. ATX PS2 power supplies up to 150 mm in length are supported via a removable mounting bracket that also helps streamline cable routing. Thermal performance is a clear design priority. The wraparound mesh panels on the front and top promote high-volume airflow through the chassis. Up to six 120 mm fan positions are available across the front (2 × 120 mm), top (3 × 120 mm or 2 × 140 mm), and rear (1 × 120 mm). Radiator support extends to 360 mm AIO liquid coolers on the top, with an additional 120 mm radiator position at the rear. Air-cooler users can install tower heatsinks up to 174 mm tall. Note that no fans are included in the box. Storage options include one 3.5-inch and one 2.5-inch drive bay, and four expansion slots are available for add-in cards. The front I/O panel provides two USB 3.0 Type-A ports, one USB 3.2 Gen 2 Type-C port, and a combined audio/microphone jack, keeping modern peripheral connectivity within easy reach. Verified Specifications: • Model / Product Code: R-CH260-BKNGM0-G-1 • Dimensions: 438 mm × 225 mm × 312.5 mm (L × W × H) • Net Weight: 5.3 kg • Materials: ABS + SPCC steel + Tempered Glass • Motherboard Support: Mini-ITX, Micro-ATX, Micro-ATX (Rear Connector) • Front I/O: 2 × USB 3.0, 1 × USB 3.2 Gen 2 Type-C, 1 × Audio/Mic • Fan Support: Front 2 × 120 mm | Top 3 × 120 mm or 2 × 140 mm | Rear 1 × 120 mm • Radiator Support: Top 120/240/360 mm | Rear 120 mm • CPU Cooler Height Limit: 174 mm • GPU Length Limit: 388 mm (with front fans) / 413 mm (without front fans) • PSU Support: ATX PS2, max 150 mm length • Drive Bays: 1 × 3.5-inch, 1 × 2.5-inch • Expansion Slots: 4 • Pre-Installed Fans: None • Warranty: 1 Year • EAN / GTIN: 6933412765233
