DEEPCOOL CH270 Digital MATX Mini Tower Cabinet (White)
MPN DEEPCOOL-CH270-DIGITAL-WHITE · Brand Deepcool
Features of DEEPCOOL CH270 Digital MATX Mini Tower Cabinet (White) The CH270 DIGITAL WH is an elevated mini-tower case with a small footprint to save up your desktop space. It is adapted to accommodate up to M-ATX motherboards and mainstream ATX components to smooth your building experience. GO MICRO The Micro Form Factor CH270 DIGITAL comes with a tempered glass side panel to give your modern internal gears a show as the perforated top and front panels can be decked out with PIXEL rubber bits
Inclusive of GST · GST invoice available
Overview
Features of DEEPCOOL CH270 Digital MATX Mini Tower Cabinet (White)

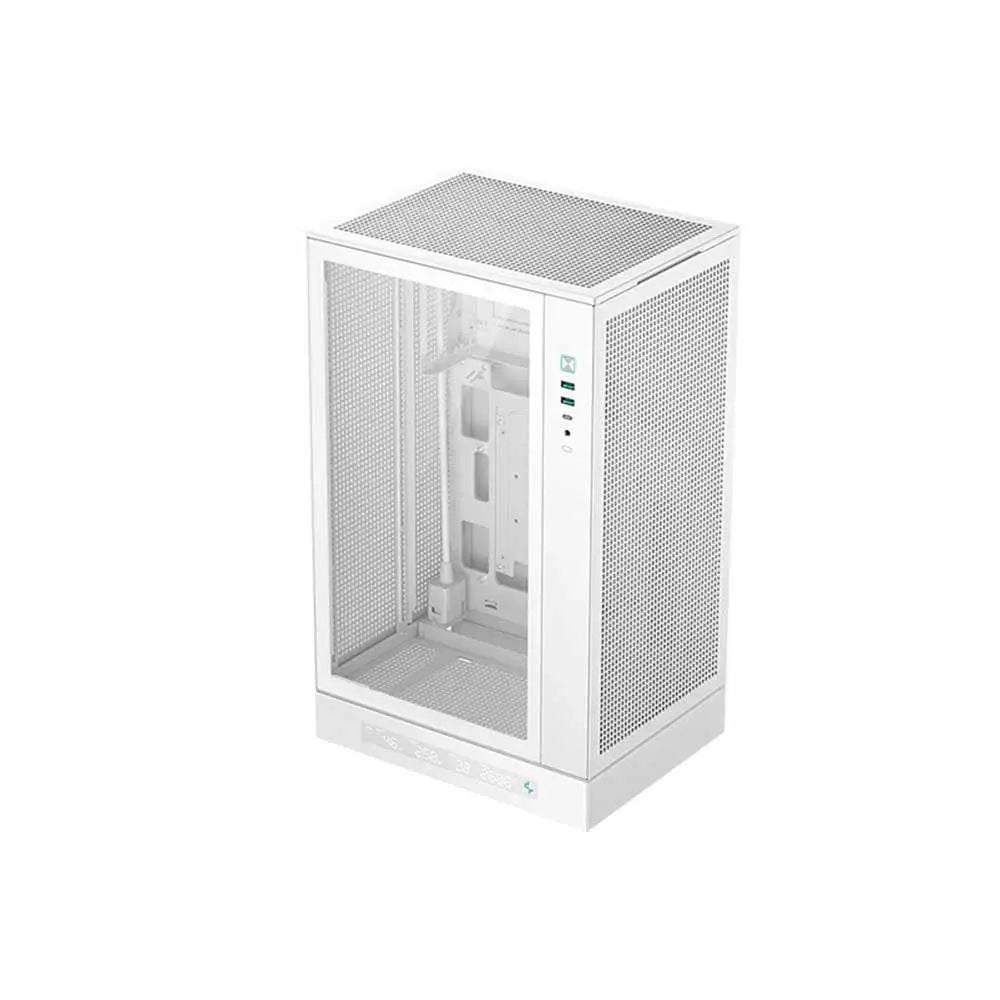

The CH270 DIGITAL WH is an elevated mini-tower case with a small footprint to save up your desktop space. It is adapted to accommodate up to M-ATX motherboards and mainstream ATX components to smooth your building experience.
GO MICRO
The Micro Form Factor CH270 DIGITAL comes with a tempered glass side panel to give your modern internal gears a show as the perforated top and front panels can be decked out with PIXEL rubber bits. The case also meets the rising demands for rear connector motherboards with a wider clearance in the backplane.
DIGITAL VERTICAL BASE
A digital display bar is integrated at the base of the case to monitor your system vitals in real time. The status mode can switch between CPU, GPU, and PSU.
SMALL SIZE OUTSIDE, FULL SIZE INSIDE
Upgraded on the precedent CH170 series, the CH270 DIGITAL now gives expanded options in key components compatibility that supports full-size GPU up to 388mm in length or goes even longer to 413mm without fan placement on the top. ATX PS2 power supply can also fit into the case with a removable mounting bracket to free up space for easy cable management.
UNCOMPROMISED VENTILATION
The wraparound mesh panels and up to six 120mm fan placements effectively ensure cool air flows through the compact system and takes heat away. The maximum thermal hardware can go up to a 360mm AIO liquid cooler on the side or a 174mm high tower heat sink on the CPU.
Specifications of DEEPCOOL CH270 Digital MATX Mini Tower Cabinet (White)
| Product Name | R-CH270-WHNDM0-G-1 |
| Product Dimensions | 296mm*225mm*486mm(L×W×H) |
| Net Weight | 5.8Kg |
| Materials | ABS+SPCC+Tempered Glass |
| Motherboard Support | Mini-ITX / Micro-ATX Micro-ATX(Rear Connector) |
| Front I/o Ports | USB3.0×2、Gen2 Type-C x1、Audio/Mic×1 |
| 3.5″ Drive Bays | 1 |
| 2.5″ Drive Bays | 1 |
| Expansion Slots | 4 Slots |
| Pre-Installed Fans | None |
| Fan Support | Top:2×120mm Side:3×120mm/2x140mm Bottom:1×120mm |
| Radiator Support | Front: NA Side:120/240/360mm Bottom: 120mm Rear:NA |
| CPU Cooler Height Limit | 174mm |
| GPU Size Limit | 388/413mm（No Top fans） |
| Power Supply Type | ATX PS2（maximum length: 150mm） |
| Warranty | 1 Year |
| Note** | **Prices, Specifications & Features are subject to change without notice |
Datasheet
| Warranty | 1 Year |
|---|---|
| Note** | **Prices, Specifications & Features are subject to change without notice |
| Materials | ABS+SPCC+Tempered Glass |
| Net Weight | 5.8Kg |
| Fan Support | Top:2×120mmSide:3×120mm/2x140mmBottom:1×120mm |
| Product Name | R-CH270-WHNDM0-G-1 |
| GPU Size Limit | 388/413mm（No Top fans） |
| Expansion Slots | 4 Slots |
| Front I/O Ports | USB3.0×2、Gen2 Type-C x1、Audio/Mic×1 |
| Radiator Support | Front: NASide:120/240/360mmBottom: 120mmRear:NA |
| 2.5″ Drive Bays | 1 |
| 3.5″ Drive Bays | 1 |
| Power Supply Type | ATX PS2（maximum length: 150mm） |
| Product Dimensions | 296mm*225mm*486mm(L×W×H) |
| Motherboard Support | Mini-ITX / Micro-ATXMicro-ATX(Rear Connector) |
| CPU Cooler Height Limit | 174mm |
