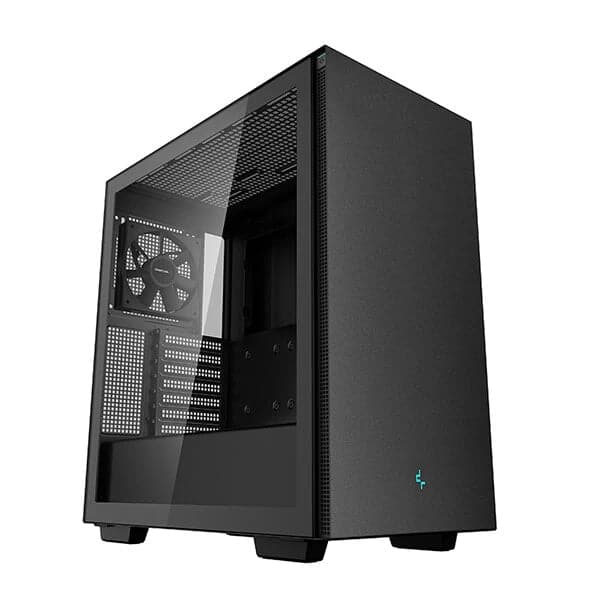

DEEPCOOL CH510 EATX Mid Tower Cabinet (Black)

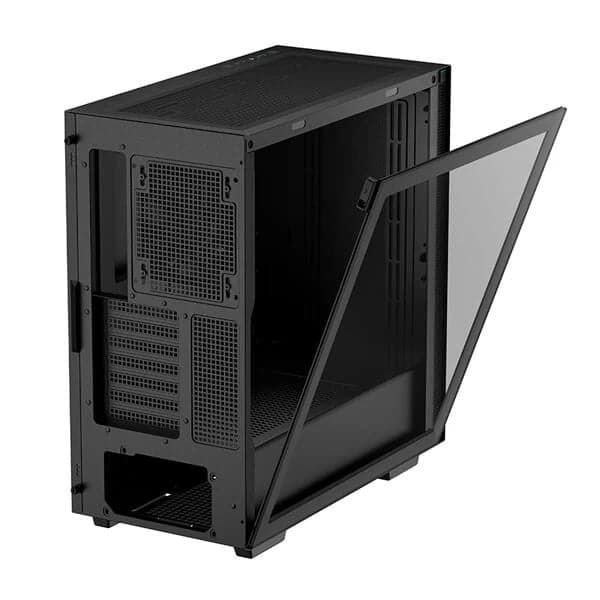

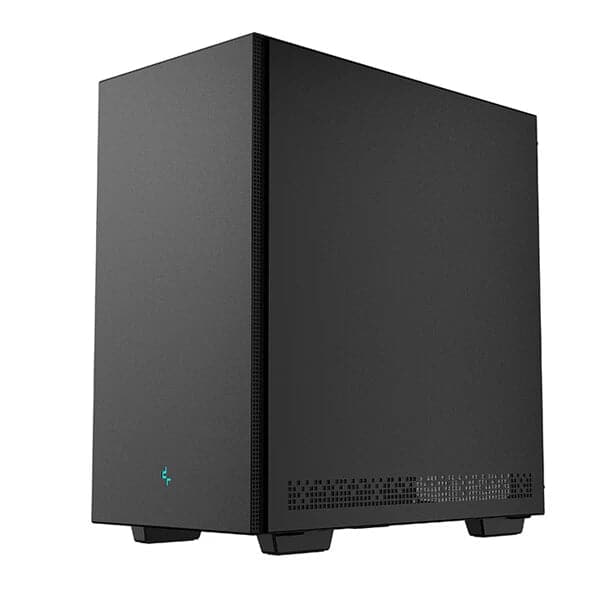

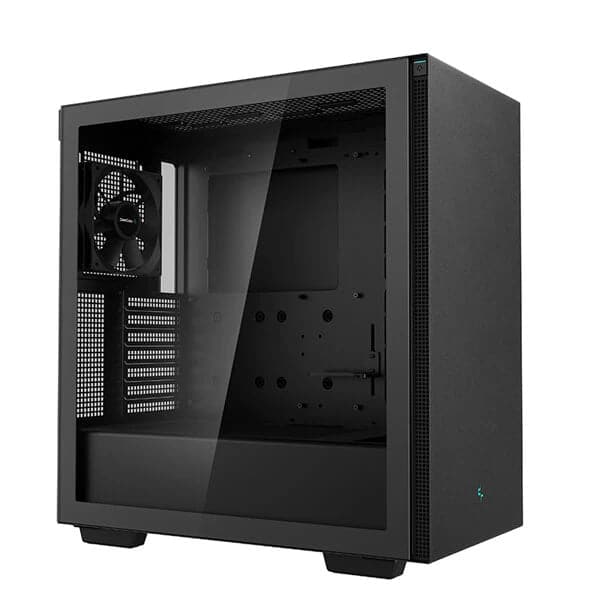

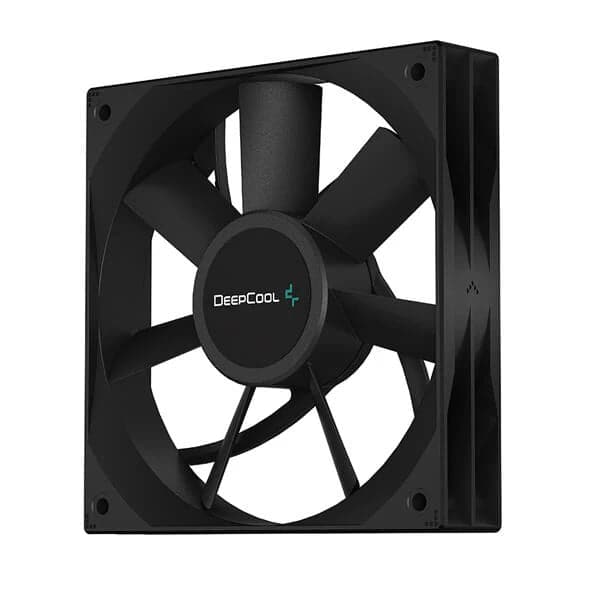

The Deepcool CH510 is a mid-tower PC cabinet engineered to support a wide range of build configurations — from compact Mini-ITX systems to full-sized E-ATX motherboards. Its clean, minimalist exterior is complemented by a tempered glass side panel that puts your components on display, while the steel and ABS construction (SPCC + ABS + Tempered Glass) keeps the chassis rigid and lightweight at 7.2 kg. Inside, the CH510 offers a genuinely spacious layout. GPUs measuring up to 380mm in length fit without modification, and CPU tower coolers up to 175mm tall are accommodated comfortably. Seven expansion slots give you flexibility for multi-card or high-slot add-in configurations. Storage options include two 3.5-inch drive bays and three 2.5-inch positions (2+1), covering both traditional HDDs and modern SSDs. Cooling is where the CH510 earns attention. The front panel accepts up to three 120mm or two 140mm fans, and the top panel matches that capacity. The rear hosts one 120mm or 140mm fan position, with a single 120mm fan pre-installed at the rear from the factory. Radiator support is extensive: the front and top positions each accept radiators from 120mm up to a full 360mm, while the rear handles up to 140mm. This means both air-cooled and custom water-cooled builds are well catered for. The front I/O panel sits at the top of the chassis and includes two USB 3.0 ports and a combined audio jack — a practical, everyday-accessible arrangement. The power supply bay supports ATX PS2 units with a maximum length of 170mm. Verified Specifications: – Dimensions: 435 × 230 × 471 mm (L × W × H) – Net Weight: 7.2 kg – Materials: ABS + SPCC + Tempered Glass – Motherboard Support: Mini-ITX, Micro-ATX, ATX, E-ATX – Pre-Installed Fans: 1 × 120mm (rear) – Fan Support — Front: 3×120mm / 2×140mm; Top: 3×120mm / 2×140mm; Rear: 1×120mm or 1×140mm – Radiator Support — Front: 120/140/240/280/360mm; Top: 120/140/240/280/360mm; Rear: 120/140mm – CPU Cooler Height Limit: 175mm – GPU Length Limit: 380mm – Drive Bays: 2× 3.5-inch, 3× 2.5-inch (2+1) – Expansion Slots: 7 – Front I/O: 2× USB 3.0, 1× Audio – PSU Type: ATX PS2 (max 170mm) – Warranty: 1 Year
