DEEPCOOL CH690 Digital ATX Mid Tower Cabinet (Black)

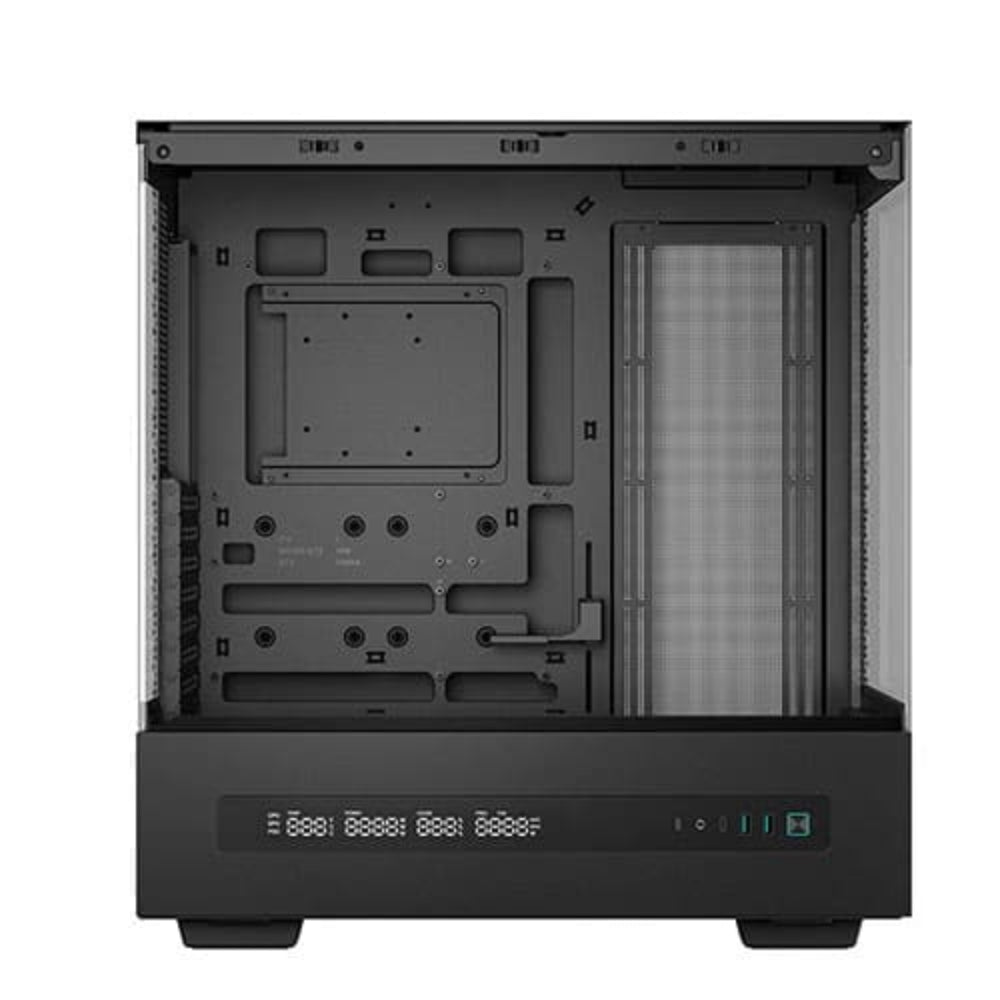

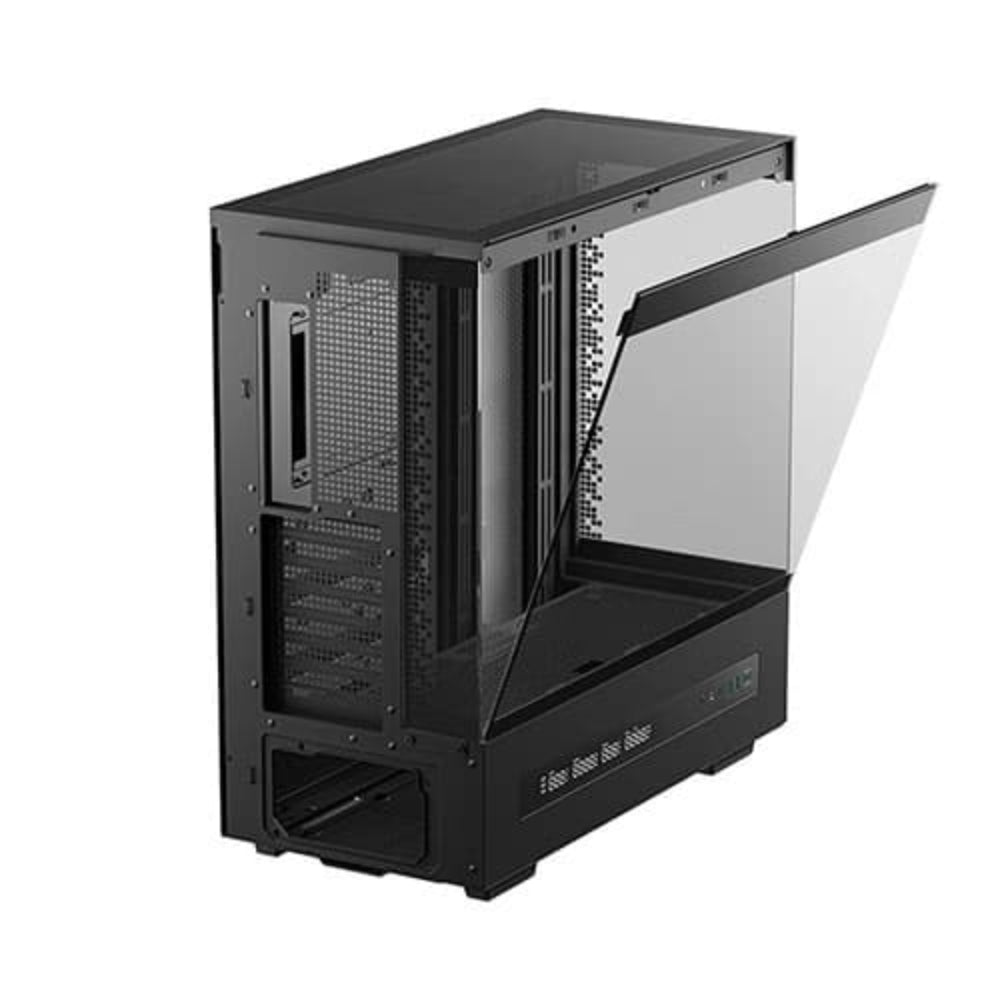

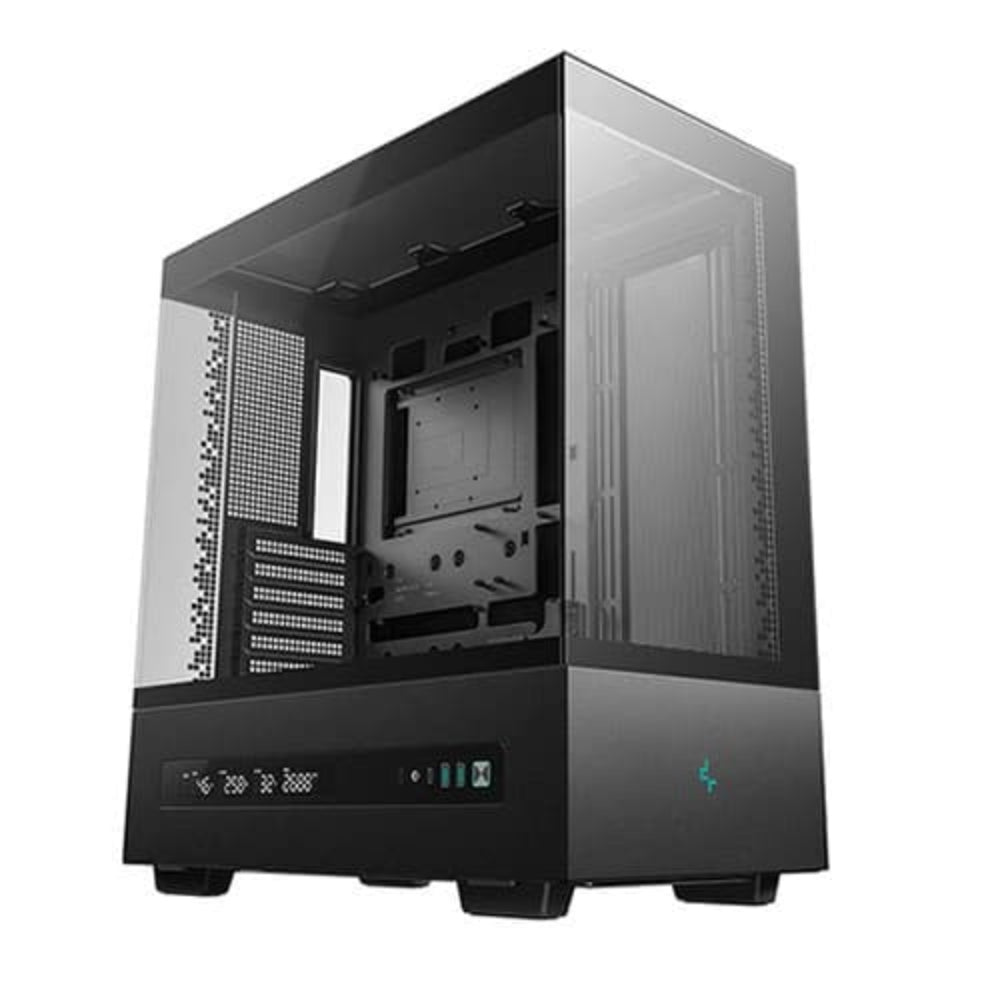

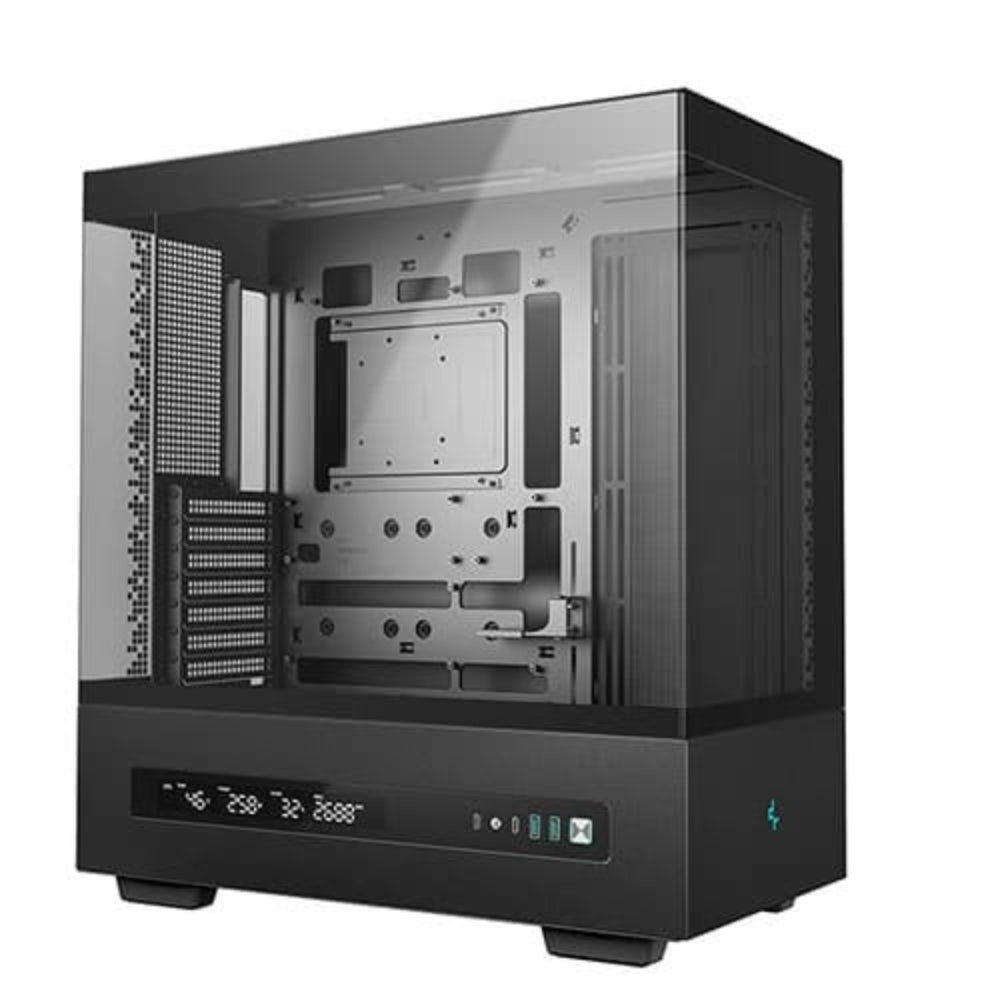

The Deepcool CH690 Digital is a full-featured ATX mid tower cabinet built for builders who want real-time system insight and genuine thermal flexibility. At its centrepiece is an integrated digital display panel on the front of the chassis that cycles through CPU, GPU, and PSU monitoring modes — showing temperature (switchable between Celsius and Fahrenheit), power consumption, utilisation, clock frequency, and fan speed depending on the selected mode. This turns your build into a functional command centre without requiring any third-party software overlay. The side panel is a semi-tempered-glass design that provides a wide, unobstructed view of installed components, while the rear panel supports a DIY conversion: the semi-glass panel can be swapped for a mesh panel and fan bracket, enabling increased horizontal airflow for thermally demanding configurations. Cooling headroom is generous throughout the chassis. The top accommodates radiators up to 420mm and up to three 140mm fans. The side position supports up to a 280mm radiator, and the PSU-shroud region accepts radiators up to 360mm, fed by an innovative mesh-designed PSU shroud that channels vertical airflow. A single 140mm fan position is available at the rear. In total, the CH690 Digital supports up to ten fans simultaneously. Compatibility is broad by design. The cabinet supports ATX, Micro-ATX, and Mini-ITX motherboards. CPU coolers up to 182mm tall fit without modification. Graphics cards up to 450mm in length are accommodated, and an adjustable GPU holder is included to prevent GPU sag and protect the motherboard slot. The PSU bay accepts units up to 180mm in length. Storage options include one 3.5-inch HDD bay and three 2.5-inch SSD bays, giving builders room to grow. Front I/O includes two USB 3.0 Type-A ports, one USB 3.2 Gen 2 Type-C port, and a combined audio/microphone jack — all positioned for easy daily access. Cable management is aided by a 36.5mm routing channel width behind the motherboard tray, and an integrated light-strip slot allows the optional addition of LED strips. A magnetic dust filter pad at the bottom of the chassis is removable for straightforward cleaning. Verified Specifications: • Model: R-CH690-BKNNA0D-G-1 • Form Factor: Mid Tower • Supported Motherboards: ATX, Micro-ATX, Mini-ITX • Material: Steel, ABS, Tempered Glass • Colour: Black • Expansion Slots: 8 (individual removable) • Max CPU Cooler Height: 182mm • Max PSU Length: 180mm • Max GPU Length: 450mm • Storage: 1 × 3.5″ HDD bay, 3 × 2.5″ SSD bays • Max Fan Support: 10 • Radiator Support: up to 420mm (top), 280mm (side), 360mm (PSU shroud) • Front I/O: 2 × USB 3.0, 1 × USB 3.2 Gen 2 Type-C, Audio/Mic • Dust Filters: Top, Bottom (magnetic) • Warranty: 1 Year
