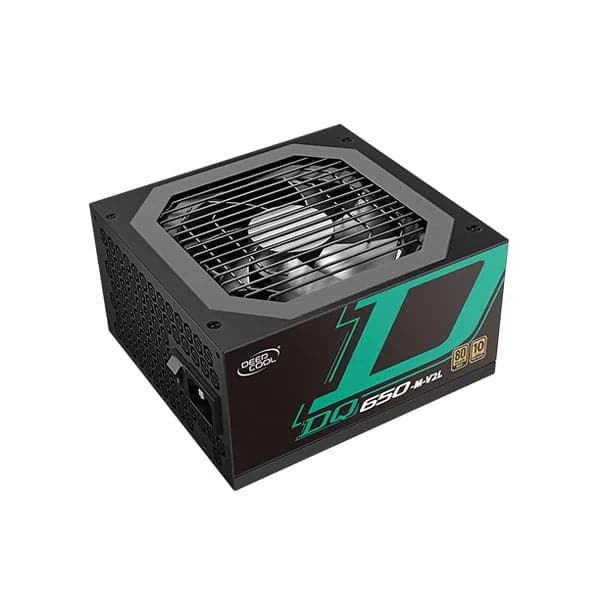

DEEPCOOL DQ650-M-V2L 80+ Gold Fully Modular Power Supply (650 W)

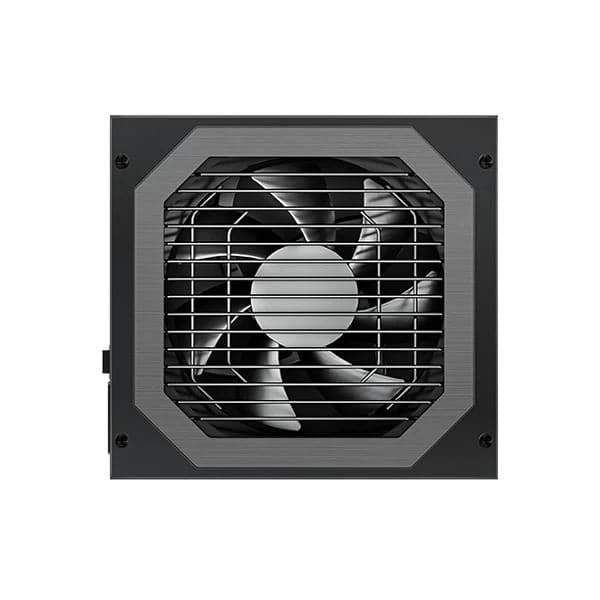

The Deepcool DQ650-M-V2L is a 650 W fully modular ATX power supply carrying an 80 PLUS Gold certification. Aimed at mid-range to high-performance desktop builds, it combines clean power delivery with practical cable-management flexibility, making it a solid choice for builders who want efficiency and long-term reliability without paying a premium for platinum-tier efficiency. At the heart of the design is an active Power Factor Correction circuit rated above 0.99, paired with a full-bridge LLC resonant converter and synchronous rectification DC-DC topology. This combination keeps conversion losses low and helps the unit reach up to 90% efficiency under typical load conditions — consistent with the 80 PLUS Gold requirement. The result is less wasted energy turned into heat inside your case, which translates to lower ambient temperatures for your other components. All electrolytic capacitors used are sourced from Japanese manufacturers, a detail that directly affects long-term stability. Japanese-grade capacitors are specified to tighter tolerances and higher endurance ratings than budget alternatives. Deepcool pairs these with a 120 mm Fluid Dynamic Bearing (FDB) fan, a bearing type chosen for low noise and extended operational life compared to sleeve-bearing designs. The fan operates on a tuned speed curve, ramping up only as thermal load demands it. Protection circuits — branded collectively as CircuitShield by Deepcool — guard against over-voltage (OVP), under-voltage (UVP), short circuit (SCP), and over-power (OPP) conditions. These four protection layers address the most common failure scenarios that can damage downstream hardware. The fully modular cable system means no fixed cables are attached to the unit; every connector — including the main ATX and EPS lines — is detachable. Only the cables required by your specific build need to be installed, reducing clutter and improving airflow in the case. Cables are flat-profile black, easing routing behind the motherboard tray. Verified Specifications: — Model: DQ650-M | Form factor: ATX 12V 2.92 / V2.31 — Output capacity: 650 W — Certification: 80 PLUS Gold — Efficiency: 90% under typical load — Input voltage: 100–240 V AC universal | Input current: 10.0 A / 5.0 A — Input frequency range: 47–63 Hz — PFC: Active PFC (>0.99) — Fan: 120 mm FDB — Hold-up time: >16 ms | Power Good signal: 100–500 ms — Protection: OVP, UVP, SCP, OPP — Dimensions: 150 × 160 × 86 mm (W × L × H) — Operating temperature: 0–40 °C — MTBF: 120,000 hours — Regulatory compliance: CE, CB, CCC, EAC, FCC — Warranty: 10 years
