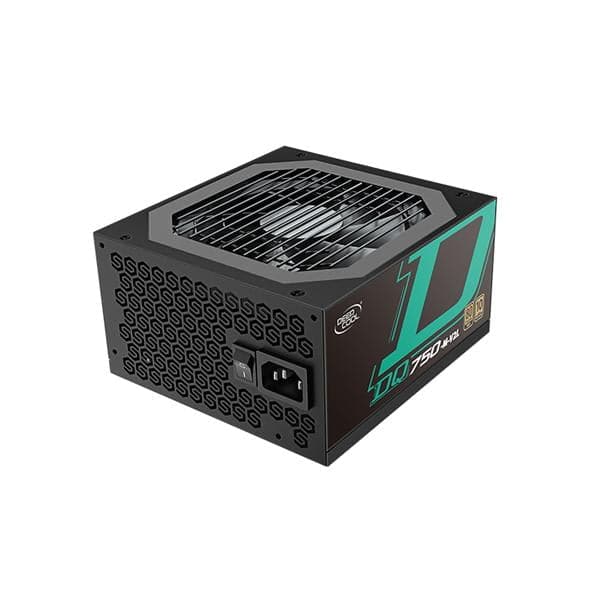

DEEPCOOL DQ750-M-V2L 80+ Gold Fully Modular Power Supply (750 W)

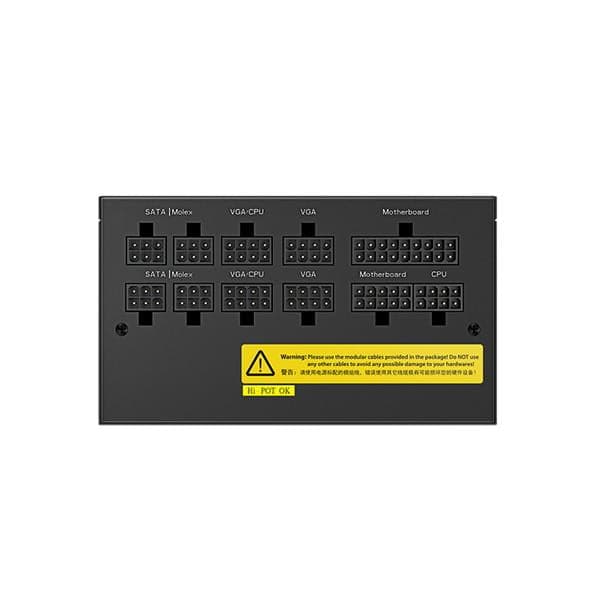

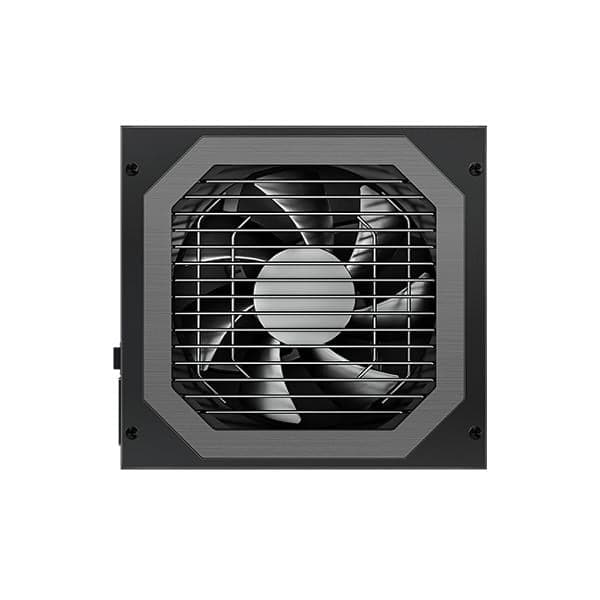

The Deepcool DQ750-M-V2L is a fully modular 750 W ATX power supply built around an 80 Plus Gold certification, meaning it achieves greater than 90% efficiency under typical 50% load conditions. That efficiency ceiling is backed by a full-bridge LLC resonant converter topology combined with active Power Factor Correction and synchronous rectification DC-DC conversion — an architecture that reduces heat output and keeps voltage rails stable under demanding workloads. Inside the unit, Deepcool specifies 100% Japanese electrolytic capacitors. Japanese-sourced capacitors are a well-recognised marker of build quality in the PSU segment because of their tighter tolerance ratings and longer rated operational life, contributing to the unit’s 100,000-hour Mean Time Between Failures figure. Cable management is made straightforward by the fully modular design: every cable — including ATX, EPS, PCIe, SATA, and peripheral leads — detaches completely from the unit. Deepcool has paired this with flat ribbon-style cables that reduce airflow obstruction inside the chassis and simplify routing behind the motherboard tray. Thermal management is handled by a 120 mm PWM fan that adjusts speed in response to real-time temperature and load conditions, keeping noise levels controlled during light tasks while ramping up only when the workload demands it. The unit’s CircuitShield protection suite covers six failure modes: over-voltage protection (OVP), under-voltage protection (UVP), over-current protection (OCP), short-circuit protection (SCP), over-power protection (OPP), and over-temperature protection (OTP), providing a comprehensive safety net for connected components. Regulatory compliance includes CE, CB, CCC, EAC, FCC, KCC, RCM, and RoHS marks, confirming suitability for markets across Europe, Asia, and Oceania. The unit also meets ErP Lot 3 2014 standby-efficiency requirements. Key Specifications: Model: DQ750-M-V2L | Form Factor: ATX 12V V2.31 | Output Capacity: 750 W | Certification: 80 Plus Gold | Efficiency: >90% at 50% load (up to 91.2% peak) | Fan: 120 mm PWM | PFC: Active | Input Voltage: 100–240 V AC | Input Current: 10.0 A | Input Frequency: 47–63 Hz | Hold-Up Time: >16 ms at 80% load | Power Good Signal: 100–500 ms | Operating Temperature: 0–40°C | MTBF: 100,000 hours | Protection: OVP/UVP/OCP/SCP/OPP/OTP | Dimensions: 150 × 160 × 86 mm (W × L × H) | Warranty: 3 years
