Features of DEEPCOOL DQ750M-V3 80+ Fully Modular Power Supply

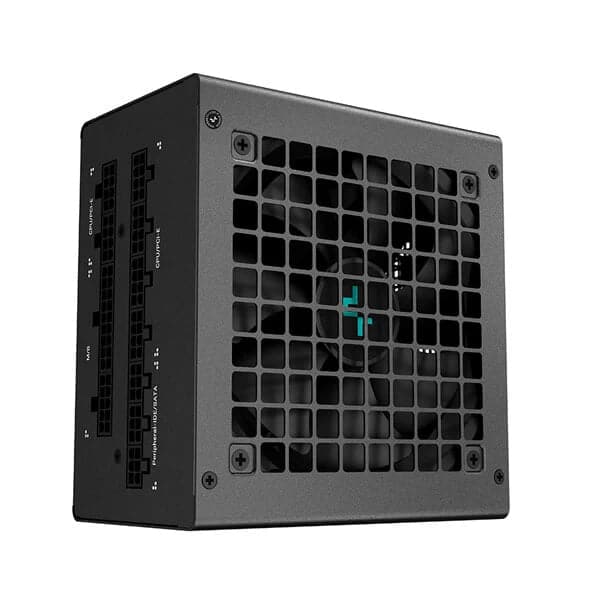

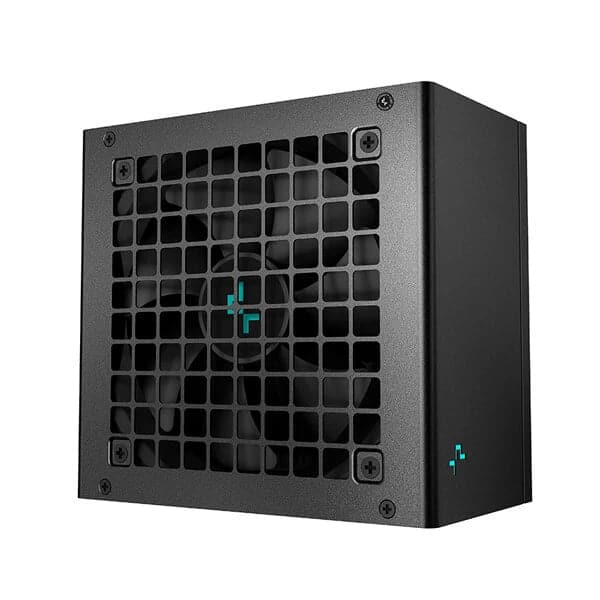

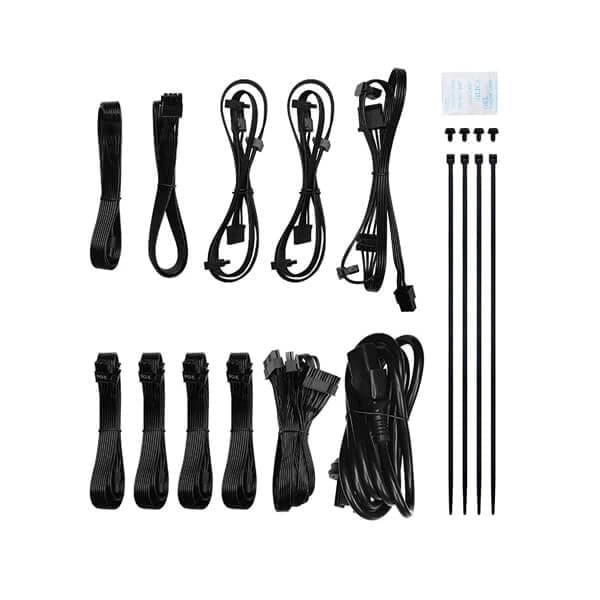

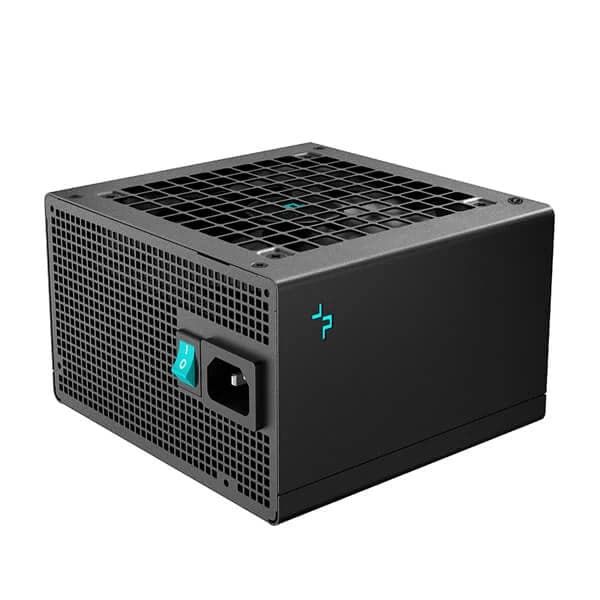

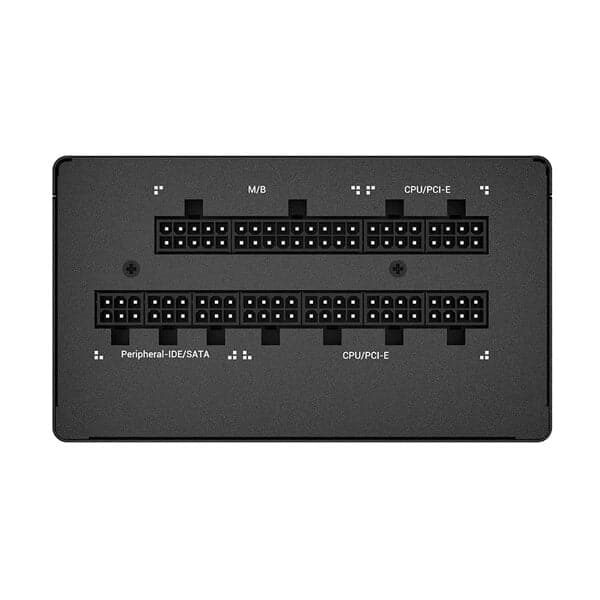

The DeepCool DQ750M-V3L is a fully modular 750W Power Supply that adopts a new pure black shell, is 80 PLUS gold certified, utilizes a mainstream active PFC + full-bridge LLC resonance + DC/DC architecture, and uses all Japanese capacitors. The power output is stable and efficient, making it an excellent choice for AAA games.
Go For Gold
The DQ750M-V3L power supply is 80 Plus Gold certified, will generate clean and consistent power, while reducing heat and noise. The Deepcool Power Supply is energy-efficient, and provides efficiency greater than 91.9% at 50% load.
Designed And Built Solid
The internal design is compact, with full Japanese capacitors and materials. The main capacitor is selected from 105℃ bulk capacitor, making it resistant to high temperatures. Solid state capacitors are used for the auxiliary capacitors producing low noise and long life.
IMPROVED COOLING PERFORMANCE
By implementing a new manufacturing process with the adoption of SiC diodes, it produces lower heat loss, while achieving higher efficiency. The seperative heatsink for the LLC mosfet and a large, full copper heatsink for the SR mosfet creates superior heat dissipation.
Powerful Cooling When You Need It; Whisper Quiet When You Don’t!

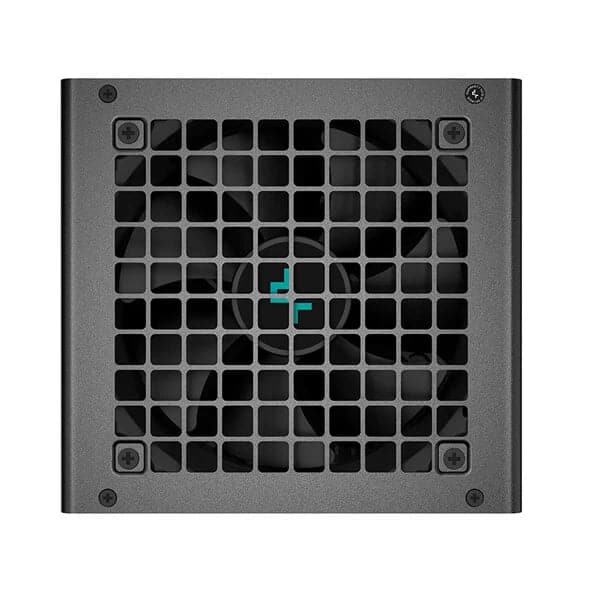

Under low loads, the DQ750M-V3L will operate at a true zero noise level. At full load, the supported intellegent, temperature-control adjusted, enabled FDB fan provides remarkably low noise cooling, while minimizing noise interference.
Get the best 80 Plus Gold cpu power supply price from us today!
Specifications –
| Type | ATX12V V2.4 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| 80PLUS Certifications | Gold |
| Fan Size | 120mm |
| Fan Bearing | FDB (Fluid Dynamic Bearing) |
| Topology |
Active PFC + Full Bridge SRC LLC + DC to DC
|
| Capacitors | Full Japan Electrolytic Capacitors |
| Power Good Signal | 100-500ms |
| Hold Up Time | ≥16ms(80% Load) |
| Efficiency |
≥90% Under Typical Load(50% Loading)
|
| Protection | SCP,OPP,OTP,OVP,OCP,UVP |
| Operation Temperature | 0 – 40 °C |
| Regulatory |
CB/CCC/CE/FCC/UKCA/BIS/EAC/CAN ICES-003(B)/NMB-003(B)
|
| Erp Regulation | ErP 2014 |
| MTBF | 100,000 Hours |
| Warranty | 7 Years |
| Note |
*** Features, Price, Specifications are subject to change without notice.
|
