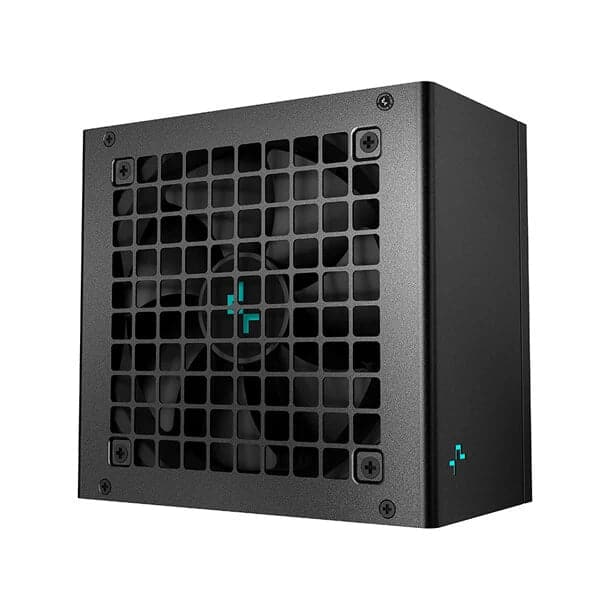

Features of DEEPCOOL DQ850M-V3L 850W Fully Modular Power Supply
The DeepCool DQ850M-V3L is a fully modular 850W Power Supply that adopts a new pure black shell, is 80 PLUS gold certified, utilizes a mainstream active PFC + full-bridge LLC resonance + DC/DC architecture, and uses all Japanese capacitors. The power output is stable and efficient, making it an excellent choice for AAA games.
Go For Gold
The DQ850M-V3L power supply is 80 Plus Gold certified, will generate clean and consistent power, while reducing heat and noise. Deepcool Power Supply is energy-efficient, and provides efficiency greater than 92% at 50% load.
Designed And Built Solid
The internal design is compact, with full Japanese capacitors and materials. The main capacitor is selected from 105℃ bulk capacitor, making it resistant to high temperatures. Solid state capacitors are used for the auxiliary capacitors producing low noise and long life.
IMPROVED COOLING PERFORMANCE
By implementing a new manufacturing process with the adoption of SiC diodes, it produces lower heat loss, while achieving higher efficiency. The seperative heatsink for the LLC mosfet and a large, full copper heatsink for the SR mosfet creates superior heat dissipation.
Powerful Cooling When You Need It; Whisper Quiet When You Don’t!
Under low loads, the DQ850M-V3L will operate at a true zero noise level. At full load, the supported intellegent, temperature-control adjusted, enabled FDB fan provides remarkably low noise cooling, while minimizing noise interference.
Get the best 80 Plus Gold cpu power supply price from us today!

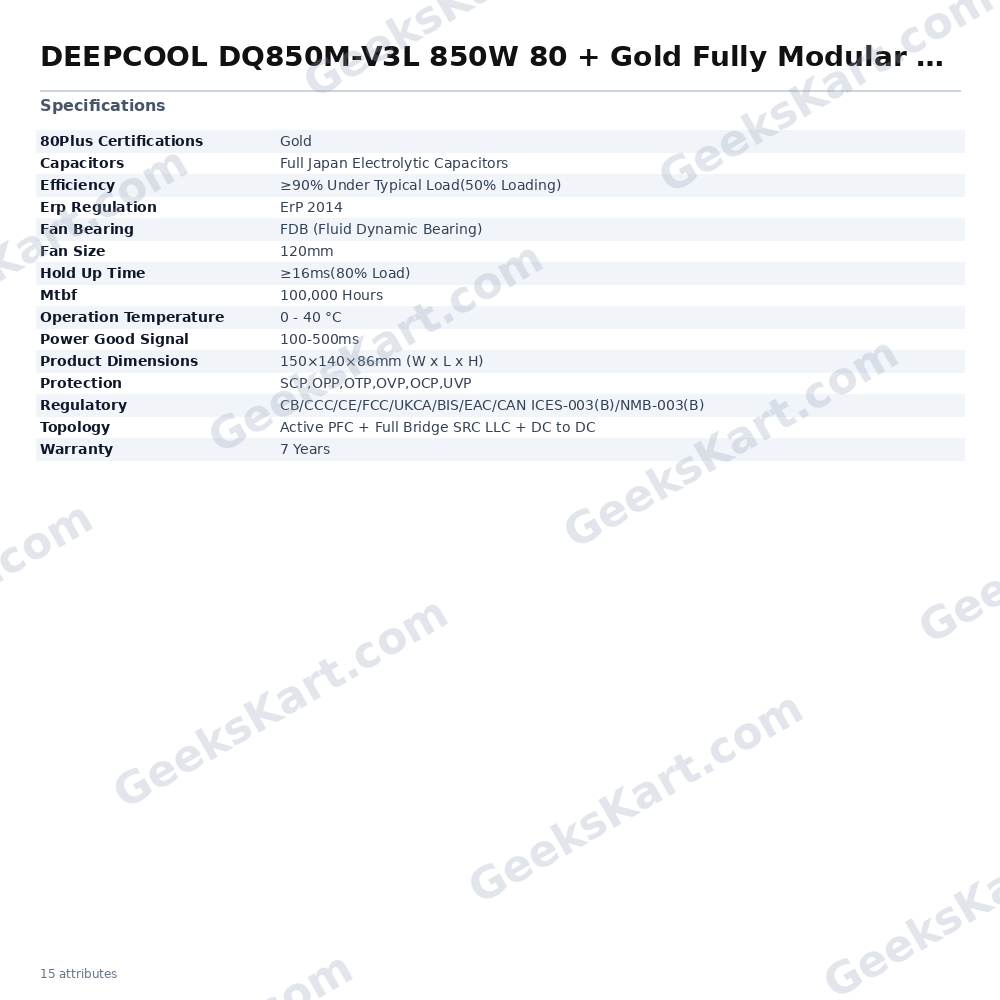

Specifications of DEEPCOOL DQ850M-V3L 850W Fully Modular Power Supply
| Type | ATX12V V2.4 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| 80PLUS Certifications | Gold |
| Fan Size | 120mm |
| Fan Bearing | FDB (Fluid Dynamic Bearing) |
| Topology |
Active PFC + Full Bridge SRC LLC + DC to DC
|
| Capacitors | Full Japan Electrolytic Capacitors |
| Power Good Signal | 100-500ms |
| Hold Up Time | ≥16ms(80% Load) |
| Efficiency |
≥90% Under Typical Load(50% Loading)
|
| Protection | SCP,OPP,OTP,OVP,OCP,UVP |
| Operation Temperature | 0 – 40 °C |
| Regulatory |
CB/CCC/CE/FCC/UKCA/BIS/EAC/CAN ICES-003(B)/NMB-003(B)
|
| Erp Regulation | ErP 2014 |
| MTBF | 100,000 Hours |
| Warranty | 7 Years |
| Note |
*** Features, Price, Specifications are subject to change without notice.
|
