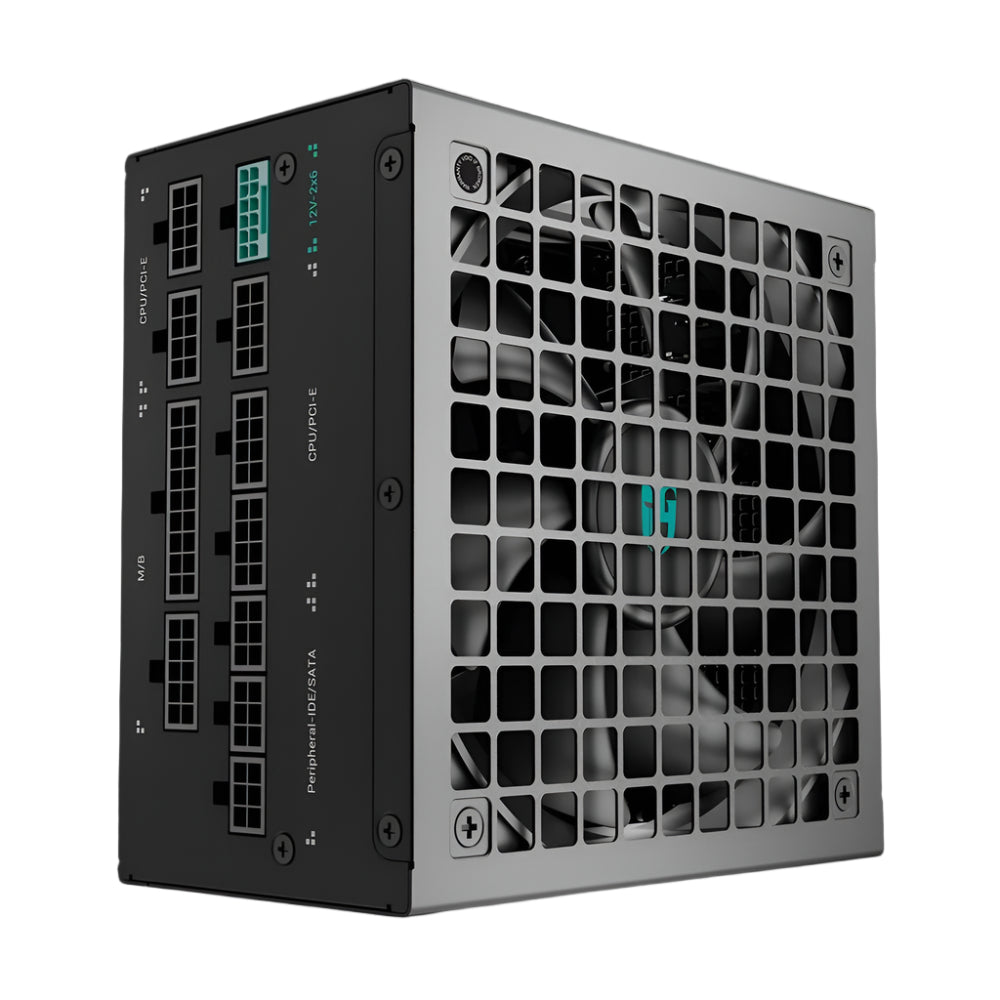

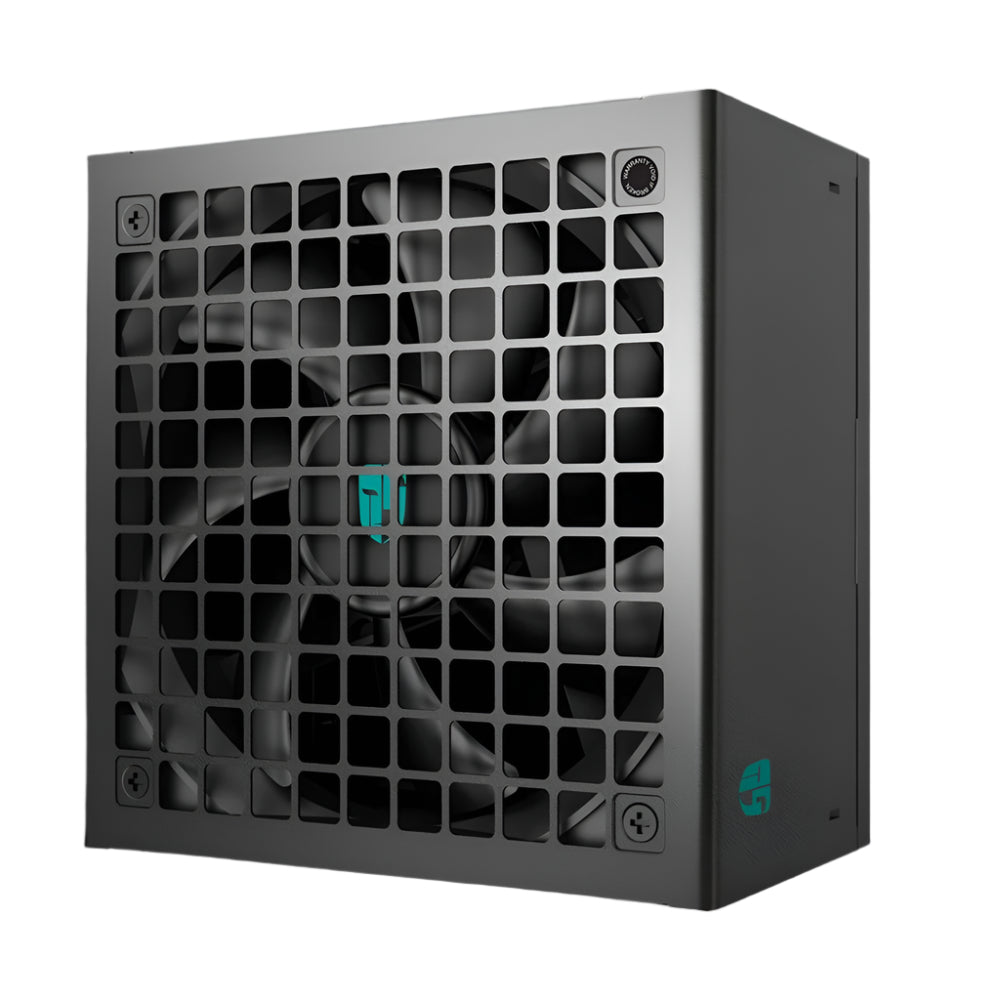

DEEPCOOL Gamer Storm PN1000M 1000W 80 Plus Gold Fully Modular ATX 3.1 Power Supply

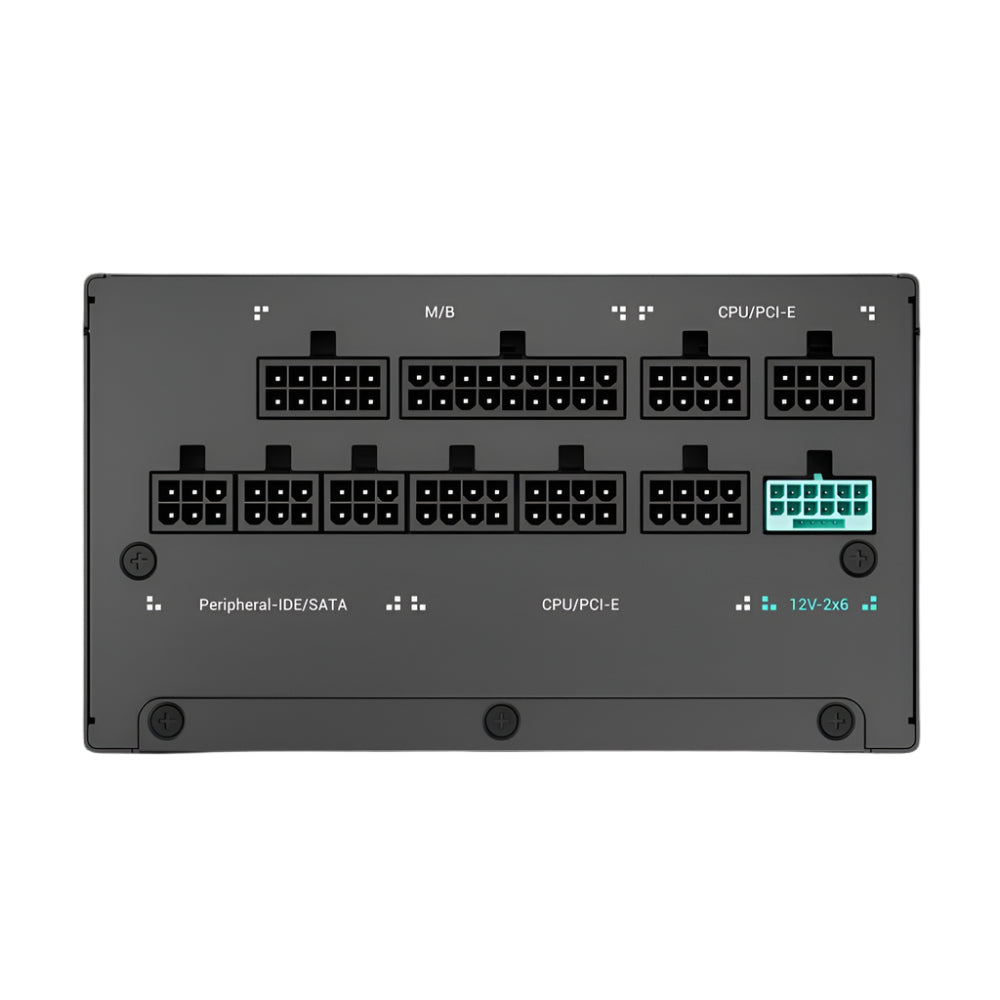

The Deepcool Gamer Storm PN1000M is a 1000W fully modular ATX 3.1 power supply designed for high-performance desktop builds — from current-generation gaming rigs to workstations that demand headroom for the next wave of components. Its ATX12V V3.1 compliance means it can deliver twice the rated system power for up to 0.1 ms, absorbing sudden transient spikes without compromising rail stability. Efficiency sits at the heart of the PN1000M's design. Holding an 80 Plus Gold certification as well as a Cybenetics Gold rating, the unit delivers 90% or greater efficiency under a typical 50% load, keeping energy waste and internal heat to a minimum during everyday use. The topology — Active PFC paired with a half-bridge SRC LLC stage and a DC-to-DC converter — underpins tight voltage regulation across all rails and supports a hold-up time of 16 ms or more at 80% load, exceeding the ATX specification. For GPU connectivity, the PN1000M ships with a high-grade 16AWG copper-core 12V-2x6 cable rated for up to 600W, making it a practical choice for modern discrete graphics cards. All output cables are sleeved from the factory, contributing to a tidy cable-managed build interior. Cooling is handled by a 135mm Fluid Dynamic Bearing (FDB) fan that modulates its speed in response to thermal load — reducing noise during light tasks and ramping up only when the PSU demands it. FDB fans are known for their longevity and low acoustic profile compared to sleeve-bearing alternatives. The unit carries a comprehensive protection suite: Over Power Protection (OPP), Over Voltage Protection (OVP), Short Circuit Protection (SCP), Over Temperature Protection (OTP), Over Current Protection (OCP), Under Voltage Protection (UVP), No-Load Operation protection (NLO), and Surge & Inrush Protection (SIP). Together these safeguards protect both the PSU and connected components. Regulatory clearances include CE, FCC, CCC, TUV-RH, cTUVus, RCM, EAC, and BIS, making the PN1000M suitable for sale and use in multiple global markets including India. Environmental compliance covers WEEE, China RoHS, Triman, and Prop 65. Verified Specifications: • Model: R-PNA00M-FC0B-JGIN • Form Factor: ATX12V V3.1 (ATX 3.1) • Rated Output: 1000W • Efficiency: ≥90% at 50% load | 80 Plus Gold + Cybenetics Gold • Dimensions: 150 × 150 × 86 mm (W × L × H) • Fan: 135mm FDB • Topology: Active PFC + Half-Bridge SRC LLC + DC-to-DC • Capacitors: Japanese bulk electrolytic • Hold-Up Time: ≥16 ms at 80% load • Power Good Signal: 100–150 ms • MTBF: 100,000 hours • Operating Temperature: 0–40°C • Altitude Rating: Up to 5,000 m above sea level • Protection: OPP, OVP, SCP, OTP, OCP, UVP, NLO, SIP • Warranty: 10 years
