DEEPCOOL Gamer Storm PN750D 750W 80+ Gold Non Modular ATX 3.1 Power Supply

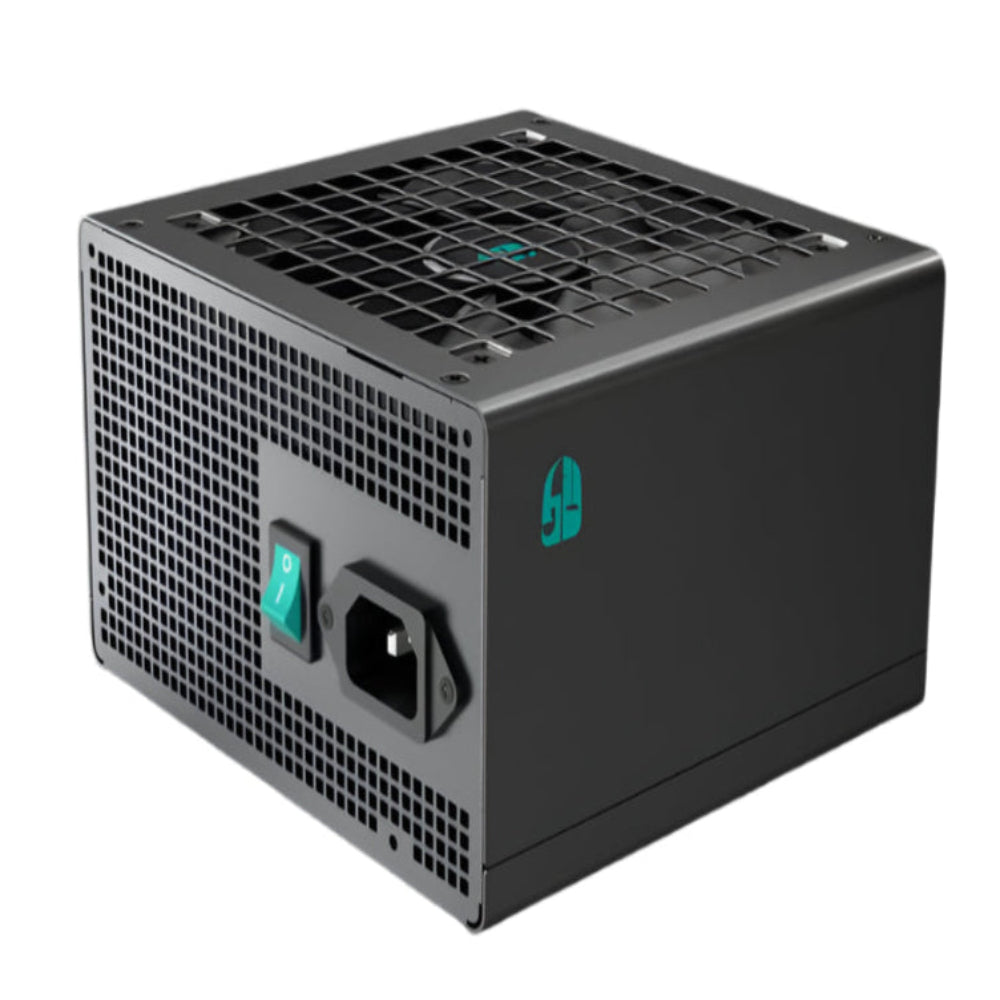

The Deepcool Gamer Storm PN750D is a 750W non-modular power supply built to the ATX12V V3.1 specification, carrying 80 Plus Gold efficiency certification and an additional Gold rating from Cybenetics. It delivers at least 90% efficiency under typical load conditions (50% loading), making it a solid choice for mid-range to high-performance desktop builds that demand stable, efficient power delivery. The PN750D uses an advanced circuit topology combining Active PFC, Full-Bridge SRC LLC conversion, and a DC-to-DC stage. This combination contributes to tight voltage regulation, low ripple, and a hold-up time of 16 ms or more at 80% load — meeting ATX specification requirements for system stability during brief power interruptions. For GPU connectivity, the unit ships with a 12V-2x6 sleeved cable constructed from 105°C-rated 16AWG copper-core wire, capable of supplying up to 450W to a single graphics card. All cables included with the PN750D are sleeved from the factory, contributing to a cleaner build aesthetic despite the non-modular form factor. Cooling is handled by a 120mm hydro bearing fan that adjusts its speed dynamically based on internal thermal conditions, balancing noise output with effective heat dissipation. The Power Good signal is rated at 100–150 ms, and the unit includes eight protection mechanisms: OPP, OVP, SCP, OTP, OCP, UVP, SIP, and NLO. The PN750D meets an extensive list of regulatory certifications including CE, FCC, CCC, TUV-RH, cTUVus, RCM, and EAC, along with ErP 2014 compliance and WEEE/RoHS environmental standards. Its rated MTBF is 100,000 hours at an operating temperature range of 0–40°C. Verified Specifications: - Model: R-PN750D-FC0B-JGIN-V2 - Type: ATX12V V3.1 - Rated Output Power: 750W - Efficiency Certification: 80 Plus Gold / Cybenetics Gold - Efficiency: ≥90% at 50% load - Topology: Active PFC + Full-Bridge SRC LLC + DC-to-DC - Hold-Up Time: ≥16 ms at 80% load - Power Good Signal: 100–150 ms - Fan: 120mm Hydro Bearing (HYB), dynamic speed control - GPU Connector: 12V-2x6 (up to 450W), 16AWG, 105°C rated - Cables: Sleeved, non-modular - Capacitors: Chinese electrolytic capacitors - Protections: OPP / OVP / SCP / OTP / OCP / UVP / SIP / NLO - Dimensions: 150 × 140 × 86 mm (W × L × H) - Operating Temperature: 0–40°C - MTBF: 100,000 hours - Regulatory: CE / FCC / CCC / TUV-RH / cTUVus / RCM / EAC / ErP 2014 / WEEE / RoHS
