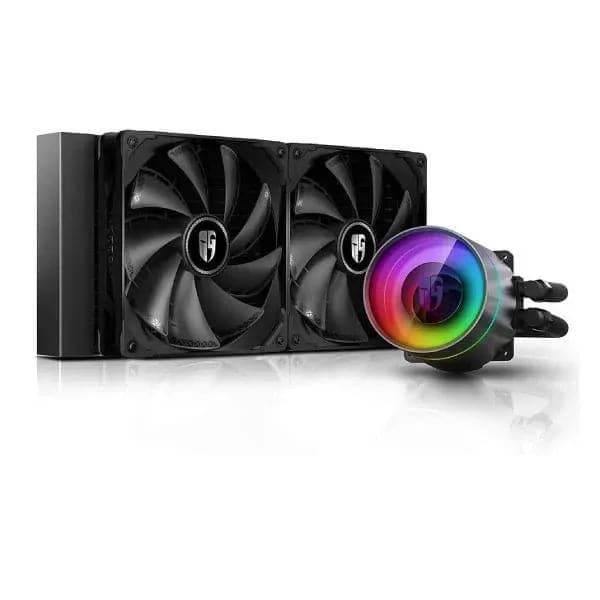

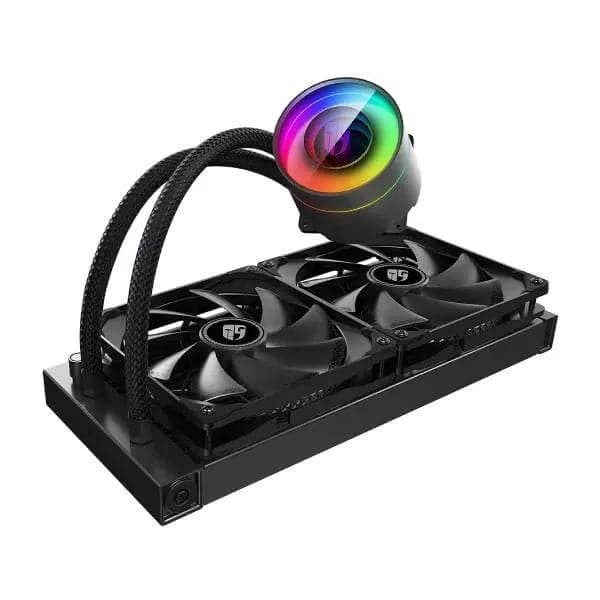

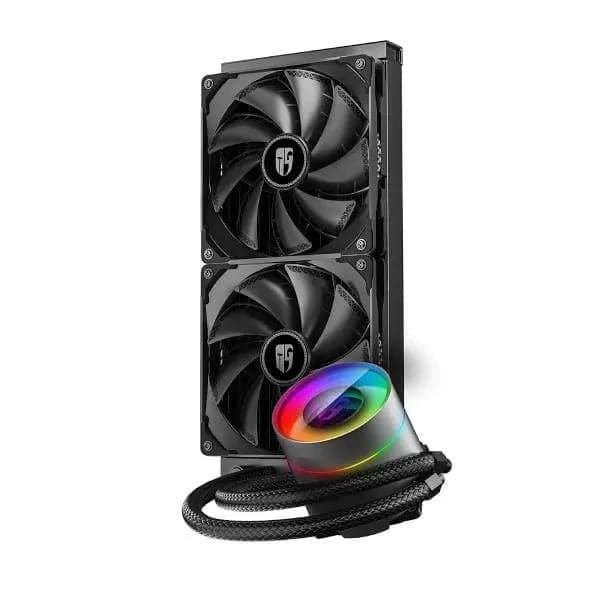

DEEPCOOL Gamerstorm Castle 280EX 280mm CPU Liquid Cooler (Black)
MPN DEEPCOOL-GAMERSTORM-CASTLE-280EX · Brand Deepcool
Features of DEEPCOOL Gamerstorm Castle 280EX Anti-Leak Technology Large copper cold plate with 25% more skived fins (Supports TR4) Efficient pump design optimized for performance and noise Swappable custom logo 5V Addressable RGB with motherboard software support POWERFUL AND QUIET DEEPCOOL Gamerstorm Castle 280EX features A stronger 3-phase motor which provides higher cooling performance with an increased flow rate while keeping noise levels low. EFFICIENT COOLING Designed from the inside out
Inclusive of GST · GST invoice available
Overview
Features of DEEPCOOL Gamerstorm Castle 280EX
- Anti-Leak Technology
- Large copper cold plate with 25% more skived fins (Supports TR4)
- Efficient pump design optimized for performance and noise
- Swappable custom logo
- 5V Addressable RGB with motherboard software support
POWERFUL AND QUIET
DEEPCOOL Gamerstorm Castle 280EX features A stronger 3-phase motor which provides higher cooling performance with an increased flow rate while keeping noise levels low.
EFFICIENT COOLING

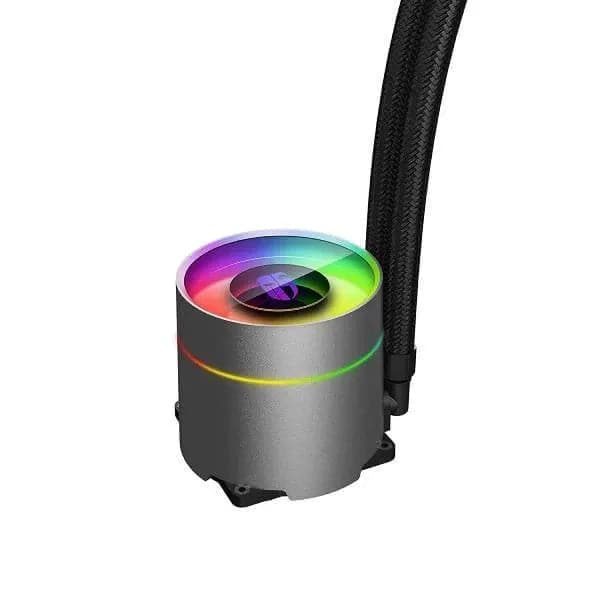

Designed from the inside out, the new dual-chamber pump features an optimized flow route for better heat exchange.
MORE SURFACE AREA
With 25% more skived fins on the copper cold plate, the larger surface area effectively dissipates heat.
PERFORMANCE TUNED

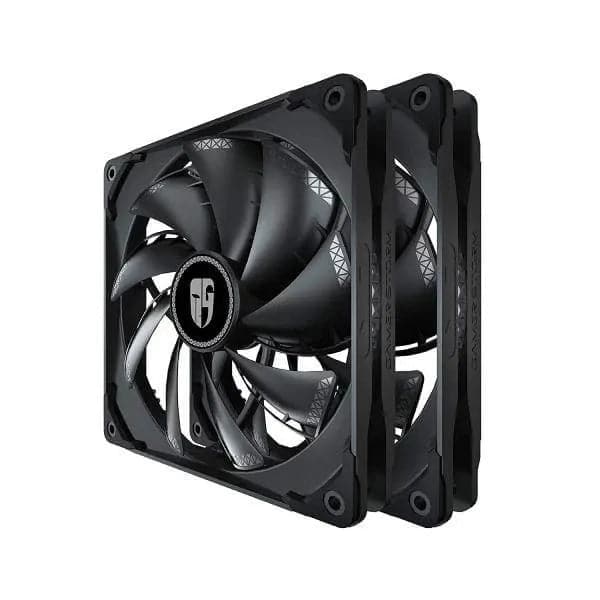

Specially tuned Deepcool TF140 S fans deliver the extreme cooling performance for AIO liquid coolers by maximizing both static pressure and airflow.
CHOOSE YOUR STYLE
Coordinate your colors by adjusting the addressable RGB lighting through popular motherboard software or through the included RGB controller.

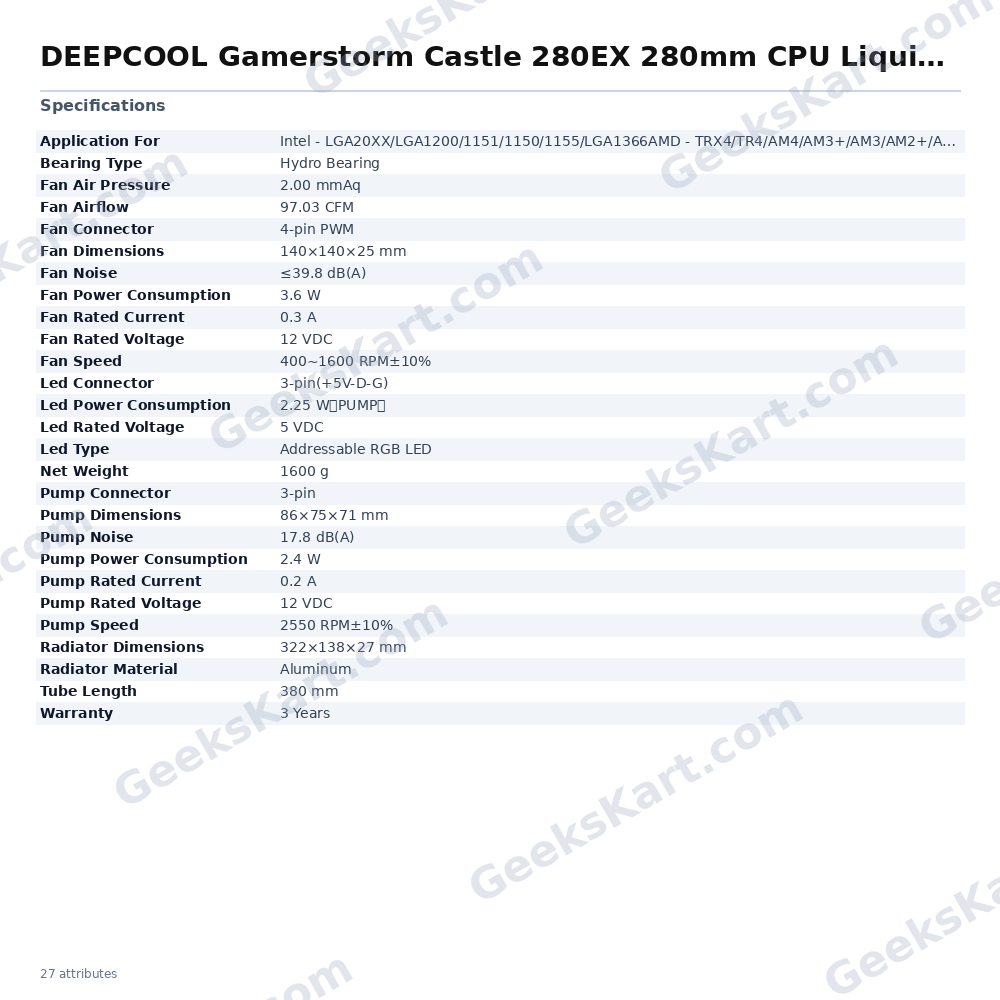

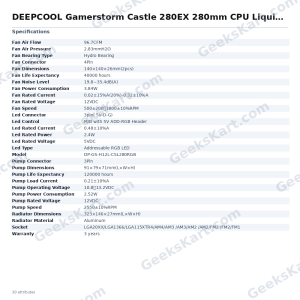

Specifications of DEEPCOOL Gamerstorm Castle 280EX
| Model | DP-GS-H12L-CSL280RGB |
| Socket | LGA20XX/LGA1366/LGA115X TR4/AM4/AM3 /AM3/AM2 /AM2/FM2 /FM2/FM1 |
| Pump Dimensions | 91×79×71mm(L×W×H) |
| Radiator Dimensions | 323×146×27mm(L×W×H) |

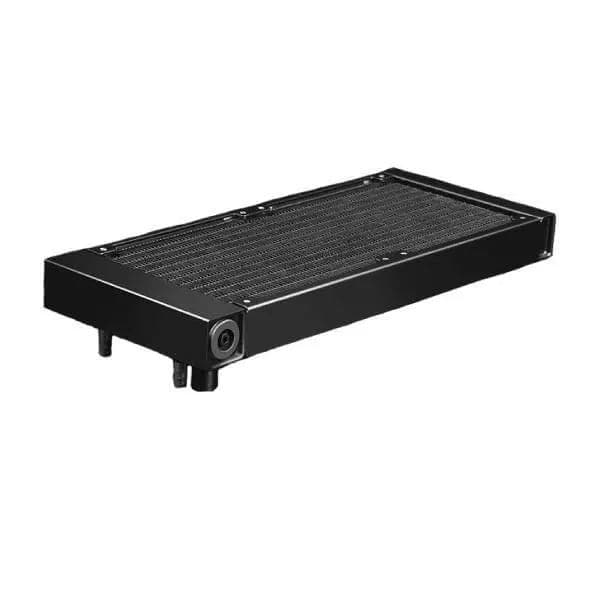

| Radiator Material | Aluminum |
| Fan Dimensions | 140×140×26mm(2pcs) |
| Fan Speed | 500±200～1800±10%RPM |
| Fan Air Flow | 96.7CFM |
| Fan Air Pressure | 2.83mmH2O |
| Fan Life Expectancy | 40000 hours |
| Fan Noise Level | 19.8~35.4dB(A) |
| Fan Bearing Type | Hydro Bearing |
| Fan Connector | 4Pin |
| Fan Rated Voltage | 12VDC |
| Fan Rated Current | 0.02±15%A(20%)-0.32±10%A |
| Fan Power Consumption | 3.84W |
| Pump Life Expectancy | 120000 hours |
| Pump Connector | 3Pin |
| Pump Operating Voltage | 10.8～13.2VDC |
| Pump Rated Voltage | 12VDC |
| Pump Speed | 2550±10%RPM |
| Pump Load Current | 0.21±10%A |
| Pump Power Consumption | 2.52W |
| LED Type | Addressable RGB LED |
| LED Rated Voltage | 5VDC |
| LED Rated Current | 0.48±10%A |
| LED Rated Power | 2.4W |
| LED Connector | 3pin( 5V-D-G) |
| LED Control | M/B with 5V ADD-RGB Header |
| Warranty | 3 years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
Datasheet
| Warranty | 3 Years |
|---|---|
| Led Type | Addressable RGB LED |
| Fan Speed | 500±200～1800±10%RPM |
| Pump Speed | 2550±10%RPM |
| Fan Connector | 4Pin |
| Led Connector | 3pin( 5V-D-G) |
| Fan Dimensions | 140×140×26mm(2pcs) |
| Pump Connector | 3Pin |
| Pump Dimensions | 91×79×71mm(L×W×H) |
| Fan Air Pressure | 2.83mmH2O |
| Fan Rated Current | 0.02±15%A(20%)-0.32±10%A |
| Fan Rated Voltage | 12VDC |
| Led Rated Voltage | 5VDC |
| Radiator Material | Aluminum |
| Pump Rated Voltage | 12VDC |
| Radiator Dimensions | 323×146×27mm(L×W×H) |
| Fan Power Consumption | 3.84W |
| Pump Power Consumption | 2.52W |
| Socket | AM2, AM3, AM4, FM1, FM2, LGA1366 |
| Model | DP-GS-H12L-CSL280RGB |
| Led Control | M/B with 5V ADD-RGB Header |
| Fan Air Flow | 96.7CFM |
| Fan Noise Level | 19.8~35.4dB(A) |
| Led Rated Power | 2.4W |
| Fan Bearing Type | Hydro Bearing |
| Led Rated Current | 0.48±10%A |
| Pump Load Current | 0.21±10%A |
| Fan Life Expectancy | 40000 hours |
| Pump Life Expectancy | 120000 hours |
| Pump Operating Voltage | 10.8～13.2VDC |
