Features of DEEPCOOL Infinity LS520 ARGB 240mm CPU Liquid Cooler ( White )

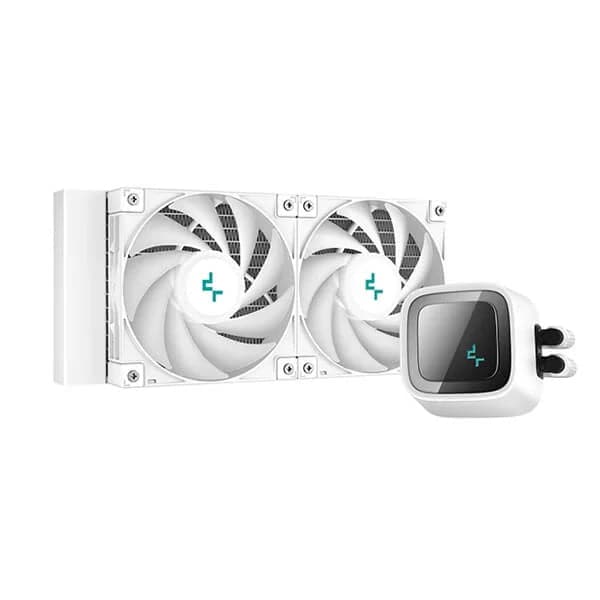

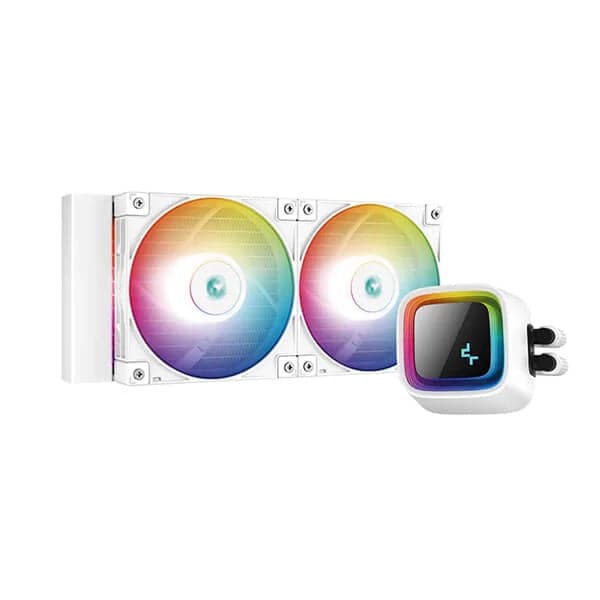

The DEEPCOOL Infinity LS520 ARGB WH premium liquid CPU cooler maximizes cooling performance and low-noise efficiency with a 240mm radiator, two FC120 A-RGB PWM fans, and an infinity mirror cap design.
A New Era of DeepCool
Built on our 4th Generation high-performance water pump that maximizes cooling performance featuring:
- Improved microchannel design ensures optimal coolant flow.
- Powerful three-phase drive motor up to 3100 RPM.
- Thick solid copper base with a seamless match
Intel
LGA 2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
sTRX4/sTR4/AM5/AM4

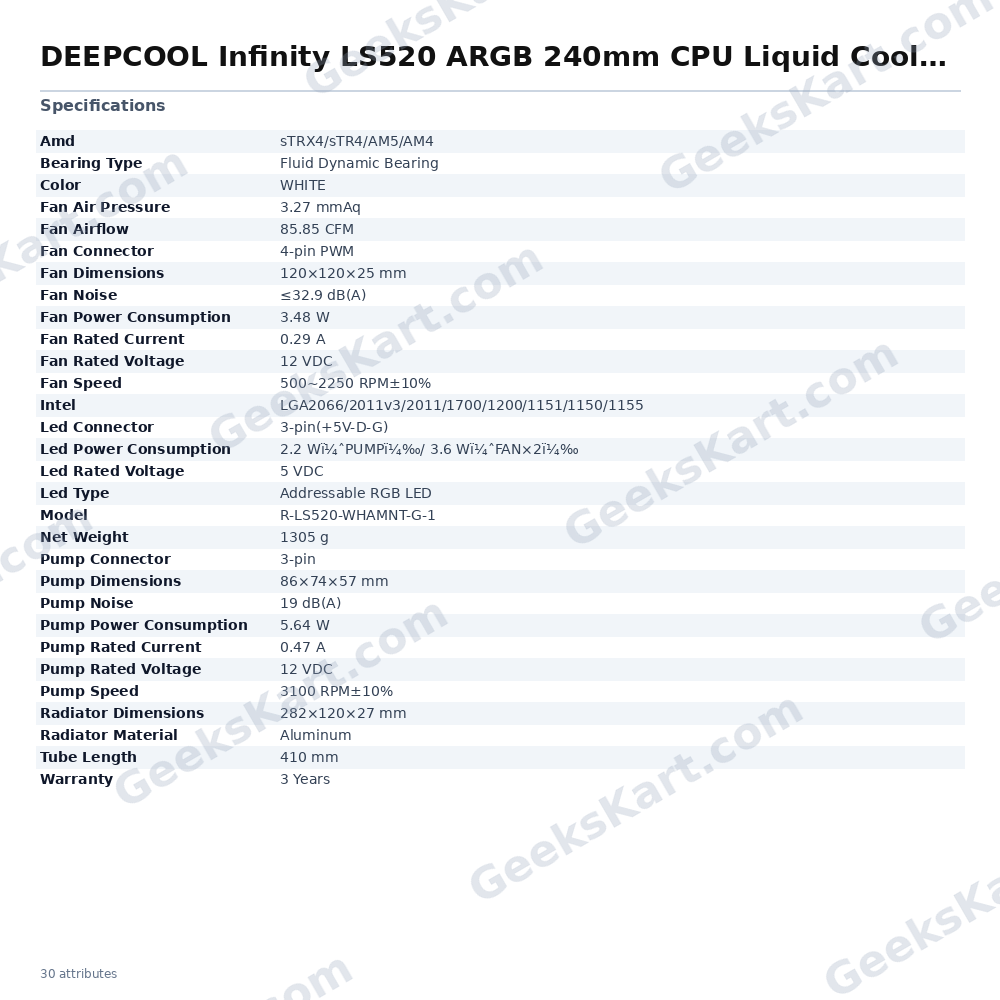

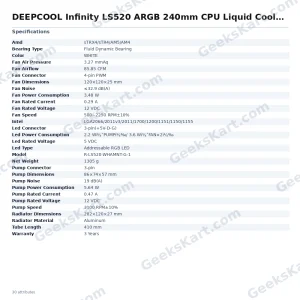

Specification of DEEPCOOL Infinity LS520 ARGB 240mm CPU Liquid Cooler ( White )
| Model | R-LS520-WHAMNT-G-1 |
| Color | WHITE |
| Application For | |
| Intel | LGA2066/2011v3/2011/1700/1200/1151/1150/1155 |
| AMD | sTRX4/sTR4/AM5/AM4 |
| Net Weight | 1305 g |
| Radiator Dimensions | 282×120×27 mm |
| Radiator Material | Aluminum |
| Tube length | 410 mm |
| Pump Dimensions | 86×74×57 mm |
| Pump Speed | 3100 RPM±10% |
| Pump Noise | 19 dB(A) |
| Pump Connector | 3-pin |
| Pump Rated Voltage | 12 VDC |
| Pump Rated Current | 0.47 A |
| Pump Power Consumption | 5.64 W |
| Fan Dimensions | 120×120×25 mm |
| Fan Speed | 500~2250 RPM±10% |
| Fan Airflow | 85.85 CFM |
| Fan Air Pressure | 3.27 mmAq |
| Fan Noise | ≤32.9 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.29 A |
| Fan Power Consumption | 3.48 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin(+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 2.2 W（PUMP）/ 3.6 W（FAN×2） |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
