DEEPCOOL LD240 ARGB 240mm CPU Liquid Cooler ( Black )
MPN DEEPCOOL-LD240-BLACK · Brand Deepcool
The Deepcool LD240 is a 240mm ARGB AIO liquid cooler featuring a 5th-generation pump, real-time CPU status LED display, and dual 4-pin PWM FD12 ARGB fans with hydro bearings — backed by a 5-year warranty
Inclusive of GST · GST invoice available
Overview

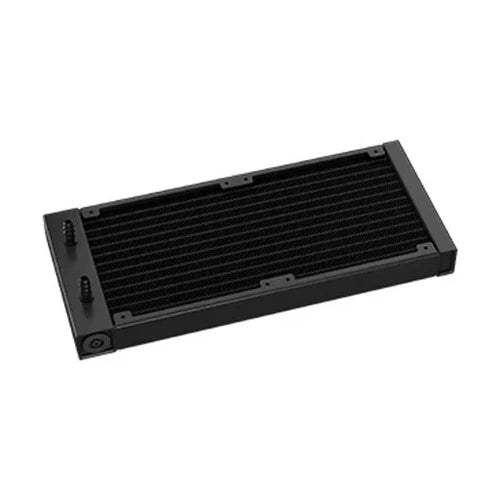

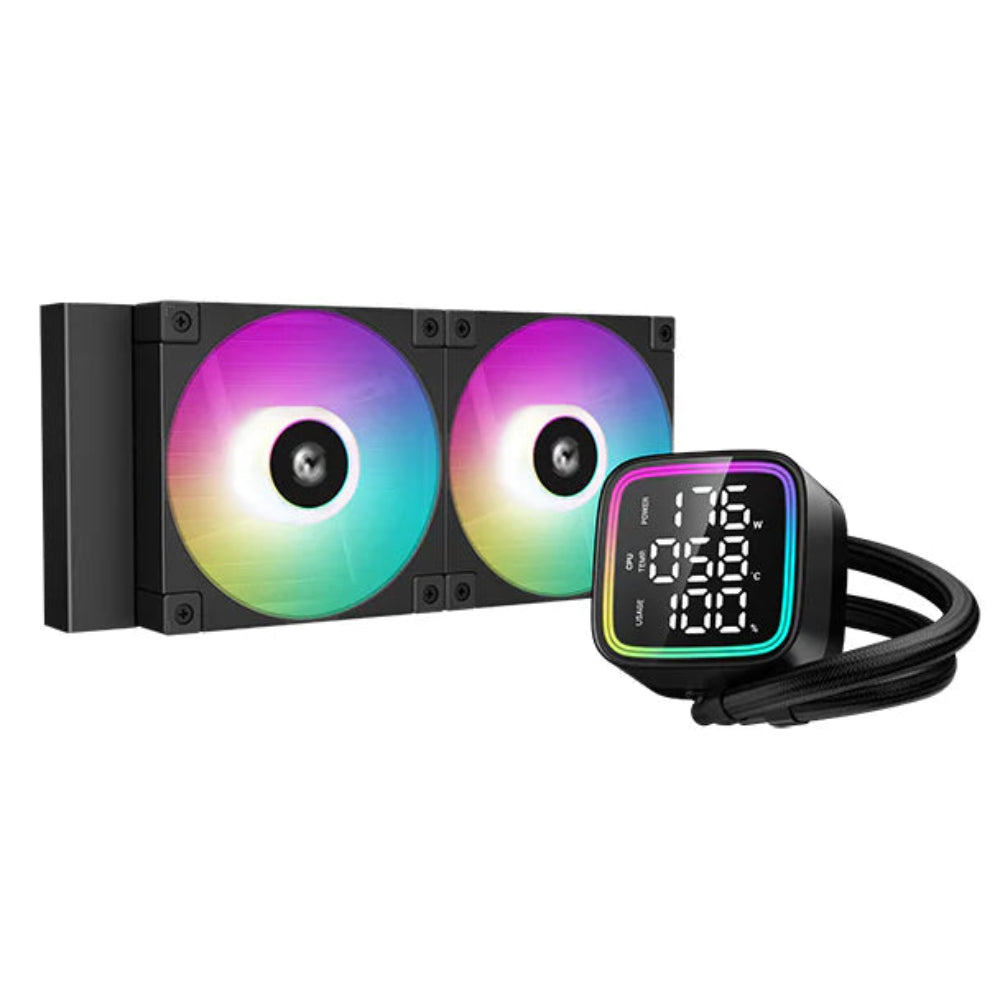

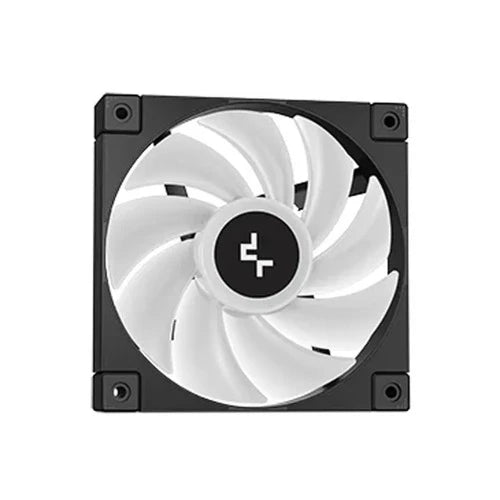

The Deepcool LD240 is a 240mm all-in-one CPU liquid cooler designed for enthusiasts who want a capable cooling solution with integrated system monitoring and addressable RGB lighting. At its core is a fifth-generation pump rated at 3400 RPM (±10%), operating at 12 VDC and drawing 4.2 W of power. The pump head features an LED digital display that shows real-time CPU status information at a glance, surrounded by ARGB halos controlled via a standard 3-pin (+5V-D-G) connector at 5 VDC. The aluminium radiator measures 282×120×27 mm and connects to the pump block via 410 mm flexible tubes, giving enough reach for most mid-tower and full-tower chassis configurations. Two included FD12 ARGB fans mount to the radiator, each measuring 120×120×25 mm. They spin between 600 and 2400 RPM (±10%) using 4-pin PWM control, delivering up to 72.04 CFM of airflow at a maximum static pressure of 3.48 mmAq. Fan noise is rated at 38.71 dB(A) or below, while the pump produces up to 21 dB(A) during operation. Fan bearings are hydro bearing type for long-term reliability. Installation is designed to be straightforward. The included mounting hardware supports both Intel and AMD platforms, with the bracket ensuring consistent contact pressure across the CPU heat spreader. The total net weight of the cooler assembly is 1476 g. Model number R-LD240-BKMSN-G-1 carries a 5-year warranty and bears EAN 6933412728719. Addressable RGB LEDs on both the pump head and fans draw 2.55 W (pump) and 2.1 W (two fans combined), all running at 5 VDC for easy integration with ARGB-compatible motherboard headers. Verified Specifications: - Radiator: 282×120×27 mm, aluminium - Tube Length: 410 mm - Pump Speed: 3400 RPM ±10% | Noise: 21 dB(A) | Power: 4.2 W - Fan Speed: 600–2400 RPM ±10% | Airflow: 72.04 CFM | Pressure: 3.48 mmAq | Noise: ≤38.71 dB(A) - Fan Connector: 4-pin PWM | Bearing: Hydro Bearing - LED: Addressable RGB, 3-pin (+5V-D-G), 5 VDC - Display: LED Digital Display (CPU status) - Net Weight: 1476 g | Warranty: 5 Years - Model: R-LD240-BKMSN-G-1 | GTIN: 6933412728719

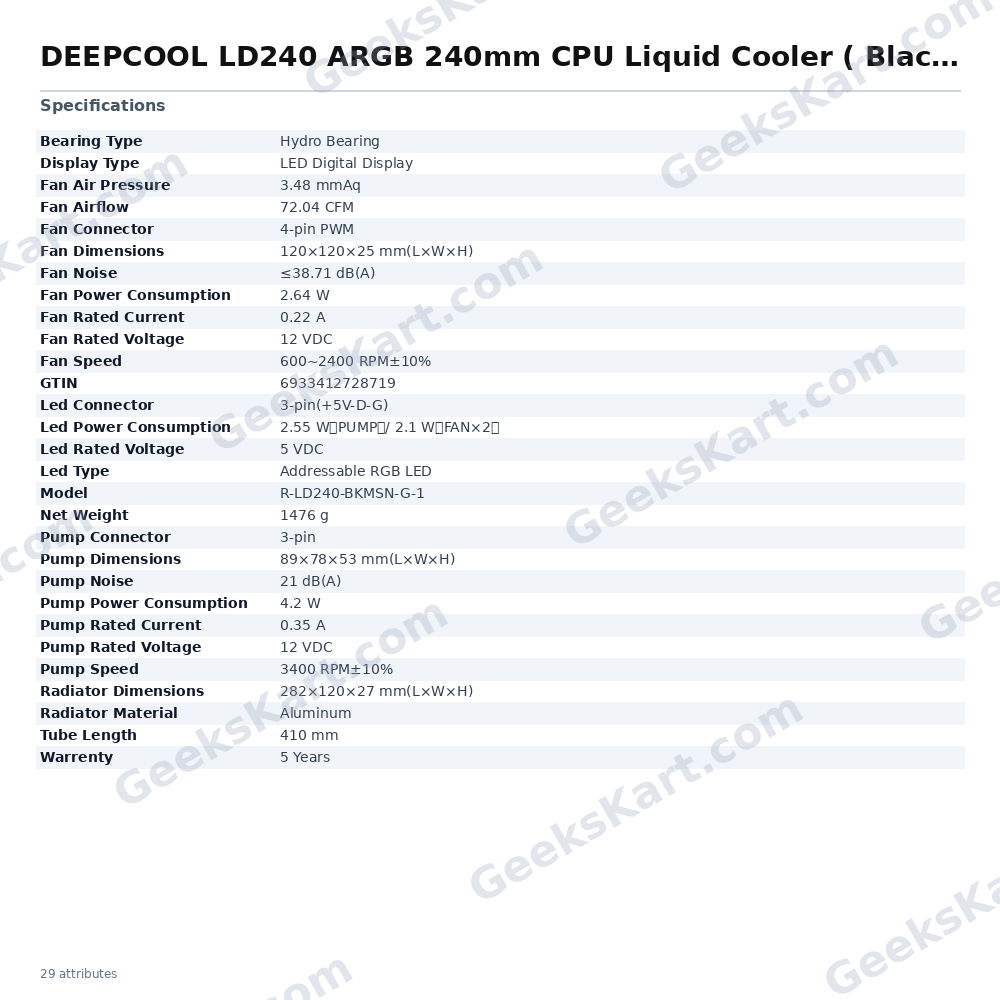

Datasheet
| Led Type | Addressable RGB LED |
|---|---|
| Model | R-LD240-BKMSN-G-1 |
| Warrenty | 5 Years |
| Fan Noise | ≤38.71 dB(A) |
| Fan Speed | 600~2400 RPM±10% |
| Net Weight | 1476 g |
| Pump Noise | 21 dB(A) |
| Pump Speed | 3400 RPM±10% |
| Fan Airflow | 72.04 CFM |
| Tube Length | 410 mm |
| Bearing Type | Hydro Bearing |
| Display Type | LED Digital Display |
| Fan Connector | 4-pin PWM |
| Led Connector | 3-pin(+5V-D-G) |
| Fan Dimensions | 120×120×25 mm(L×W×H) |
| Pump Connector | 3-pin |
| Pump Dimensions | 89×78×53 mm(L×W×H) |
| Fan Air Pressure | 3.48 mmAq |
| Fan Rated Current | 0.22 A |
| Fan Rated Voltage | 12 VDC |
| Led Rated Voltage | 5 VDC |
| Radiator Material | Aluminum |
| Pump Rated Current | 0.35 A |
| Pump Rated Voltage | 12 VDC |
| Radiator Dimensions | 282×120×27 mm(L×W×H) |
| Fan Power Consumption | 2.64 W |
| Led Power Consumption | 2.55 W(PUMP)/ 2.1 W(FAN×2) |
| Pump Power Consumption | 4.2 W |
