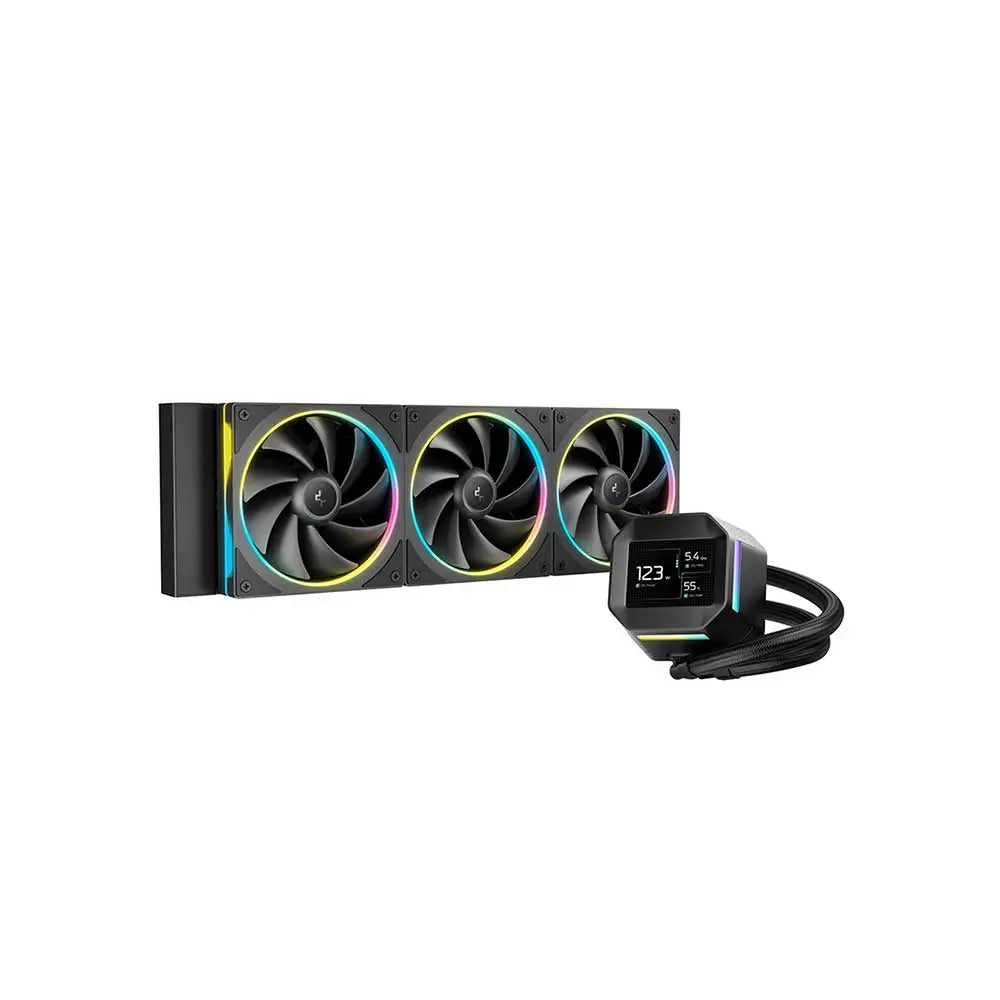

DEEPCOOL LM360 360mm ARGB CPU Liquid Cooler ( Black )
MPN DEEPCOOL-LM360-AIO-COOLER-BLACK · Brand Deepcool
Features of DEEPCOOL LM360 360mm ARGB CPU Liquid Cooler ( Black ) Features a compact 2.4" IPS display with 320×240 resolution for crisp visuals and wide viewing angles Supports MP4 video playback for personalized video loops or dynamic visuals. Equipped with 3× 120 mm FL12 SE ARGB fans with speeds from 400 to 2,400 RPM (±10%), delivering 66.23 CFM airflow and 3.27 mmH₂O static pressure, all under ≤36.07 dB(A) noise The 6th‑gen pump uses a 3‑phase, 4‑pole motor with Field Oriented Control (FOC)
Inclusive of GST · GST invoice available
Overview
Features of DEEPCOOL LM360 360mm ARGB CPU Liquid Cooler ( Black )
Features a compact 2.4" IPS display with 320×240 resolution for crisp visuals and wide viewing angles
Supports MP4 video playback for personalized video loops or dynamic visuals.

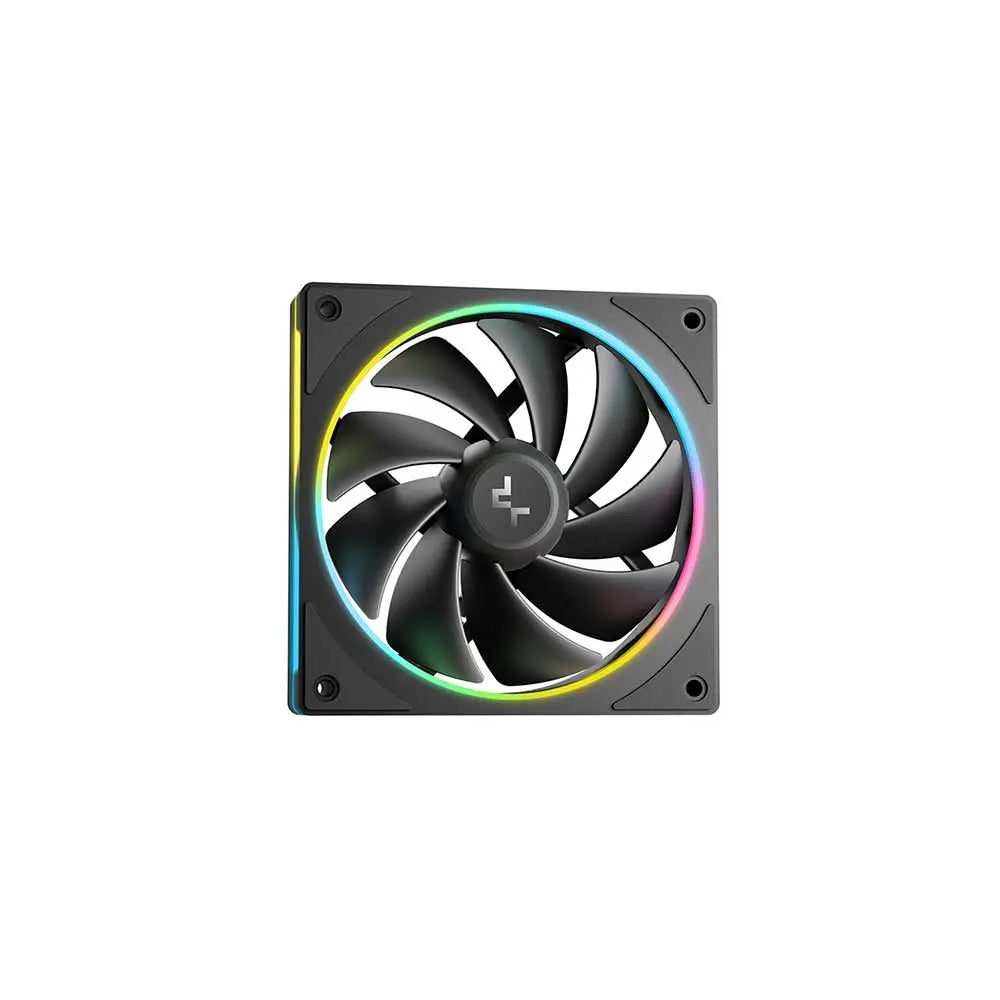

Equipped with 3× 120 mm FL12 SE ARGB fans with speeds from 400 to 2,400 RPM (±10%), delivering 66.23 CFM airflow and 3.27 mmH₂O static pressure, all under ≤36.07 dB(A) noise

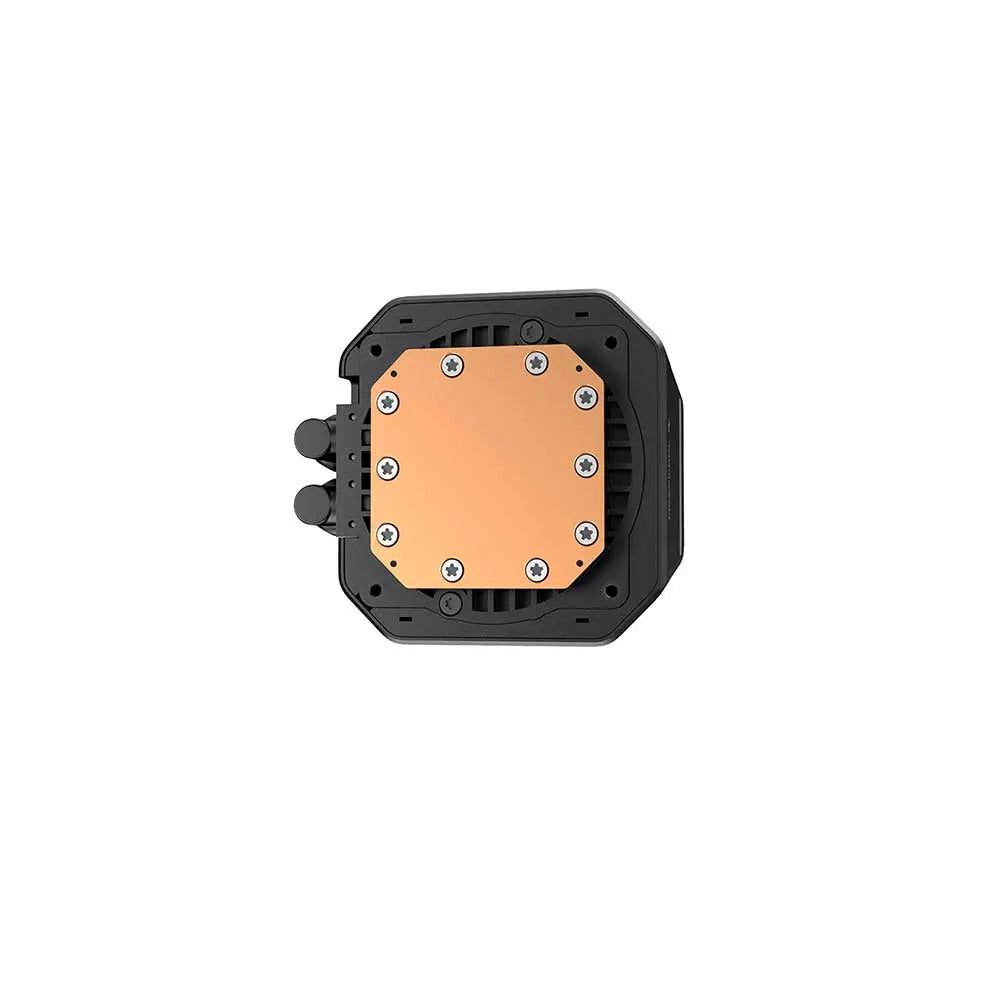

The 6th‑gen pump uses a 3‑phase, 4‑pole motor with Field Oriented Control (FOC), operating at 2,500–3,600 RPM for efficient and quiet cooling
DeepCool’s Anti‑Leak Technology balances internal pressure and vents excess if needed, enhancing safety and longevity
Entire system weight is around 1,729 g, making it balanced and stable when mounted

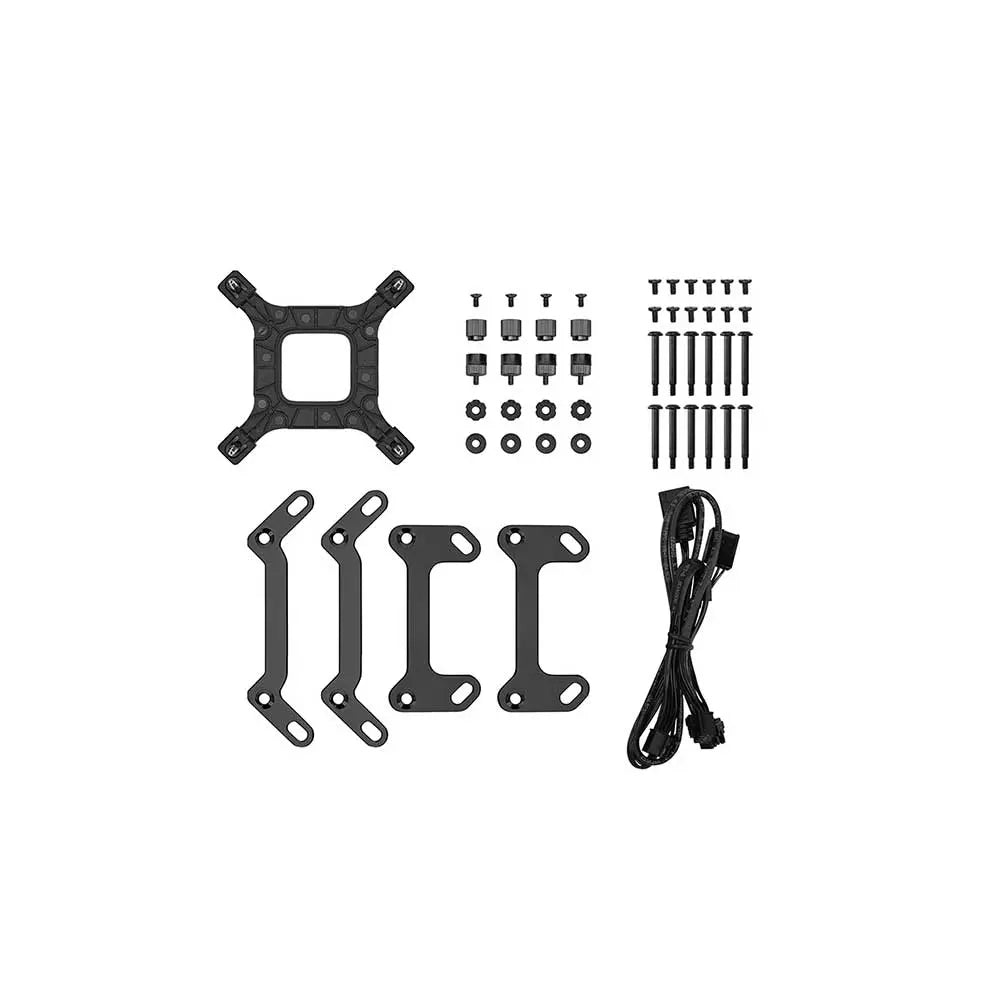

Compatible with a broad range of sockets:
-
Intel: LGA 1851, 1700, 1200, 1151, 1150, 1155
-
AMD: AM5, AM4
Lighting & Customization
-
Addressable RGB lighting on both the pump and fans, customizable via software and compatible with motherboard RGB syncing
Power & Efficiency
-
Pump: 12 VDC, ~0.34 A, ~4.08 W consumption
-
Fans: each 12 VDC, ~0.18 A, ~2.16 W; LEDs ~1.5 W (pump), ~3.5 W (3 fans)
Specification of DEEPCOOL LM360 360mm ARGB CPU Liquid Cooler ( Black )
| Intel | LGA1851/1700/1200/1151/1150/1155 |
| AMD | AM5/AM4 |
| Model | R-LM360-BKDMMC-1 |
| Net Weight | 1729 g |

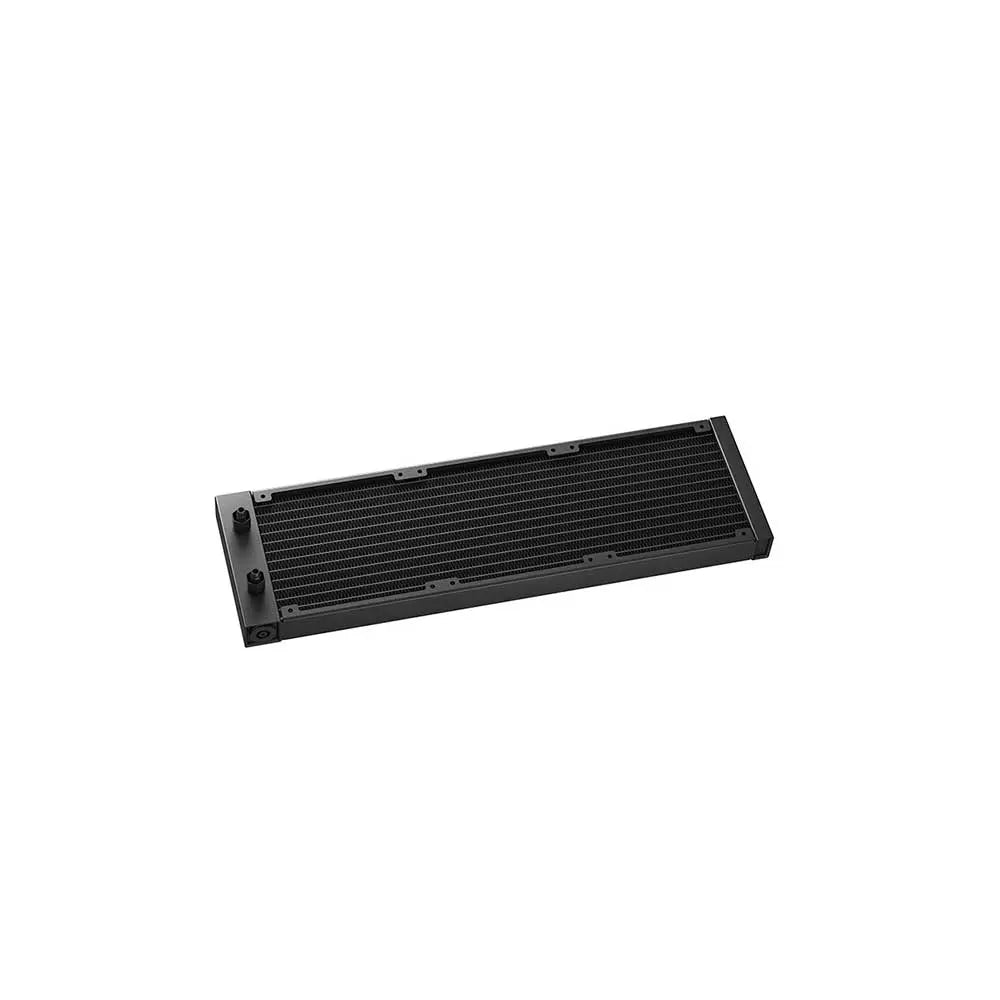

| Radiator Dimensions | 402×120×27 mm(L×W×H) |
| Radiator Material | Aluminum |
| Tube Length | 410 mm(L×W×H) |
| Pump Dimensions | 90×80×63 mm(L×W×H) |
| Pump Speed | 2500～3600 RPM±10% |
| Pump Connector | 4-pin PWM |
| Pump Rated Voltage | 12 VDC |
| Pump Rated Current | 0.34 A |
| Pump Power Consumption | 4.08 W |
| Fan Dimensions | 120×120×25 mm(L×W×H) |
| Fan Speed | 400~2400 RPM±10% |
| Fan Airflow | 66.23 CFM |
| Fan Air Pressure | 3.27 mmAq |
| Fan Noise | ≤36.07 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Hydro Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.18 A |
| Fan Power Consumption | 2.16 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin(+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 1.5 W（PUMP）/ 3.5 W（FAN×3) |
| Warranty | 2 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |

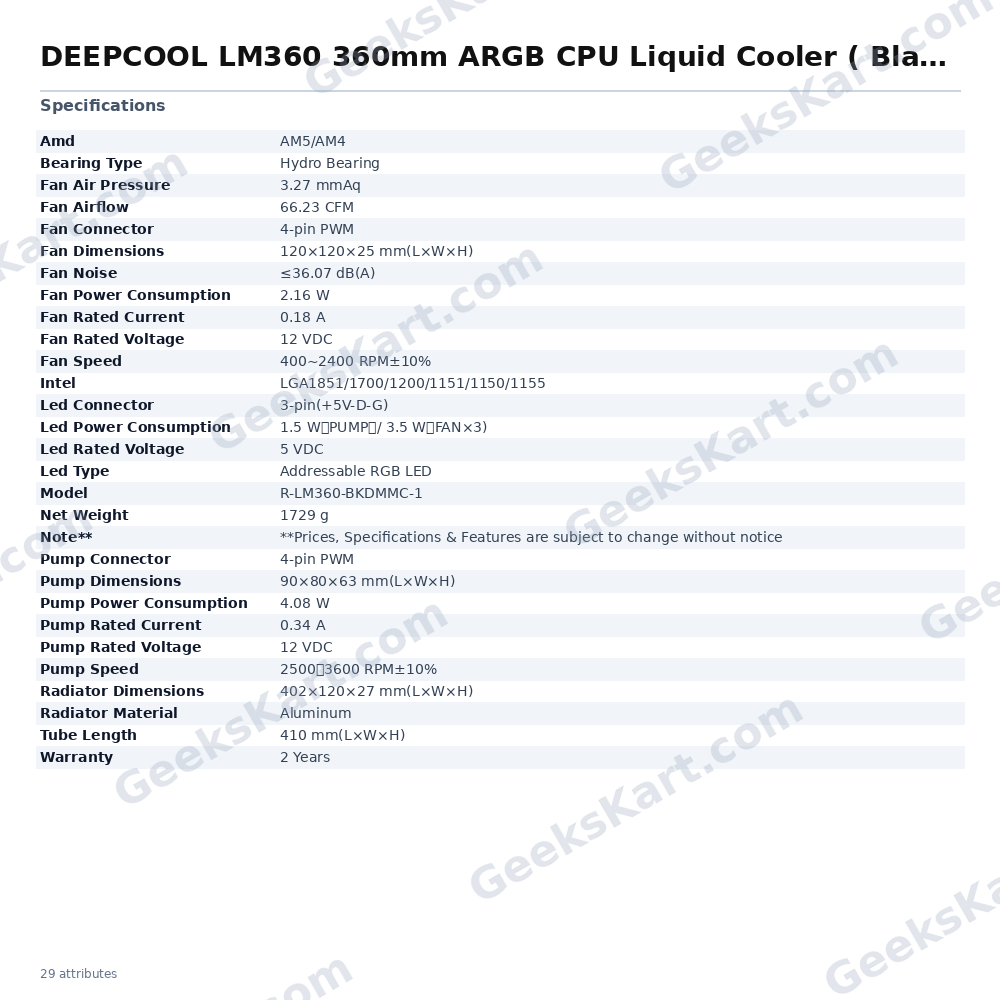

Datasheet
| Warranty | 2 Years |
|---|---|
| Amd | AM5/AM4 |
| Intel | LGA1851/1700/1200/1151/1150/1155 |
| Model | R-LM360-BKDMMC-1 |
| Note** | **Prices, Specifications & Features are subject to change without notice |
| Led Type | Addressable RGB LED |
| Fan Noise | ≤36.07 dB(A) |
| Fan Speed | 400~2400 RPM±10% |
| Net Weight | 1729 g |
| Pump Speed | 2500～3600 RPM±10% |
| Fan Airflow | 66.23 CFM |
| Tube Length | 410 mm(L×W×H) |
| Bearing Type | Hydro Bearing |
| Fan Connector | 4-pin PWM |
| Led Connector | 3-pin(+5V-D-G) |
| Fan Dimensions | 120×120×25 mm(L×W×H) |
| Pump Connector | 4-pin PWM |
| Pump Dimensions | 90×80×63 mm(L×W×H) |
| Fan Air Pressure | 3.27 mmAq |
| Fan Rated Current | 0.18 A |
| Fan Rated Voltage | 12 VDC |
| Led Rated Voltage | 5 VDC |
| Radiator Material | Aluminum |
| Pump Rated Current | 0.34 A |
| Pump Rated Voltage | 12 VDC |
| Radiator Dimensions | 402×120×27 mm(L×W×H) |
| Fan Power Consumption | 2.16 W |
| Led Power Consumption | 1.5 W（PUMP）/ 3.5 W（FAN×3) |
| Pump Power Consumption | 4.08 W |
