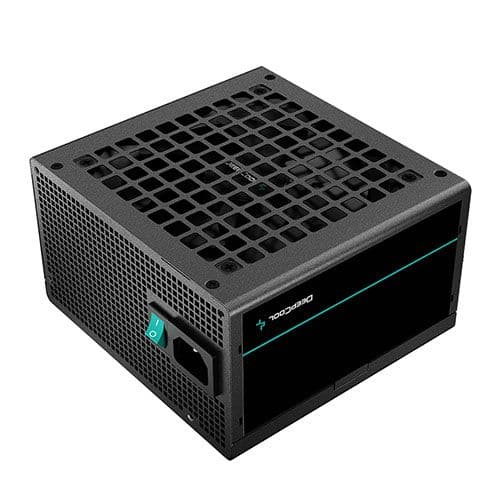

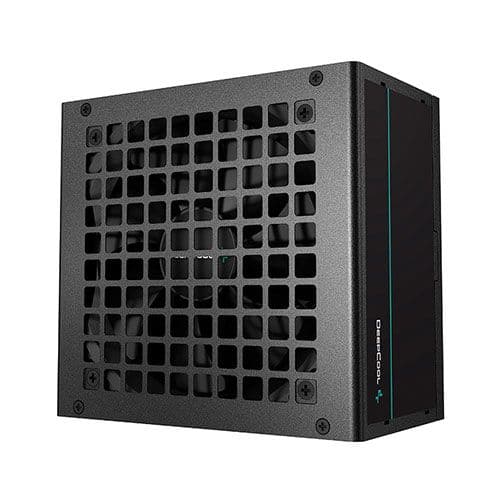

DEEPCOOL PF500 Standard 500W 80+ White Non Modular ATX 2.0 Power Supply

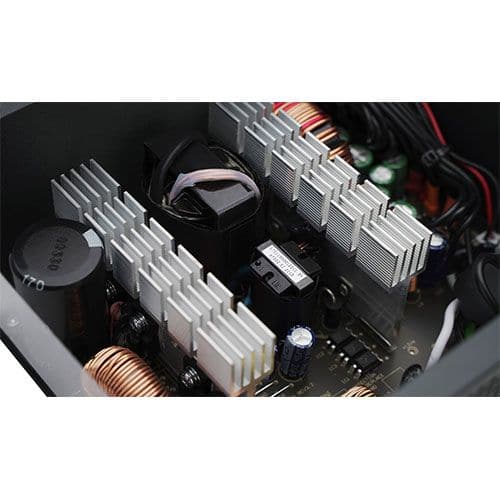

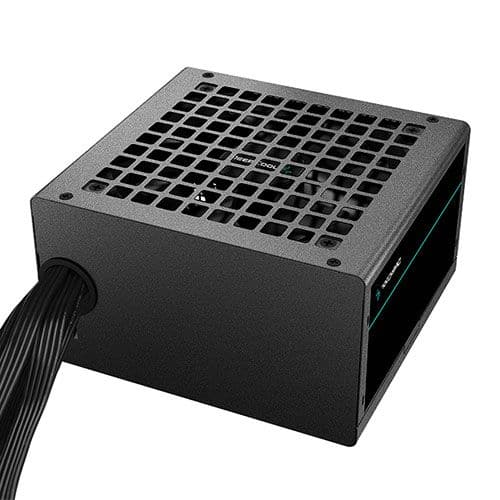

The Deepcool PF500 is a 500 W non-modular ATX power supply designed for budget-conscious builders who still demand reliable, certified efficiency. Holding an 80 PLUS 230V EU White certification, it delivers at least 85% efficiency under a typical 50% load, meaning less energy is converted to waste heat and your electricity bill stays lower over time. At the heart of the PF500’s cooling system is a 120 mm fan running on a Hypro (fluid/hydraulic) bearing. Compared with sleeve-bearing fans, a Hypro bearing reduces friction and vibration, helping the unit run quietly and contributing to the PSU’s rated 100,000-hour MTBF. The fan automatically modulates speed to match thermals, keeping noise levels low during light workloads. All cables are fixed flat black ribbons. The low-profile design makes routing straightforward even inside compact mid-tower cases, and the dark finish blends with standard cable-managed builds. Because the unit is non-modular, every connector ships pre-attached — ideal for straightforward single-GPU builds where cable clutter is not a concern. The PF500 uses an Active PFC topology combined with a double tube forward converter circuit, stabilising output across varying loads. Taiwan-sourced bulk capacitors are specified for the primary stage, supporting steady voltages under fluctuating demand. Protection circuits cover overpower (OPP), overvoltage (OVP), short circuit (SCP), and undervoltage (UVP) conditions, shutting the unit down safely before downstream components can be damaged. The hold-up time is at least 16 ms at 75% load, and the power-good signal is issued between 100 ms and 500 ms after startup, both within standard ATX specification. The unit operates between 0 °C and 40 °C ambient and complies with ErP 2010 standby-power regulations. Regulatory approvals include CB, CCC, CE, UKCA, EAC, RCM, and BIS, making it suitable for sale across multiple regions including India. Verified Specifications: – Form factor: ATX12V V2.4 – Rated output: 500 W – 80 PLUS certification: 230V EU White – Efficiency: ≥85% at 50% load – Fan: 120 mm, Hypro (fluid) bearing – Topology: Active PFC + Double tube forward – Capacitors: Taiwan bulk capacitor (primary) – Protection: OPP, OVP, SCP, UVP – Hold-up time: ≥16 ms at 75% load – Power-good signal: 100–500 ms – MTBF: 100,000 hours – Operating temperature: 0–40 °C – Dimensions: 150 × 140 × 86 mm (W × L × H) – ErP regulation: ErP 2010 – Certifications: CB, CCC, CE, UKCA, EAC, RCM, BIS – Modular: Non-modular (fixed cables) – Cable style: Flat black
