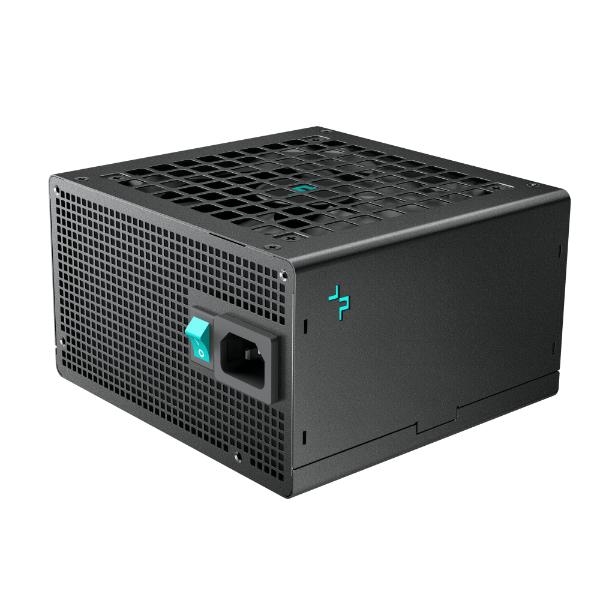

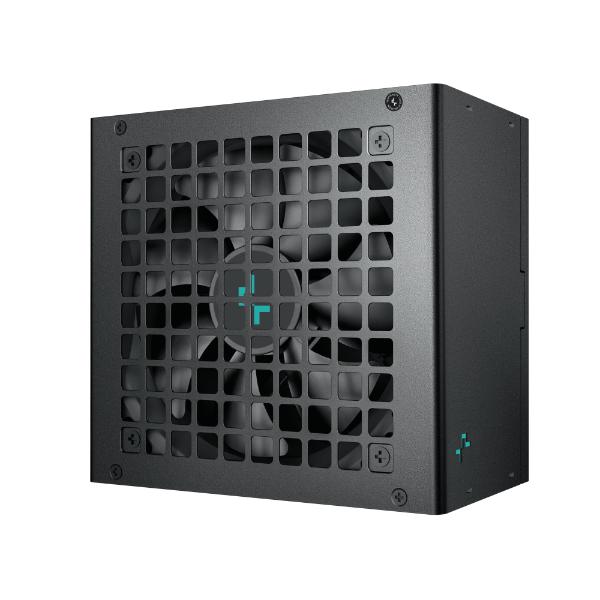

Deepcool PL750D ATX 3.1 750W Power Supply 80 Plus Bronze

The Deepcool PL750D is a 750-watt non-modular power supply built to the ATX 3.1 specification, making it a straightforward choice for builders pairing a mid-range system with a modern discrete graphics card. Certified 80 PLUS Bronze, it delivers at least 85% efficiency at typical loads (50%), keeping heat and electricity costs in check without climbing to a premium price tier. One of the PL750D's headline additions over older non-modular units is a native 16AWG 12V-2x6 cable – the connector introduced with PCIe 5.1 to replace the older 12VHPWR design. Rated up to 450 watts through a single connector, it provides a secure, low-resistance link to current-generation graphics cards without needing an adapter. Three PCIe connectors in total (one via the 12V-2x6, plus additional 6+2-pin leads) and two EPS connectors mean the PL750D can feed both legacy and next-generation hardware simultaneously. Power delivery stability comes from a dual-transistor forward converter topology combined with active power factor correction (PFC) and DC-to-DC conversion on the secondary rails. High-grade electrolytic capacitors keep the hold-up time at or above 16 milliseconds under full (100%) load, which provides enough headroom to ride through brief mains fluctuations. The ATX 3.1 standard also requires the unit to supply twice the total system power for up to 0.1 milliseconds, handling transient spikes from GPU boost events without a hiccup. For installations in elevated environments the unit is rated to operate at altitudes up to 5,000 metres above sea level. Cooling is handled by a 120mm hydro-bearing fan, a design choice associated with quieter operation and extended bearing life compared with sleeve-bearing alternatives. The fan is housed in a fully enclosed, non-modular chassis finished in black. Verified Specifications: • Rated output: 750 W • ATX standard: ATX 3.1 • Efficiency certification: 80 PLUS Bronze (≥85% at 50% load) • Modular: Non-modular • Fan: 120mm hydro-bearing • Hold-up time: ≥16 ms at 100% load • Transient response: 2× system power for 0.1 ms (ATX 3.1) • Native connector: 12V-2x6 (PCIe 5.1), rated up to 450 W • PCIe connectors: 1× 12V-2x6 + additional 6+2-pin leads (3 PCIe total per source) • EPS connectors: 2 • SATA connectors: 2 • Peripheral (4-pin) connectors: 2 • Topology: Dual-transistor forward with active PFC + DC-to-DC • Altitude rating: up to 5,000 m above sea level • Color: Black • Warranty: 5 years • SKU / part number: R-PL750D-FC0B-IN-V2-ATX-3-1 • GTIN / EAN: 6933412718093
