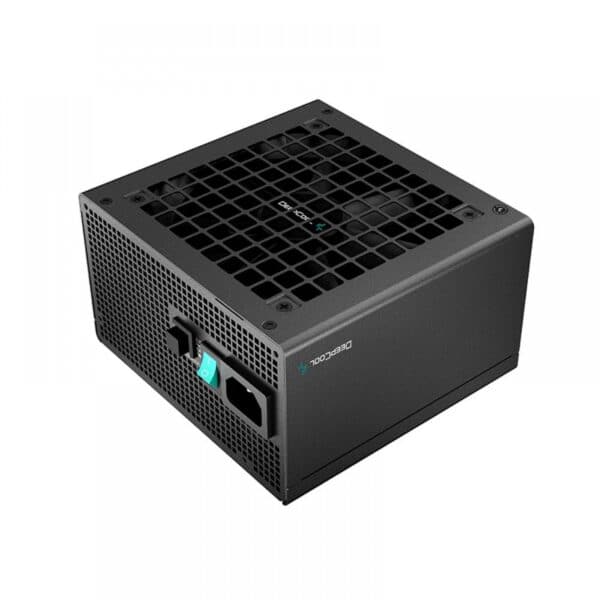

DEEPCOOL PQ1000M 1000W 80+ Gold Fully Modular ATX 2.0 Power Supply

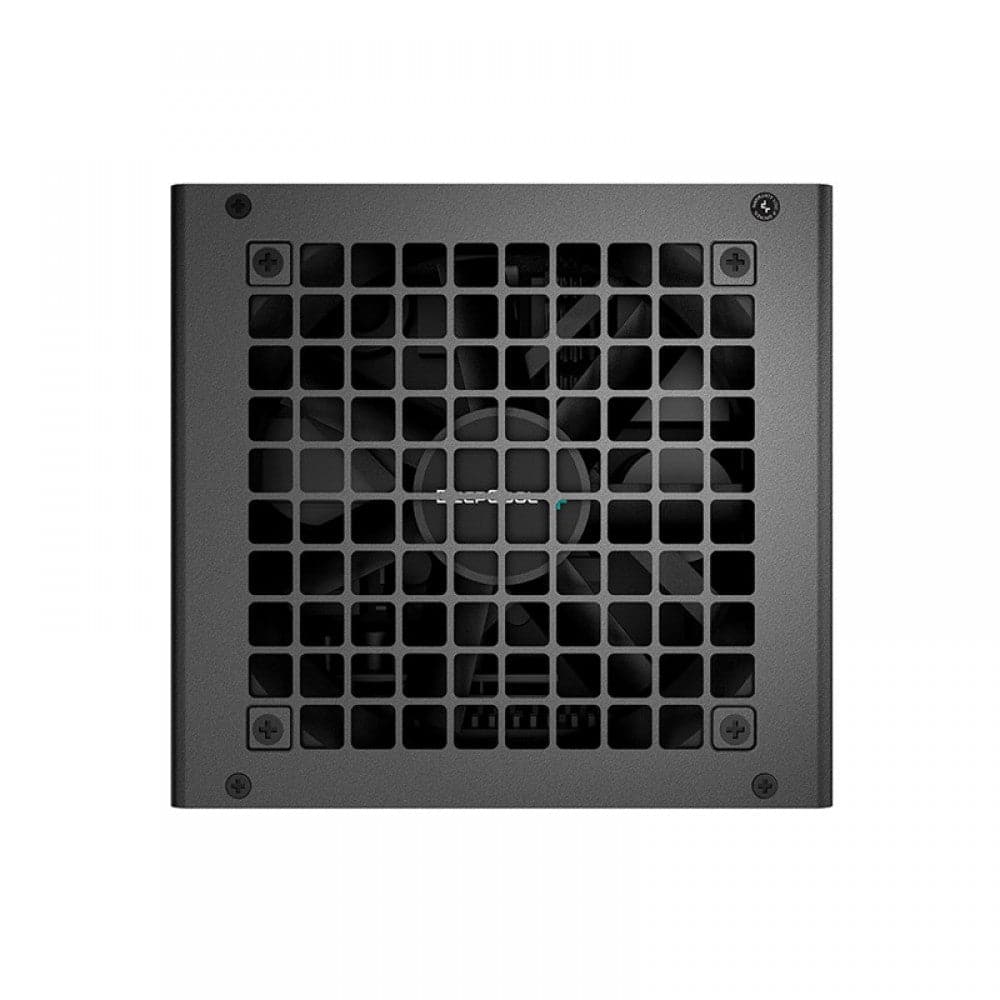

The Deepcool PQ1000M is a 1000W fully modular ATX power supply certified to the 80 Plus Gold standard, delivering efficiency of 90% or above under typical 50% load conditions. It is designed for high-performance desktop PCs that demand stable, clean power alongside quiet operation — making it a strong choice for gaming rigs, content-creation workstations, and enthusiast builds alike. The PQ1000M uses a Full Bridge LLC + DC-to-DC converter topology combined with Active Power Factor Correction, a design that produces tight voltage regulation and low ripple across all rails. All primary capacitors are sourced from Japanese electrolytic manufacturers, supporting long-term reliability during sustained heavy workloads. Cooling is handled by a 120 mm Fluid Dynamic Bearing (FDB) fan governed by a tuned thermal curve. When system temperatures are low the fan can enter a full-stop (fanless) mode, eliminating noise entirely. A rear-panel fan control button lets users override fanless mode and set a minimum fan speed if they prefer active airflow at all times. Because every cable attaches directly to the modular output board — which is itself hard-mounted to the PCB rather than tethered by internal wiring — cable management is clean and only the connectors actually needed are installed, improving airflow inside the chassis. Protection circuits cover over-power (OPP), over-voltage (OVP), short-circuit (SCP), over-temperature (OTP), and over-current (OCP) events, providing comprehensive safeguarding for connected components. The unit carries a rated MTBF of 100,000 hours and is backed by a 10-year manufacturer warranty, reflecting confidence in component quality. Verified Specifications: • Form factor: ATX12V V2.4 • Rated output: 1000 W • 80 Plus certification: Gold (≥90% efficiency at 50% load) • Topology: Active PFC + Full Bridge SRC LLC + DC-to-DC • Fan: 120 mm, Fluid Dynamic Bearing (FDB) • Capacitors: Full Japanese electrolytic • Protection: OPP, OVP, SCP, OTP, OCP • Hold-up time: ≥16 ms at 80% load • Power Good signal: 100–500 ms • Operating temperature: 0–40 °C • MTBF: 100,000 hours • Warranty: 10 years • Dimensions: 150 × 140 × 86 mm (W × L × H) • ErP compliance: ErP 2013 • Certifications: CCC, CE, FCC, TUV-SUD, cTUVus, RCM, EAC, UKCA, CAN ICES-003(B)/NMB-003(B)
