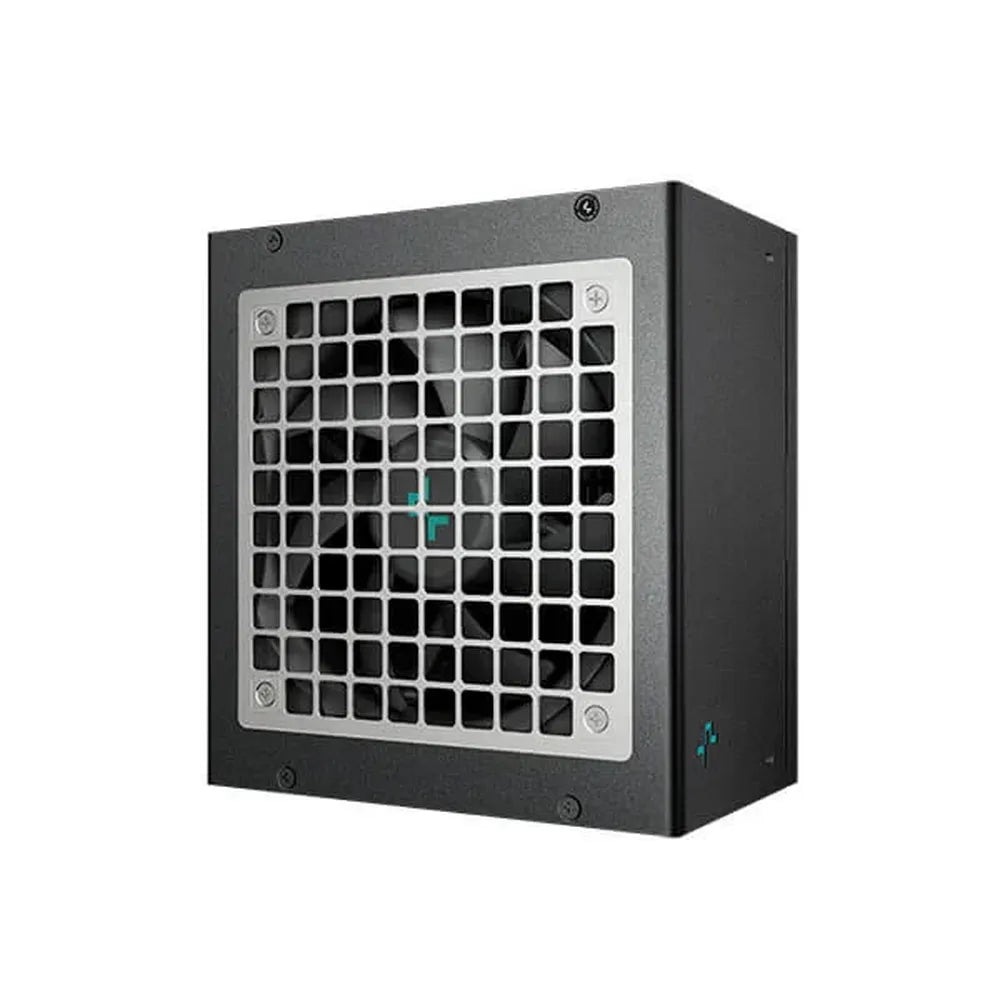

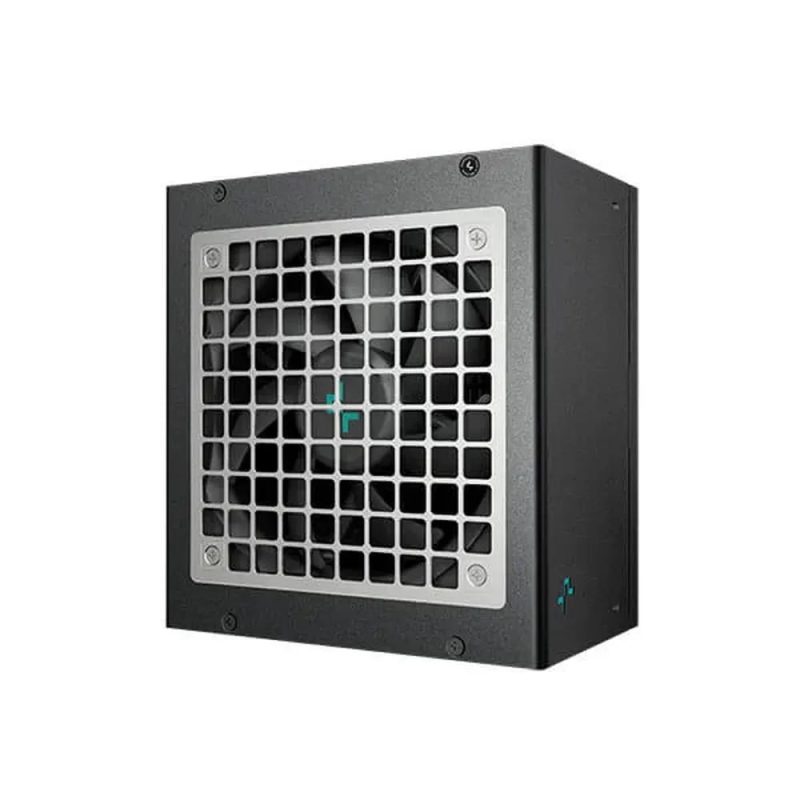

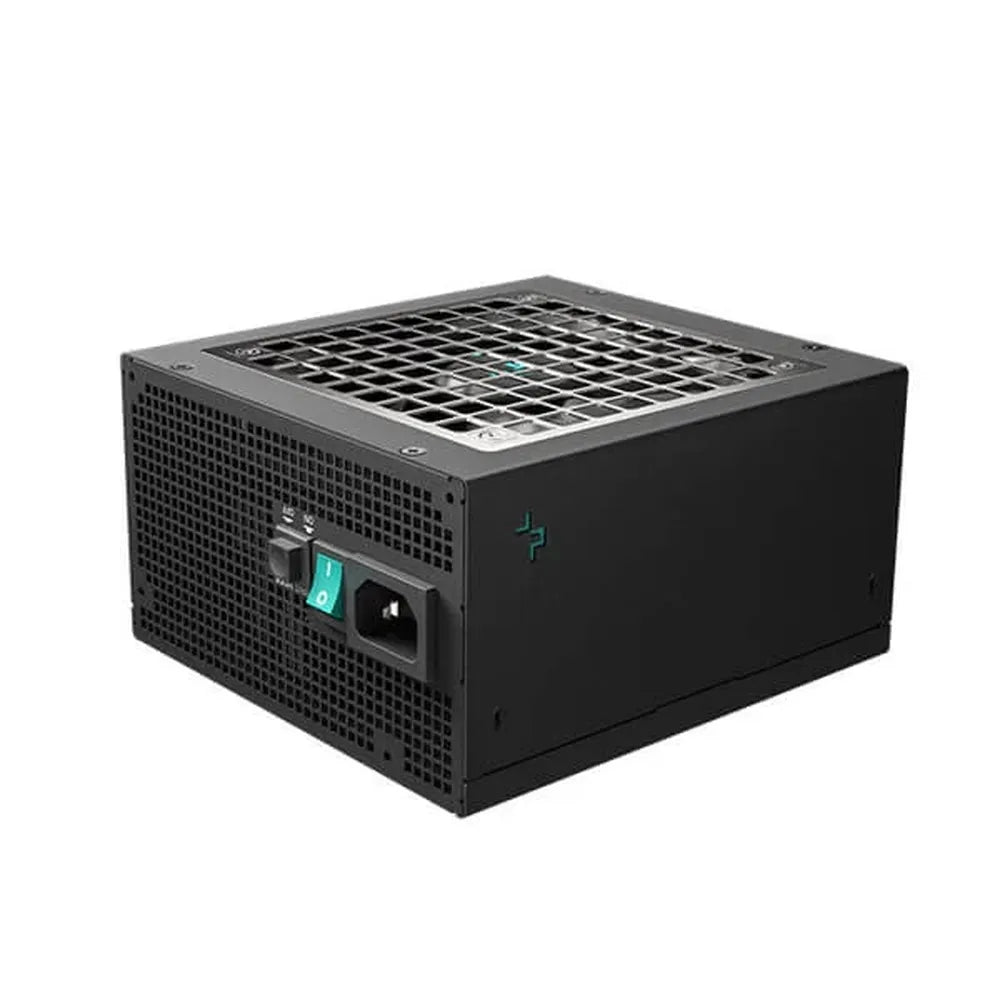

Deepcool PX1000P ATX 3.0 80+ Platinum Fully Modular PSU (1000W)

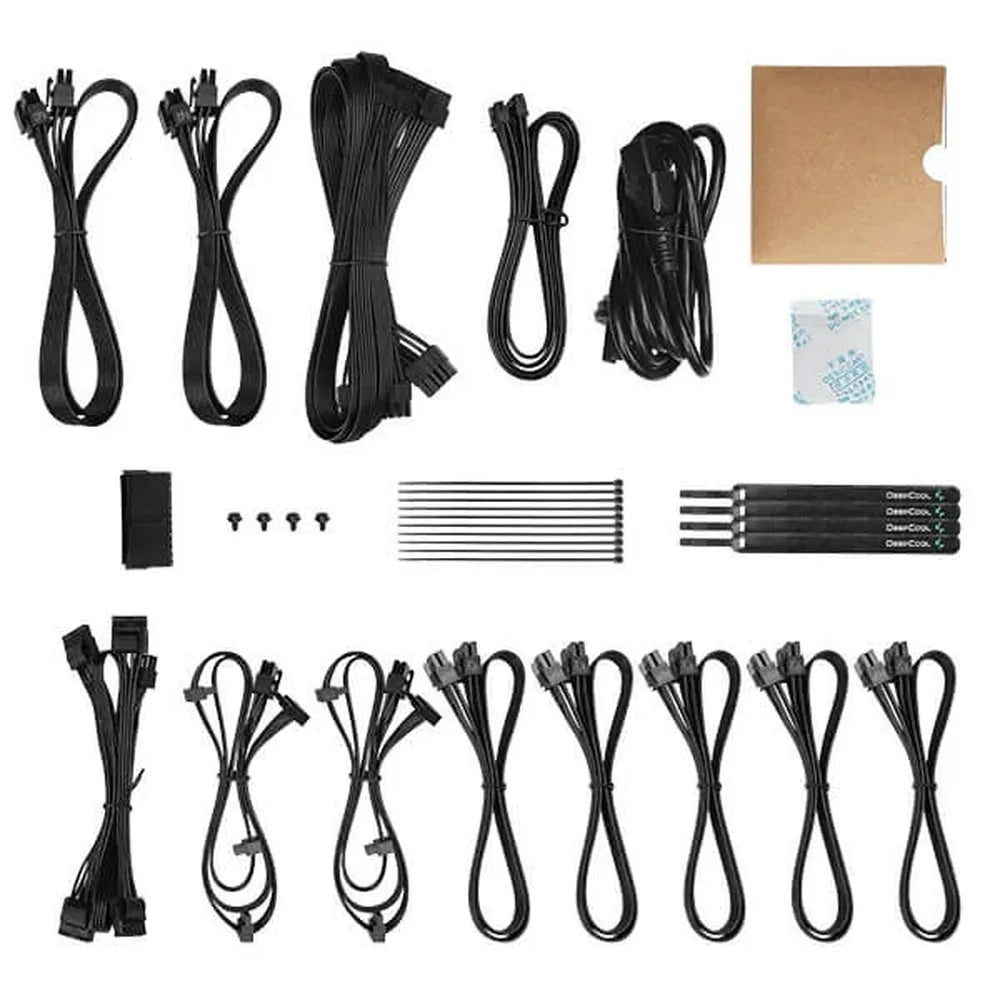

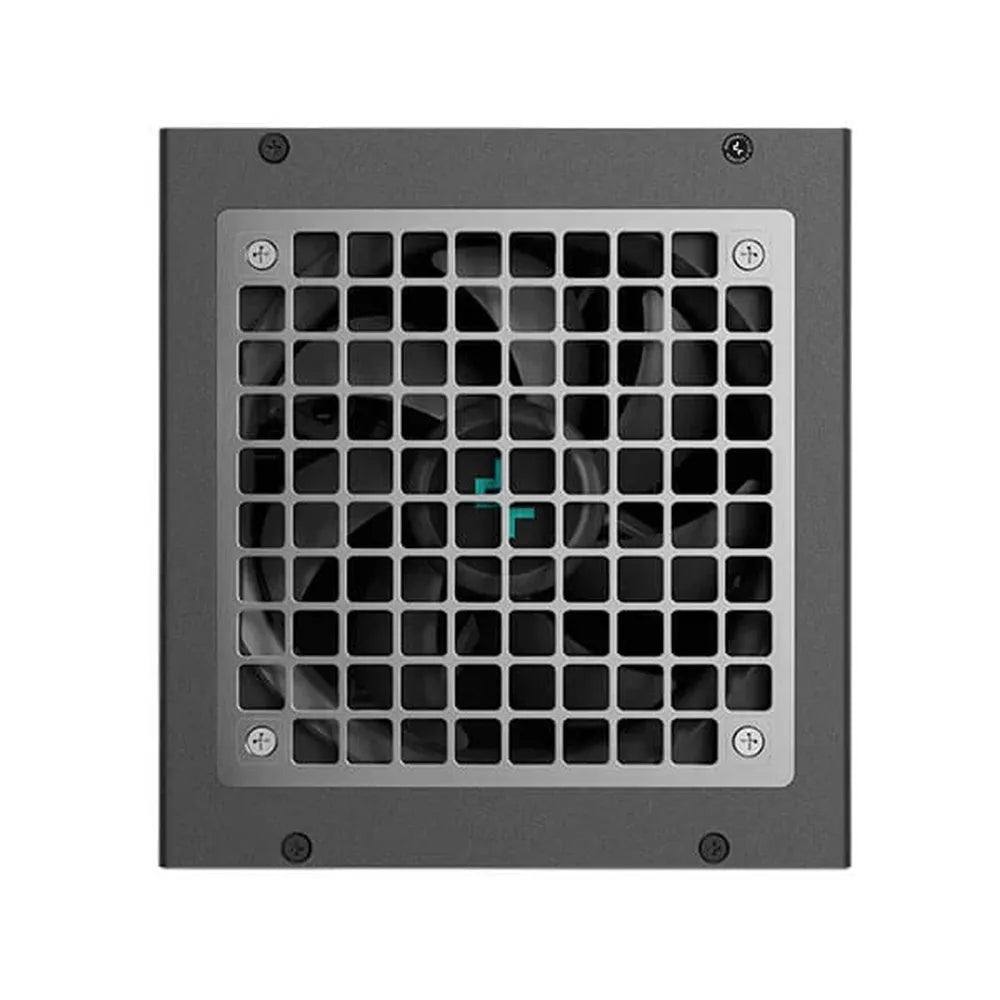

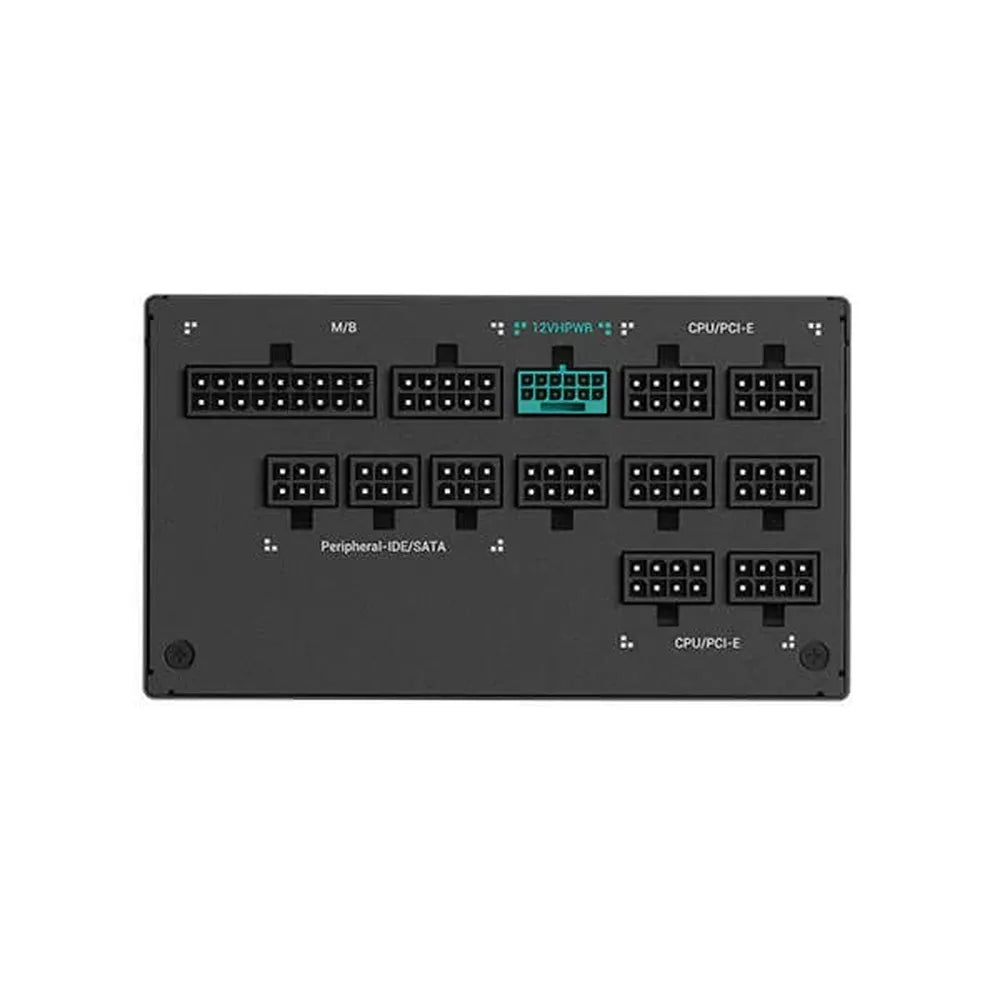

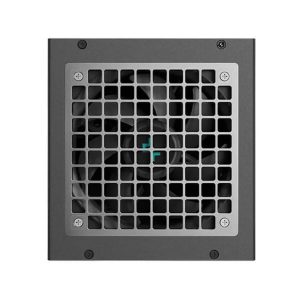

The Deepcool PX1000P is a 1000-watt ATX 3.0 (ATX12V V3.0) fully modular power supply designed for high-performance desktop builds that demand both headroom and efficiency. Carrying dual certifications — 80 Plus Platinum and Cybenetics Platinum — the unit delivers at least 92% efficiency under typical load conditions (50% loading), meaning less heat generated inside your chassis and lower energy draw from the wall across extended gaming or workstation sessions. The PX1000P is built around an Interleaved PFC, Full-Bridge LLC plus DC-to-DC topology, a design approach widely associated with tight voltage regulation and low ripple across all output rails. Every electrolytic capacitor inside is sourced from Japanese manufacturers, supporting long-term reliability. The unit is rated for operation between 0 °C and 50 °C, making it well-suited to warm ambient environments common in Indian summers. Cooling is handled by a 120 mm fan using a Fluid Dynamic Bearing (FDB), chosen for quieter operation and a longer service life compared to sleeve-bearing alternatives. The fully modular cable design allows users to attach only the cables required for their build, reducing internal clutter and improving airflow. Connectivity includes native support for PCIe 5.1 power delivery, making this unit compatible with current-generation graphics cards that use the 16-pin 12VHPWR connector. A comprehensive protection suite — OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP — safeguards connected components against overcurrent, overvoltage, short circuit, and thermal events. The PSU carries a broad regulatory footprint: CE, FCC, CCC, TUV-RH, RCM, EAC, UKCA, BIS, and CAN ICES-003(B)/NMB-003(B), along with ErP 2014, WEEE, RoHS, and Prop 65 environmental compliance. Verified Specifications: • Form Factor: ATX12V V3.0 (ATX 3.0) • Rated Output Power: 1000 W • Efficiency Certification: 80 Plus Platinum / Cybenetics Platinum • Efficiency: ≥92% at 50% load • Topology: Interleaved PFC, Full-Bridge & LLC + DC-to-DC • Capacitors: Full Japanese electrolytic capacitors • Fan: 120 mm FDB (Fluid Dynamic Bearing) • Dimensions: 150 × 160 × 86 mm (W × L × H) • Power Good Signal: 100–150 ms • Hold-Up Time: ≥16 ms • Operating Temperature: 0–50 °C • MTBF: 100,000 hours • Protection: OPP / OVP / SCP / OTP / OCP / UVP / NLO / SIP • ErP Regulation: ErP 2014 • Certifications: CE, FCC, CCC, TUV-RH, RCM, EAC, UKCA, BIS, CAN ICES-003(B)/NMB-003(B) • Modular: Fully modular cabling
