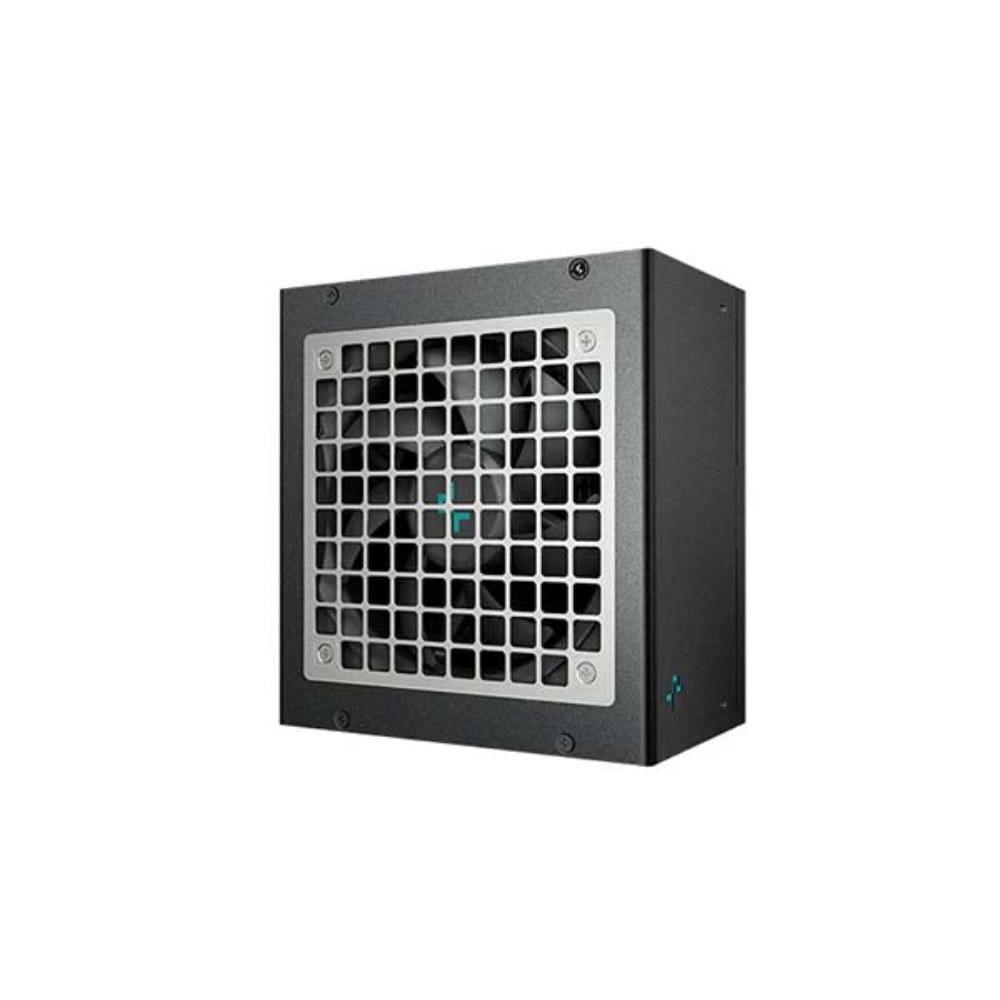

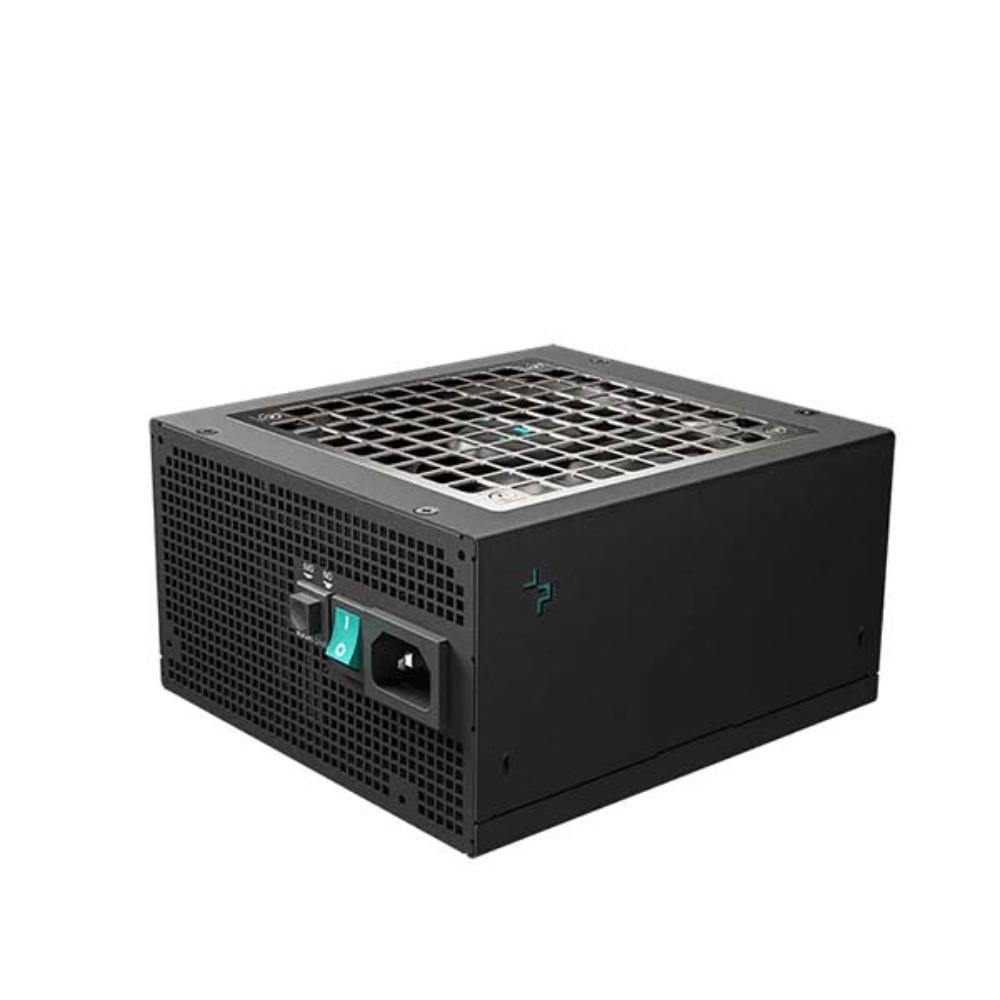

Deepcool PX1300P ATX 3.0 80+ Platinum Fully Modular PSU (1300W)

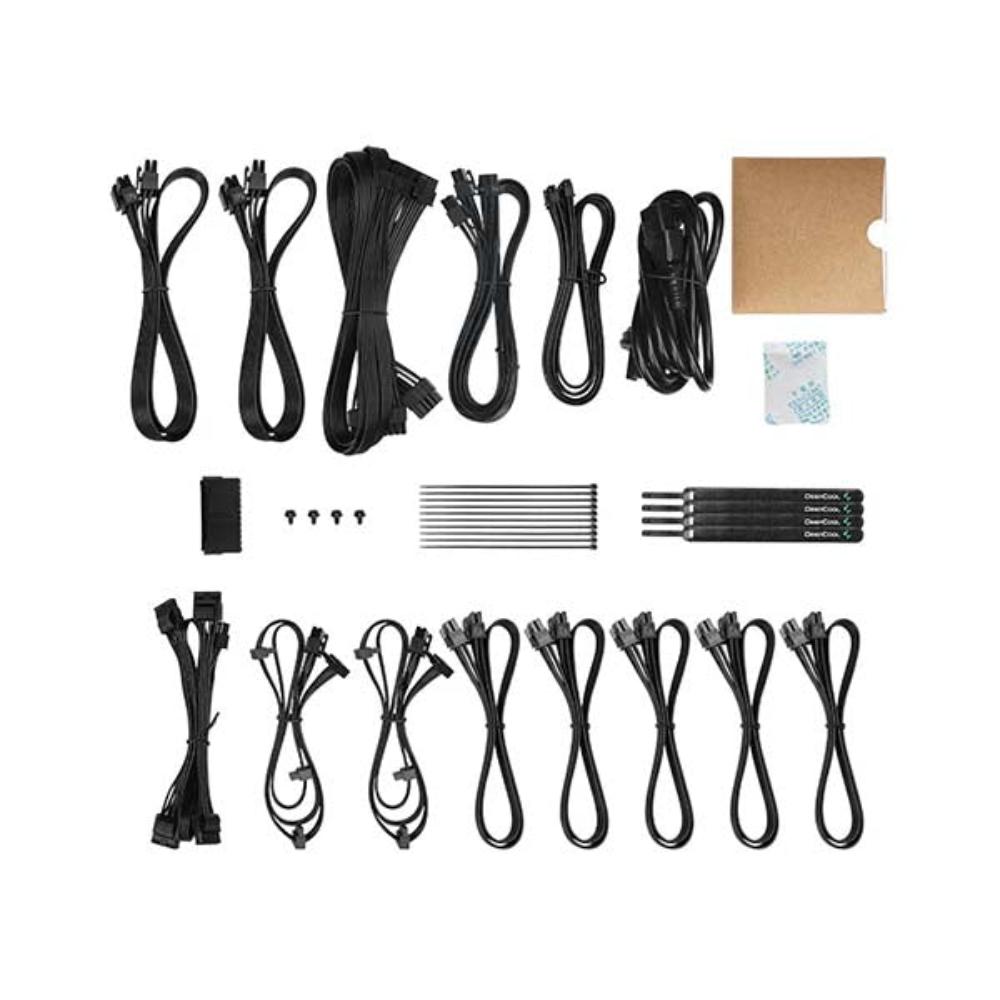

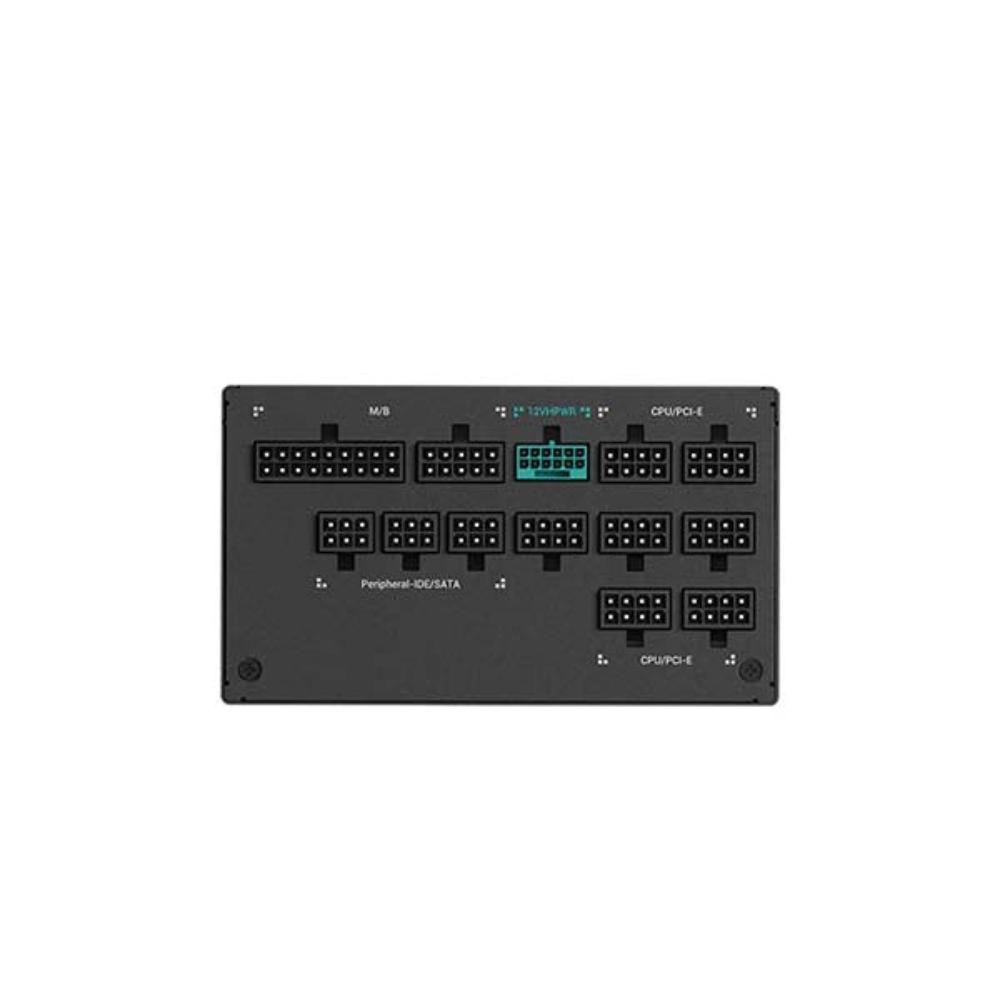

The Deepcool PX1300P is a 1300W fully modular power supply built to the ATX12V V3.0 specification, making it compatible with current and next-generation PC platforms. It carries dual efficiency certifications — 80 Plus Platinum and Cybenetics Platinum — delivering at least 92% efficiency under typical 50% load conditions, which translates directly into lower heat output and reduced electricity consumption during extended sessions. At the heart of the PX1300P is an Interleaved PFC, Full-Bridge and LLC plus DC-to-DC topology, a circuit architecture chosen for its tightly regulated output rails and low ripple characteristics. The unit is populated exclusively with Japanese electrolytic capacitors, a component choice associated with long-term stability and reliability. The rated MTBF stands at 100,000 hours, and the hold-up time meets or exceeds the 16 ms requirement under full load, helping prevent unexpected shutdowns during brief grid disturbances. The fully modular cable system allows builders to attach only the cables they need, reducing clutter inside the chassis and improving airflow. Connectivity includes a PCIe Gen 5.0 12VHPWR cable capable of delivering up to 600W to a single GPU, two EPS connectors for high-TDP processors, and five PCIe ports for multi-GPU or high-power add-in cards. Cooling is handled by a 120mm Fluid Dynamic Bearing (FDB) fan, which provides quieter and longer-lasting operation compared to standard sleeve-bearing designs. The power-good signal window of 100–150ms ensures orderly system startup sequencing. Protection circuits cover over-power (OPP), over-voltage (OVP), short-circuit (SCP), over-temperature (OTP), over-current (OCP), under-voltage (UVP), no-load operation (NLO), and surge/inrush protection (SIP), providing comprehensive safeguarding for connected components. Verified Specifications: - Form factor: ATX12V V3.0 - Rated output: 1300W - Efficiency certification: 80 Plus Platinum / Cybenetics Platinum - Efficiency: ≥92% at 50% load - Topology: Interleaved PFC, Full-Bridge & LLC + DC to DC - Capacitors: Full Japanese electrolytic - Fan: 120mm FDB - Hold-up time: ≥16ms - Power good signal: 100–150ms - MTBF: 100,000 hours - Operating temperature: 0–40°C - Dimensions: 150 × 160 × 86mm (W × L × H) - Connectivity: 1× 12VHPWR, 2× EPS, 5× PCIe - Protections: OPP, OVP, SCP, OTP, OCP, UVP, NLO, SIP - Regulatory: CE, FCC, CCC, TUV-RH, RCM, EAC, UKCA, BIS - Environmental: WEEE, RoHS, ErP 2014
