DEEPCOOL UD551 ARGB Single Tower CPU Air Cooler (Black)
MPN DEEPCOOL-UD551-ARGB · Brand Deepcool
Features of DEEPCOOL UD551 ARGB Single Tower CPU Air Cooler (Black) The DEEPCOOL UD551 ARGB CPU Cooler is an efficient top flow cooling solution for AMD sockets equipped with a high performance 136mm fan and an ARGB LED ring with motherboard sync support. TOP FLOW DESIGN Cooling with a fan mounted top-down quickly dissipates heat directly over the heat sink covering the CPU which also introduces additional airflow over motherboard components surrounding the socket such as the VRM and RAM. BEST M
Inclusive of GST · GST invoice available
Overview
Features of DEEPCOOL UD551 ARGB Single Tower CPU Air Cooler (Black)

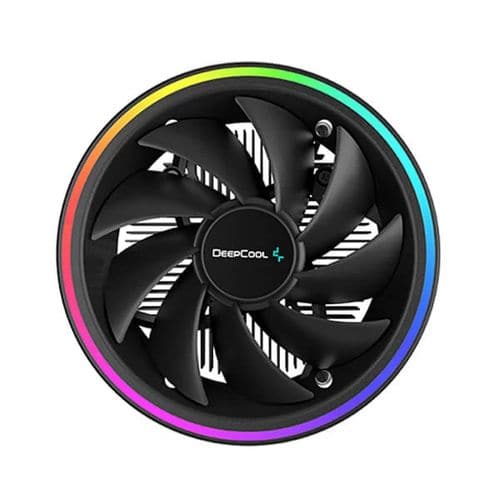

The DEEPCOOL UD551 ARGB CPU Cooler is an efficient top flow cooling solution for AMD sockets equipped with a high performance 136mm fan and an ARGB LED ring with motherboard sync support.
TOP FLOW DESIGN
Cooling with a fan mounted top-down quickly dissipates heat directly over the heat sink covering the CPU which also introduces additional airflow over motherboard components surrounding the socket such as the VRM and RAM.
BEST MATCHING FAN
Optimal in performance and noise, the 136mm PWM cooling fan balances the best of both worlds to ensure your system is at its best.

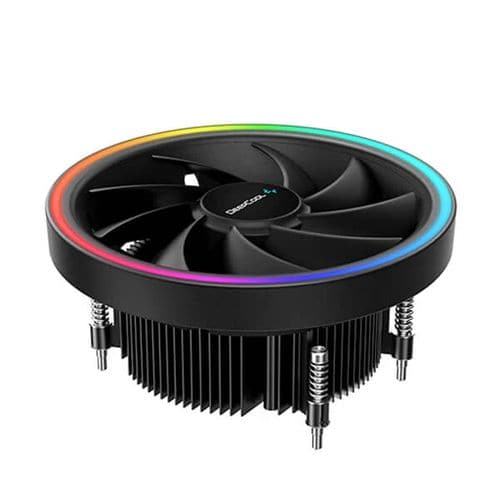

GLAMOUROUS RING LIGHT
Customize and control the addressable RGB LEDs with 16.8 million color options that best fit your style and setup. Fine tune your settings and synchronize with supported motherboard software through the 3-pin 5V ARGB connector. Enjoy a colorful cooling combination in this classic form factor.
Quick Install
An easy-to-use mounting process makes setup and installation quick and hassle-free.
*The UD551 is designed for AMD sockets only. For Intel socket mount, a corresponding UL551 model is available.

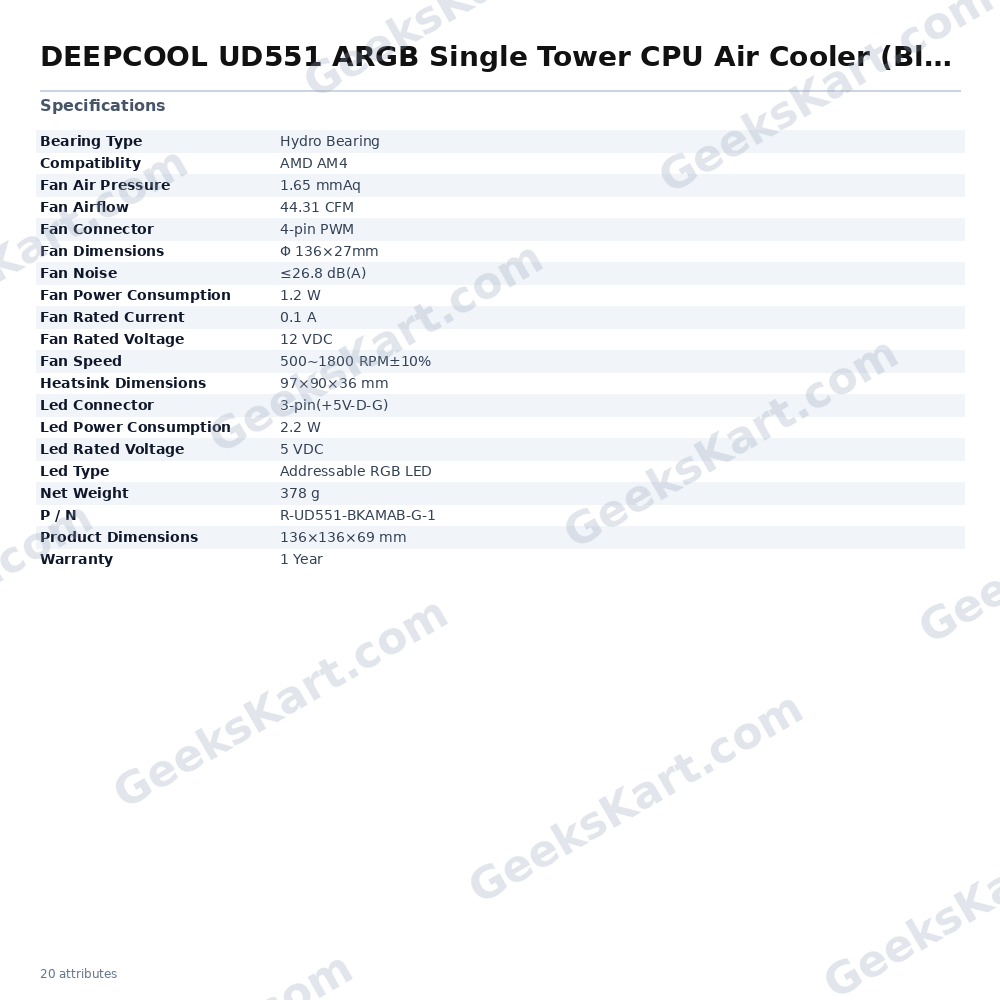

Specifications of DEEPCOOL UD551 ARGB Single Tower CPU Air Cooler (Black)
| P / N | R-UD551-BKAMAB-G-1 |
| Compatiblity | AMD AM4 |
| Product Dimensions | 136×136×69 mm |
| Heatsink Dimensions | 97×90×36 mm |
| Net Weight | 378 g |
| Fan Dimensions | Φ 136×27mm |
| Fan Speed | 500~1800 RPM±10% |
| Fan Airflow | 44.31 CFM |
| Fan Air Pressure | 1.65 mmAq |
| Fan Noise | ≤26.8 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Hydro Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.1 A |
| Fan Power Consumption | 1.2 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin(+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 2.2 W |
| Warranty | 1 Year |
| Note | ***Features, Price and Specifications are subject to change without notice. |
Datasheet
| Warranty | 1 Year |
|---|---|
| P / N | R-UD551-BKAMAB-G-1 |
| Led Type | Addressable RGB LED |
| Fan Noise | ≤26.8 dB(A) |
| Fan Speed | 500~1800 RPM±10% |
| Net Weight | 378 g |
| Fan Airflow | 44.31 CFM |
| Bearing Type | Hydro Bearing |
| Compatiblity | AMD AM4 |
| Fan Connector | 4-pin PWM |
| Led Connector | 3-pin(+5V-D-G) |
| Fan Dimensions | Φ 136×27mm |
| Fan Air Pressure | 1.65 mmAq |
| Fan Rated Current | 0.1 A |
| Fan Rated Voltage | 12 VDC |
| Led Rated Voltage | 5 VDC |
| Product Dimensions | 136×136×69 mm |
| Heatsink Dimensions | 97×90×36 mm |
| Fan Power Consumption | 1.2 W |
| Led Power Consumption | 2.2 W |
