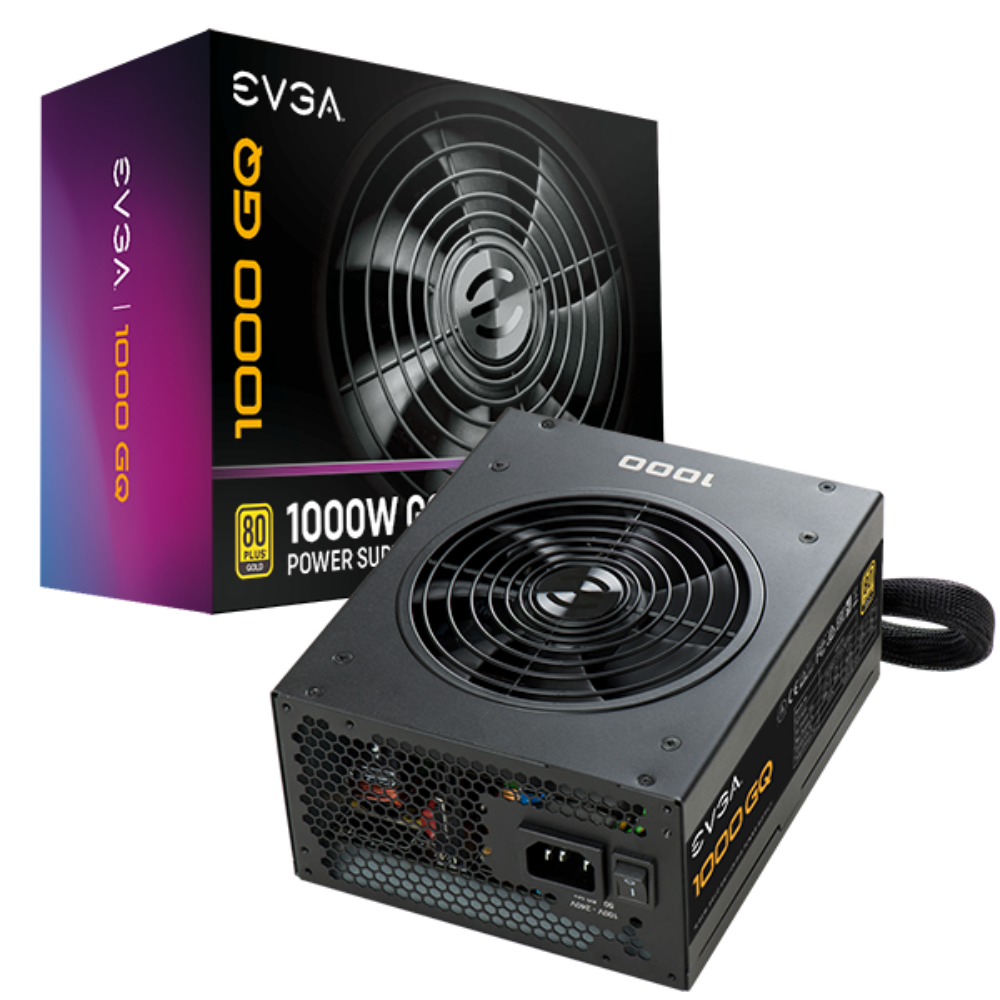

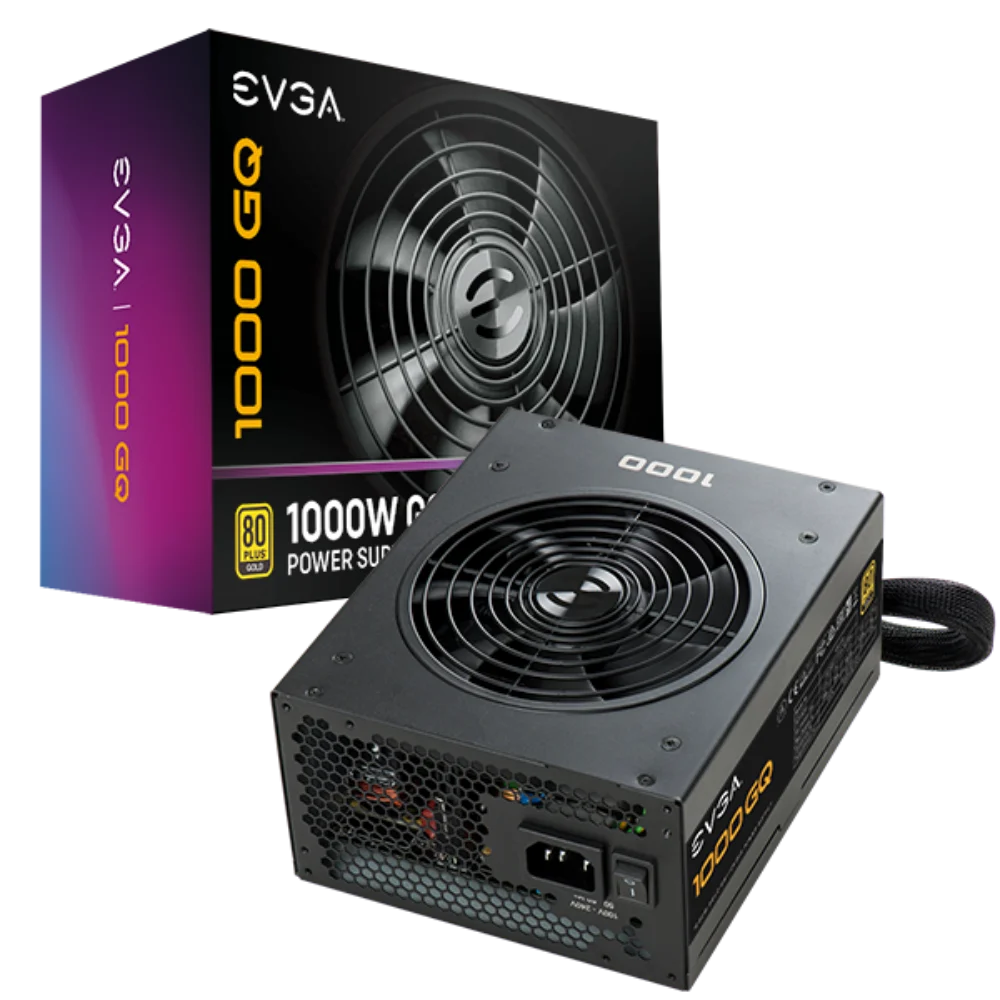

EVGA 1000GQ 1000W 80+ Gold ATX 2.0 Semi Modular Power Supply ( 1000W )
MPN EVGA-1000GQ-1000W · Brand EVGA · ATX
The EVGA 1000GQ delivers 1000 W of 80 PLUS Gold certified power in a semi-modular ATX form factor, featuring Japanese capacitors, ECO fan mode, and a 5-year manufacturer warranty — suited for high-end gaming and multi-GPU builds
Inclusive of GST · GST invoice available
Overview

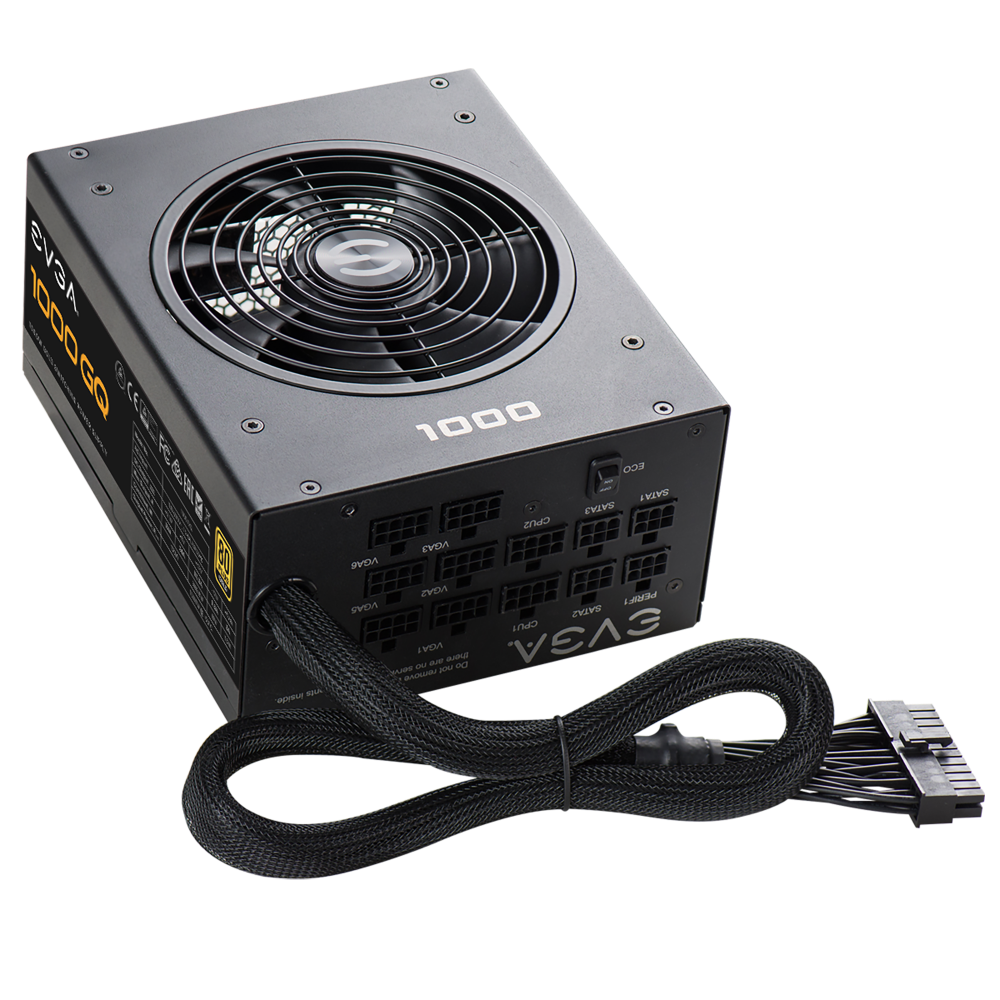

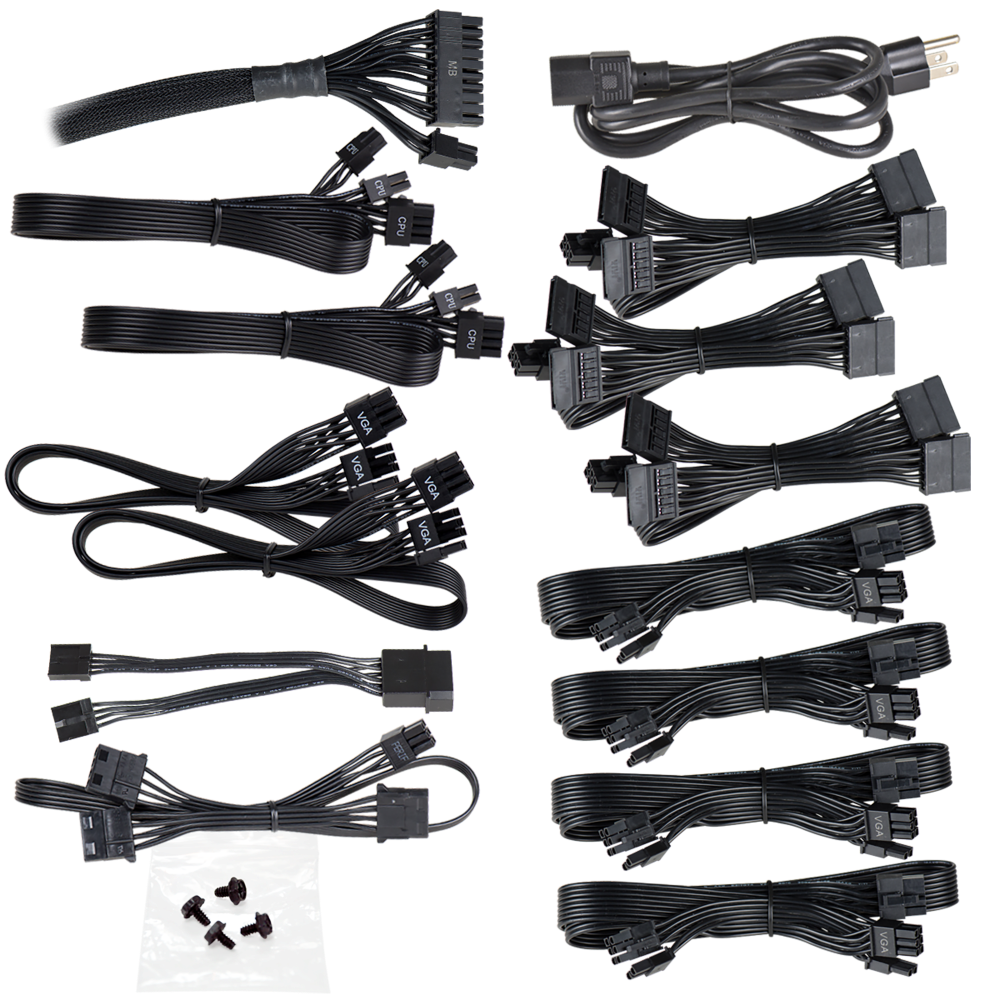

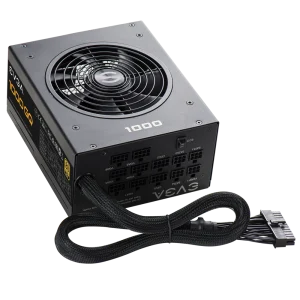

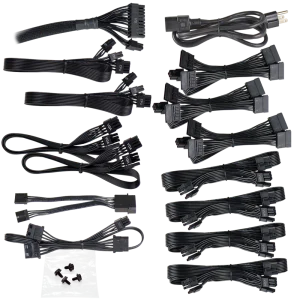

The EVGA 1000GQ is a 1000-watt ATX power supply from EVGA's GQ series, designed to deliver reliable, efficient power for high-performance desktop builds including multi-GPU configurations. Carrying an 80 PLUS Gold certification, the unit achieves up to 90% efficiency at 115 V AC and up to 92% efficiency at 220–240 V AC under typical loads, reducing wasted heat and keeping your electricity bill in check. The semi-modular cable design means the 24-pin ATX motherboard connector and EPS CPU cables are hard-wired, while the remaining peripheral, SATA, and PCIe cables are detachable. This strikes a practical balance between a clean cable layout and build convenience, letting you install only the cables your system actually needs. Ten 8-pin (6+2) PCIe connectors provide ample headroom for demanding graphics card configurations, including NVIDIA SLI and AMD CrossFire setups. Inside, EVGA uses Japanese brand capacitors to underpin long-term reliability, supported by a rated MTBF of 100,000 hours. The 135 mm fan operates under EVGA's ECO fan mode, which reduces fan speed—and therefore noise—under lighter load conditions. Active cooling takes over as thermals demand it. A comprehensive set of hardware protections safeguards connected components: Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Current Protection (OCP), Over Power Protection (OPP), Short Circuit Protection (SCP), and Over Temperature Protection (OTP) are all built in. Verified Specifications: - Model: 210-GQ-1000-V1 - Total Output Power: 1000 W - Form Factor: ATX - Efficiency: 80 PLUS Gold — 90% (115 V AC) / 92% (220–240 V AC) - Input Voltage: 100–240 V AC, 50–60 Hz - Modular: Semi-Modular - Output Connectors: 1 × 24-pin ATX, 2 × 8-pin (4+4) EPS, 10 × 8-pin (6+2) PCIe, 12 × SATA, 3 × 4-pin Peripheral, 2 × Floppy - Fan: 1 × 135 mm (active cooling, ECO fan mode) - MTBF: 100,000 hours - Protections: OVP, UVP, OCP, OPP, SCP, OTP - Color: Black - Warranty: 5 years (manufacturer)

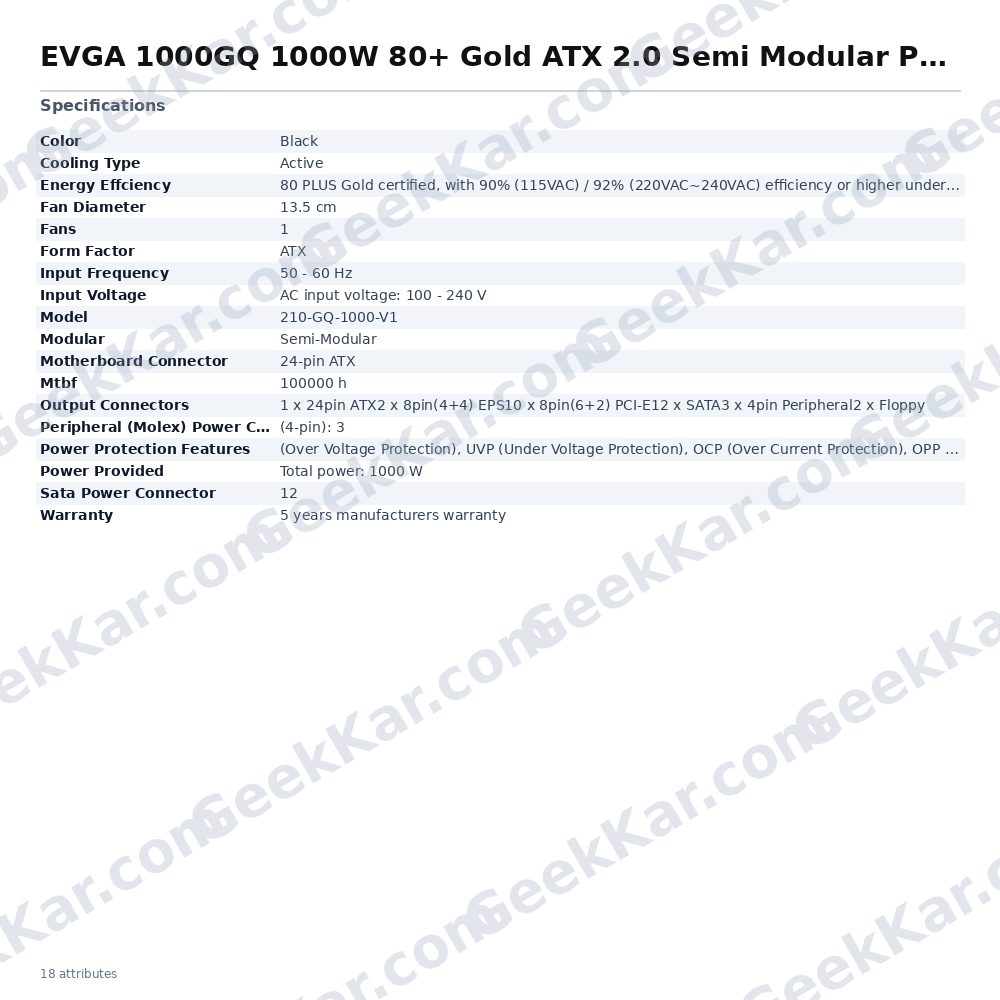

Datasheet
| Fans | 1 |
|---|---|
| Mtbf | 100000 h |
| Model | 210-GQ-1000-V1 |
| Modular | Semi-Modular |
| Cooling Type | Active |
| Fan Diameter | 13.5 cm |

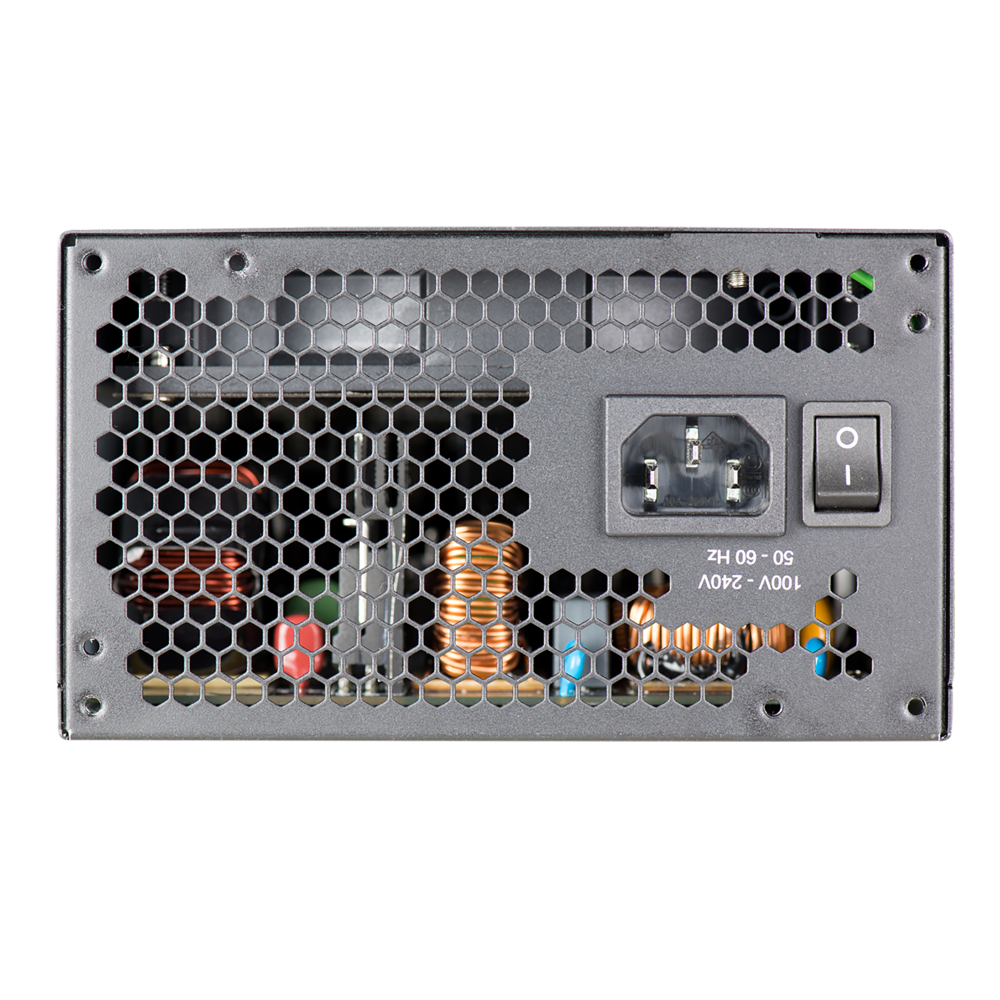

| Input Voltage | AC input voltage: 100 – 240 V |

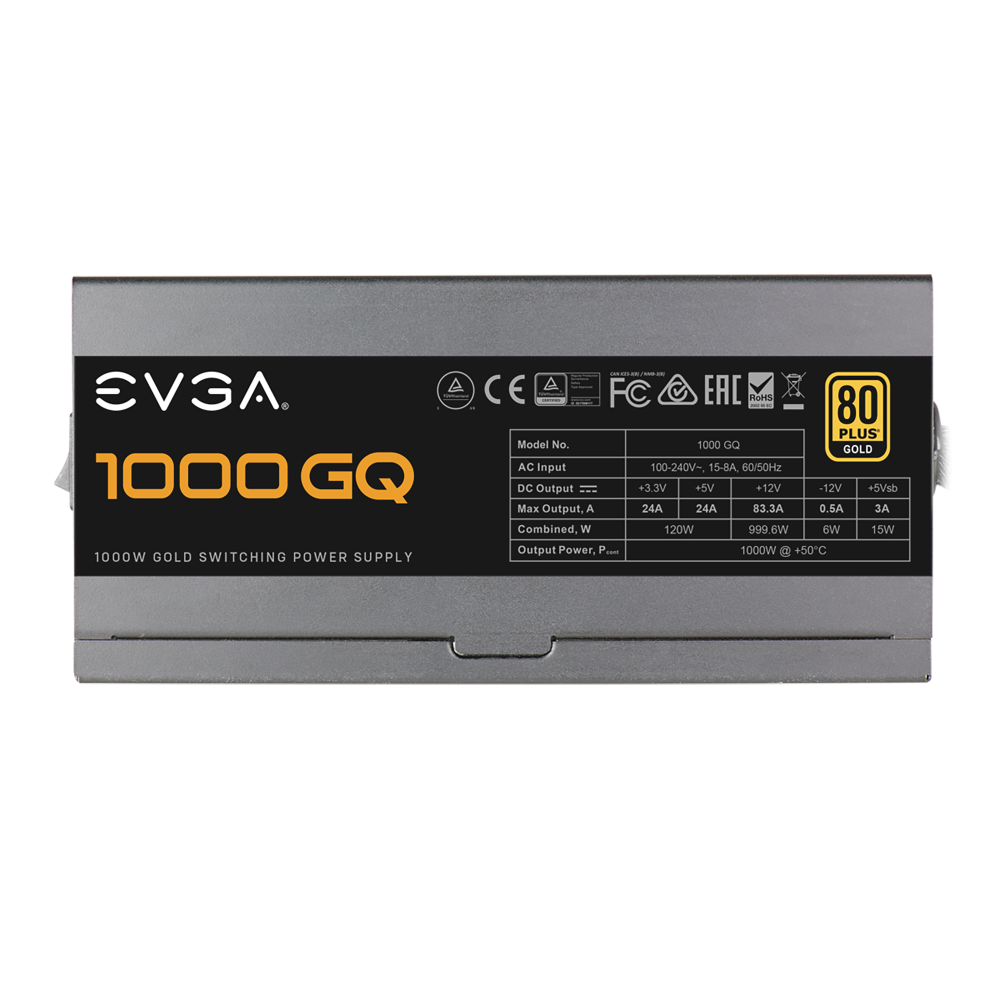

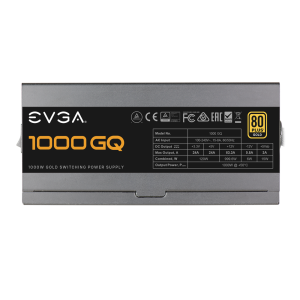

| Power Provided | Total power: 1000 W |
| Input Frequency | 50 – 60 Hz |
| Energy Effciency | 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads |

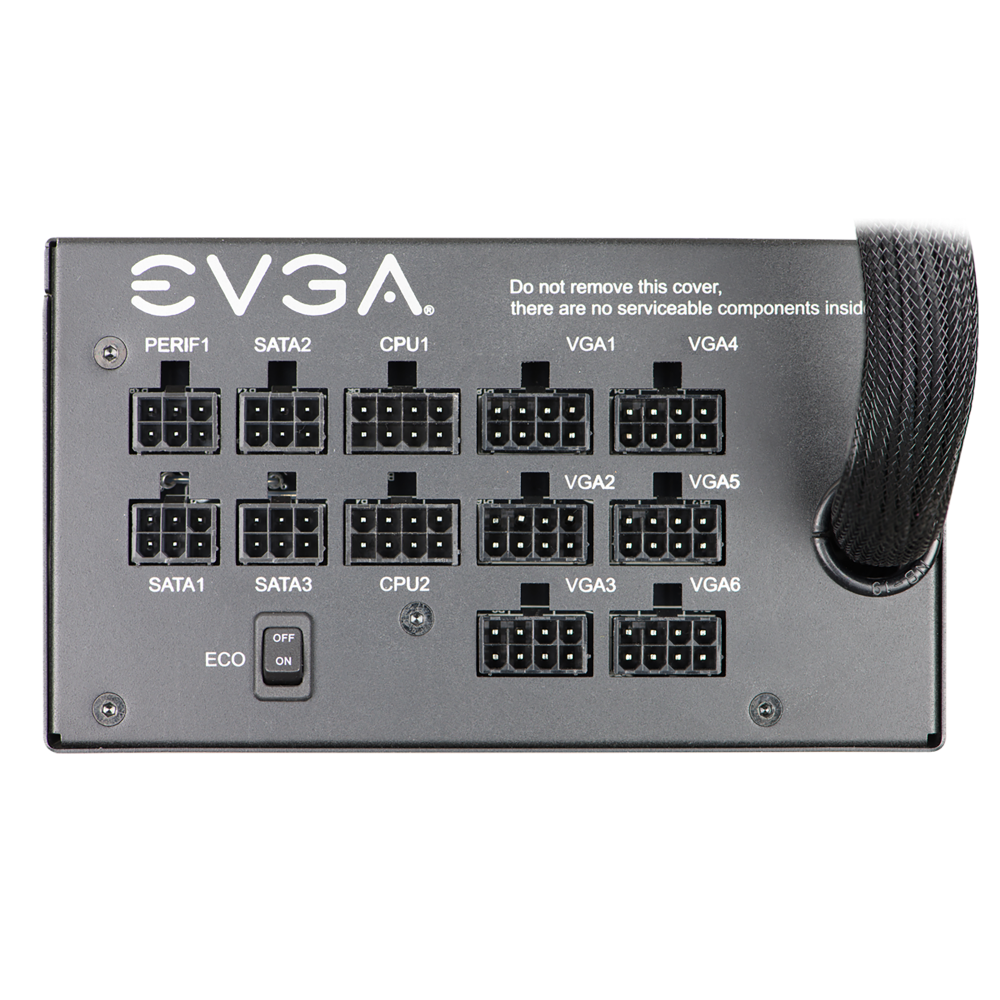

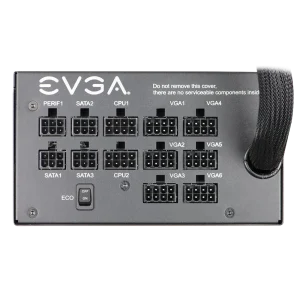

| Output Connectors | 1 x 24pin ATX2 x 8pin(4+4) EPS10 x 8pin(6+2) PCI-E12 x SATA3 x 4pin Peripheral2 x Floppy |
| Sata Power Connector | 12 |
| Motherboard Connector | 24-pin ATX |
| Power Protection Features | (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection) |
| Peripheral (Molex) Power Connector | (4-pin): 3 |
| Warranty | 5 Years |
| Form Factor | ATX |
| color | Black |
