EVGA 750 BR 80+ Bronze Semi Modular Power Supply (750 W)
MPN EVGA-750-BR-BRONZE · Brand EVGA
The EVGA 750 BR delivers 750W of 80 PLUS Bronze-certified power (up to 88% efficiency) with a single 12V rail, 4x PCIe connectors, six hardware protections, and a 3-year warranty — ideal for mid-range gaming and workstation builds
Inclusive of GST · GST invoice available
Overview

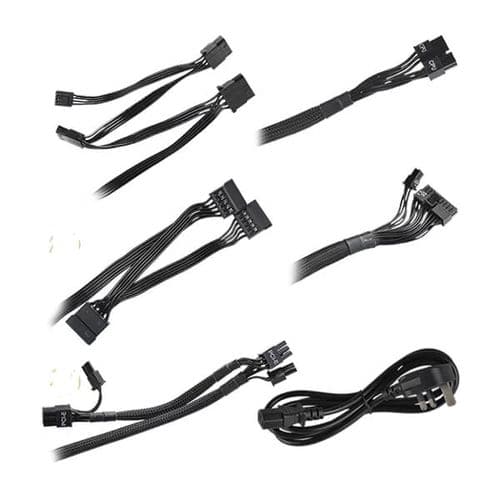

The EVGA 750 BR is a 750-watt semi-modular ATX power supply designed to deliver stable, efficient power for mainstream desktop PC builds. Certified 80 PLUS Bronze under the 230V EU standard, it achieves up to 88% typical efficiency, reducing energy waste and heat inside your chassis compared to non-certified units. A single 12V rail topology simplifies power delivery to the CPU and GPU, while an integrated DC-DC converter maintains tighter regulation on the 3.3V and 5V lines — important for the stability of storage drives and USB peripherals. Active Power Factor Correction (APFC) improves input efficiency and reduces harmonic distortion on the AC line. The 750 BR includes a comprehensive suite of hardware protections: Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Current Protection (OCP), Over Power Protection (OPP), Short Circuit Protection (SCP), and Over Temperature Protection (OTP). Together these safeguards help protect connected components from power anomalies. Cable management is made easier by the semi-modular design: the 24-pin ATX and EPS cables are hardwired, while PCIe, SATA, and peripheral cables are detachable for a tidier build. The unit ships with four PCIe 8-pin (6+2) connectors, making it compatible with a range of discrete graphics cards. Cooling is handled by a 120mm long-sleeve bearing fan that adjusts speed automatically based on load, enabling near-silent operation during light workloads. The power supply carries TUV, CB, CE, RCM, and RoHS approvals, and complies with the ErP Lot 3 2014 energy-efficiency requirement. It is backed by a 3-year manufacturer warranty. Verified Specifications: - Total Output Power: 750W - Efficiency: Up to 88% typical (80 PLUS Bronze, 230V EU) - Form Factor: ATX - Rail Configuration: Single 12V - Input Voltage: 200–240V~, 5A - Input Frequency: 50/60Hz - Fan: 120mm Long Sleeve Bearing (auto/intelligent speed) - 24-pin ATX Connector: 1x (20+4) - EPS/CPU Connector: 1x 8-pin (4+4) - PCIe Connectors: 4x 8-pin (6+2) - SATA Connectors: 9x - 4-pin Peripheral Connectors: 3x - Floppy Adapter: 1x - MTBF: 100,000 hours - Dimensions: 86mm (H) × 150mm (W) × 140mm (L) - Net Weight: 4.4 lbs - Certifications: TUV, CB, CE, RCM, RoHS; ErP Lot 3 2014 compliant - Warranty: 3 Years - UPC: 843368074968 / EAN: 4250812445605 - Japanese Capacitors: No - ECO Mode: No

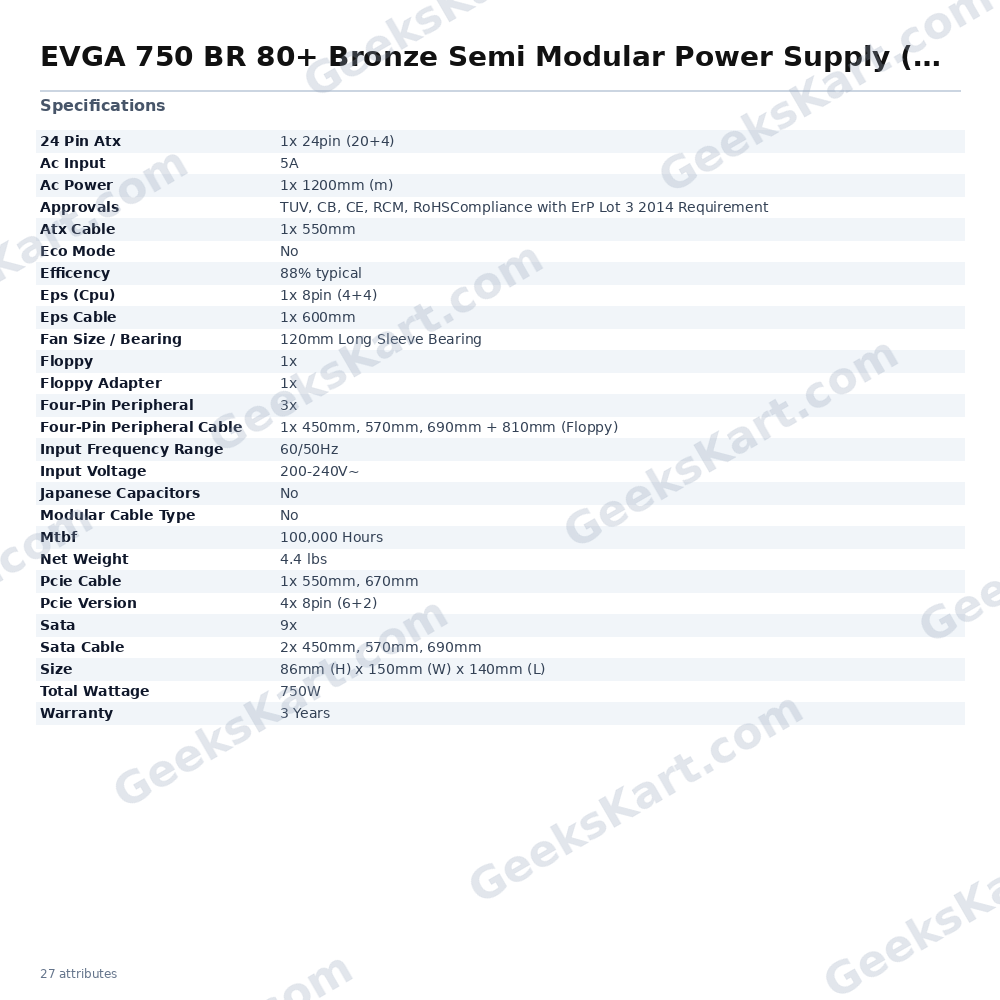

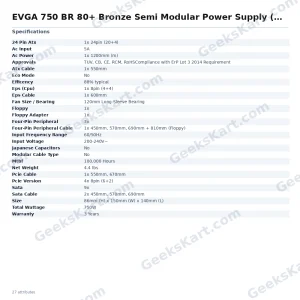

Datasheet
| Mtbf | 100,000 Hours |
|---|---|
| Pcie Version | 4x 8pin (6+2) |
| Sata | 9x |
| Size | 86mm (H) x 150mm (W) x 140mm (L) |
| Floppy | 1x |
| Ac Input | 5A |
| Ac Power | 1x 1200mm (m) |
| Eco Mode | No |
| Atx Cable | 1x 550mm |
| Approvals | TUV, CB, CE, RCM, RoHSCompliance with ErP Lot 3 2014 Requirement |
| Eps (Cpu) | 1x 8pin (4+4) |
| Eps Cable | 1x 600mm |
| Efficency | 88% typical |
| 24 Pin Atx | 1x 24pin (20+4) |
| Net Weight | 4.4 lbs |
| Pcie Cable | 1x 550mm, 670mm |
| Sata Cable | 2x 450mm, 570mm, 690mm |
| Input Voltage | 200-240V~ |
| Total Wattage | 750W |
| Floppy Adapter | 1x |
| Fan Size / Bearing | 120mm Long Sleeve Bearing |
| Modular Cable Type | No |
| Four-Pin Peripheral | 3x |
| Japanese Capacitors | No |
| Input Frequency Range | 60/50Hz |
| Four-Pin Peripheral Cable | 1x 450mm, 570mm, 690mm + 810mm (Floppy) |
| Warranty | 3 Years |
