EVGA SuperNova 1300 P Plus Platinum 1300 Watt Fully Modular Smps

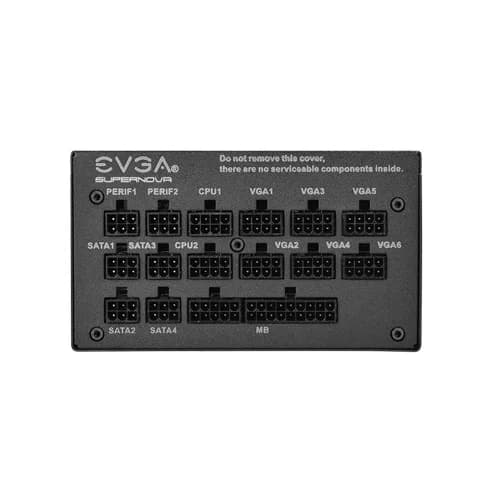

The EVGA SuperNova 1300 P Plus (SKU: 220-PP-1300-X1) is a high-capacity, fully modular power supply delivering 1300 watts of continuous power with an 80 Plus Platinum efficiency rating. Under typical load conditions, it operates at 92% efficiency or higher, meaning less power is wasted as heat and more is delivered directly to your components — a meaningful advantage in high-end workstation and gaming builds that run demanding hardware around the clock. The fully modular cable design lets you connect only the cables your build requires, eliminating clutter inside the chassis, improving case airflow, and simplifying both the initial build and future upgrades. A single +12V rail provides up to 133A, delivering consistent voltage across all connected devices without the instability risks that multi-rail designs can introduce. Two DC-to-DC conversion modules further improve power switching efficiency across all voltage rails. A 135mm Fluid Dynamic Bearing fan manages thermals quietly. EVGA ECO Mode allows the fan to remain stationary under light to moderate loads, making the system near-silent when the workload does not demand active cooling. All internal capacitors are 100% Japanese solid-state units, chosen for long-term reliability and stable performance over extended operating periods. Protection circuitry covers six failure scenarios: over-current protection (OCP), over-voltage protection (OVP), over-temperature protection (OTP), over-power protection (OPP), short-circuit protection (SCP), and under-voltage protection (UVP), giving connected hardware a robust safety net. The unit carries a 10-year manufacturer warranty and holds certifications for TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS, and ErP Lot 3 2014 compliance, confirming it meets international safety and environmental standards. Verified Specifications: - Wattage: 1300W continuous - Efficiency: 80 Plus Platinum (≥92% at typical load) - Modular: Fully modular - +12V Rail: Single rail, up to 133A - Fan: 135mm Fluid Dynamic Bearing with ECO Mode - Capacitors: 100% Japanese solid-state - PCIe Connectors (6+2 pin): 8 - SATA Connectors: 12 - Peripheral (4-pin) Connectors: 6 - MTBF: 100,000 hours - Dimensions: 86mm (H) × 150mm (W) × 200mm (L) - Operating Temperature: 0°C to 50°C - Warranty: 10 years - Certifications: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS, ErP Lot 3 2014 - IEC Standard: IEC 62368 compliant
