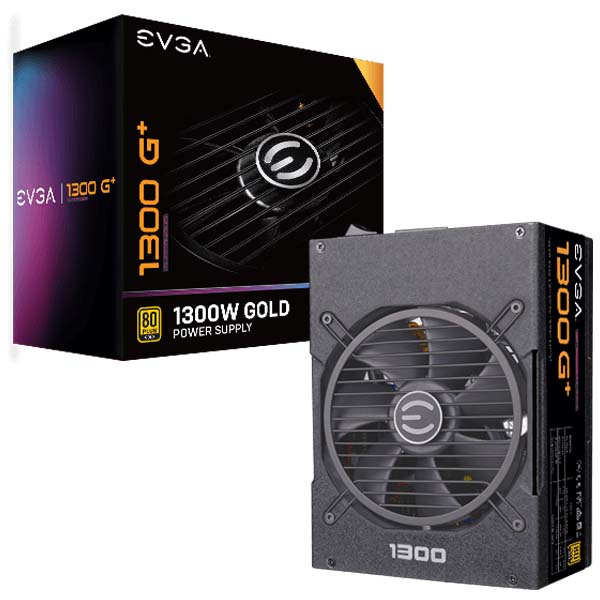

EVGA Supernova 1300G+ 80+ Gold 1300W ATX 2.0 Fully Modular Power Supply

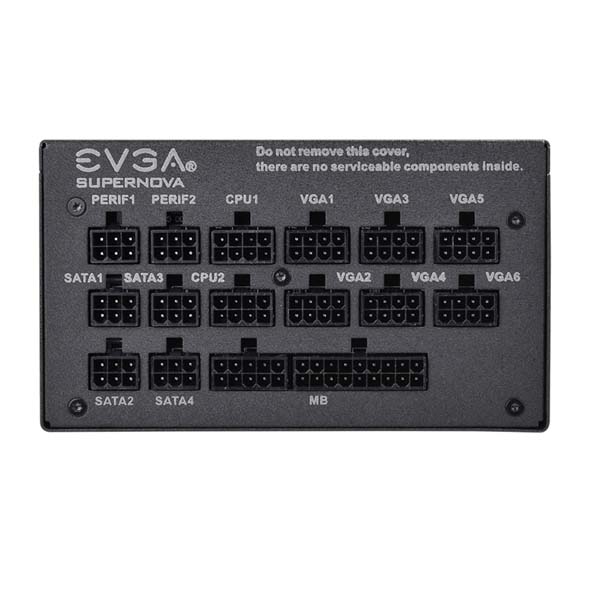

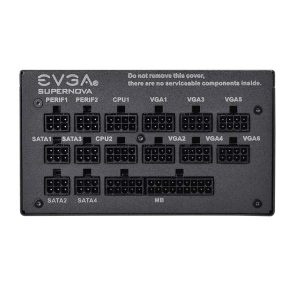

The EVGA SuperNova 1300G+ is a high-capacity, fully modular ATX power supply rated at 1300 watts, carrying an 80 Plus Gold efficiency certification. Designed for demanding desktop builds, it delivers 90% efficiency at 115V AC and 92% efficiency at 220–240V AC under typical load conditions, helping to reduce heat output and lower electricity consumption compared to Bronze-tier units. All internal capacitors are sourced from Japanese manufacturers, a choice associated with improved longevity and voltage stability. A DC-to-DC converter design on the 3.3V and 5V rails enhances regulation accuracy, which is particularly beneficial for storage devices and system memory. The EVGA ECO Intelligent Thermal Control System keeps the 135mm Fluid Dynamic Bearing fan idle at low-to-medium loads, resulting in near-silent operation during everyday computing tasks. Under heavier workloads the fan ramps up proportionally to maintain safe operating temperatures. As a fully modular unit, every cable can be attached or removed as needed, making installation cleaner and cable management more straightforward. Only the cables actually required for a given build need to be routed, reducing clutter inside the chassis and promoting better airflow across other components. Multiple protection circuits are built in: Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Current Protection (OCP), Over Power Protection (OPP), Short Circuit Protection (SCP), and Over Temperature Protection (OTP). The unit carries regulatory approvals including TUV, CB, CE, FCC, RCM, cTUVus, WEEE, and RoHS, and meets ErP Lot 3 2014 energy-efficiency requirements. Verifiable Specifications: - Model / SKU: EVGA SuperNova 1300G+ / 220-GP-1300-X1 - Rated Output: 1300W - Efficiency Certification: 80 Plus Gold (90% @ 115V AC / 92% @ 220–240V AC) - Modularity: Fully Modular - Fan: 135mm Fluid Dynamic Bearing - Capacitors: 100% Japanese - PCIe Connectors (6+2-pin): 8 - SATA Connectors: 12 - Peripheral (4-pin Molex): 6 - Dimensions: 86mm (H) × 150mm (W) × 200mm (L) - Operating Temperature: 0°C to 50°C - MTBF: 100,000 hours - Warranty: 10 years - GTIN: 4250812424235 - Certifications: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS, ErP Lot 3 2014
