EVM 256GB NVMe Gen3 SSD
MPN EVMNV-256GB · Brand EVM · M.2 2280
The EVM 256GB NVMe Gen3 SSD offers sequential reads up to 2000 MB/s and writes up to 1500 MB/s via PCIe Gen3x4 in a compact M.2 2280 form factor, backed by a 5-year warranty
Inclusive of GST · GST invoice available
Overview
The EVM 256GB NVMe Gen3 SSD is a compact, high-speed internal storage drive designed to replace slow mechanical hard drives and SATA SSDs in laptops and desktops. Built in the M.2 2280 form factor, it connects via a PCIe Gen3x4 interface, delivering sequential read speeds of up to 2000 MB/s and sequential write speeds of up to 1500 MB/s — a significant performance step above conventional SATA-based storage solutions. At the core of this drive's reliability is a hardware LDPC (Low-Density Parity-Check) ECC engine that actively detects and corrects data errors, helping maintain data integrity during sustained workloads. Global wear-leveling technology distributes write operations evenly across all available NAND cells, which extends the usable lifespan of the drive over time. The drive also supports S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology), enabling compatible operating systems and utilities to monitor drive health and anticipate potential issues before they cause data loss. Sudden power-off recovery support adds a layer of protection against data corruption in the event of unexpected shutdowns, making this drive suitable for everyday computing environments where unplanned power interruptions can occur. Its shock resistance rating of 1500G/0.5ms provides resilience against accidental drops and vibrations — a useful characteristic for portable laptop installations. With an MTBF (Mean Time Between Failures) rating of 2,000,000 hours and a 5-year warranty, the EVM 256GB NVMe Gen3 SSD is positioned as a dependable long-term storage upgrade. Operating temperatures range from 0°C to 70°C, with a storage temperature range of -40°C to 85°C. Verified Specifications: - Capacity: 256GB - Form Factor: M.2 2280 - Interface: PCIe Gen3x4 (NVMe) - Sequential Read: up to 2000 MB/s - Sequential Write: up to 1500 MB/s - Shock Resistance: 1500G / 0.5ms - MTBF: 2,000,000 hours - Operating Temperature: 0°C to 70°C - Storage Temperature: -40°C to 85°C - Dimensions: 80mm x 22mm x 3.75mm - ECC: Hardware LDPC - S.M.A.R.T.: Supported - Warranty: 5 Years - TBW: Not disclosed by manufacturer

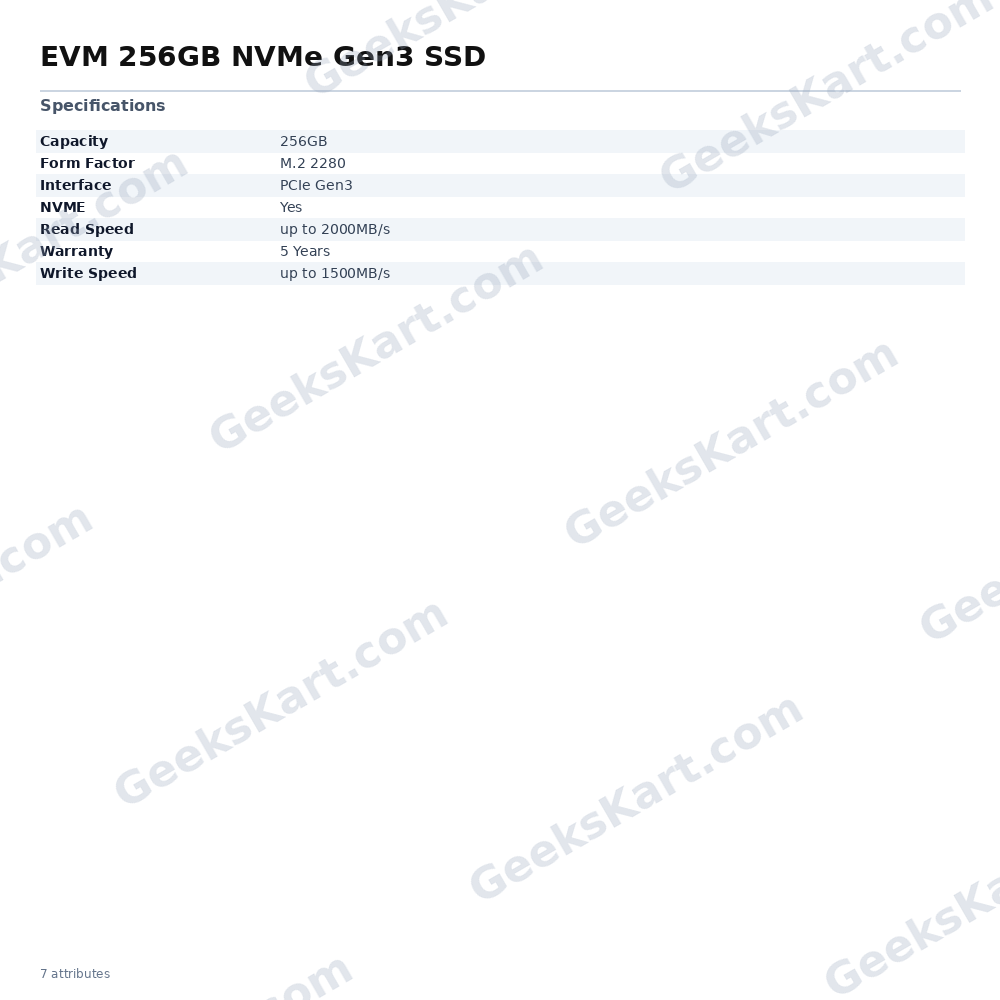

Datasheet
| Warranty | 5 Years |
|---|---|
| Capacity | 256GB |
| Form Factor | M.2 2280 |
| Interface | PCIe Gen3 |
| NVME | Yes |
| Read Speed | up to 2000MB/s |
| Write Speed | up to 1500MB/s |
