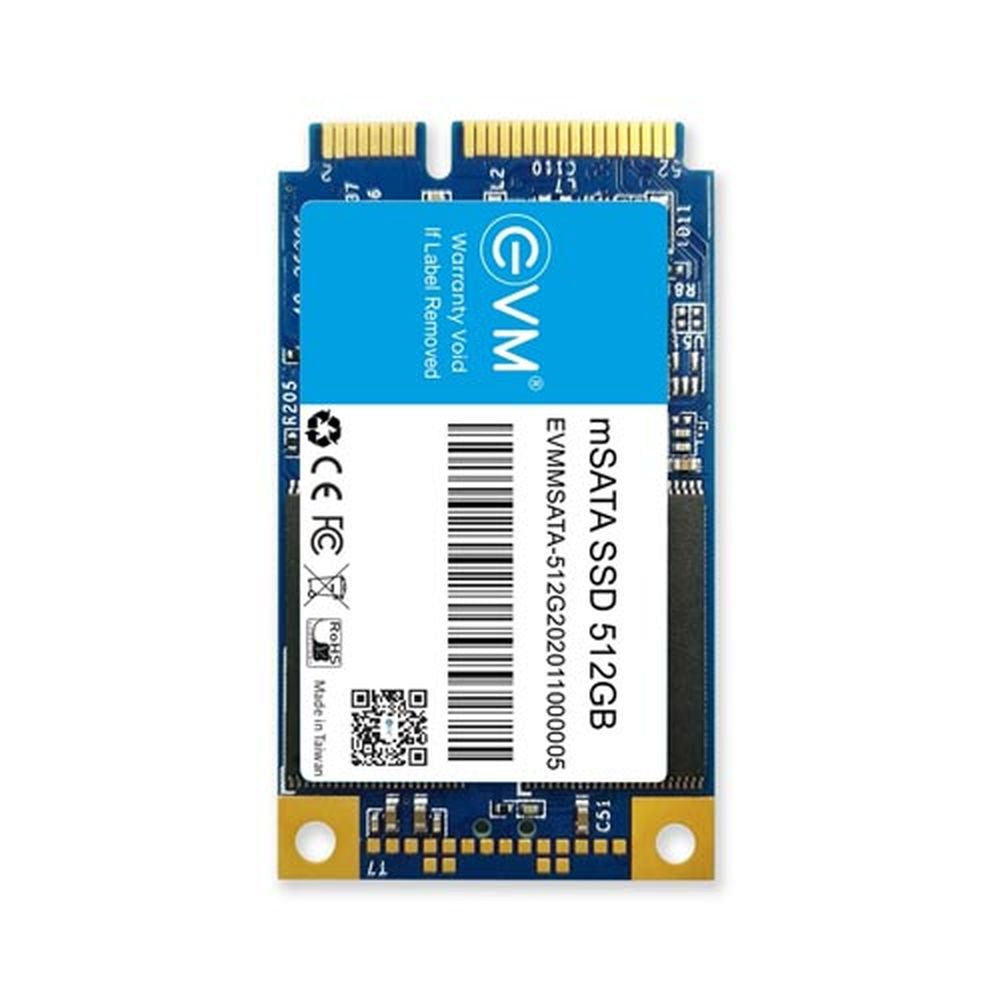

EVM 512GB mSATA Solid State Drive (SSD)

The EVM 512GB mSATA Solid State Drive is a compact, high-capacity storage upgrade designed for laptops, mini-PCs, and other devices equipped with an mSATA slot. Built with 3D TLC NAND flash memory and a SATA 6.0 Gbps interface, it delivers sequential read speeds of up to 520 MB/s and sequential write speeds of up to 500 MB/s — a significant leap over traditional mechanical hard drives. Random 4K read and write performance reaches up to 79,000 IOPS and 18,000 IOPS respectively, helping reduce application load times and system lag during everyday multitasking. The drive’s mSATA form factor measures just 50.8 mm × 29.85 mm × 4.85 mm and weighs 6.7 g, making it easy to fit into space-constrained builds without adding bulk. Low power consumption — 0.195 W at idle, 0.5 W average, and a peak of 2.32 W during write operations — helps preserve battery life in portable systems. An operating temperature range of 0 °C to 70 °C and a storage temperature range of −40 °C to 85 °C indicate resilience for varied environments. Data reliability features include Sudden Power Off Recovery, S.M.A.R.T. monitoring, TRIM support, and Native Command Queuing (NCQ), all of which work together to safeguard data integrity and extend the drive’s service life. The drive is rated for a Total Bytes Written (TBW) endurance of 200 TB, providing a clear indicator of long-term durability. EVM backs this drive with a 5-year warranty, reflecting confidence in component quality. Verified Specifications: • Capacity: 512 GB • Form Factor: mSATA • NAND Type: 3D TLC • Interface: SATA 6.0 Gbps • Sequential Read: Up to 520 MB/s • Sequential Write: Up to 500 MB/s • 4K Random Read / Write: Up to 79,000 / 18,000 IOPS • TBW: 200 TB • Dimensions: 50.8 mm × 29.85 mm × 4.85 mm • Weight: 6.7 g • Operating Temperature: 0 °C to 70 °C • Storage Temperature: −40 °C to 85 °C • Power (Idle / Avg / Max Read / Max Write): 0.195 W / 0.5 W / 1.17 W / 2.32 W • Vibration (Operating): 2.17 G Peak (7–800 Hz) • Vibration (Non-Operating): 20 G Peak (10–2000 Hz) • Warranty: 5 Years
