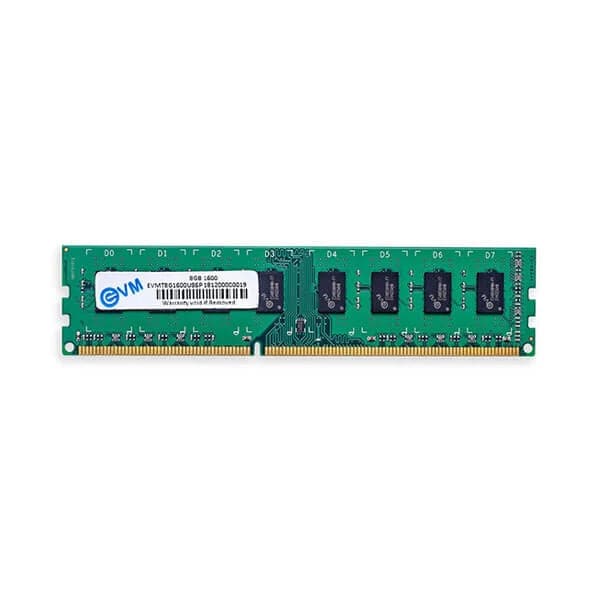

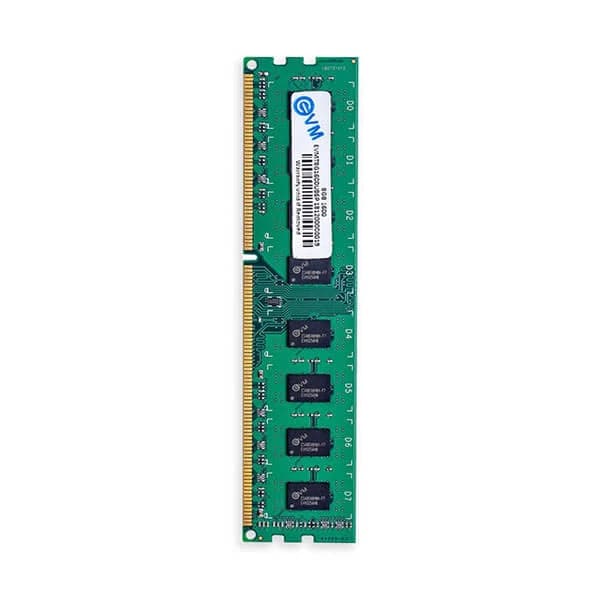

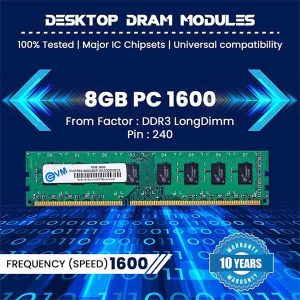

EVM 8GB ( 8GBx1 ) 1600MHz DDR3 Desktop RAM
MPN EVMT8G1600U86P · Brand EVM · DDR3 LongDimm
Features of EVM 8GB (8GBx1) DDR3 1600MHz Desktop RAM Available Capacities: DDR3 8GB 1600MHz UDIMM VDD = VDDQ = 1.5V ±0.075V 1.35V center-terminated push/pull I/O Differential bidirectional data strobe 8n-bit prefetch architecture Differential clock inputs (CK, CK#) 8 internal banks Nominal and dynamic die termination (ODT) for data, strobe, and mask signals Programmable CAS READ latency (CL) Posted CAS additive latency (AL) Programmable CAS WRITE latency (CWL) based on tCK Fixed burst length
Inclusive of GST · GST invoice available
Overview
Features of EVM 8GB (8GBx1) DDR3 1600MHz Desktop RAM
- Available Capacities: DDR3 8GB 1600MHz UDIMM
- VDD = VDDQ = 1.5V ±0.075V
- 1.35V center-terminated push/pull I/O
- Differential bidirectional data strobe
- 8n-bit prefetch architecture
- Differential clock inputs (CK, CK#)
- 8 internal banks
- Nominal and dynamic die termination (ODT) for data, strobe, and
mask signals - Programmable CAS READ latency (CL)
- Posted CAS additive latency (AL)
- Programmable CAS WRITE latency (CWL) based on tCK
- Fixed burst length (BL) of 8 and burst chop (BC) of 4 (via the mode
register set [MRS]) - CAS Latency(Nanosecond): 13.75
- Programmable CAS latency 9, 10,11 supported
- Programmable additive latency 0, CL-1, and CL-2 supported
- Programmable CAS Write latency (CWL) = 9, 10, 11
- Selectable BC4 or BL8 the-fly (OTF)
- Self refresh mode
- Average Refresh Cycle (Tcase of 0 °C to 95 °C)
- 64ms, 8192 cycle refresh at 0°C to 85°C
- 32ms, 8192 cycle refresh at 85°C to 95°C - Self refresh temperature (SRT)
- Write leveling
- Multipurpose register
- Output driver calibration
- JEDEC standard 78ball FBGA(x4/x8)
- RoHS compliant

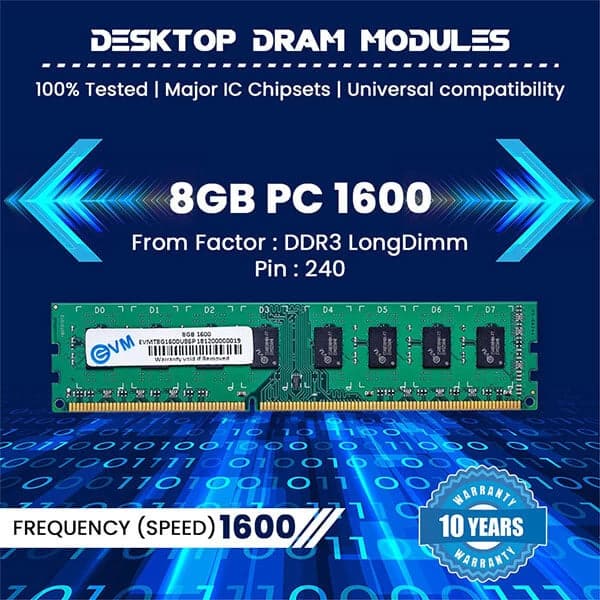

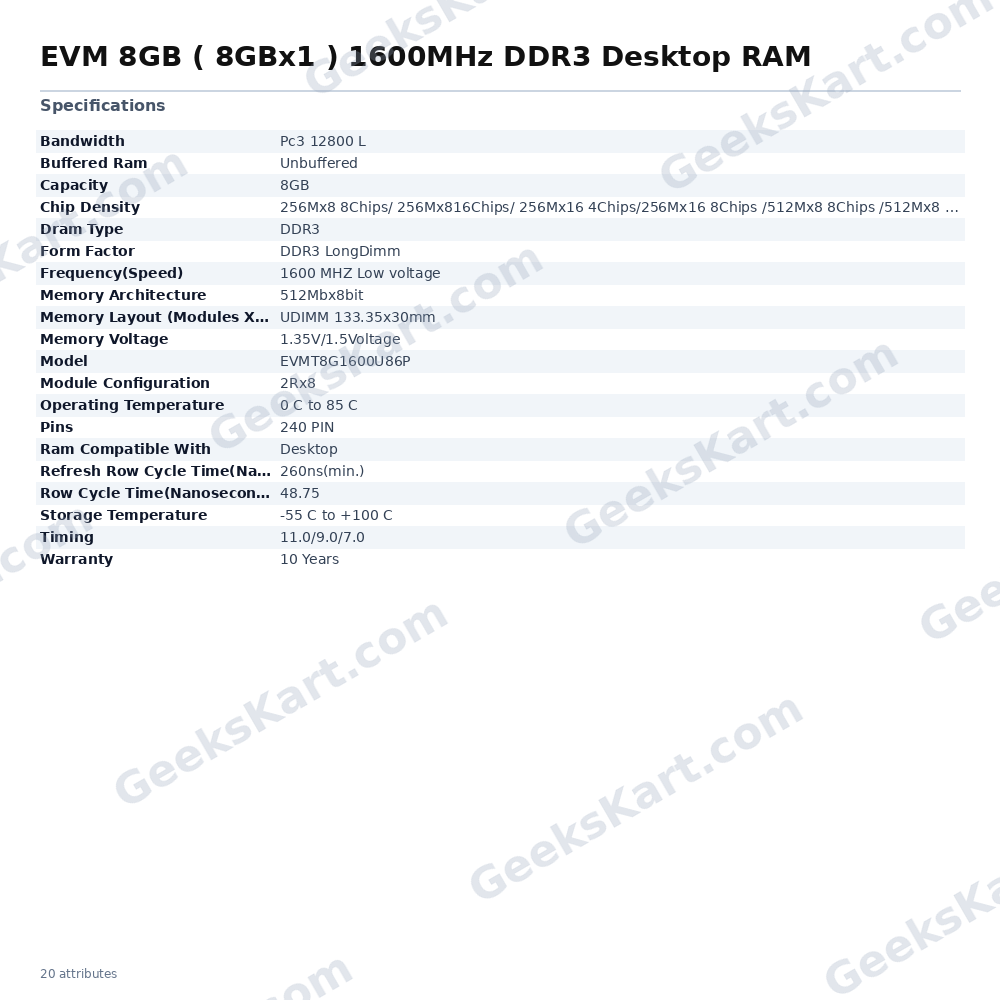

Specifications of EVM 8GB (8GBx1) DDR3 1600MHz Desktop RAM
| Capacity | 8GB |
| DRAM Type | DDR3 |
| Form Factor |
DDR3 LongDimm
|
| Part Number |
EVMT8G1600U86P
|
| Memory Architecture | 512Mbx8bit |
| Frequency(Speed) |
1600 MHZ Low voltage
|

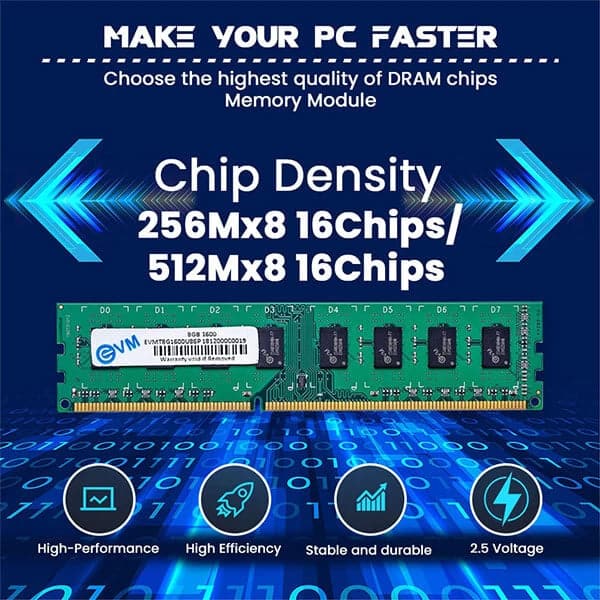

| CAS Latency | 11.0/9.0/7.0 |
| Chip Density |
256Mx8 8Chips/ 256Mx8
16Chips/ 256Mx16 4Chips/ 256Mx16 8Chips / 512Mx8 8Chips / 512Mx8 16Chips |
| Bandwidth | Pc3 12800 L |
| RAM Compatible with | Desktop |
| Buffered RAM | Unbuffered |
| Memory Layout (Modules x size) |
UDIMM 133.35x30mm
|
| Operating Temperature | 0 C to 85 C |
| Storage Temperature | -55 C to +100 C |
| Memory Voltage |
1.35V/1.5Voltage
|
| Pins | 240 PIN |
| Module Configuration | 2Rx8 |
| Row Cycle Time(Nanosecond) | 48.75 |
| Refresh Row Cycle Time(Nanosecond) | 260ns(min.) |
| Warranty | 10 Years |
| Note |
*** Features, Price, Specifications are subject to change without notice.
|
Datasheet
| Pins | 240 PIN |
|---|---|
| Bandwidth | Pc3 12800 L |
| Dram Type | DDR3 |
| Model | EVMT8G1600U86P |
| Buffered Ram | Unbuffered |
| Chip Density | 256Mx8 8Chips/ 256Mx816Chips/ 256Mx16 4Chips/256Mx16 8Chips /512Mx8 8Chips /512Mx8 16Chips |
| Memory Voltage | 1.35V/1.5Voltage |
| Frequency(Speed) | 1600 MHZ Low voltage |
| Memory Architecture | 512Mbx8bit |
| Ram Compatible With | Desktop |
| Storage Temperature | -55 C to +100 C |
| Module Configuration | 2Rx8 |
| Operating Temperature | 0 C to 85 C |
| Row Cycle Time(Nanosecond) | 48.75 |
| Memory Layout (Modules X Size) | UDIMM 133.35x30mm |
| Refresh Row Cycle Time(Nanosecond) | 260ns(min.) |
| Warranty | 10 Years |
| Capacity | 8GB |
| Timing | 11.0/9.0/7.0 |
| Form Factor | DDR3 LongDimm |
