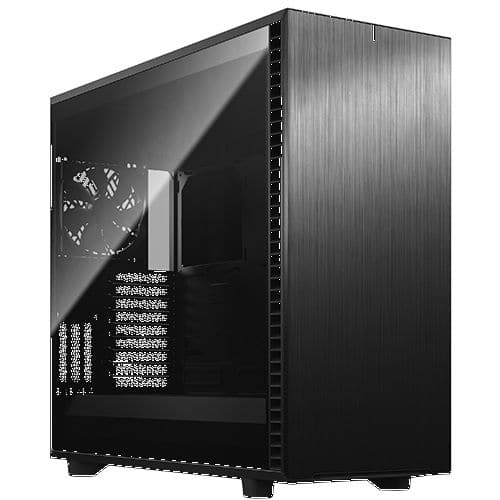

FRACTAL DESIGN Define 7 XL Light Tint EATX Full Tower Cabinet (Black)

The Fractal Design Define 7 XL Light Tint is a full tower PC cabinet engineered for enthusiast and workstation builds that demand maximum flexibility, extensive cooling headroom, and meticulous cable management. Built around a dual-layout interior, the Define 7 XL accommodates motherboards from Mini-ITX all the way up to E-ATX and SSI-EEB form factors, making it one of the most versatile chassis in its class. The cabinet offers two distinct interior configurations. In the Open Layout, graphics cards up to 549 mm in length fit with ease (524 mm with a front fan installed), while storage-focused builders can switch to the Storage Layout for up to 18 HDD or SSD positions — supported by six universal 3.5"/2.5" drive brackets, two dedicated 2.5" brackets, and two Multibrackets included in the box. Two 5.25" optical drive bays are also present and can be converted to an additional filtered front fan mount. Cooling performance is a defining strength. The case provides up to 11 fan mounts for 120 mm fans or 9 mounts for 140 mm fans. Three Dynamic X2 GP-14 140 mm fans come pre-installed — two at the front and one at the rear. Radiator support spans up to 480 mm at the front and top, up to 280 mm at the bottom, and 120 mm at the rear, enabling serious custom water-cooling loops. The top panel swaps between a sound-damped solid steel panel and a filtered ventilation panel with no tools required, thanks to the Moduvent system. Dust filtration covers the top, front (two filters), bottom, and PSU area. Front I/O includes a USB 3.1 Gen 2 Type-C port (up to 10 Gbps with fast-charging support), two USB 3.0 ports, two USB 2.0 ports, and combined audio I/O alongside power and reset buttons. The Nexus+ 2 fan hub, pre-installed inside, connects up to three PWM fans and six 3-pin fans via a single header. Cable management is further aided by 30 mm of routing space behind the motherboard tray, 13 pass-through holes (10 with rubber grommets, 2 with removable covers), integrated Velcro straps, a detachable PSU cable shield, and a ventilated two-part removable PSU shroud. Vertical GPU mounting is supported with optional Flex B-20 or Flex VRC-25 brackets, providing 65 mm of total clearance; a standard dual-slot GPU under 38 mm thickness is recommended for optimal airflow. The CPU cooler height clearance is 185 mm, and the PSU maximum length is 250 mm with both HDD cages installed. Key Specifications: - Model: FD-C-DEF7X-01 - Form Factor: Full Tower - Colour: Black - Motherboard Support: E-ATX, ATX, mATX, Mini-ITX, EE-ATX, SSI-CEB, SSI-EEB - Case Dimensions (L×W×H): 604 × 240 × 566 mm (590 × 240 × 548 mm without feet/protrusions) - Package Dimensions: 646 × 357 × 708 mm - Net Weight: 16.53 kg | Package Weight: 18.73 kg | Volume: 77.6 L - Drive Bays: Up to 18 HDD/SSD positions; 5 dedicated 2.5" positions; 2 × 5.25" ODD bays - Expansion Slots: 9 + 3 - Fan Mounts: 11 × 120 mm or 9 × 140 mm total - Pre-installed Fans: 3 × Dynamic X2 GP-14 (2 front, 1 rear) - Max Radiator (Front/Top): 480/420 mm | Rear: 120 mm | Bottom: 240/280 mm - GPU Max Length: 549 mm (Open Layout) / 359 mm (Storage Layout) - CPU Cooler Max Height: 185 mm - PSU Type: ATX (max 250 mm) - Front I/O: 1 × USB 3.1 Gen 2 Type-C, 2 × USB 3.0, 2 × USB 2.0, Audio I/O - Side Panels: Industrial sound-damped steel (both sides; Light Tint tempered glass on left per product name/SKU) - Cable Routing Space: 30 mm
