Features of FRACTAL DESIGN Meshify C Dark MATX Mini Tower Cabinet
Meshify strikes an aggressive pose in the Fractal Design lineup with unparalleled cooling performance and a defiant look. Like black diamond facets, the angular asymmetry of the Fractal Design cabinet carves a space uniquely its own in high-airflow design.
- Streamlined high-airflow design
- Performance and capacity of a larger tower in a compact mATX designed tower
- Angular mesh front panel maximizes air intake
Significantly smaller, but just as cool

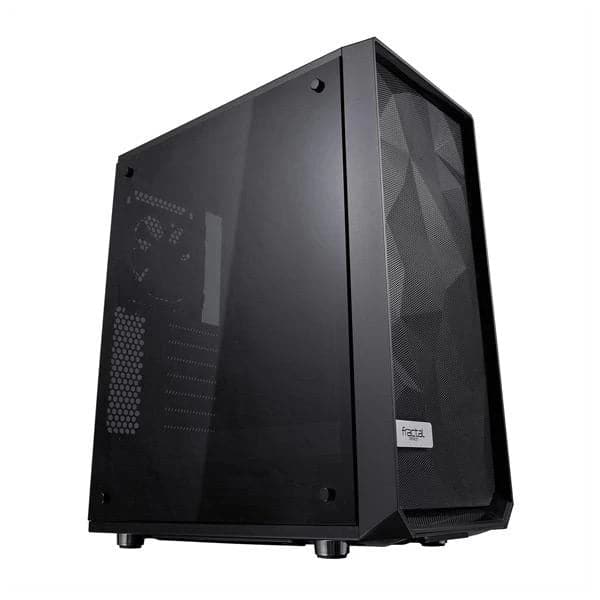

Tempered glass with a distinctive tint completes the stealth-inspired black- black aesthetic with exceptional style.
The Meshify C Mini – Dark TG has a remarkably compact footprint with the high-end component support of a larger tower, and with six fan mounts and multi-radiator liquid cooling capability, it has the cooling capacity to match. When performance is top priority and compromise is not an option, Meshify has you covered in style.
Streamlined high-airflow design
-

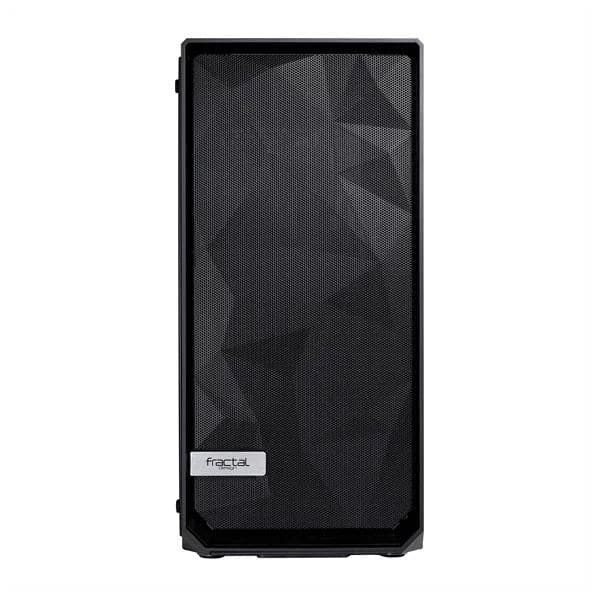

Angular mesh front panel maximizes air intake
-
Two preinstalled Fractal Design Dynamic X2 GP-12 120 mm fans deliver optimum airflow with minimal noise
-

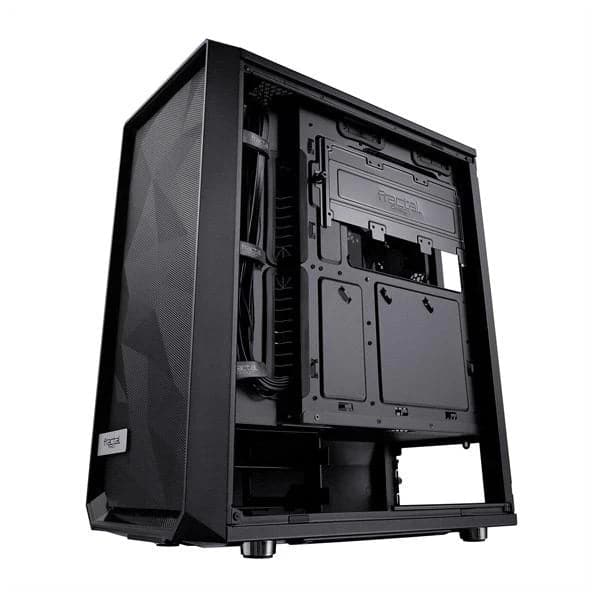

Open interior layout creates an unobstructed airflow path from front intake to rear exhaust
-
Flexible storage options with room for up to five drives

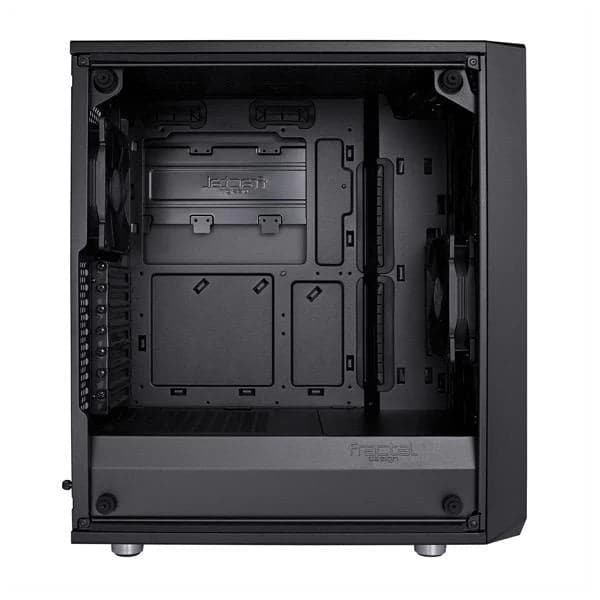

Full interior visiblity

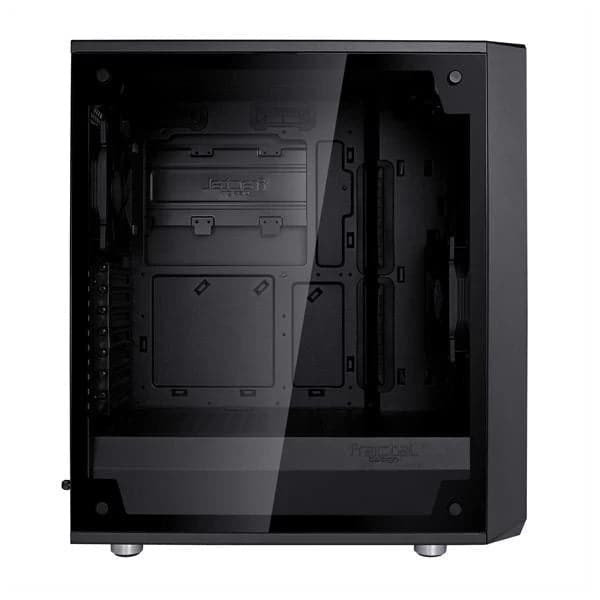

Tinted tempered glass side panel for a clean looking exterior with full interior visibility
Distinctive style
With stealthy black- black aesthetic

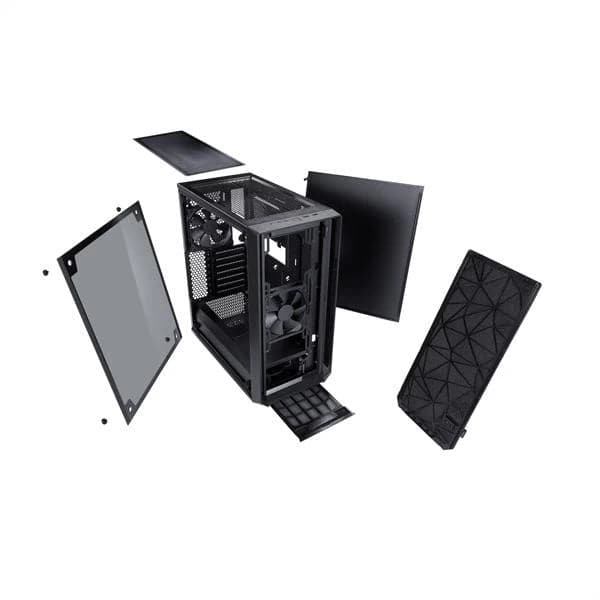

Easy-to-clean filters

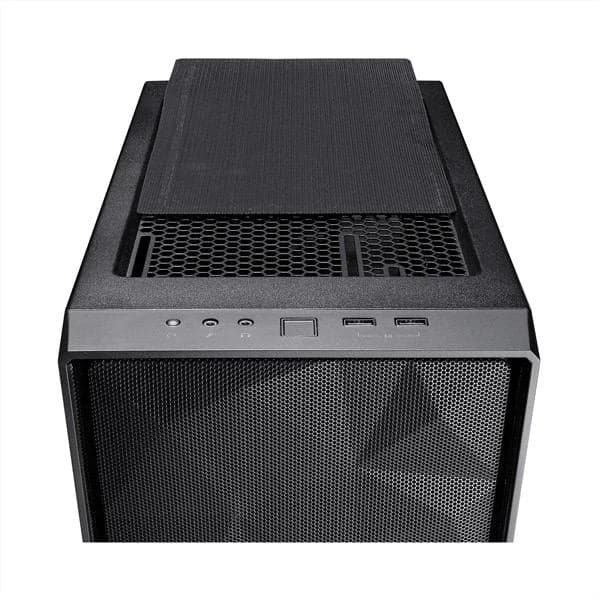

Front, top and base with full PSU coverage and convenient front access
Open to suggestions
-
Sturdy steel drive trays with vibration-dampening rubber grommets cushion hard drives for smooth, quiet and reliable operation
-
Full length power supply shroud conceals drive cage and excess cabling for unrestricted airflow and a clean looking interior
-
Up to 35 mm of space behind motherboard plate with grommeted pass-throughs for clean cable routing
Room for flexibility
-
Sturdy steel drive trays with vibration-dampening rubber grommets cushion hard drives for smooth, quiet and reliable operation
-
Flexible storage options with room for up to five drives
-
Up to 35 mm of space behind motherboard plate with grommeted pass-throughs for clean cable routing
Improved air cooling
-
Whatever your liquid cooling ambitions may be, Meshify C can make it happen with support for radiators up to 280 mm in the front and 240 mm up top
-
Open interior layout creates an unobstructed airflow path from front intake to rear exhaust
-
Even the largest enthusiast-class GPUs leave plenty of room for thick dual-fan radiators in the front. The adjustable drive cage can be moved or removed to fit even the longest heavy-duty PSU

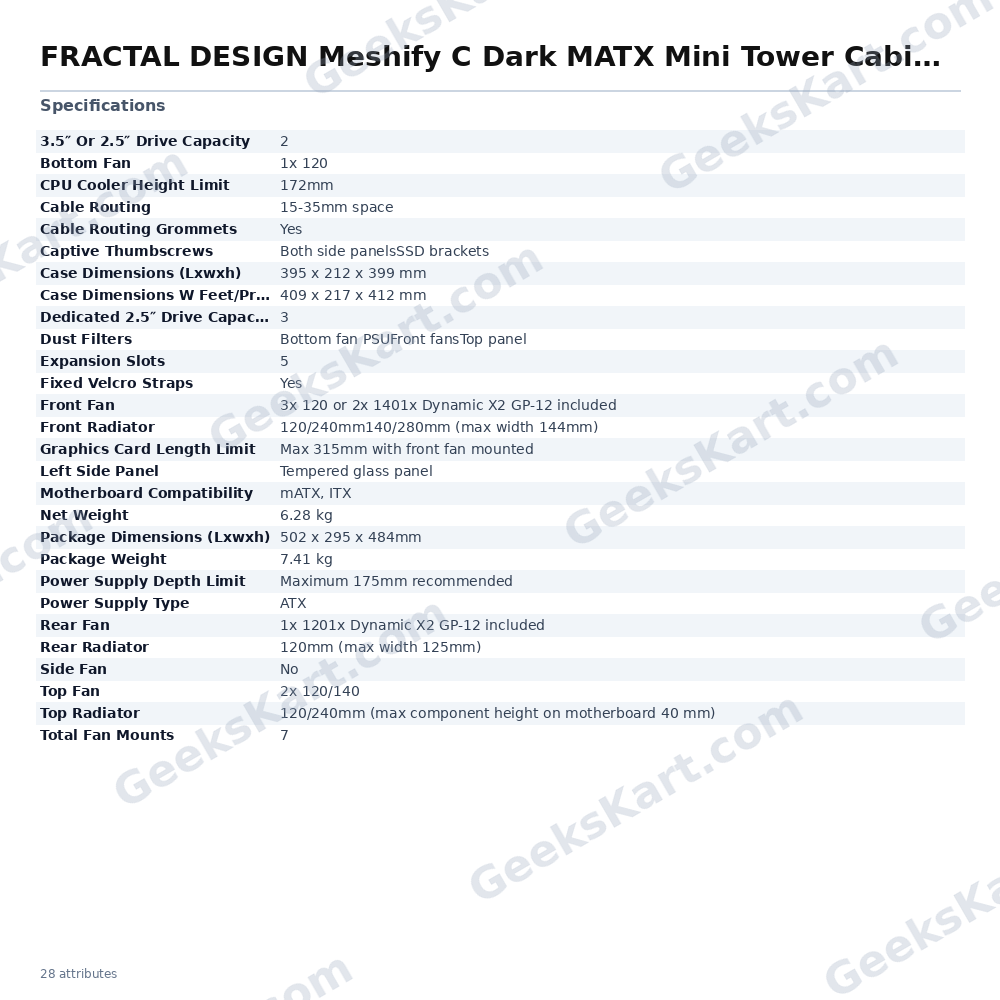

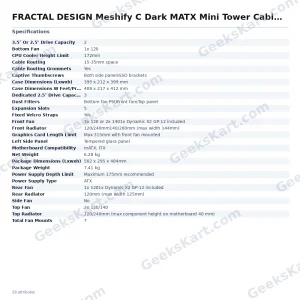

Specifications of FRACTAL DESIGN Meshify C Dark MATX Mini Tower Cabinet
| 3.5″ or 2.5″ Drive capacity | 2 |
| Dedicated 2.5″ drive capacity | 3 |
| Expansion slots | 5 |
| Motherboard compatibility | mATX, ITX |
| Power supply type | ATX |
| Total fan mounts | 7 |
| Front fan | 3x 120 or 2x 1401x Dynamic X2 GP-12 included |
| Top fan | 2x 120/140 |
| Rear fan | 1x 1201x Dynamic X2 GP-12 included |
| Bottom fan | 1x 120 |
| Side fan | No |
| Dust filters | Bottom fan PSUFront fans Top panel |
| Front radiator | 120/240mm140/280mm (max width 144mm) |
| Top radiator | 120/240mm (max component height on motherboard 40 mm) |
| Rear radiator | 120mm (max width 125mm) |
| Power supply depth limit | Maximum 175mm recommended |
| Graphics card length limit | Max 315mm with front fan mounted |
| CPU cooler height limit | 172mm |
| Cable routing | 15-35mm space |
| Cable routing grommets | Yes |
| Fixed Velcro straps | Yes |
| Captive thumbscrews | Both side panelsSSD brackets |
| Left side panel | Tempered glass panel |
| Case dimensions (LxWxH) | 395 x 212 x 399 mm |
| Case dimensions w feet/protrusions/screws | 409 x 217 x 412 mm |
| Net weight | 6.28 kg |
| Package dimensions (LxWxH) | 502 x 295 x 484mm |
| Package weight | 7.41 kg |
