Features of FRACTAL DESIGN Meshify S2 Clear EATX Mid Tower Cabinet (White)
Meshify exhibits powerful performance with bold aesthetics magnified to an all new degree in the larger and even more capable FRACTAL DESIGN Meshify S2 EATX Cabinet In a unique instance of refinement eliminating constraint, the Meshify S2’s modular open layout is all but an end to hardware restrictions.
- Powerful performance and bold aesthetics are magnified to an all new degree in the larger and even more capable Meshify S2
- Modular high-airflow open layout design
- Stealth inspired angular mesh ventilation
- Seamless, bolt-free tempered glass
Unrivalled performance
The largest Fractal Design Cabinet to date combines all the strengths of its predecessors with our most revolutionary modular design elements. Its iconic angular mesh offers more than just a distinctive look—it augments air intake and unleashes the true potential of the open-layout PC.
Powerful performance and daring design
In a unique instance of refinement eliminating constraint, the Meshify S2’s modular open layout is all but an end to hardware restrictions.
Meshify S2 boasts immense cooling capacity with three Dynamic X2 fans, nine total fan positions, 420/360/280 mm radiator mounts, built-in pump and reservoir support, and an innovative removable top bracket. Other new additions include USB Type-C, a versatile PSU shroud, Flex-VRC Vertical GPU Riser support, and bolt-free tempered glass.
Seamless, bolt-free tempered glass
Show off your clean, un-cluttered build in style
Push-to-lock latching
Push-to-lock latching on both side panels for easy access
Type-C with fast charge support
USB 3.1 Gen 2 Type-C with fast charge support and speeds up to 10Gbps
Extensive water-cooling support
Built for advanced liquid cooling with adjustable reservoir brackets, pre-drilled pump mounts, and an innovative removable top bracket with dedicated fill port
- Support for radiators up to 420 mm in the top, 360 mm in front, and 280 mm in the base
- Vertical 2.5 slot GPU support using the Flex VRC-25 vertical PCIe riser (sold separately)
A multitude of mounting options
- Full-length ventilated PSU shroud with removable front cover and alternate SSD mounts

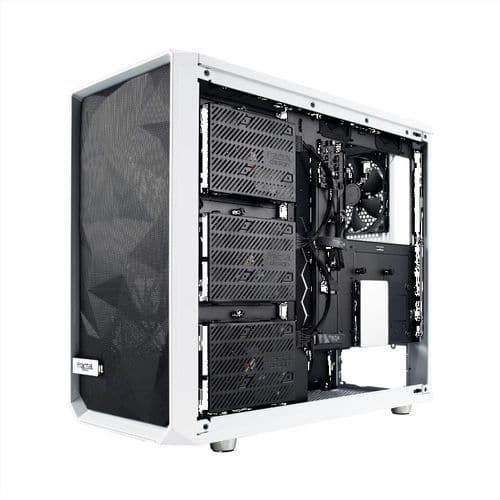

- Concealed drive mounts for two SSDs and three HDDs with vibration dampened enclosures
High airflow and peak performance
- Nine fan positions with clear airflow paths for massive cooling capacity
- Three Dynamic X2 fans pre-installed as dual intakes and rear exhaust for balanced airflow
- Nexus+ Smart Hub allows motherboard control of up to three PWM devices and six case fans
- Modular high-airflow open layout design
- Stealth inspired angular mesh ventilation
- Showcase your hardware
- Vertical 2.5 slot GPU support using the Flex VRC-25 vertical PCIe riser (sold separately)

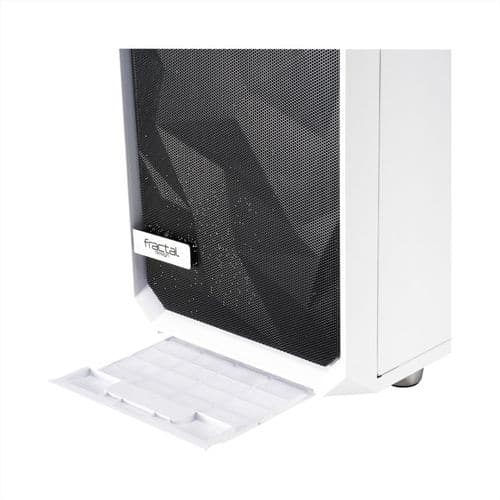

Easy-to-clean filters
Easy to clean front, top, and base filters with full PSU coverage and convenient front access
SATA Extensions cable
Easily connect your SATA storage devices to expand your build
Specifications of FRACTAL DESIGN Meshify S2 Clear EATX Mid Tower Cabinet (White)
| Product Code | FD-CA-MESH-S2-WT-TGC |
| 3.5″ or 2.5″ Drive capacity | 3 |
| Dedicated 2.5″ drive capacity | 2 included, 4 positions total |
| Expansion slots | 7 + 2 vertical |
| Front ports | 1x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, Audio I/O |
| Total fan mounts | 9 |
| Front fan | 3x 120/140 mm (2 x Dynamic X2 GP-14 included) |
| Top fan | 3x 120/140 mm or 1x 180 mm with 165 mm hole spacing |
| Rear fan | 1x 120/140 mm (1 x Dynamic X2 GP-14 included) |
| Bottom fan | 2x 120/140 mm |
| Dust filters | Bottom fan + PSU, Front fans, Top panel |
| Cable routing grommets | Yes |
| Fixed velcro straps | Yes |
| Tool-less push-to-lock | Both side panels |
| Captive thumbscrews | HDD brackets, SSD brackets |
| Left side panel | Light tint tempered glass |
| Right side panel | Steel |
| Compatibility | |
| Power supply type | ATX |
| Motherboard compatibility | EATX (up to 285 mm wide), ATX, mATX, ITX |
| Front radiator | 120/240/360 mm, 140/280 mm |
| Top radiator | 120/240/360 mm, 140/280/420 mm (max 35 mm motherboard component height) |
| Rear radiator | 120 mm |
| Bottom radiator | 120/240 mm, 140/280 mm |
| PSU max length | 300 mm |
| GPU max length | 440 mm with front fan mounted |
| CPU cooler max height | 185 mm |
| Cable routing space | 23 mm |
| Vertical GPU Support (with Flex VRC-25) | 31mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling |
| Dimensions | |
| Case dimensions (LxWxH) | 538 x 233 x 465 mm |
| Case dimensions w feet/protrusions/screws | 530 x 233 x 448 mm |
| Net weight | 10.04 kg |
| Package dimensions (LxWxH) | 535 x 325 x 650 mm |
| Package weight | 11.79 kg |
| Volume | 55.3 liters |
| Warranty | 2 Years |
