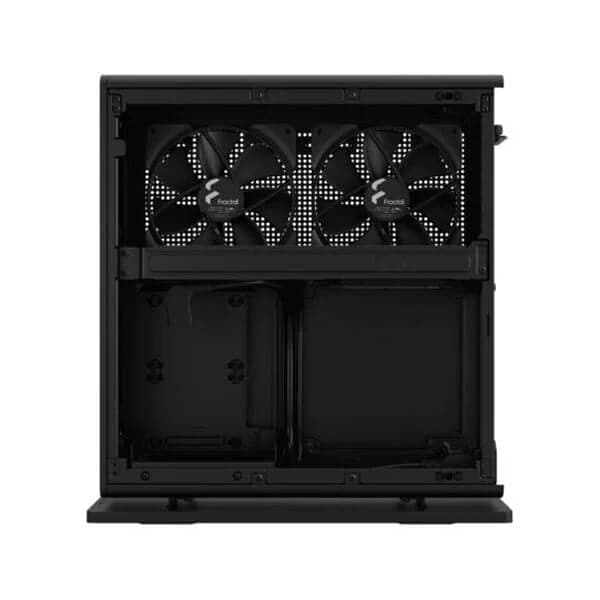

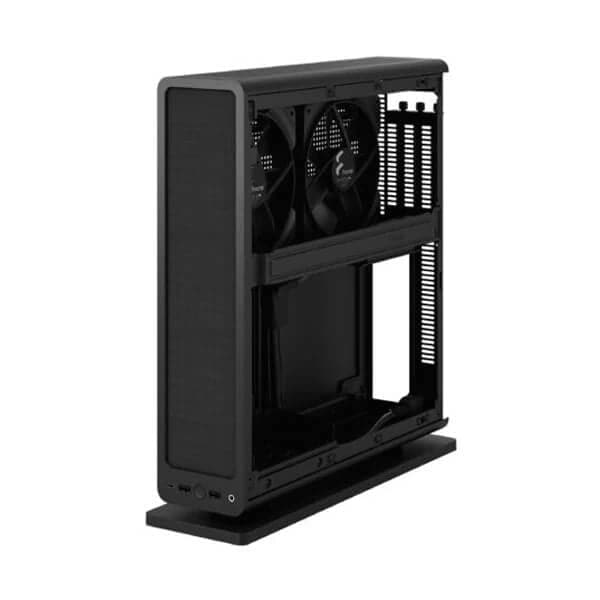

Features of FRACTAL DESIGN Ridge ITX Mini Tower Cabinet (Black)
An uncluttered, small form factor case designed to integrate seamlessly into your living space and daily rituals. An evolution of the slimline format, Fractal Design cabinet was developed in collaboration with gaming and entertainment enthusiasts to subtly improve their homes and enhance the small form factor PC experience.
- • Supports GPUs up to a length of 335 mm
- • All panels are removable, enabling maximum accessibility
- • PCIe 3.0 riser card included
Find your balance
Maximized capability with a minimized footprint
Inch-perfect efficiency
- Meticulously engineered to maximize its capability while minimizing its footprint
- Small form factor case with a volume of 12.6 liters
- Supports GPUs up to a length of 335 mm
Horizontal or vertical
-
Multiple feet configurations allow for both horizontal and vertical orientation in mini pc cabinet
-
Elevate any gaming desk, workspace or entertainment area
Unrivalled access

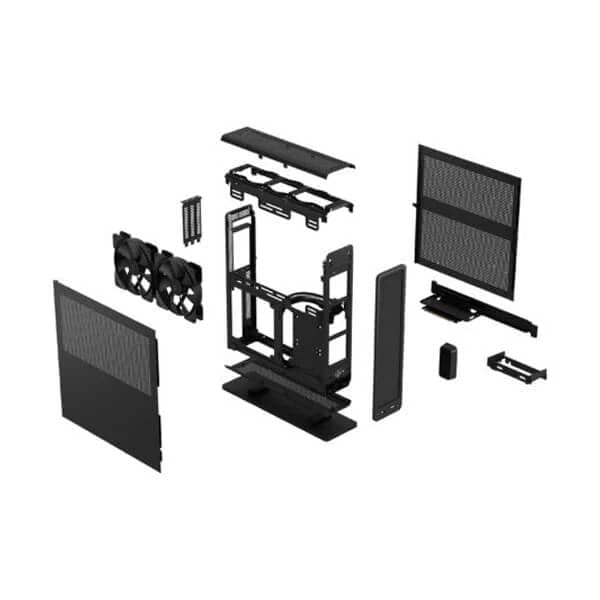

Remove any panel to gain easy access to every side of your build
All-around ventilation
- Ventilated on all sides to maximize its cooling potential
- Comes with 2x 140 mm PWM Aspect fans pre-installed
- Supports 2x 120/140 mm and 3x 80 mm fans
Well-balanced design
- Stylish fabric front with CNC machined aluminum frame
- Features a Power LED bar in front
Type-C interface
Front I/O comes with 2x USB 3.0, 1x USB type-C and a combined mic and headphone jack
Smart configurations
-
Comes with our own PCIe 4.0 or PCIe 3.0 riser card pre-installed
-
Four 2.5” drive mounts included

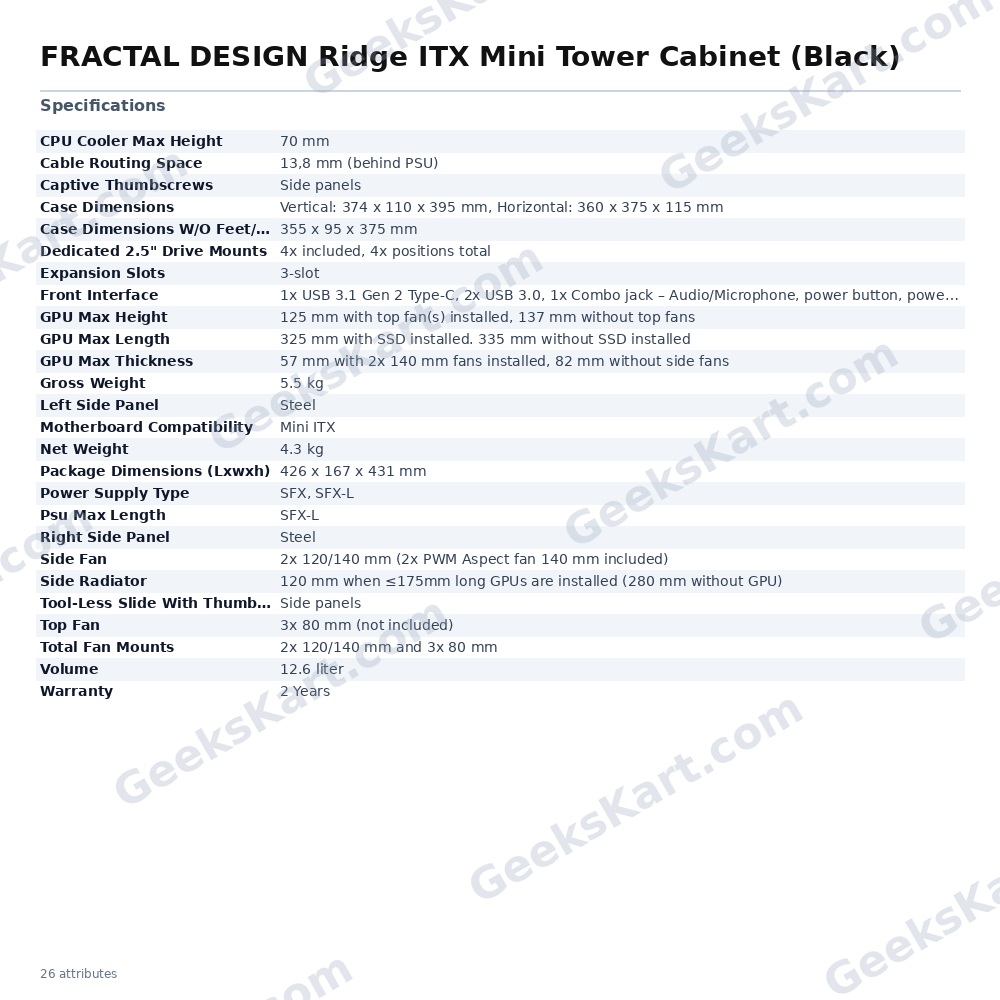

Specifications of FRACTAL DESIGN Ridge ITX Mini Tower Cabinet (Black)
| Dedicated 2.5″ drive mounts | 4x included, 4x positions total |
| Expansion slots | 3-slot |
| Front interface | 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 1x Combo jack – Audio/Microphone, power button, power LED |
| Total fan mounts | 2x 120/140 mm and 3x 80 mm |
| Side fan | 2x 120/140 mm (2x PWM Aspect fan 140 mm included) |
| Top fan | 3x 80 mm (not included) |
| Cable routing space | 13,8 mm (behind PSU) |
| Tool-less slide with thumbscrew lock | Side panels |
| Captive thumbscrews | Side panels |
| Left side panel | Steel |
| Right side panel | Steel |
| Compatibility | |
| Motherboard compatibility | Mini ITX |
| Power supply type | SFX, SFX-L |
| Side radiator | 120 mm when ≤175mm long GPUs are installed (280 mm without GPU) |
| PSU max length | SFX-L |
| GPU max length | 325 mm with SSD installed. 335 mm without SSD installed. |
| GPU max height | 125 mm with top fan(s) installed, 137 mm without top fans |
| GPU max thickness | 57 mm with 2x 140 mm fans installed, 82 mm without side fans |
| CPU cooler max height | 70 mm |
| Dimensions | |
| Case dimensions | Vertical: 374 x 110 x 395 mm, Horizontal: 360 x 375 x 115 mm |
| Case dimensions w/o feet/protrusions/screws | 355 x 95 x 375 mm |
| Net weight | 4.3 kg |
| Package dimensions (LxWxH) | 426 x 167 x 431 mm |
| Gross weight | 5.5 kg |
| Volume | 12.6 liter |
| Warranty | 2 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
