FRACTAL DESIGN Torrent Compact Dark Tint EATX Mid Tower Cabinet (Black)
MPN FRACTAL-DESIGN-TORRENT-COMPACT-DARK-TINT · Brand Fractal Design
The Fractal Design Torrent Compact Dark Tint (FD-C-TOR1C-01) is a compact E-ATX mid-tower cabinet featuring dual 180 mm PWM fans, dual tempered glass panels, and support for GPUs up to 330 mm — purpose-built for high-efficiency air cooling
Inclusive of GST · GST invoice available
Overview

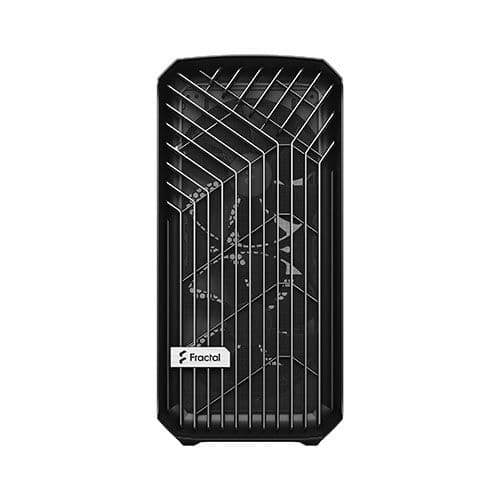

The Fractal Design Torrent Compact Dark Tint (model FD-C-TOR1C-01) is a mid-tower PC cabinet engineered to deliver high-throughput air cooling in a compact footprint. At its core are two included 180 x 38 mm Dynamic PWM fans positioned at the front, drawing air through an open-mesh front grille and pushing it across your components with considerably more volume than standard 120 mm or 140 mm fans. The result is a thermal-first design that suits builders prioritising air cooling efficiency without sacrificing internal capacity. Despite its compact dimensions of 450 x 222 x 467 mm and a net weight of 8.0 kg, the Torrent Compact accommodates E-ATX motherboards up to 274 mm wide, as well as ATX, mATX, Mini-ITX, and SSI-CEB form factors. The top-mounted ATX power supply bay (max 210 mm PSU length) frees up the interior for improved component breathing room. Graphics cards up to 330 mm in length fit with the front fan mounted, while CPU coolers up to 174 mm tall are supported. Both the left and right side panels are tempered glass, allowing full visibility into your build, and they feature a tool-less push-to-lock mechanism for effortless removal and reinstallation. Cable management is handled via fixed cable straps, routing grommets, and a generous 20 mm of cable routing space behind the motherboard tray. Storage options include one combo 3.5-inch/2.5-inch drive mount and three dedicated 2.5-inch SSD brackets, all secured with captive thumbscrews. Dust filtration is provided at the front and bottom, both easily accessed by removing the front panel. Front I/O includes one USB 3.1 Gen 2 Type-C port, two USB 3.0 ports, and a combined audio jack. The case offers seven expansion slots and supports radiators up to 360 mm at the front and 240 mm at the bottom. A rear 120 mm fan mount is present but the fan is not included. The Torrent Compact carries a 2-year manufacturer warranty. Verified Specifications: - Model: FD-C-TOR1C-01 - Case Dimensions (L x W x H): 450 x 222 x 467 mm - Net Weight: 8.0 kg - Motherboard Compatibility: E-ATX (up to 274 mm) / ATX / mATX / Mini-ITX / SSI-CEB - Included Fans: 2x 180 x 38 mm Dynamic PWM (front) - Total Fan Mounts: 2x 180 mm, 4x 140 mm, or 6x 120 mm - GPU Max Length: 330 mm (with front fan mounted) - CPU Cooler Max Height: 174 mm - PSU Max Length: 210 mm - Front Radiator Support: Up to 360x120 mm / 280x140 mm - Front Interface: 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio - Side Panels: Dual tempered glass - Drive Mounts: 1x 3.5"/2.5" combo + 3x dedicated 2.5" - Expansion Slots: 7 - Warranty: 2 Years

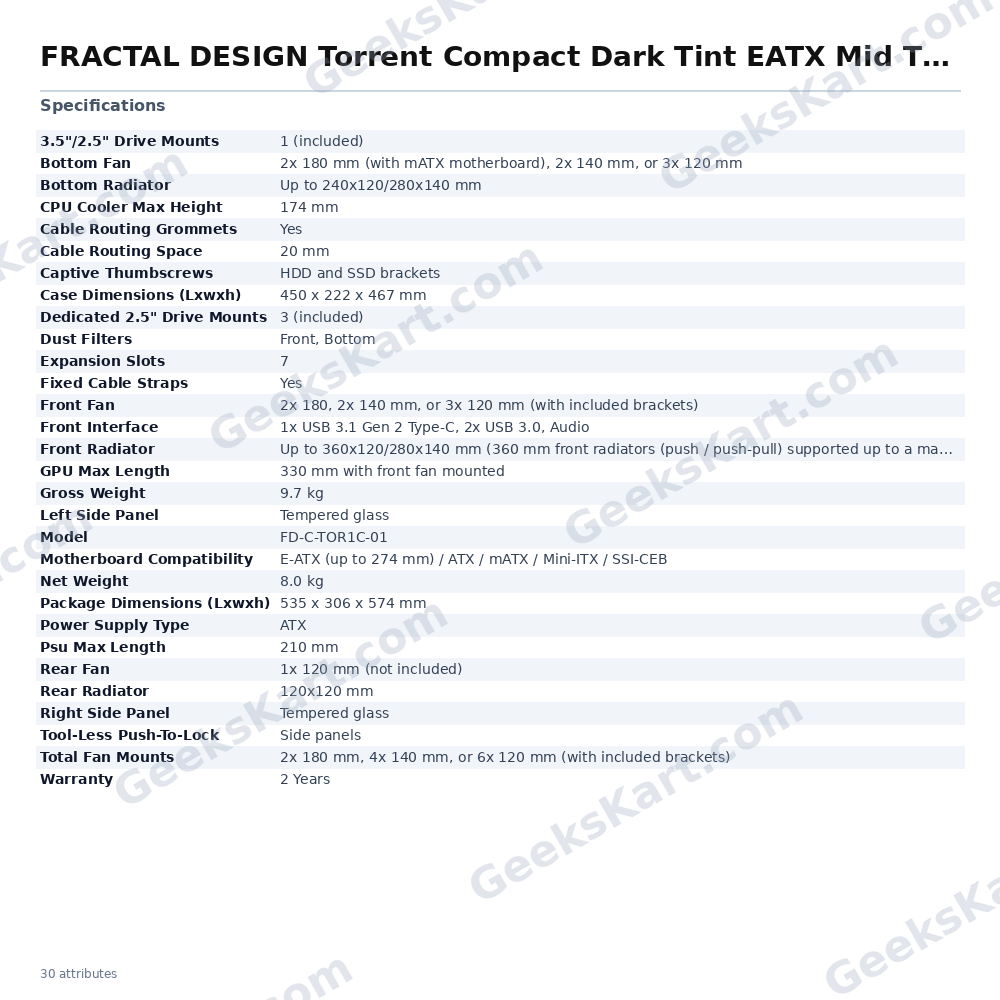

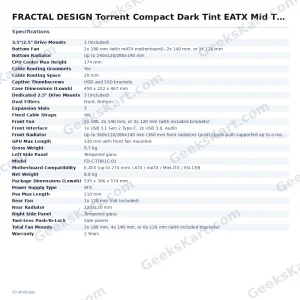

Datasheet
| Warranty | 2 Years |
|---|---|
| Model | FD-C-TOR1C-01 |
| Rear Fan | 1x 120 mm (not included) |
| Front Fan | 2x 180, 2x 140 mm, or 3x 120 mm (with included brackets) |
| Bottom Fan | 2x 180 mm (with mATX motherboard), 2x 140 mm, or 3x 120 mm |
| Net Weight | 8.0 kg |
| Dust Filters | Front, Bottom |
| Gross Weight | 9.7 kg |
| Rear Radiator | 120×120 mm |
| Front Radiator | Up to 360×120/280×140 mm (360 mm front radiators (push / push-pull) supported up to a max length of 403 mm) |
| GPU Max Length | 330 mm with front fan mounted |
| Psu Max Length | 210 mm |
| Bottom Radiator | Up to 240×120/280×140 mm |
| Expansion Slots | 7 |
| Front Interface | 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio |
| Left Side Panel | Tempered glass |
| Right Side Panel | Tempered glass |
| Total Fan Mounts | 2x 180 mm, 4x 140 mm, or 6x 120 mm (with included brackets) |
| Power Supply Type | ATX |
| Fixed Cable Straps | Yes |
| Cable Routing Space | 20 mm |
| Captive Thumbscrews | HDD and SSD brackets |
| CPU Cooler Max Height | 174 mm |
| 3.5"/2.5" Drive Mounts | 1 (included) |
| Cable Routing Grommets | Yes |
| Tool-Less Push-To-Lock | Side panels |
| Case Dimensions (Lxwxh) | 450 x 222 x 467 mm |
| Motherboard Compatibility | E-ATX (up to 274 mm) / ATX / mATX / Mini-ITX / SSI-CEB |
| Package Dimensions (Lxwxh) | 535 x 306 x 574 mm |
| Dedicated 2.5" Drive Mounts | 3 (included) |
