Fractal Design Torrent TG Light Tint RGB (E-ATX) Mid Tower Cabinet (Black)
MPN FD-C-TOR1A-04 · Brand FRACTAL DESIGN · ATX, E-ATX, mATX, Mini-ITX
The Fractal Design Torrent TG Light Tint RGB Black is an E-ATX mid-tower cabinet with 5 pre-installed Prisma RGB/PWM fans, dual tempered glass panels, and support for up to 420 mm radiators front and bottom
Inclusive of GST · GST invoice available
Overview
The Fractal Design Torrent TG Light Tint RGB is a mid-tower PC cabinet engineered around one core principle: maximising airflow without compromise. Its open-grille front panel and unobstructed internal layout channel air directly to your components, making it a strong choice for high-end air-cooled and custom water-cooled builds alike. Five fans come pre-installed from the factory. The front intake positions feature two 180 x 38 mm Prisma AL-18 RGB PWM fans — notably larger and thicker than standard 120 mm or 140 mm units — delivering high air volume at controlled noise levels. Three additional Prisma AL-14 PWM fans are mounted at the bottom to accelerate GPU cooling through expansive base intakes. All fans connect to a pre-installed Nexus 9P Slim PWM fan hub, keeping cable management tidy from the start. Radiator support is among the most generous in the mid-tower category. The front can accommodate radiators up to 420 mm (including 360 x 180 mm), and the bottom supports up to 420 mm (maximum 458 mm length). The rear accepts up to a 140 mm radiator. Both front and bottom positions support extra-thick radiators with push-pull fan configurations. A dedicated mounting point on the motherboard tray also provides integrated support for a water-cooling reservoir. The chassis supports E-ATX, ATX, mATX, ITX, SSI-EEB, and SSI-CEB motherboards, with seven bridgeless expansion slots for multi-GPU or multi-card configurations. GPU clearance extends to 461 mm (423 mm with the front fan bracket mounted). CPU cooler height is supported up to 188 mm, and ATX PSUs up to 230 mm in length fit within the top-mounted PSU shroud, which features integrated ARGB lighting effects. Both side panels are tempered glass with tool-less push-to-lock mechanisms, and the top-latching bolt-free design makes panel removal straightforward. Cable routing is assisted by 32 mm of routing space behind the motherboard tray, removable cable guides, and pre-attached external cable straps. Storage capacity includes two dedicated 3.5-inch drive trays with vibration-damping rubber grommets and four dedicated 2.5-inch SSD brackets — all included. Front I/O provides one USB 3.1 Gen 2 Type-C port, two USB 3.0 ports, and HD Audio. Removable nylon dust filters are fitted at the front and bottom. Verified Specifications: • Form Factor: Mid Tower • Motherboard Compatibility: E-ATX / ATX / mATX / ITX / SSI-EEB / SSI-CEB • Pre-installed Fans: 5 (2x Prisma AL-18 RGB front, 3x Prisma AL-14 PWM bottom) • Total Fan Mounts: 7x 120/140 mm or 4x 180 mm • Front Radiator: Up to 360/420 mm (incl. 360x180 mm) • Bottom Radiator: Up to 360/420 mm (max 458 mm length) • Rear Radiator: Up to 120/140 mm • GPU Max Length: 461 mm (423 mm with front fan mounted) • CPU Cooler Max Height: 188 mm • PSU Max Length: 230 mm (ATX) • Expansion Slots: 7 (bridgeless) • Drive Bays: 2x 3.5-inch, 4x 2.5-inch (all included) • Front I/O: 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, HD Audio • Side Panels: Dual tempered glass (light tint) • Case Dimensions (LxWxH): 544 x 242 x 530 mm • Net Weight: 11.1 kg • Material: Steel, Tempered Glass • Color: Black • Warranty: 2 Years

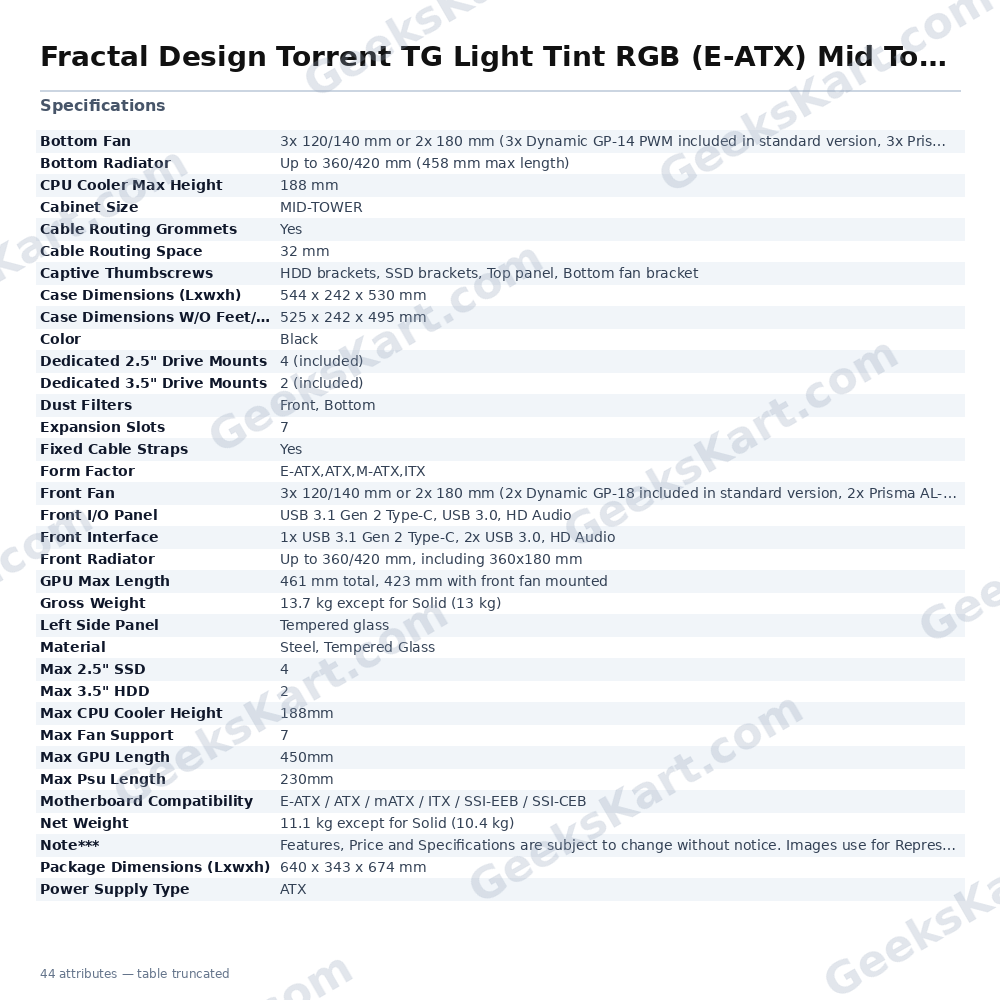

Datasheet
| Warranty | 2 Years |
|---|---|
| Form Factor | ATX, E-ATX, mATX, Mini-ITX |
| color | Black |
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only |
| Material | Steel, Tempered Glass |
| Rear Fan | 1x 120/140 mm |
| Front Fan | 3x 120/140 mm or 2x 180 mm (2x Dynamic GP-18 included in standard version, 2x Prisma AL-18 included in RGB version) |
| Bottom Fan | 3x 120/140 mm or 2x 180 mm (3x Dynamic GP-14 PWM included in standard version, 3x Prisma AL-14 PWM included in RGB version) |
| Net Weight | 11.1 kg except for Solid (10.4 kg) |
| Cabinet Size | MID-TOWER |
| Dust Filters | Front, Bottom |
| Gross Weight | 13.7 kg except for Solid (13 kg) |
| Max 2.5" SSD | 4 |
| Max 3.5" HDD | 2 |
| Rear Radiator | Up to 120/140 mm |
| Front Radiator | Up to 360/420 mm, including 360×180 mm |
| GPU Max Length | 461 mm total, 423 mm with front fan mounted |
| Max GPU Length | 450mm |
| Max Psu Length | 230mm |
| Psu Max Length | 230 mm |
| Bottom Radiator | Up to 360/420 mm (458 mm max length) |
| Expansion Slots | 7 |
| Front I/O Panel | USB 3.1 Gen 2 Type-C, USB 3.0, HD Audio |
| Front Interface | 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, HD Audio |
| Left Side Panel | Tempered glass |
| Max Fan Support | 7 |
| Radiator Support | 420mm,360mm,280mm,240mm,140mm,120mm |
| Right Side Panel | Tempered glass |
| Total Fan Mounts | 7x 120/140 mm or 4x 180 mm |
| Power Supply Type | ATX |
| Fixed Cable Straps | Yes |
| Pre Installed Fans | 5 |
| Cable Routing Space | 32 mm |
| Captive Thumbscrews | HDD brackets, SSD brackets, Top panel, Bottom fan bracket |
| CPU Cooler Max Height | 188 mm |
| Max CPU Cooler Height | 188mm |
| Cable Routing Grommets | Yes |
| Tool-Less Push-To-Lock | Both side panels |
| Case Dimensions (Lxwxh) | 544 x 242 x 530 mm |
| Motherboard Compatibility | E-ATX / ATX / mATX / ITX / SSI-EEB / SSI-CEB |
| Package Dimensions (Lxwxh) | 640 x 343 x 674 mm |
| Dedicated 2.5" Drive Mounts | 4 (included) |
| Dedicated 3.5" Drive Mounts | 2 (included) |
| Case Dimensions W/O Feet/Protrusions/Screws | 525 x 242 x 495 mm |
