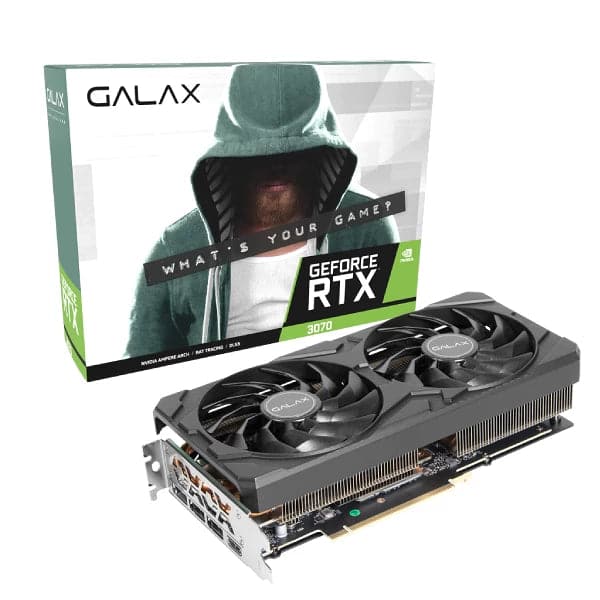

GALAX GeForce RTX 3070 LHR (1-Click OC) 8GB Nvidia Graphic Card
MPN GALAX-RTX-3070-1CLICK · Brand GALAX
Features of GALAX GeForce RTX 3070 (1-Click OC) 8GB LHR Graphics Card For the OC series, we have an innovative fan design that creates a new trend in GPU cooling with the 102mm twin fans along with our proprietary Fan Blade - “Wings”. 11 fan blades being extraordinary, not only for the exquisite look but also providing high airflow and air pressure at minimum noise level. GALAX is bringing the new fans era to the world with its EX series. 2nd Gen Ray Tracing Cores 3rd Gen Tensor Cores Microsoft®
Inclusive of GST · GST invoice available
Overview
Features of GALAX GeForce RTX 3070 (1-Click OC) 8GB LHR Graphics Card
For the OC series, we have an innovative fan design that creates a new trend in GPU cooling with the 102mm twin fans along with our proprietary Fan Blade - “Wings”. 11 fan blades being extraordinary, not only for the exquisite look but also providing high airflow and air pressure at minimum noise level. GALAX is bringing the new fans era to the world with its EX series.
- 2nd Gen Ray Tracing Cores
- 3rd Gen Tensor Cores
- Microsoft® DirectX® Ultimate
- GDDR6 Graphics Memory
- NVIDIA DLSS
- NVIDIA® GeForce Experience™
- NVIDIA G-SYNC®
- NVIDIA gpu Boost™
- Game Ready Drivers
- Vulkan RT API, OpenGL 4.6
- DisplayPort 1.4a, HDMI 2.1
- HDCP 2.3
- VR Ready
Specifications of GALAX GeForce RTX 3070 LHR (1-Click OC) 8GB Nvidia Graphic Card
| GPU Engine Specs: | CUDA Cores 5888 |
| Boost Clock (MHz) 1725 | |
| 1-Click OC Clock (MHz) 1740 (by installing Xtreme Tuner Plus Software and using 1-Click OC) | |
| Memory Specs | Memory Speed 14 Gbps |
| Standard Memory Config 8GB | |
| Memory Interface Width 256-bit GDDR6 | |
| Memory Bandwidth (GB/sec) 448 | |
| Feature Support | PCI-E 4.0 |
| Windows 10 64-bit, Linux 64-bit | |
| Fan Feature | 2*102mm |
| Fan stop @ Idle (All Fan) | |
| Display Support: | |
| DisplayPort 1.4a x 3, HDMI 2.1 | |
| Dimensions | Dimensions(with Bracket): 254*142*54mm |
| Dimensions(without Bracket): 238*128*54mm | |
| REQUIREMENTS | PCI Express-compliant motherboard with one dual-width x 16 graphics slot |
| System Space for 3-slot card required | |
| 2 x PCIe 8-pin supplementary power connectors | |
| Minimum 650W or greater system power supply | |
| 32GB system memory recommended) | |
| Microsoft Windows 10 64-bit (Build 2004 or later recommended) or Linux 64-bit |

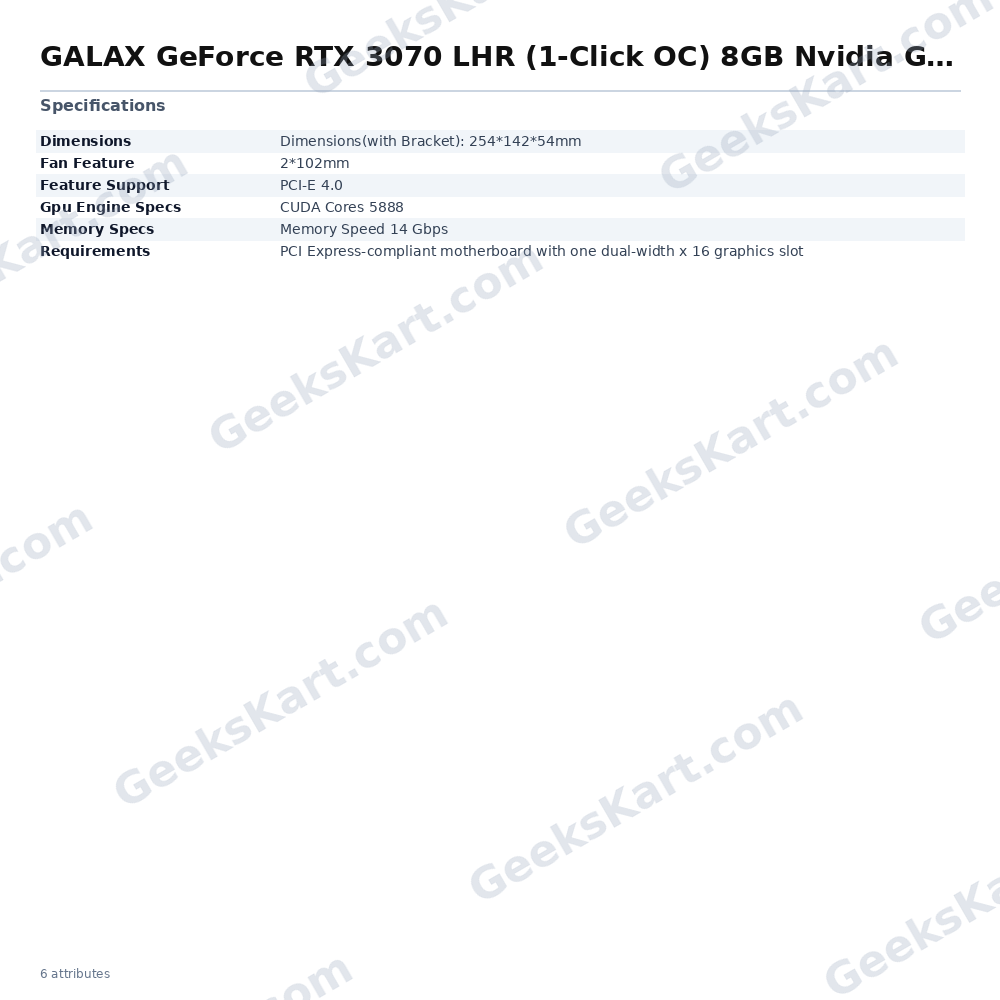

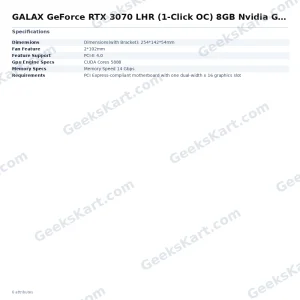

Datasheet
| Dimensions | Dimensions(with Bracket): 254*142*54mm |
|---|---|
| Fan Feature | 2*102mm |
| Memory Specs | Memory Speed 14 Gbps |
| Requirements | PCI Express-compliant motherboard with one dual-width x 16 graphics slot |
| Feature Support | PCI-E 4.0 |
| Gpu Engine Specs | CUDA Cores 5888 |
