GALAX Revolution 05 Mesh Auto RGB ATX Mid Tower Cabinet (Black)

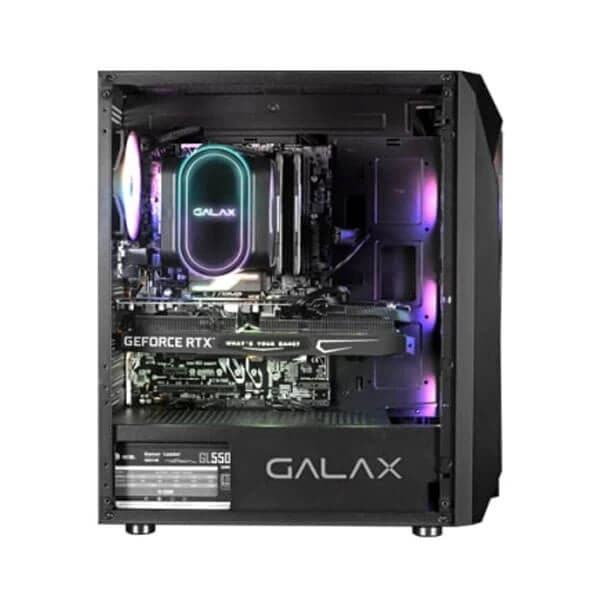

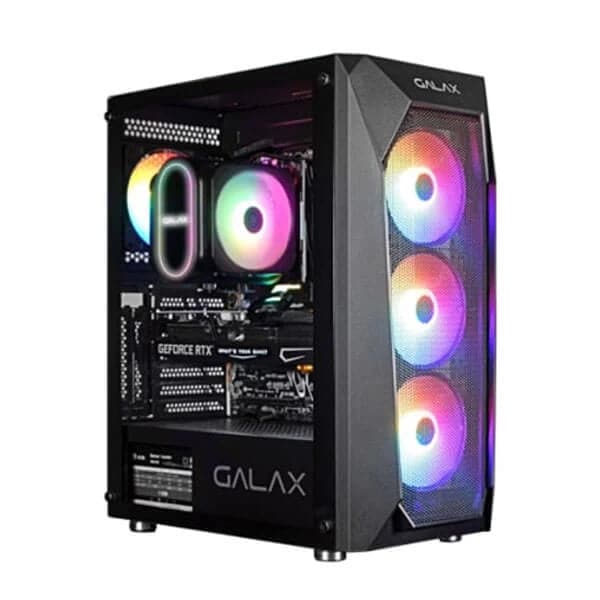

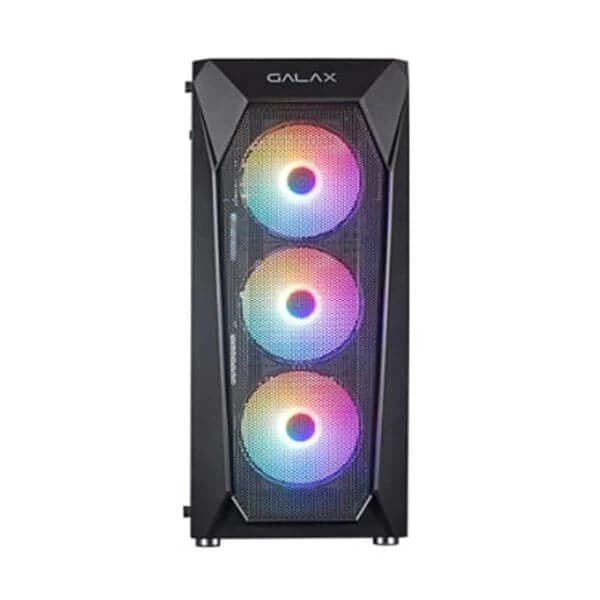

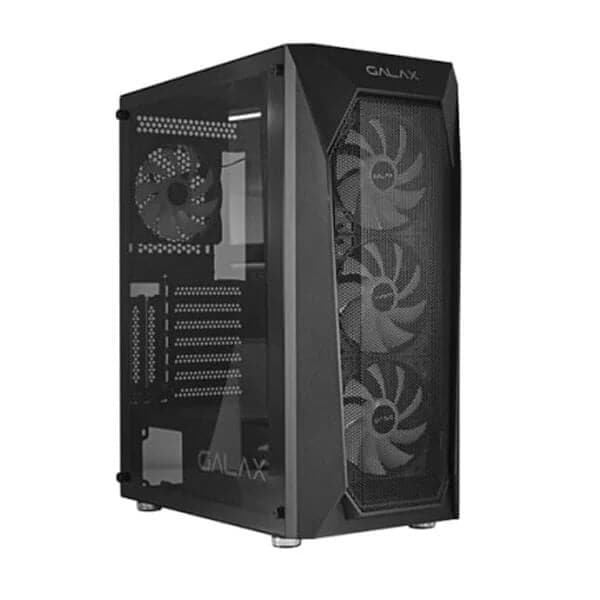

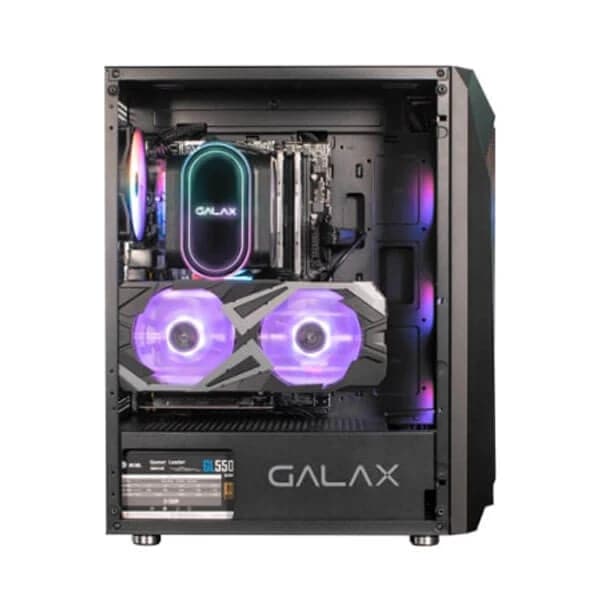

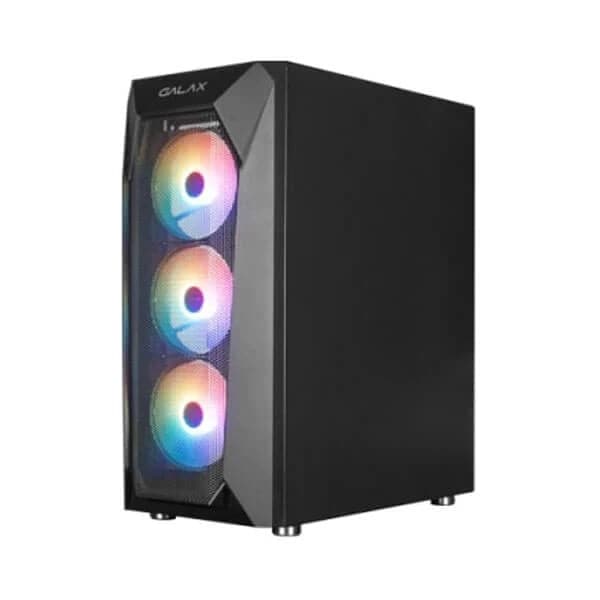

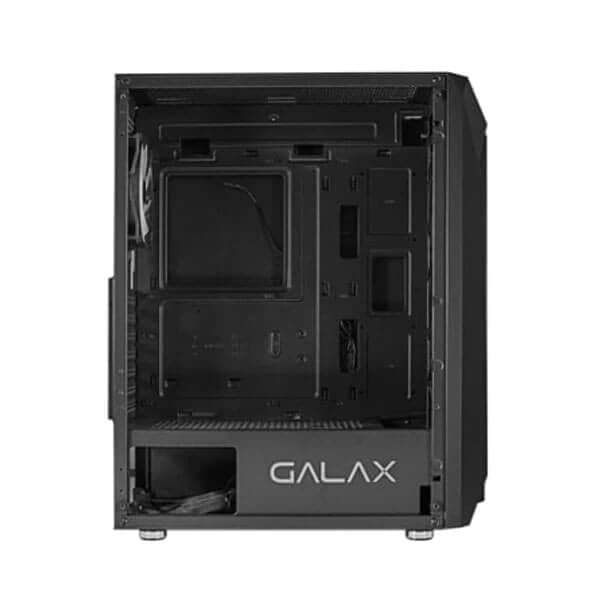

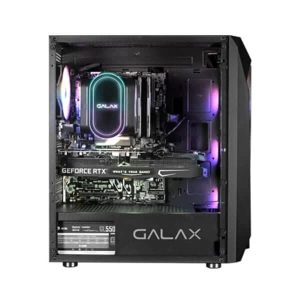

The GALAX Revolution 05 (REV-05) is an ATX mid-tower PC cabinet built around a mesh front panel that prioritises airflow without sacrificing aesthetics. Standing 470 mm tall, it is the tallest model in the GALAX Revolution family and offers a notably spacious interior that accommodates ATX, Micro-ATX, and Mini-ITX motherboards. A full-length tempered glass left side panel puts your build on display, while the right panel and top panel use metal covers for structural rigidity. One of the REV-05’s headline features is its flexible GPU mounting: the graphics card can be installed horizontally in the conventional orientation or vertically, letting you showcase a high-end card through the tempered glass. The chassis supports graphics cards up to 330 mm in length, and CPU coolers up to 160 mm in height, covering the majority of air-cooler tower designs on the market. Cooling headroom is generous. The front intake supports up to three 120 mm fans or radiators up to 360 mm, making it compatible with popular 240 mm, 280 mm, and 360 mm all-in-one liquid coolers. The top panel accommodates two 120 mm or two 140 mm fans with radiator support up to 280 mm, and the rear hosts one 120 mm exhaust fan position with a 120 mm radiator option. Two additional 120 mm positions are available at the bottom of the chassis. Storage options include two internal 3.5-inch HDD bays and three 2.5-inch SSD mounts, with no external optical drive bay — a deliberate choice that keeps the mesh front clean. Front-panel I/O consists of two USB 2.0 ports, one USB 3.0 port, HD Audio, and two buttons (power and reset). Cable management depth behind the motherboard tray is 18 mm. The chassis is constructed from SPCC steel combined with tempered glass, with an ABS mesh front fascia. The full case dimensions including the fascia are 400.6 mm (L) × 205 mm (W) × 481.5 mm (H), and net weight is 4.3 kg. Verified Specifications: • Supported Motherboards: ATX, Micro-ATX, Mini-ITX • PSU Form Factor: ATX • Chassis Material: SPCC steel + Tempered Glass • Front Panel: ABS mesh cover • Left Side Panel: Tempered Glass | Right Side Panel: Metal • Chassis Dimensions: 350 mm (L) × 205 mm (W) × 470 mm (H) • Full Case Dimensions (inc. fascia): 400.6 mm (L) × 205 mm (W) × 481.5 mm (H) • Net Weight: 4.3 kg | Gross Weight: 4.95 kg • Max GPU Length: 330 mm | Max CPU Cooler Height: 160 mm • Front Fan Support: 3 × 120 mm | Top: 2 × 120 mm or 2 × 140 mm | Rear: 1 × 120 mm | Bottom: 2 × 120 mm • Radiator Support — Front: 240/280/360 mm; Top: 240/280 mm; Rear: 120 mm • Drive Bays: 2 × 3.5″ HDD, 3 × 2.5″ SSD, 0 × 5.25″ ODD • Front I/O: 2 × USB 2.0, 1 × USB 3.0, HD Audio, 2 buttons • Cable Management Depth: 18 mm • Warranty: 1 Year
