Features of GALAX Revolution-06 Mesh RGB ATX Mid Tower Cabinet (White)
- Superior Cooling: 4 pre-installed RGB cooling fans with mesh front panel assure peak airflow performance.
- Clear View: Hinged magnetic tempered glass door provides a Crystal-Clear View to the heart of your PC system.
- Superior Connectivity: 1x USB 3.0, 2x USB 2.0, 3.5mm Microphone port, 3.5mm Headphone port, Reset Button, Power Button.
- Liquid Cooling Support: Front (240mm/280mm/360mm), Top (240mm/280mm), Rear (120mm)
- Graphics Card Support: Upto 330mm in Length

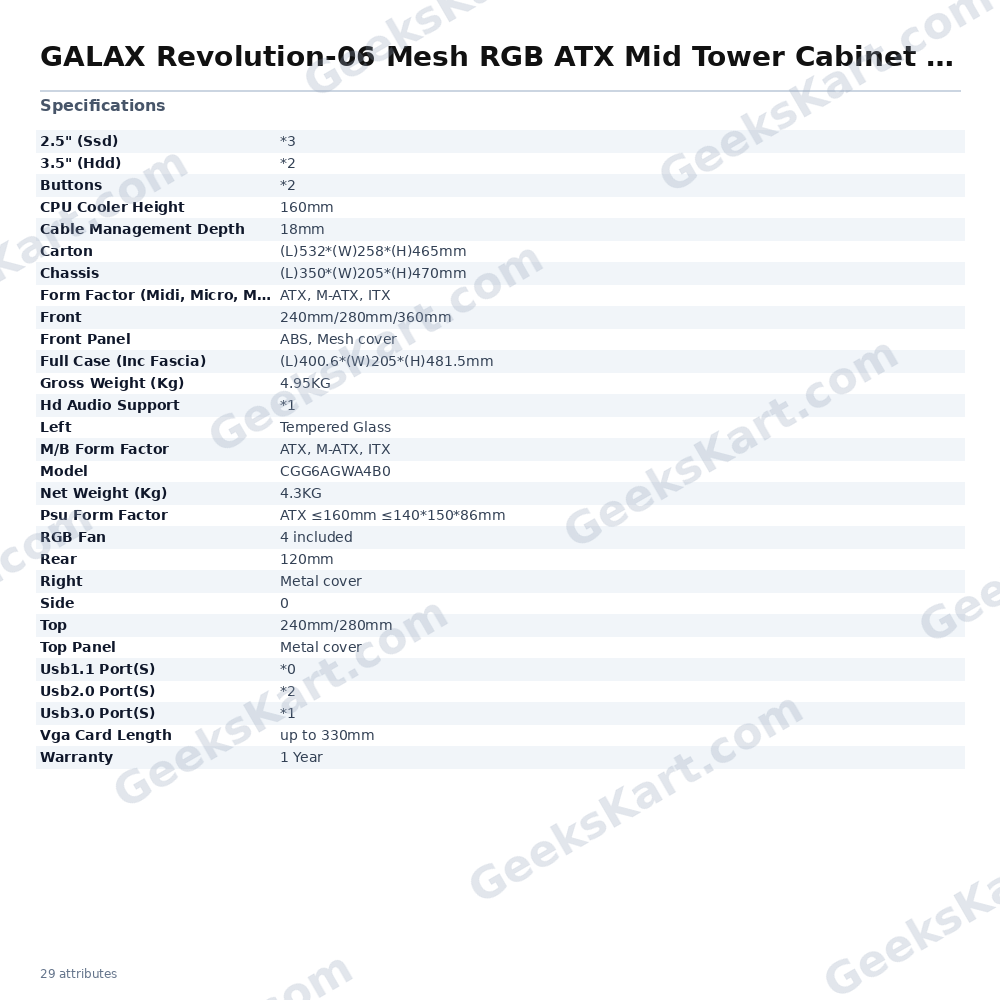

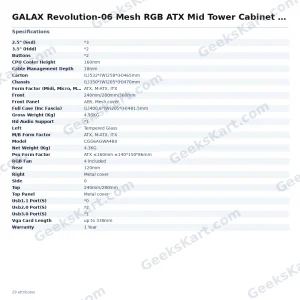

Specifications of GALAX Revolution-06 Mesh RGB ATX Mid Tower Cabinet (White)
| Model Number | CGG6AGWA4B0 |
| Form Factor (Midi, Micro, Mini ITX, Full) | ATX, M-ATX, ITX |
| Chassis | SPCC + Tempered Glass |
| PSU Form Factor | ATX ≤160mm ≤140*150*86mm |
| M/B Form Factor | ATX, M-ATX, ITX |
| Front Panel | ABS, Mesh cover |
| Top Panel | Metal cover |
| Side Panel | |
| Left | Tempered Glass |
| Right | Metal cover |
| Internal Drive Bay(s) | |
| 3.5″ (HDD) | *2 |
| 2.5″ (SSD) | *3 |
| I/O | |
| Buttons | *2 |
| USB1.1 Port(s) | *0 |
| USB2.0 Port(s) | *2 |
| USB3.0 Port(s) | *1 |
| HD Audio Support | *1 |
| Cooling Fan Support | |
| Front | 3x120mm (Fan optional) |
| Top | 2x120mm，2x140mm (Fan optional) |
| Rear | 1x120mm (Fan optional) |
| Side | 0 |
| Water Cooling Support (Radiator Size) | |
| Front | 240mm/280mm/360mm |
| Top | 240mm/280mm |
| Rear | 120mm |
| Dimensions | |
| Chassis | (L)350*(W)205*(H)470mm |
| Full Case (inc Fascia) | (L)400.6*(W)205*(H)481.5mm |
| Carton | (L)532*(W)258*(H)465mm |
| Net Weight (Kg) | 4.3KG |
| Gross Weight (Kg) | 4.95KG |
| VGA Card Length | up to 330mm |
| CPU Cooler Height | 160mm |
| Cable Management Depth | 18mm |
| RGB Fan | 4 included |
| Warranty | 1 Year |
| Note | *** Features, Price, Specifications are subject to change without notice. |
