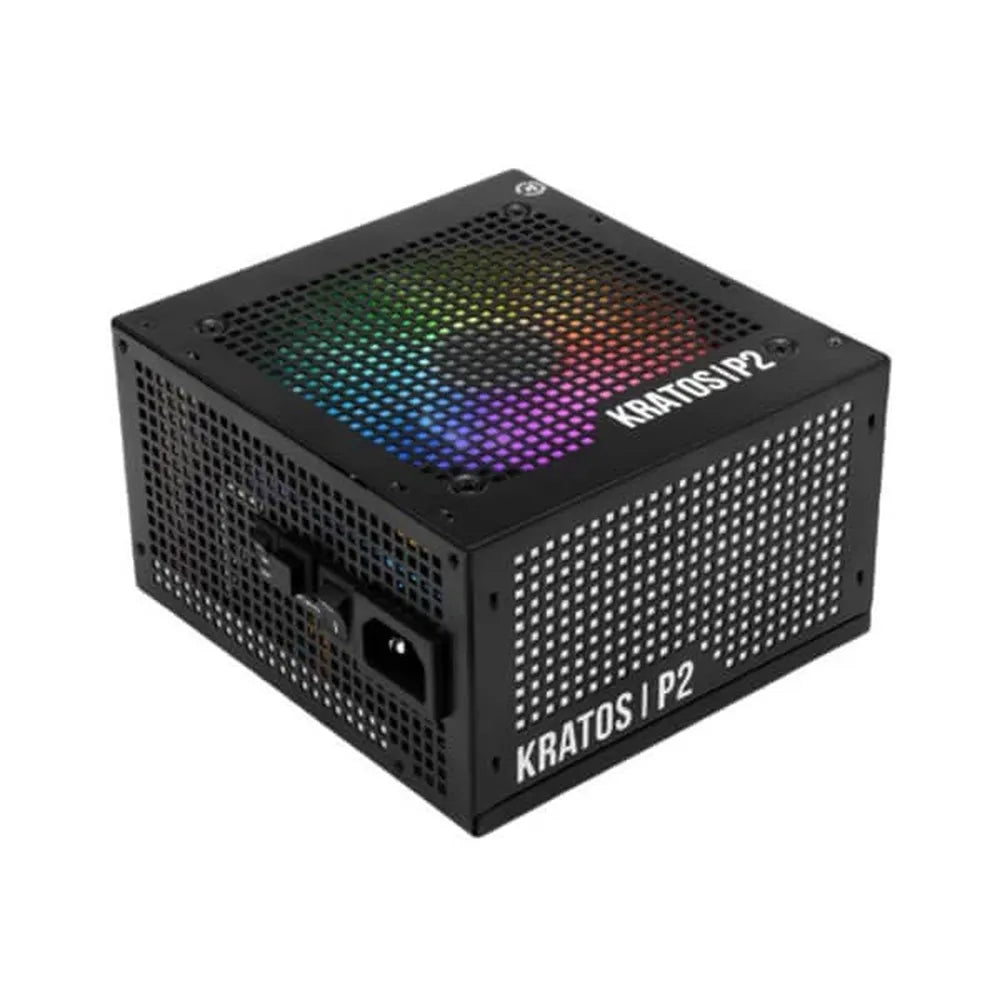

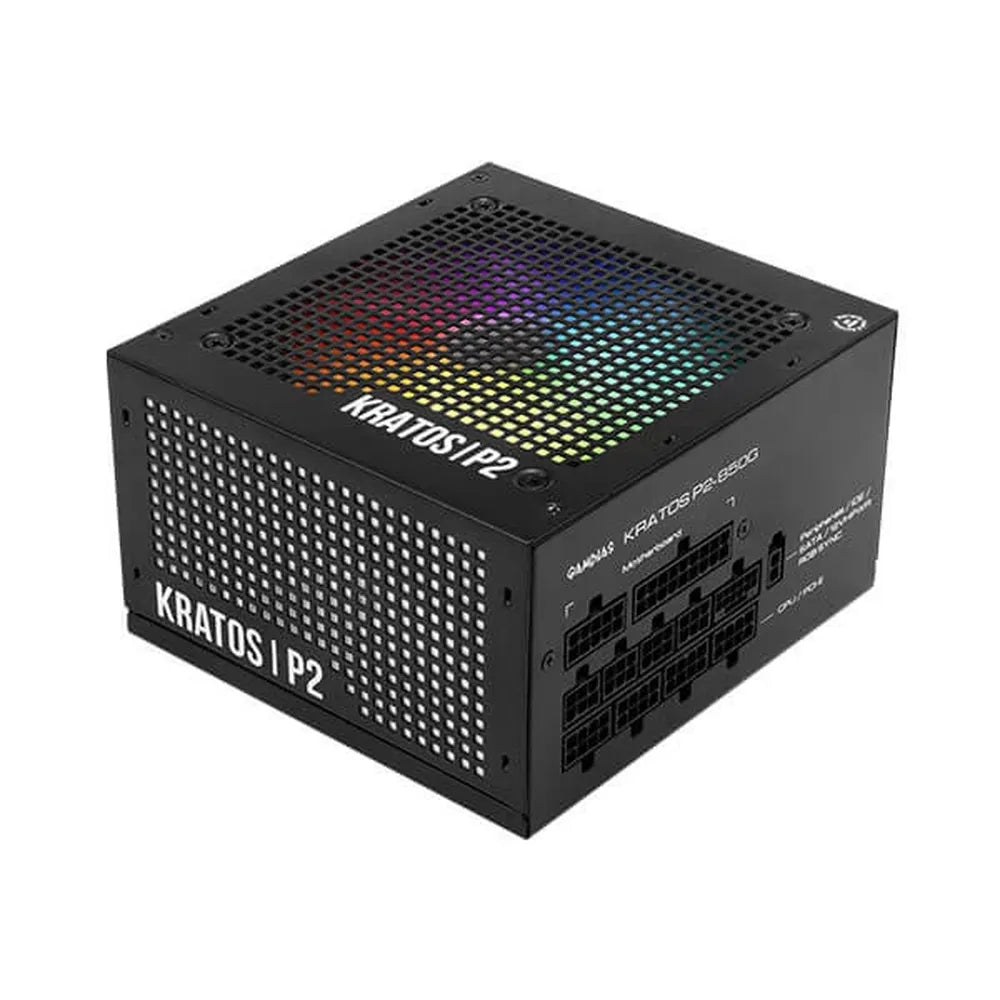

GAMDIAS Kratos P2-850G RGB 850 Watt 80 Plus Gold Fully Modular 3.0 ATX power Supply

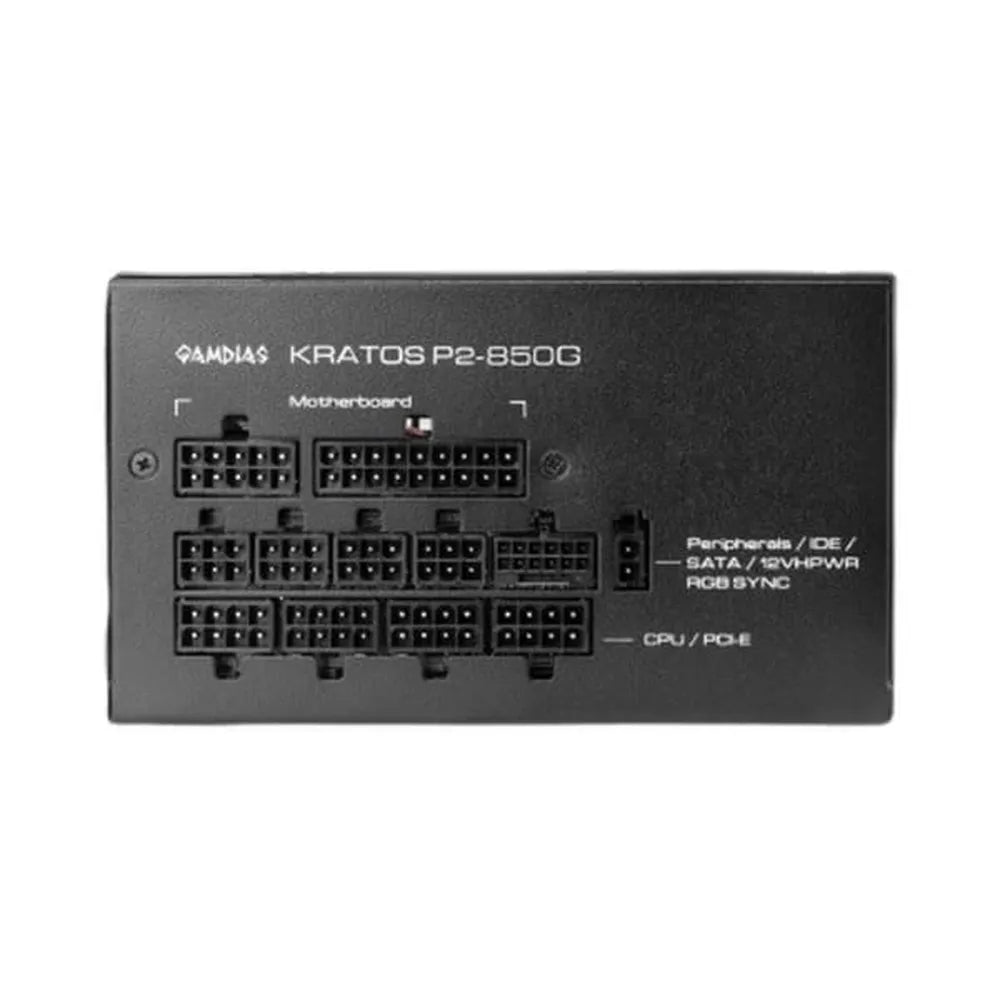

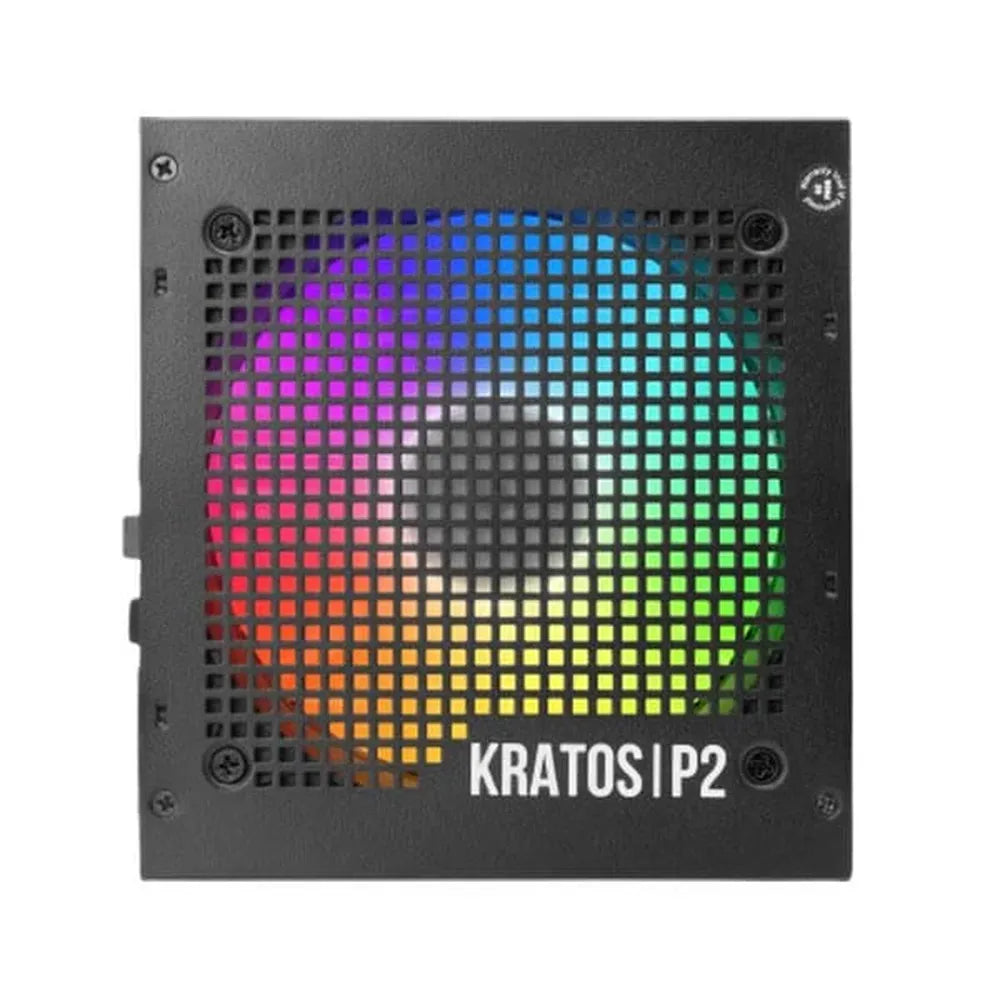

The Gamdias Kratos P2-850G is an 850-watt fully modular power supply built to meet the demands of high-performance gaming and content-creation rigs. Conforming to the ATX12V v3.0 standard, it arrives ready for PCIe Gen 5.0 graphics cards and ships with a native 16-pin (12+4-pin) 12VHPWR cable capable of delivering up to 600 W directly to the latest NVIDIA and AMD GPUs — no adapters required. The unit carries an 80 Plus Gold efficiency certification, reaching up to 90% efficiency at 50% load and 87% at 100% load, reducing wasted heat and keeping electricity bills in check. Inside, every electrolytic capacitor is a 105°C-rated Japanese unit, chosen for long-term stability under sustained thermal stress. The DC-to-DC conversion topology uses a full-bridge LLC resonant circuit combined with 12V synchronous rectification, ensuring tight voltage regulation across all rails. Active Power Factor Correction brings the PF value to 0.99, while support for C6/C7 low-power CPU states keeps the platform compliant with modern sleep standards. Cooling is handled by a 120 mm hydraulic bearing fan. When Silent Mode is engaged, fan speed is adjusted automatically to minimise noise during light workloads. On the aesthetic side, the Kratos P2-850G features 30 built-in Neon-Flex ARGB lighting effects accessible via a physical button, and also supports synchronisation through a 5V 3-pin addressable RGB motherboard header — compatible with the major motherboard RGB-sync ecosystems. With a fully modular cable system and flat cables, cable management is straightforward. The connector set covers every mainstream storage and peripheral standard, and the PSU is backed by a 7-year warranty. A comprehensive protection suite — OVP, UVP, OPP, SCP, OCP, and OTP — safeguards connected components against voltage, power, and thermal faults. Verified Specifications: Model — KRATOS P2-850G | Standard — ATX12V v3.0 | Total Power — 850W | Peak Power — 1,105W | Efficiency — 80 Plus Gold | PFC — APFC, PF 0.99 | +12V Max Current — 70.5A | +3.3V/+5V Max Current — 20A each | Max Combined Output — 846W (+12V), 130W (+3.3V/+5V) | AC Input — 100–240V, 47–63 Hz | Dimensions (L×W×H) — 140×150×86 mm | Fan — 120mm hydraulic bearing | Modular — Fully Modular | Cables — 1×24-pin ATX, 2×4+4-pin CPU, 4×6+2-pin PCIe, 1×12+4-pin 12VHPWR, 6×SATA, 3×Molex | ARGB — 30 built-in effects, 5V 3-pin header sync | Protections — OVP/UVP/OPP/SCP/OCP/OTP | Environmental Compliance — ErP Lot 6 | Warranty — 7 years
