GIGABYTE 512GB PCIE M.2 NVME Gen3 Solid State Drive ( SSD )
MPN GIGABYTE-512GB-PCIE-NVME · Brand Gigabyte · M.2 2280
Feature of GIGABYTE 512GB PCIE M.2 NVME Gen3 Solid State Drive ( SSD ) GIGABYTE 512GB M.2 PCIe NVMe SSD GP-GSM2NE3512GNTD is an SSD of the Gigabyte Brand. Gigabyte is a brand that is known to make some of the best M.2, Sata & NVME Solid State Drives. The Form factor of this Solid State Drive is M.2 2280. The Storage Size of the SSD is 512GB with a Read Speed of 2500 MBps. The write speed of the SSD is 2100MBps and has a weight of 9..5g. The NAND Type of the SSD is NAND Flash and the SSD has
Inclusive of GST · GST invoice available
Overview
Feature of GIGABYTE 512GB PCIE M.2 NVME Gen3 Solid State Drive ( SSD )
GIGABYTE 512GB M.2 PCIe NVMe SSD GP-GSM2NE3512GNTD is an SSD of the Gigabyte Brand. Gigabyte is a brand that is known to make some of the best M.2, Sata & NVME Solid State Drives. The Form factor of this Solid State Drive is M.2 2280. The Storage Size of the SSD is 512GB with a Read Speed of 2500 MBps. The write speed of the SSD is 2100MBps and has a weight of 9..5g. The NAND Type of the SSD is NAND Flash and the SSD has a warranty of 5 Years. A solid-state drive has a lot of benefits for your Gaming PC.
- Form Factor: M.2 2280 internal ssd
- Interface: PCI-Express 3.0 x4, NVMe 1.3
- Total Capacity: 512GB*
- Warranty: Limited 5-year or 800TBW
- Sequential Read Speed: up to 1700 MB/s
- Sequential Write speed: up to 1550 MB/s
- HMB (Host Memory Buffer) supported
- TRIM & S.M.A.R.T supported
Host Memory Buffer (HMB)
The Host Memory Buffer (HMB) feature utilizes the DMA (Direct Memory Access) of PCI Express to allow SSDs to use some of the DRAM on PC system, instead of requiring the SSD to bring its own DRAM.
Breaking the barriers of SATA limitations (512GB)
Outstanding performance
- gigabyte ssd provides performance for your daily computing tasks, boast of best controller & NAND flash that provide.
- Sequential read speeds up to 1700 MB/s.
- Sequential write speeds up to 1550 MB/s.
- GIGABYTE M.2 PCIe SSD gives you faster data transferring experience compared to 2.5″ SATA solid state drive.
SSD Tool Box
The newly updated SSD Tool Box is an application that helps users monitor SSD Status, provides general information such as model name, FW version, health condition, drive optimization and also detects sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the Support. Get the Best ssd 512gb price from the today!
Reliability You Can Trust – 5 Years Limited Warranty
GIGABYTE NVMe SSDs possess both high data transferring speed and enhanced endurance, providing durable MTBF of 1.5 million hours and 5 years or 800TBW limited warranty

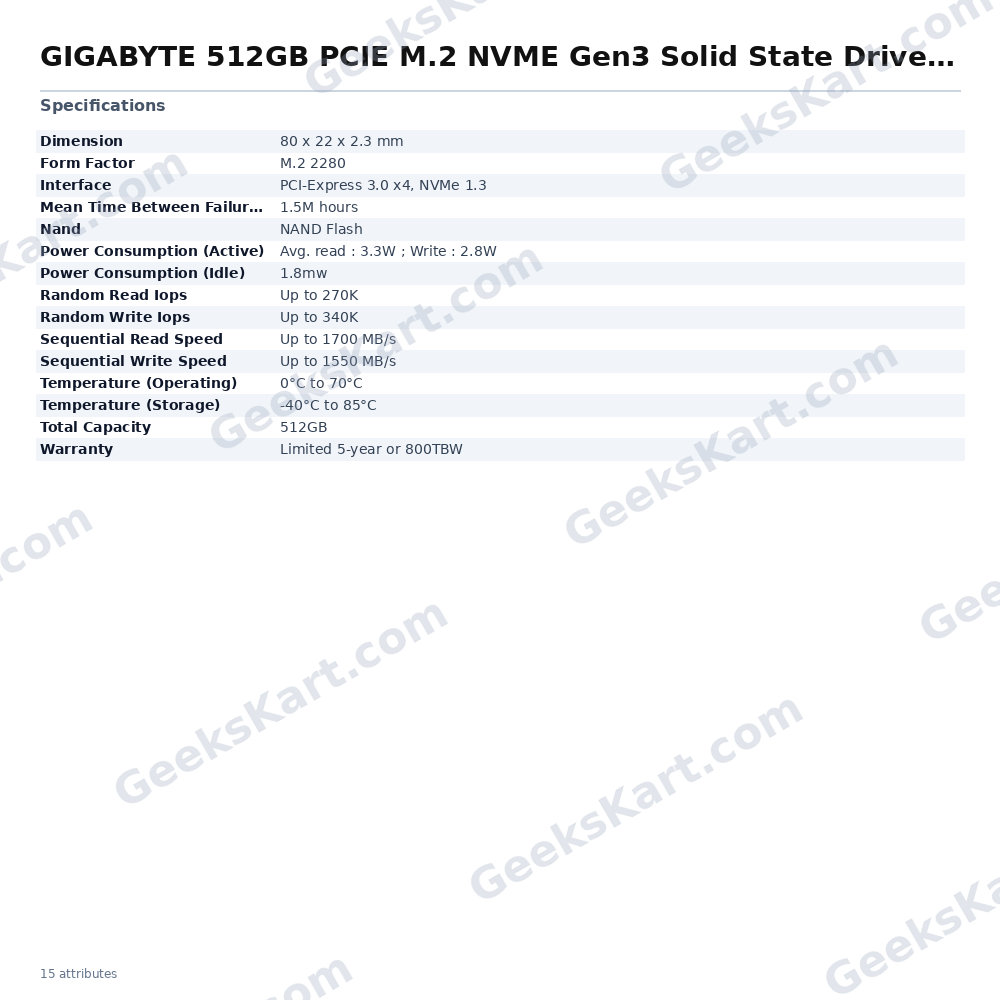

Specifications of GIGABYTE 512GB PCIE M.2 NVME Gen3 Solid State Drive ( SSD )
| Interface | PCI-Express 3.0 x4, NVMe 1.3 |
| Form Factor | M.2 2280 |
| Total Capacity | 512GB |
| Warranty | Limited 5-year or 800TBW |
| NAND | NAND Flash |
| External DDR Cache | N/A |
| Sequential Read speed | Up to 1700 MB/s |
| Sequential Write speed | Up to 1550 MB/s |
| Random Read IOPS | Up to 270K |
| Random Write IOPS | Up to 340K |
| Dimension | 80 x 22 x 2.3 mm |
| Mean time between failure (MTBF) | 1.5M hours |
| Power Consumption (Active) | Avg. read: 3.3W; Write: 2.8W |
| Power Consumption (Idle) | 1.8mw |
| Temperature (Operating) | 0°C to 70°C |
| Temperature (Storage) | -40°C to 85°C |
Datasheet
| Warranty | 5 Years |
|---|---|
| Form Factor | M.2 2280 |
| Interface | PCI-Express 3.0 x4, NVMe 1.3 |
| Nand | NAND Flash |
| Dimension | 80 x 22 x 2.3 mm |
| Total Capacity | 512GB |
| Random Read Iops | Up to 270K |
| Random Write Iops | Up to 340K |
| Sequential Read Speed | Up to 1700 MB/s |
| Temperature (Storage) | -40°C to 85°C |
| Sequential Write Speed | Up to 1550 MB/s |
| Temperature (Operating) | 0°C to 70°C |
| Power Consumption (Idle) | 1.8mw |
| Power Consumption (Active) | Avg. read : 3.3W ; Write : 2.8W |
| Mean Time Between Failure (Mtbf) | 1.5M hours |
