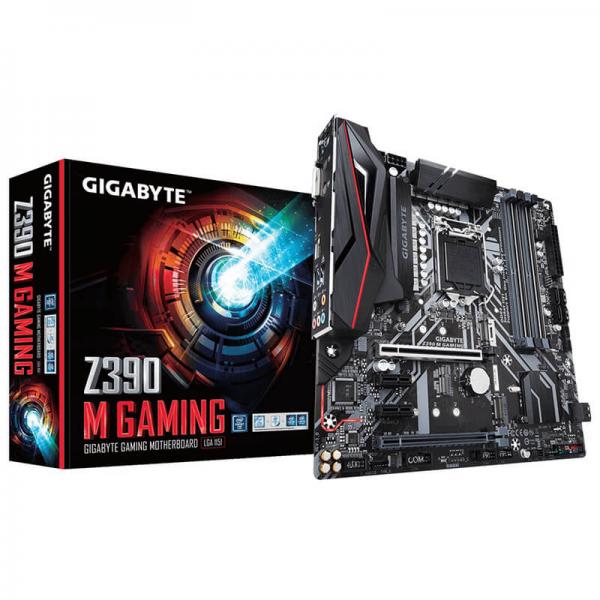

The Gigabyte Z390M Gaming DDR4 is a Micro-ATX motherboard built on the Intel Z390 Express Chipset, designed to support 8th and 9th Generation Intel Core processors — from Celeron and Pentium up through Core i3, i5, i7, and i9 — in the LGA1151 socket. Its compact 24.4 cm x 24.4 cm footprint makes it a practical choice for space-efficient gaming and workstation builds without sacrificing feature density. The board features four DDR4 DIMM slots in a dual-channel configuration, supporting up to 128 GB of system memory (32 GB per DIMM). Memory speed support spans from 2133 MHz up to 4266 MHz via overclocking, with compatibility for XMP profiles and non-ECC unbuffered modules. The 10+2 phase digital VRM design with low RDS MOSFETs is engineered to deliver stable power delivery to demanding multi-core processors. Storage flexibility is a highlight: two M.2 Socket 3 connectors support PCIe x4/x2 NVMe SSDs, with one slot additionally supporting SATA-mode M.2 drives. Six SATA 6Gb/s ports are also available, with support for RAID 0, 1, 5, and 10 configurations. Intel Optane Memory is supported. Connectivity is handled by an Intel Gigabit Ethernet LAN chip (10/100/1000 Mbit) paired with cFosSpeed traffic management software. USB output includes one USB 3.1 Gen 2 Type-C and one USB 3.1 Gen 2 Type-A port on the rear panel, alongside four USB 3.1 Gen 1 ports on the rear and additional internal headers. Onboard display outputs comprise one DVI-D (up to 1920×1200 @ 60 Hz) and one HDMI 1.4 port (up to 4096×2160 @ 30 Hz) for integrated graphics use. Audio is provided by a Realtek ALC892 codec supporting up to 7.1-channel High Definition Audio with S/PDIF output. The board includes Gigabyte’s DualBIOS for resilience, Smart Fan 5 for hybrid PWM/voltage fan control across multiple headers, and an RGB LED strip header for lighting customisation. A Thunderbolt add-in card connector and TPM header are also present. Verified Specifications: – Socket: LGA1151 | Chipset: Intel Z390 Express – Memory: 4x DDR4 DIMM, up to 128 GB, 2133–4266 MHz (O.C.), dual channel, XMP – Expansion: 1x PCIe 3.0 x16, 1x PCIe 3.0 x16 (x4), 2x PCIe 3.0 x1 – Storage: 2x M.2 (PCIe x4/x2 NVMe; one also SATA), 6x SATA 6Gb/s, RAID 0/1/5/10 – USB: 1x USB 3.1 Gen 2 Type-C, 1x USB 3.1 Gen 2 Type-A, 6x USB 3.1 Gen 1, 4x USB 2.0 (internal) – Audio: Realtek ALC892, 7.1-channel HD Audio, S/PDIF out – LAN: Intel GbE (10/100/1000 Mbit) + cFosSpeed – Display: 1x DVI-D, 1x HDMI 1.4 – Form Factor: Micro-ATX, 24.4 cm × 24.4 cm – BIOS: AMI UEFI, DualBIOS – Warranty: 3 Years
GIGABYTE B760 Aorus Elite AX DDR5 Intel Motherboard
₹23,610.00
ASUS Prime H610M-E DDR5 Intel Motherboard
₹7,115.00
GIGABYTE A390M Gaming DDR4 Intel Motherboard
₹20,500.00
The Gigabyte Z390M Gaming DDR4 is a Micro-ATX motherboard with Intel Z390 chipset, LGA1151 socket, support for 8th and 9th Gen Intel Core CPUs, up to 128 GB DDR4, dual M.2, and USB 3.1 Gen 2 — built for compact yet capable gaming systems
Out of stock

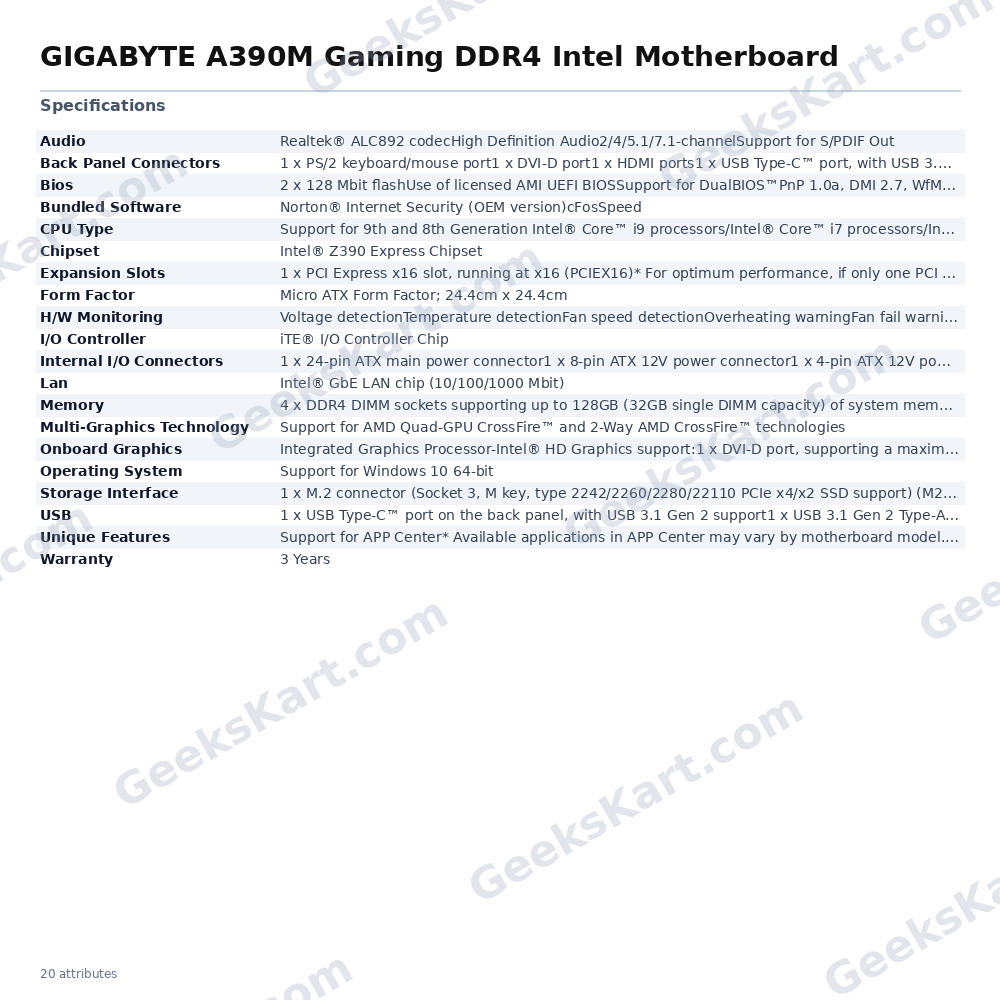

Additional information
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | Intel® Z390 Express Chipset |
| CPU Type | |
| Lan | Intel® GbE LAN chip (10/100/1000 Mbit) |
| USB | 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support1 x USB 3.1 Gen 2 Type-A port (red) on the back panel6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)4 x USB 2.0/1.1 ports available through the internal USB headers |
| Bios | 2 x 128 Mbit flashUse of licensed AMI UEFI BIOSSupport for DualBIOS™PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® ALC892 codecHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out |
| Memory | 4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memoryDual channel memory architectureSupport for DDR4 4266(O.C.) / 4133(O.C.) /4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) /3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) /3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) /2666 / 2400 / 2133 MHz memory modulesSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionOverheating warningFan fail warningFan speed control*Whether the fan speed control function is supported will depend on the cooler you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.1 x PCI Express x16 slot, running at x4 (PCIEX4)2 x PCI Express x1 slots(All of the PCI Express slots conform to PCI Express 3.0 standard.)1 x M.2 Socket 1 connector for an Intel® CNVi (CNVI) |
| Unique Features | Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.3D OSD@BIOSAmbient LEDAutoGreenCloud StationEasyTuneEasy RAIDFast BootGame BoostON/OFF ChargePlatform Power ManagementSmart BackupSmart KeyboardSmart TimeLockSmart HUDSmart SurveySystem Information ViewerUSB BlockerV-TunerSupport for Q-FlashSupport for Xpress Install |
| Bundled Software | Norton® Internet Security (OEM version)cFosSpeed |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz* The DVI-D port does not support D-Sub connection by adapter.1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz* Support for HDMI 1.4 version and HDCP 2.2.Maximum shared memory of 1 GBActual support may vary by CPU |
| Operating System | Support for Windows 10 64-bit |
| Storage Interface | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q)1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P)6 x SATA 6Gb/s connectorsSupport for RAID 0, RAID 1, RAID 5, and RAID 10* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.Intel® Optane™ Memory Ready |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port1 x DVI-D port1 x HDMI ports1 x USB Type-C™ port, with USB 3.1 Gen 2 support1 x USB 3.1 Gen 2 Type-A port (red)4 x USB 3.1 Gen 1 ports1 x RJ-45 port6 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x 4-pin ATX 12V power connector1 x CPU fan header3 x system fan headers1 x RGB LED strip header6 x SATA 6Gb/s connectors2 x M.2 Socket 3 connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB 3.1 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module (SPI_TPM) header1 x Thunderbolt™ add-in card connector1 x serial port header1 x Clear CMOS jumper |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
