GIGABYTE A68 DDT3 AMD Motherboard
MPN GIGABYTE-A68 · Brand Gigabyte · mATX
The Gigabyte GA-F2A68HM-H is a Micro ATX motherboard with AMD A68H chipset, Socket FM2+ support for AMD A-Series and Athlon APUs, DDR3 memory up to 64 GB, USB 3.0, and SATA3 with RAID
Inclusive of GST · GST invoice available
Overview
The Gigabyte GA-F2A68HM-H is a Micro ATX motherboard built around the AMD A68H chipset, designed for Socket FM2+ processors. It is compatible with AMD FM2+ and FM2 A-Series APUs as well as AMD Athlon processors, making it a practical platform for budget-oriented and home-use builds that rely on AMD's integrated graphics solutions. The board features a dedicated audio hardware zone with Gigabyte's Audio Noise Guard design. PCB-layer separation isolates the board's sensitive analog audio circuitry from the rest of the digital components, while separate analog and digital ground planes work to reduce Electromagnetic Interference (EMI), resulting in cleaner audio output through onboard audio. Connectivity is handled by native USB 3.0 ports and SATA3 ports, the latter of which include RAID support for flexible storage configurations. Eight USB ports are available in total across the board. The expansion interface includes a PCIe x16 slot for a discrete graphics card and a PCIe x1 slot for additional expansion cards. Gigabyte's Ultra Durable construction incorporates Solid Capacitors for the CPU VRM section alongside Low RDS MOSFETs rated for higher operating temperatures, contributing to component longevity. The Gigabyte On/Off Charge feature allows connected USB devices to be charged even when the system is powered off, provided the PSU supports standby power. Verifiable Specifications: - Model Number: GA-F2A68HM-H - Chipset: AMD A68H - Socket: FM2+ (supports FM2+ and FM2 APUs, AMD A-Series and Athlon) - Form Factor: Micro ATX (27.94 x 25.4 cm) - Memory: 2 x DDR3 DIMM slots, maximum 64 GB DDR3 SDRAM - Storage Interface: SATA3 with RAID support - USB: 8 ports total, including USB 3.0 - Expansion: 1 x PCIe x16, 1 x PCIe x1 - Model Year: 2015 - Country of Origin: China - In-box contents: Motherboard, 2 x SATA cables

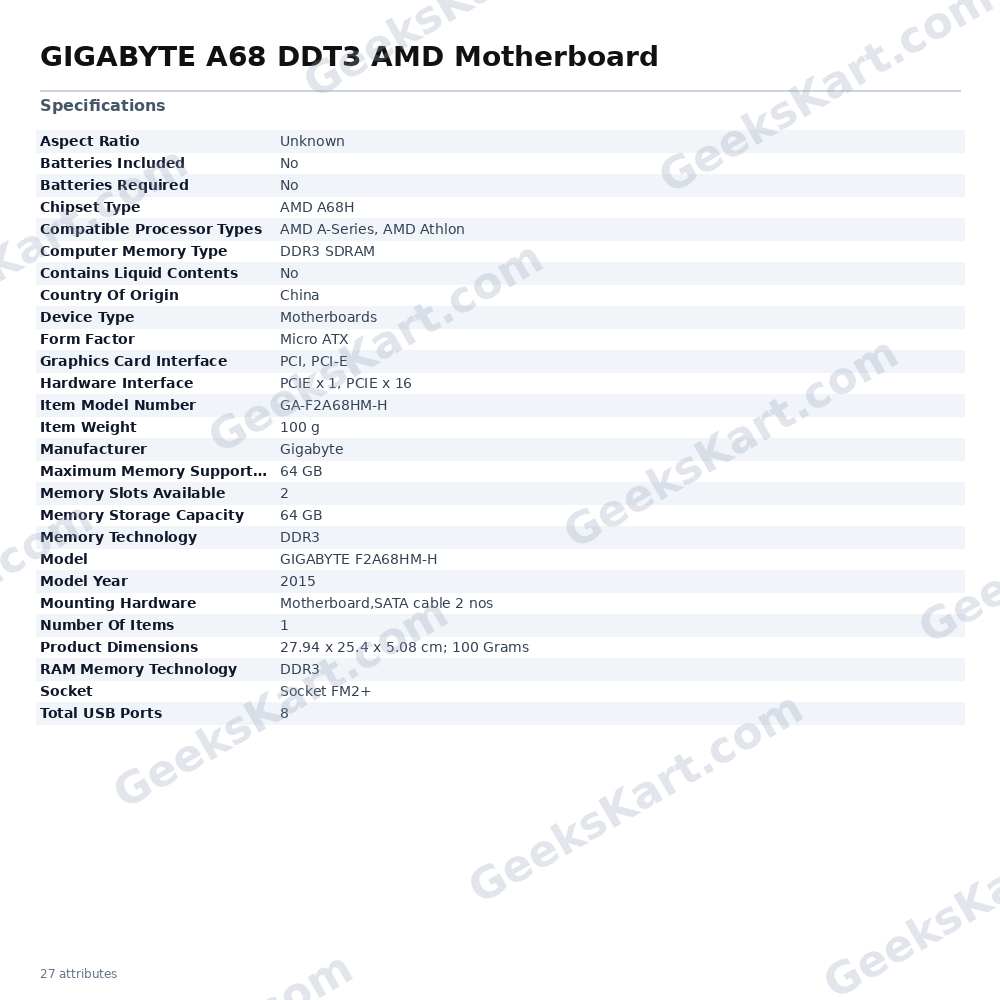

Datasheet
| Form Factor | mATX |
|---|---|
| Socket | FM2+ |
| Model | GIGABYTE F2A68HM-H |
| Model Year | 2015 |
| Device Type | Motherboards |
| Item Weight | 100 g |
| Aspect Ratio | Unknown |
| Chipset Type | AMD A68H |
| Manufacturer | Gigabyte |
| Number Of Items | 1 |
| Total USB Ports | 8 |
| Country Of Origin | China |
| Item Model Number | GA-F2A68HM-H |
| Memory Technology | DDR3 |
| Mounting Hardware | Motherboard,SATA cable 2 nos |
| Batteries Included | No |
| Batteries Required | No |
| Hardware Interface | PCIE x 1, PCIE x 16 |
| Product Dimensions | 27.94 x 25.4 x 5.08 cm; 100 Grams |
| Computer Memory Type | DDR3 SDRAM |
| RAM Memory Technology | DDR3 |
| Memory Slots Available | 2 |
| Graphics Card Interface | PCI, PCI-E |
| Memory Storage Capacity | 64 GB |
| Contains Liquid Contents | No |
| Maximum Memory Supported | 64 GB |
| Compatible Processor Types | AMD A-Series, AMD Athlon |
