GIGABYTE Radeon RX 9070 XT Gaming OC 16GB GDDR6 Graphics Card
MPN GV-R9070XTGAMING-OC-16GD · Brand GIGABYTE
The GIGABYTE Radeon RX 9070 XT Gaming OC 16GB pairs 4096 stream processors and 16 GB of GDDR6 memory with a WINDFORCE triple-fan cooler and a 3060 MHz OC boost clock for demanding 4K gaming and content creation
Inclusive of GST · GST invoice available
Overview

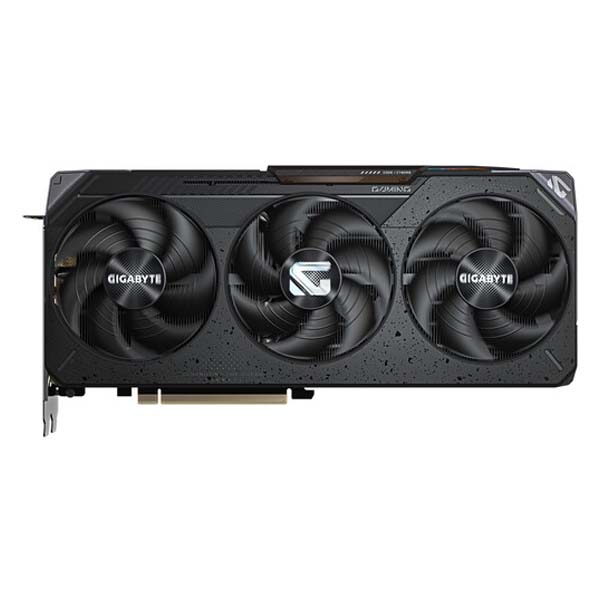

The GIGABYTE Radeon RX 9070 XT Gaming OC 16GB (model GV-R9070XTGAMING-OC-16GD) is a high-performance desktop graphics card built on AMD's Radeon RX 9070 XT GPU. It comes equipped with 4096 stream processors and 16 GB of GDDR6 memory running across a 256-bit memory interface at 20 Gbps effective bandwidth, providing the headroom needed for demanding 4K workloads and high-refresh-rate gaming. The card ships with GIGABYTE's WINDFORCE cooling system, a triple-fan solution that combines Hawk fans with alternate-spinning rotation to reduce turbulence, composite copper heat pipes, a large vapour chamber for heat spreading, server-grade thermal conductive gel between the die and heatsink, 3D active fans that stop under light loads, and a screen-cooling channel across the fin stack. Together these technologies keep thermals low even under extended gaming sessions. In OC mode, the boost clock reaches up to 3060 MHz, compared with the reference card's 2970 MHz boost. The game clock is rated up to 2520 MHz versus 2400 MHz on the reference design. The card supports DirectX 12 Ultimate and OpenGL 4.6, connects via PCIe 5.0, and can drive up to four displays simultaneously at resolutions up to 7680×4320 (8K) through its HDMI and DisplayPort outputs. Power delivery requires three 8-pin connectors and a recommended PSU of at least 850 W. The dual-BIOS switch lets users toggle between Performance and Silent profiles without software, offering a hardware-level flexibility that is useful during extended work sessions or overnight rendering tasks. Aesthetically, the Gaming series draws on a mech-warrior design language, pairing a multi-layered exterior with varied surface finishes and a sliding side plate for build customisation. Onboard RGB lighting supports 16.7 million colour options and synchronises with other devices through GIGABYTE CONTROL CENTER. A reinforced metal backplate with a bent edge, fastened to the I/O bracket, adds structural rigidity to the card. The card carries a 3-year warranty. Verifiable specifications at a glance: - GPU: AMD Radeon RX 9070 XT - Stream processors: 4096 - Memory: 16 GB GDDR6, 256-bit interface, 20 Gbps - Boost clock (OC): up to 3060 MHz | Reference: 2970 MHz - Game clock (OC): up to 2520 MHz | Reference: 2400 MHz - PCIe: 5.0 - Max resolution: 7680×4320 - Max displays: 4 - API support: DirectX 12 Ultimate, OpenGL 4.6 - Power connectors: 3 × 8-pin - Recommended PSU: 850 W - Warranty: 3 years

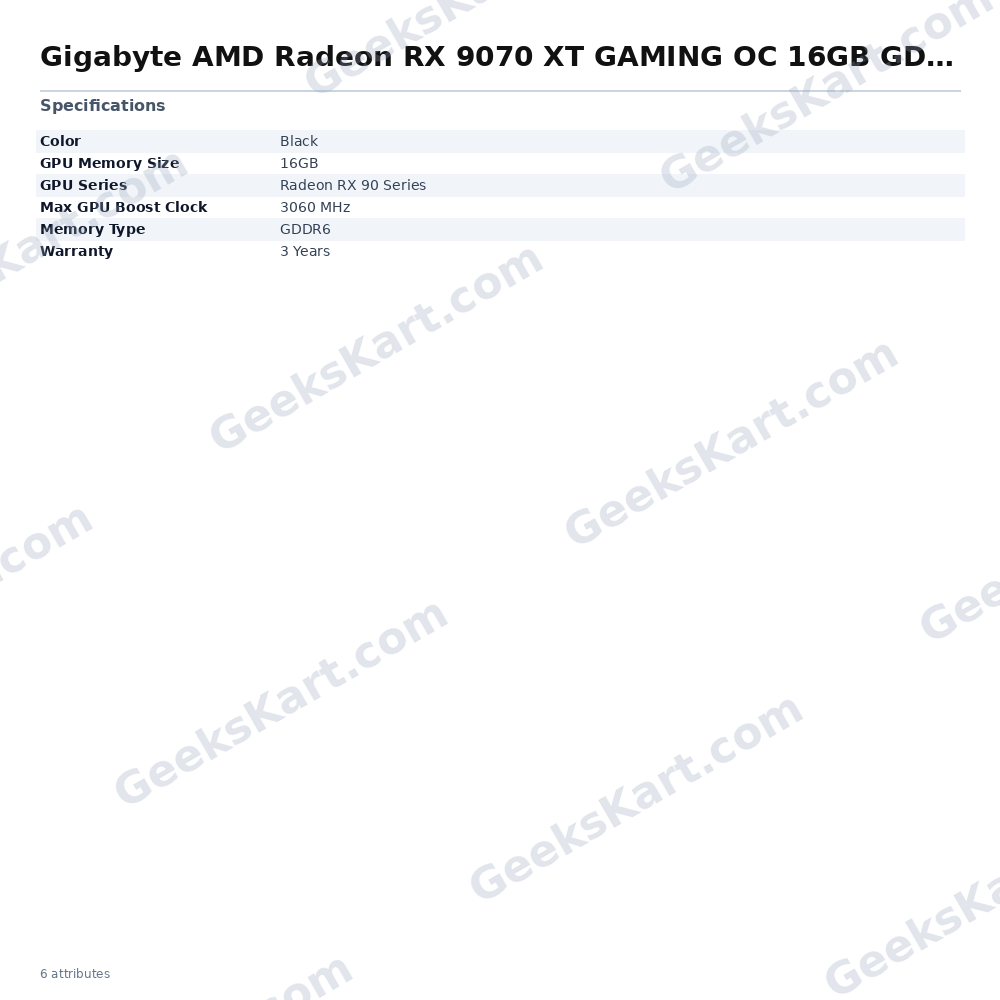

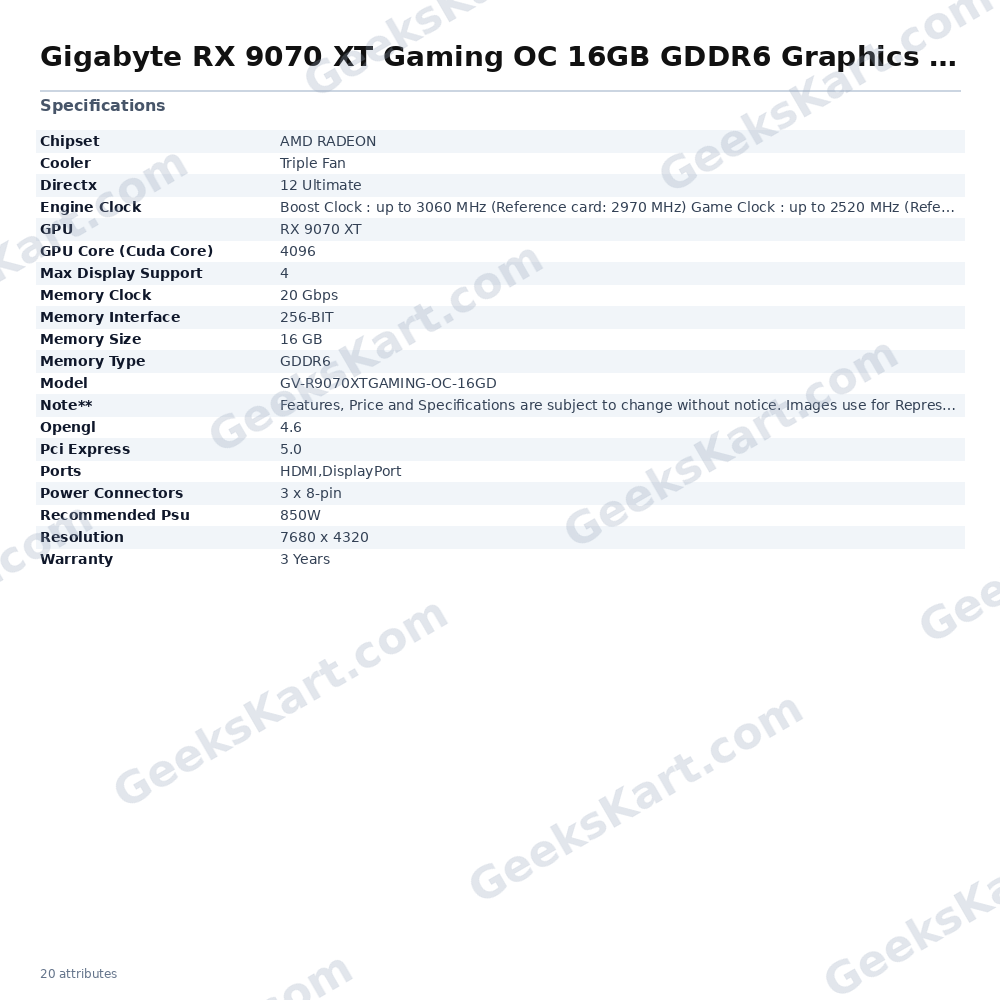

Datasheet
| Memory Type | GDDR6 |
|---|---|
| Warranty | 3 Years |
| Chipset | AMD RADEON |
| Memory Size | 16 GB |
| GPU | RX 9070 XT |
| Memory Clock | 20 Gbps |
| Recommended PSU | 850W |
| Resolution | 7680 x 4320 |
| Model | GV-R9070XTGAMING-OC-16GD |

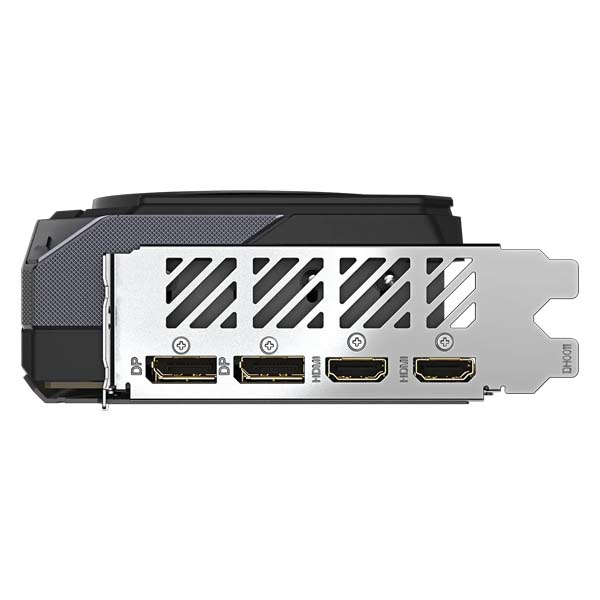

| Ports | HDMI,DisplayPort |
| Cooler | Triple Fan |
| Note** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only |
| Opengl | 4.6 |
| Directx | 12 Ultimate |
| Pci Express | 5.0 |
| Engine Clock | Boost Clock : up to 3060 MHz (Reference card: 2970 MHz) Game Clock : up to 2520 MHz (Reference card: 2400 MHz) |
| Memory Interface | 256-BIT |
| Power Connectors | 3 x 8-pin |
| Max Display Support | 4 |
| GPU Core (Cuda Core) | 4096 |
