GIGABYTE Aorus 12000 1TB M.2 NVME Gen5 Solid State Drive ( SSD )
MPN GIGABYTE-AORUS-12000-1TB-M-2-NVME-GEN5-SSD-b020f8 · Brand Gigabyte · M.2 2280
Features of GIGABYTE Aorus 12000 1TB M.2 NVME Gen5 Solid State Drive ( SSD ) Form Factor: M.2 2280 Interface: PCI-Express 5.0 x4, NVMe 2.0 Total Capacity: 1000GB Sequential Read Speed: up to 11,700 MB/s Sequential Write speed: up to 9,500 MB/s M.2 Thermal Guard XTREME with Nanocarbon coating Warranty: Limited 5-years Top-tier performance power by PCIe 5.0 x4 controller Power by the PCIe Gen5.0 x4 controller Phison PS5026-E26 and brand-new 232-layer 3D TLC NAND Flash, AORUS Gen5 12000 SSD d
Inclusive of GST · GST invoice available
Overview
Features of GIGABYTE Aorus 12000 1TB M.2 NVME Gen5 Solid State Drive ( SSD )
- Form Factor: M.2 2280
- Interface: PCI-Express 5.0 x4, NVMe 2.0
- Total Capacity: 1000GB
- Sequential Read Speed : up to 11,700 MB/s
- Sequential Write speed : up to 9,500 MB/s
- M.2 Thermal Guard XTREME with Nanocarbon coating
- Warranty: Limited 5-years
Top-tier performance power by PCIe 5.0 x4 controller
Power by the PCIe Gen5.0 x4 controller Phison PS5026-E26 and brand-new 232-layer 3D TLC NAND Flash, AORUS Gen5 12000 SSD delivers top-tier performance: sequential read/write speeds up to 11,700/9,500 MB/s. Aim at PC enthusiasts, gamers, and rendering professionals, GIGABYTE Aorus 12000 1TB M.2 NVME Gen5 Solid State Drive ( SSD ) gives users faster data transferring and a lower-latency gaming experience.
Cutting edge speed
GIGABYTE SSD PS5026-E26 controller is built with the advanced 12nm process, ensuring sufficient computing power. Also, it supports up to 8 NAND Flash channels with 32CEs, DDR4 caching and complies with the NVMe 2.0 standard. AORUS Gen5 12000 SSD offers approximately 60% faster in read throughput and up to 38% higher write throughput than PCIe Gen4.0 x4.
NAND Flash Selected for High Quality and Performance
Leveraging the superior throughput and high-quality combination that 3D TLC NAND provides, AORUS Gen5 12000 SSD brings a better experience in work.

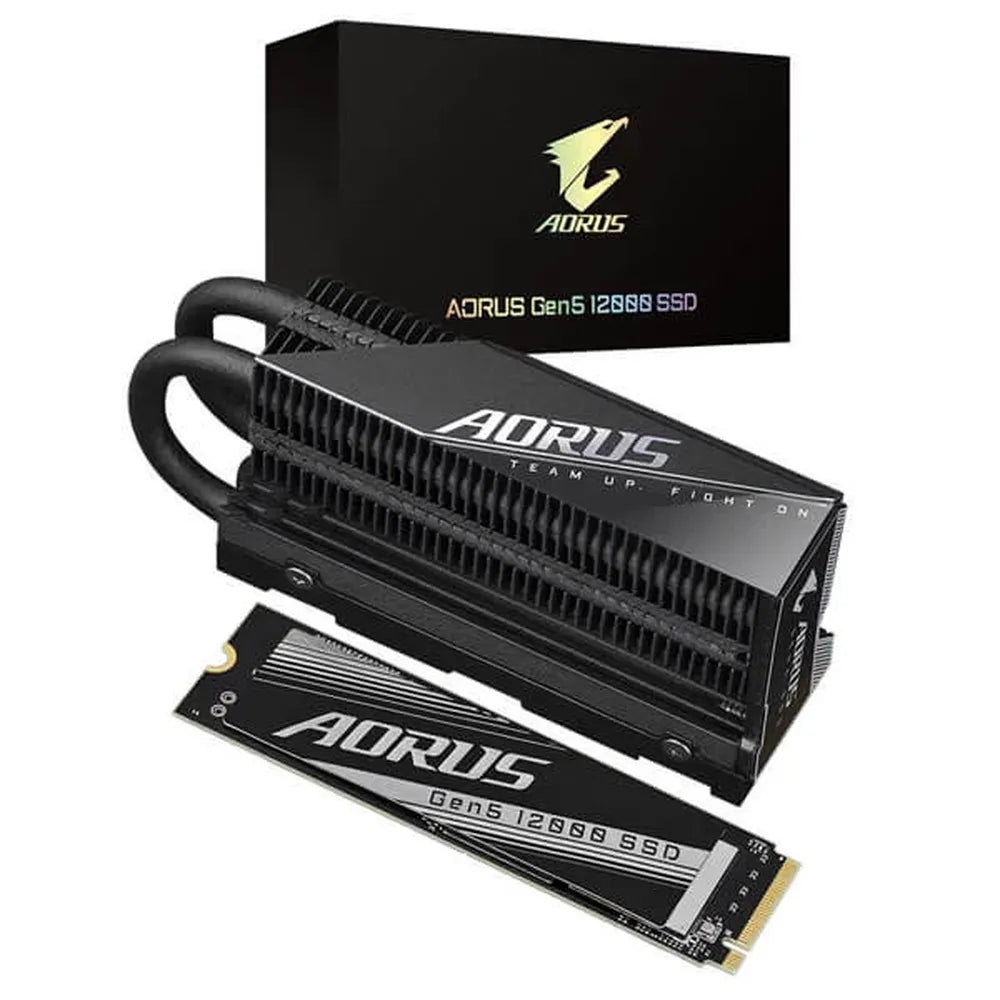

M.2 Thermal Guard XTREME with Nanocarbon Coating
AORUS Gen5 12000 Internal SSD offer with an optional M.2 Thermal Guard XTREME which is made up of two heatpipes and stacked fins with advanced thermal technology Nanocarbon coating for maximum heat dissipation efficiency. Applied with dual side high conductivity thermal pad ensures the heat transfers to the stacked fins. The M.2 Thermal Guard XTREME is the best solution in passive airflow conditions when your personal computer adopts a CPU AIO water cooler. Get the lowest 1TB SSD Price at our website.

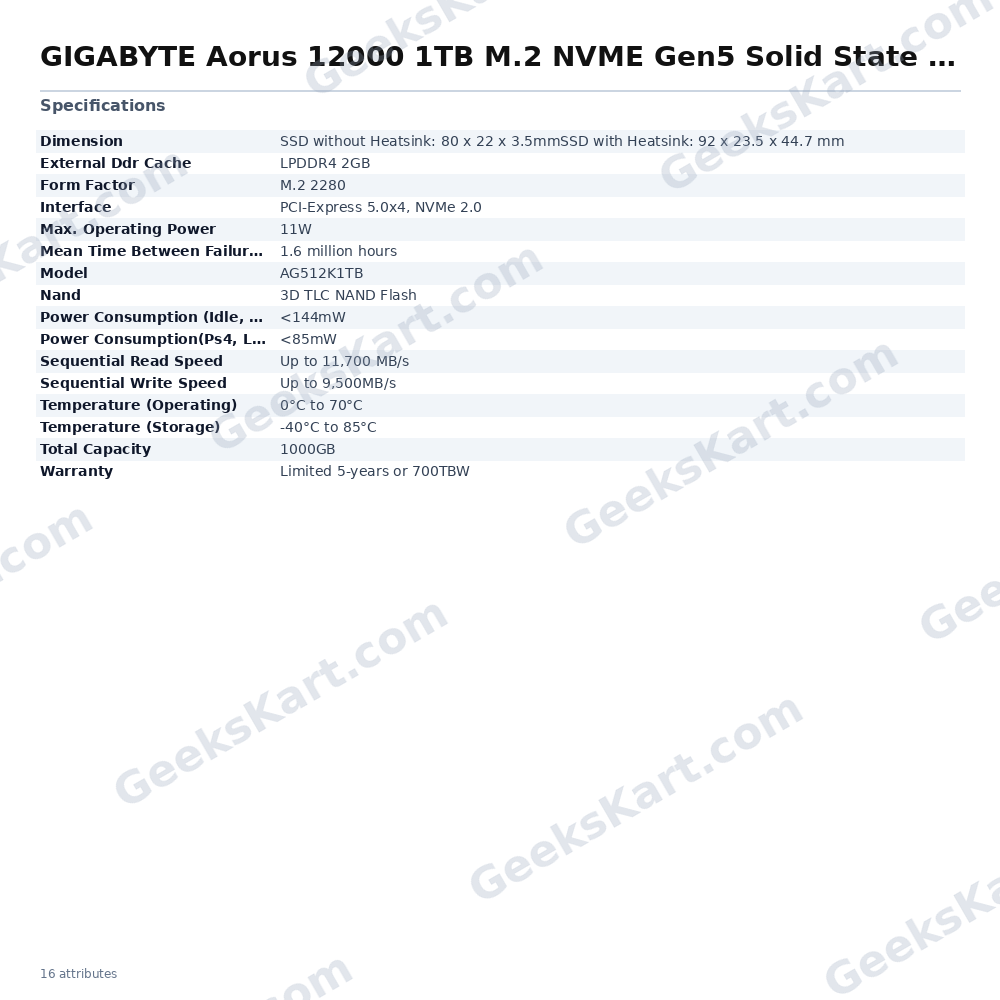

Specifications of GIGABYTE Aorus 12000 1TB M.2 NVME Gen5 Solid State Drive ( SSD )
| Model Number | AG512K1TB |
| Interface | PCI-Express 5.0x4, NVMe 2.0 |
| Form Factor | M.2 2280 |
| Total Capacity | 1000GB |
| NAND | 3D TLC NAND Flash |
| External DDR Cache | LPDDR4 2GB |
| Sequential Read speed | Up to 11,700 MB/s |
| Sequential Write speed | Up to 9,500MB/s |
| Dimension | SSD without Heatsink: 80 x 22 x 3.5mm SSD with Heatsink: 92 x 23.5 x 44.7 mm |
| Mean time between failure (MTBF) | 1.6 million hours |
| Max. Operating Power | 11W |
| Power Consumption (Idle, PS3) | <144mW |
| Power Consumption(PS4, L1.2) | <85mW |
| Temperature (Operating) | 0°C to 70°C |
| Temperature (Storage) | -40°C to 85°C |
| Warranty | Limited 5-years or 700TBW |
| Note | *** Features, Price, Specifications are subject to change without notice. |
Datasheet
| Warranty | 5 Years |
|---|---|
| Form Factor | M.2 2280 |
| Interface | PCI-Express 5.0×4, NVMe 2.0 |
| Nand | 3D TLC NAND Flash |
| Dimension | SSD without Heatsink: 80 x 22 x 3.5mmSSD with Heatsink: 92 x 23.5 x 44.7 mm |
| Model | AG512K1TB |
| Total Capacity | 1000GB |
| External Ddr Cache | LPDDR4 2GB |
| Max. Operating Power | 11W |
| Sequential Read Speed | Up to 11,700 MB/s |
| Temperature (Storage) | -40°C to 85°C |
| Sequential Write Speed | Up to 9,500MB/s |
| Temperature (Operating) | 0°C to 70°C |
| Power Consumption(Ps4, L1.2) | <85mW |
| Power Consumption (Idle, Ps3) | <144mW |
| Mean Time Between Failure (Mtbf) | 1.6 million hours |
